User Manual for Adder ADDERLink XD150FX KVM Extender Click to enlarge the picture
Contents of the user manual for the Adder ADDERLink XD150FX KVM Extender
- Product category: KVM Extenders Adder
- Brand: Adder
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adder KVM Extenders
 |
User manual for the Adder ADDERLink XD150FX KVM Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adder product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adder user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adder product will considerably shorten its lifespan!
|

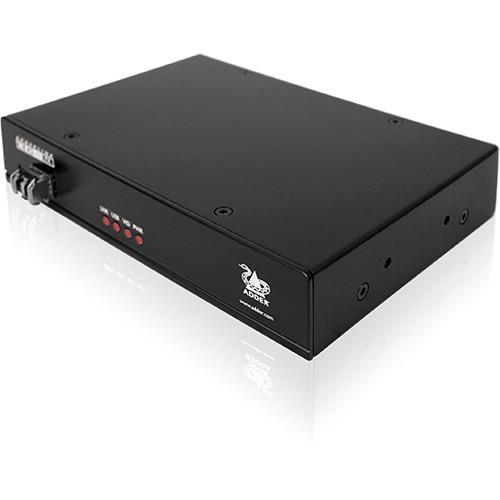

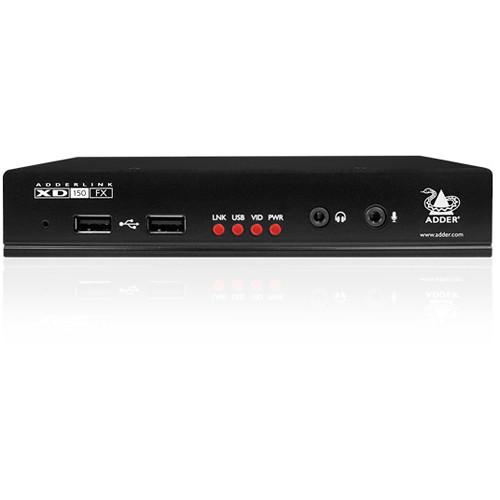

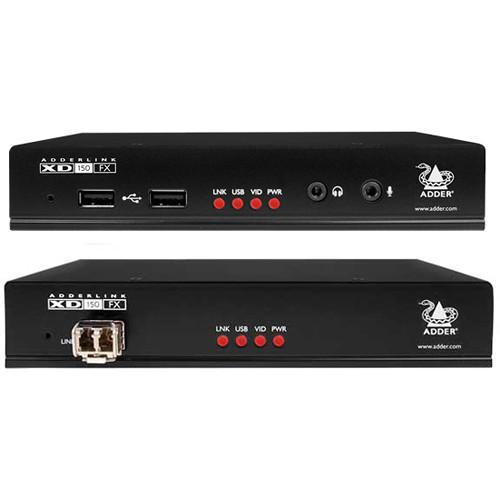

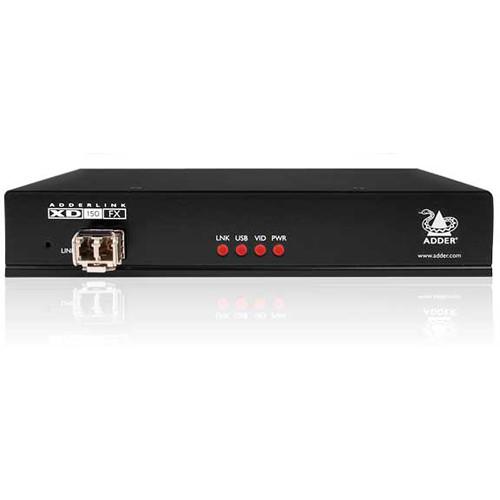

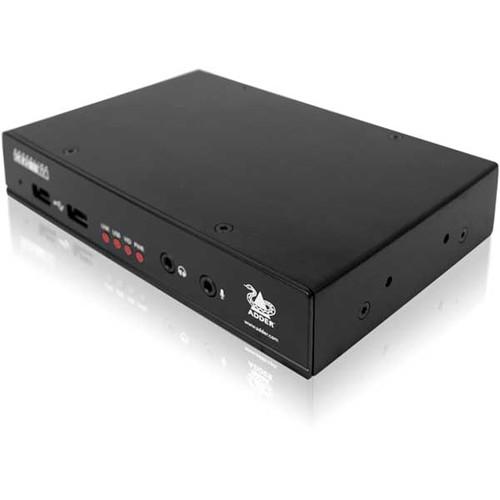

Product description Extend a system's video, audio, and USB connections up to 2.5 Miles away, utilizing single-mode networking technology, with the ADDERLink XD150FX KVM Extender from Adder. This system transfers these signals over a single single-mode cable, helping you reduce cable clutter over a long distance. It supports resolutions of up to 2560 x 1600 over a DVI port and offers four USB 2.0 ports for your keyboard, mouse, printer, and other devices. Speakers, headsets, and microphones are also supported with onboard 3.5mm audio jacks. For power, two external adapters are included, and each unit features a power locking design that helps prevent disconnects. In addition, the transmitter and receiver units come with option ports so you can connect sold-separately Ethernet to RS232 serial adapters. - Digital Video, Real-Time Control
- The video extension system is visually lossless with no visible artifacts or latency, providing quality and control while separated from your computer.
- One Duplex LC Fiber Cable Required
- Video, USB 2.0, and audio signals pass along one duplex LC fiber cable.
- Extension Distances up to 2.5 Miles
- The unit is fitted with SFP cages allowing different types of single-mode cables to be utilized—distance is dependent on the cable type.
9/125 OS1 and OS2 Cables: 13,123.4' (4,000m) - USB 2.0 Connectivity
- Enables connection of any USB human interface device from mice and keyboards through to touch screens, graphics tablets, jog shuttles, joysticks, storage drives, webcams, and headsets, and 3D explorers.
- EDID Management
- The extender uses an EDID management system that allows the monitor's info to be passed back to the computer.
- REST API
- A REST (REpresentational State Transfer) API is available to which authorized 3rd party control systems can interface.
- Web Interface Control
- The XD150FX can be controlled and monitored via a web interface. Temperature and status are viewable, and each function can be individually controlled. Web interface security is by HTTP digest authentication (RFC 2617) with username and password as requested.
- Plug and Play
- The AdderLink XD150FX extender is delivered in a zero-config state, so you can plug-in the units and start working with them straight away. There is no need for drivers or software to be installed.
- Bidirectional CD-Quality Analog Audio
- The unit delivers CD-quality stereo audio (24-bit sampling at 96 kHz) between the local and remote units. Microphones and headphones are also supported.
In the Box Adder ADDERLink XD150FX KVM Extender (Single-Mode) 2 x Power Adapters 2 x SFP Modules with LC Connectors Dual-Link DVI-D Video and USB Cable 2 x 9.8' (3m) 3.5mm Audio Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder ADDERLink XD150FX KVM Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

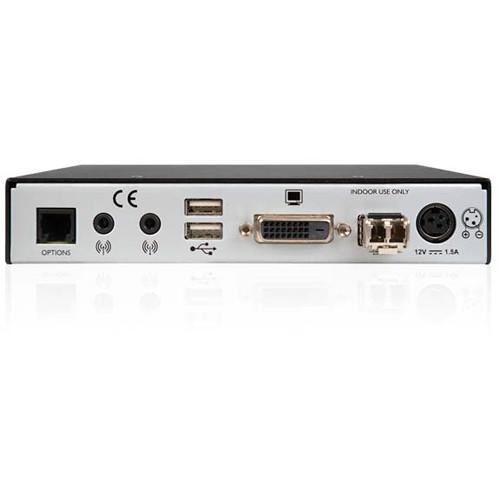

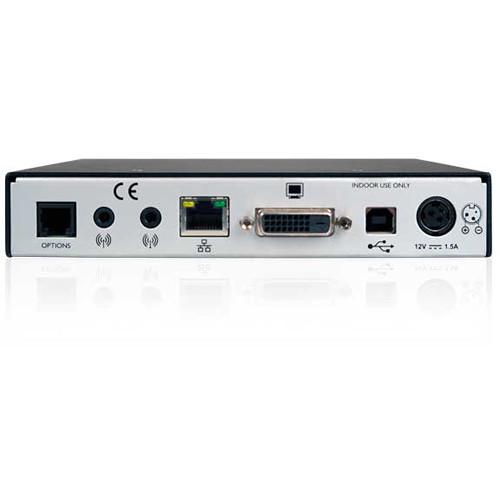

Technical parametersAdder XD150FX-SM-US Specs | | | Ports | Transmitter:
1 x 3.5 mm Audio (Output)
1 x DVI (Input)
1 x 3.5 mm Audio (Input)
1 x USB Type-B USB 2.0 Female (Input)
1 x RJ45 Options (Input)
1 x RJ45 Management (Input)
1 x LC Fiber (Output)
Receiver:
1 x 3.5 mm Audio (Output)
1 x DVI (Output)
1 x 3.5 mm Audio (Input)
4 x USB Type-A USB 2.0 (Output)
1 x RJ45 Options (Output)
1 x LC Fiber (Input) | | Supported Resolutions | 2560 x 1600 @ 60 Hz | | | | DC Input Power | 12 VDC at 1.5 A | | Power Consumption | 18 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.7 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Certifications | CE, FCC, as per Manufacturer | | Dimensions | 6.7 x 1.2 x 4.7" / 169.0 x 31.0 x 120.0 mm | | Weight | 1.3 lb / 0.6 kg |
