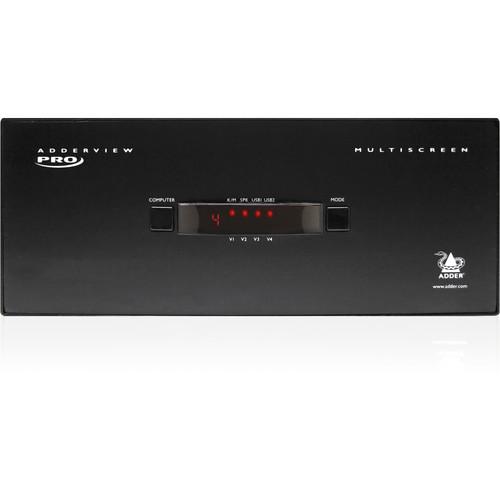

Product description Multi-Monitors: Maximizing Multitasking Read More Designed with the ability to support three video heads per channel, the ADDERView 4 PRO VGA Video & Peripheral Switch from Adder allows users to control up to four computer systems and share peripherals between them using a single display, keyboard, and mouse. VGA support enables analog display compatibility at resolutions such as 1920 x 1200 or 1920 x 1440 for more intensive applications such as media/graphic design or detailed medical imaging. This version of the AV4PRO-VGA provides three total VGA connectors per channel, allowing multiple video streams from each computer to be switched to three video monitors.
In addition to straight switching, the KVM, speakers, and two separate USB devices attached to AV4PRO-VGA units can either be switched in unison, as normal, or mixed between any of the systems to suit your current tasks. For example, you could be creating emails on one system, listening to a soundtrack from another, sending documents to a printer from a third, and performing a separate task with another USB peripheral on the fourth. The front panel on the AV4PRO-VGA helps make it easy to identify and control which peripherals should connect to each system. Additionally, USB True Emulation technology helps ensure the full characteristics of the connected keyboard and mouse are fully utilized on each system, including extra function keys, wheels, buttons, and controls that are commonly found on modern keyboards and mice.
The ADDERView 4 PRO VGA Video & Peripheral Switch is well-suited for those working in architecture, graphic design, post-production, animation, broadcast, and medical industries. Supported operating systems include Windows, Mac, DOS, Linux, UNIX, BSD, Sun, NetWare, and more. Included is a 20W power adapter, a power cord, and four self-adhesive rubber feet. General Features - VGA with Extended Profile DDC EDID
- The ADDERView PRO features high-resolution VGA video with extended profile DDC EDID, which helps ensure that the switched graphics card is optimized to work with your screen. The VGA capabilities enable users to work at resolutions including 1920 x 1200 or 1920 x 1440 for intensive applications such as media/graphic design or detailed medical imaging.
- True Emulation USB 2.0 Technology
- The AV4PRO-VGA features Adder's USB True Emulation technology. Emulated USB provides rapid, reliable switching action and makes keyboard-hotkey and mouse switching possible. It also allows the use of extra function keys, wheels, buttons, and controls that are commonly found on modern keyboards and mice. Users in architecture, graphic design, post-production, animation, and more often need to use specialized interface devices, such as graphics tablets, 3D explorers, joysticks, and so on. The AV4PRO-VGA helps make all this possible.
- Independent Simultaneous Device Selection
- Flexibility is key, and this switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another. You can, of course, still switch all connected devices to any one of the connected computers, as with any other KVM switch.
- Channel Selection Options
- The ADDERView PRO can be switched using selectable keyboard hotkeys, 3-button mice, or the front panel controls. Optionally, you can also use the RC4 remote switch to make your selection. These switching options allow you to rapidly reassign connected devices to any of the connected computers.
- USB 2.0 High Speed Device Support
- A vast range of USB devices can be connected to the ADDERView. From non-standard human interface devices to printers and scanners, this helps provide flexibility. For example, you could be scanning a set of documents onto one computer while working on another and printing from yet another, all at the same time. The USB 2.0 switching action has been carefully engineered to help ensure computer reliability when connecting and disconnecting USB devices.
- Options Port for Control, Synchronization, and Upgrades
- An 'Options' port enables the AV4PRO-VGA to be remotely switched using simple ASCII codes. When the channel is switched, the same ASCII codes are echoed to the 'Options' port and so, by linking 'Options' ports, two or more units can be switched in synchrony. The port enables a 4-button switch unit (RC4) to be used with the ADDERView PRO. The same port can also be used to upgrade the firmware.
- USB Remote Wakeup
- The USB Remote Wakeup feature is fully supported. Almost any connected computer can go into sleep mode and be awakened (when its channel is selected) as soon as you press a key or move the mouse. The computer and peripherals must support the USB Remote Wakeup feature.
In the Box Adder ADDERView 4 PRO VGA Video & Peripheral Switch (Three Video Heads) 20W Power Adapter Power Cord 4 x Self-Adhesive Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder ADDERView 4 PRO VGA Video & Peripheral Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdder AV4PRO-VGA-TRI-US Specs | | | CPU Connections | 16 x 15-Pin VGA
4 x USB 2.0 Type-B
4 x 3.5 mm Audio | | Console Connections | 3 x 15-Pin VGA
2 x USB (Unspecified Version) Type-A (Keyboard/Mouse)
1 x 3.5 mm Audio | | Control Connections | 1 x RJ45 | | USB Peripheral/Firmware Connections | 2 x USB 2.0 Type-A | | Operating System Support | DOS, Linux, NetWare, Windows, macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 5 VDC at 2 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Certifications | CE, FCC, as per Manufacturer | | Dimensions | 9.2 x 4.5 x 1.7" / 233.0 x 115.0 x 44.0 mm |
