Adder ADDERView 4 PRO VGA Video

Search your instruction manual in PDF to download

User Manual for Adder ADDERView 4 PRO VGA Video & Peripheral Switch

Click to enlarge the picture
Adder ADDERView 4 PRO VGA Video & Peripheral Switch Contents of the user manual for the Adder ADDERView 4 PRO VGA Video
  • Product category: KVM Switches Adder
  • Brand: Adder
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Adder KVM Switches

User manual for the Adder ADDERView 4 PRO VGA Video contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Adder product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Adder user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Adder product will considerably shorten its lifespan!



Product description

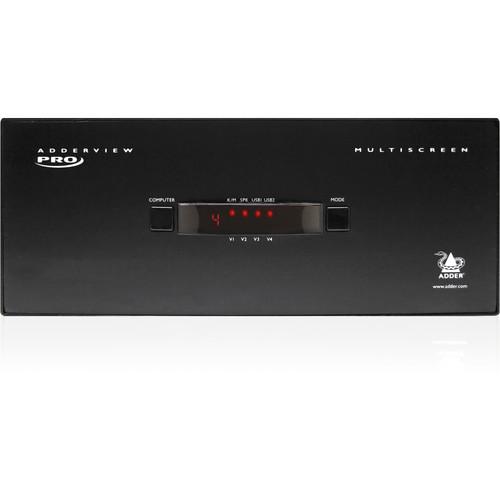

Multi-Monitors: Maximizing Multitasking Read More Designed with the ability to support two video heads per channel, the ADDERView 4 PRO VGA Video & Peripheral Switch from Adder allows users to control up to four computer systems and share peripherals between them using a single display, keyboard, and mouse. VGA support enables analog display compatibility at resolutions such as 1920 x 1200 or 1920 x 1440 for more intensive applications such as media/graphic design or detailed medical imaging. This version of the AV4PRO-VGA provides two total VGA connectors per channel, allowing multiple video streams from each computer to be switched to two video monitors.

In addition to straight switching, the KVM, speakers, and two separate USB devices attached to AV4PRO-VGA units can either be switched in unison, as normal, or mixed between any of the systems to suit your current tasks. For example, you could be creating emails on one system, listening to a soundtrack from another, sending documents to a printer from a third, and performing a separate task with another USB peripheral on the fourth. The front panel on the AV4PRO-VGA helps make it easy to identify and control which peripherals should connect to each system. Additionally, USB True Emulation technology helps ensure the full characteristics of the connected keyboard and mouse are fully utilized on each system, including extra function keys, wheels, buttons, and controls that are commonly found on modern keyboards and mice.

The ADDERView 4 PRO VGA Video & Peripheral Switch is well-suited for those working in architecture, graphic design, post-production, animation, broadcast, and medical industries. Supported operating systems include Windows, Mac, DOS, Linux, UNIX, BSD, Sun, NetWare, and more. Included is a 20W power adapter, a power cord, and four self-adhesive rubber feet.

General Features

    VGA with Extended Profile DDC EDID
  • The ADDERView PRO features high-resolution VGA video with extended profile DDC EDID, which helps ensure that the switched graphics card is optimized to work with your screen. The VGA capabilities enable users to work at resolutions including 1920 x 1200 or 1920 x 1440 for intensive applications such as media/graphic design or detailed medical imaging.
    True Emulation USB 2.0 Technology
  • The AV4PRO-VGA features Adder's USB True Emulation technology. Emulated USB provides rapid, reliable switching action and makes keyboard-hotkey and mouse switching possible. It also allows the use of extra function keys, wheels, buttons, and controls that are commonly found on modern keyboards and mice. Users in architecture, graphic design, post-production, animation, and more often need to use specialized interface devices, such as graphics tablets, 3D explorers, joysticks, and so on. The AV4PRO-VGA helps make all this possible.
    Independent Simultaneous Device Selection
  • Flexibility is key, and this switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another. You can, of course, still switch all connected devices to any one of the connected computers, as with any other KVM switch.
    Channel Selection Options
  • The ADDERView PRO can be switched using selectable keyboard hotkeys, 3-button mice, or the front panel controls. Optionally, you can also use the RC4 remote switch to make your selection. These switching options allow you to rapidly reassign connected devices to any of the connected computers.
    USB 2.0 High Speed Device Support
  • A vast range of USB devices can be connected to the ADDERView. From non-standard human interface devices to printers and scanners, this helps provide flexibility. For example, you could be scanning a set of documents onto one computer while working on another and printing from yet another, all at the same time. The USB 2.0 switching action has been carefully engineered to help ensure computer reliability when connecting and disconnecting USB devices.
    Options Port for Control, Synchronization, and Upgrades
  • An 'Options' port enables the AV4PRO-VGA to be remotely switched using simple ASCII codes. When the channel is switched, the same ASCII codes are echoed to the 'Options' port and so, by linking 'Options' ports, two or more units can be switched in synchrony. The port enables a 4-button switch unit (RC4) to be used with the ADDERView PRO. The same port can also be used to upgrade the firmware.
    USB Remote Wakeup
  • The USB Remote Wakeup feature is fully supported. Almost any connected computer can go into sleep mode and be awakened (when its channel is selected) as soon as you press a key or move the mouse. The computer and peripherals must support the USB Remote Wakeup feature.
In the Box Adder ADDERView 4 PRO VGA Video & Peripheral Switch (Two Video Heads)
  • 20W Power Adapter
  • Power Cord
  • 4 x Self-Adhesive Rubber Feet
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Adder ADDERView 4 PRO VGA Video & Peripheral Switch in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Adder AV4PRO-VGA-DUAL-US Specs

    CPU Connections 16 x 15-Pin VGA
    4 x USB 2.0 Type-B
    4 x 3.5 mm Audio
    Console Connections 2 x 15-Pin VGA
    2 x USB 2.0 Type-A (Keyboard/Mouse)
    1 x 3.5 mm Audio
    Control Connections 1 x RJ45
    USB Peripheral/Firmware Connections 2 x USB 2.0 Type-A
    Operating System Support DOS, Linux, NetWare, Windows, macOS/OS X
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    DC Input Power 5 VDC at 2 A
    Operating Temperature 32 to 104°F / 0 to 40°C
    Certifications CE, FCC, as per Manufacturer
    Dimensions 9.2 x 4.5 x 1.7" / 233.0 x 115.0 x 44.0 mm
