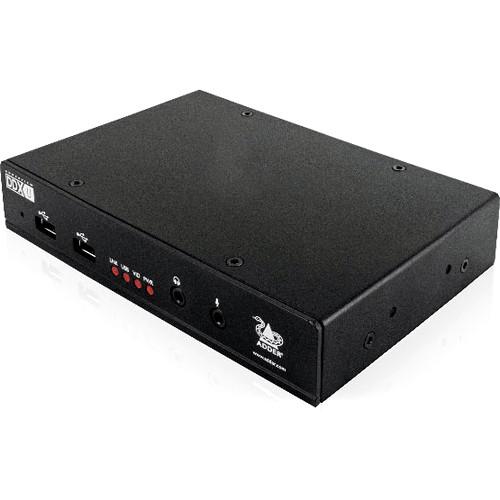

User Manual for Adder ADDERView DDX USR Receiver Click to enlarge the picture
Contents of the user manual for the Adder ADDERView DDX USR Receiver
- Product category: KVM Extenders Adder
- Brand: Adder
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adder KVM Extenders
 |
User manual for the Adder ADDERView DDX USR Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adder product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adder user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adder product will considerably shorten its lifespan!
|

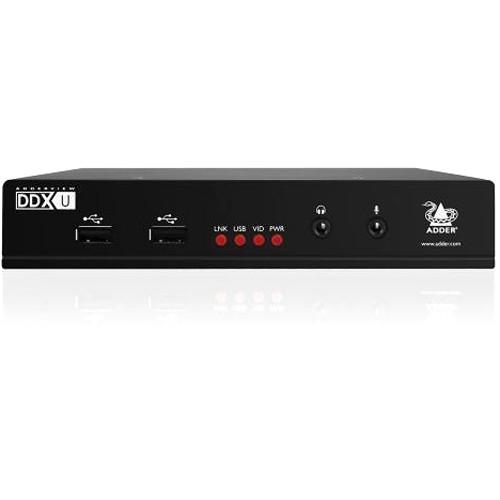

Product description Quickly and easily extend the reach of a single computer with the ADDERView DDX USR Receiver from Adder. Plug a mouse, keyboard, and monitor into this receiver to access a computer at distances up to 164' away. The receiver comes equipped with dual USB 2.0 ports, a single 6p6c options port, a single network port, and three 3.5mm audio jacks. Once the plug-and-play device is configured, users benefit from support for display resolutions up to 1920 x 1080 with real-time video. Additionally, the Adder Receiver supports EDID (Extended Display Identification Data) to help determine the type of monitor connected to ensure the video is rendered properly. - Uncompressed Video Technology with Ultra-Low Latency
- The DDX delivers every pixel of every video frame to ensure enhanced digital video all the time. Resolutions up to 1920 x 1200 at 60 Hz are supported, including 1080p. Uncompressed video technology ensures ultra-low latency and an at the computer experience.
- Start with One, Graduate to Many
- The DDX-USR module provides an easy solution for extending a single computer and its peripherals to a user. However, when you introduce a DDX switch between them, suddenly you have the basis of an expandable switching matrix. Just add further DDX-CAM and DDX-USR modules for each new computer system and user. This enhanced flexibility safeguards your investment and provides a simple progression path.
- USB 2.0
- USB 2.0 connectivity enables the connection of any USB human interface device (HID) from mice and keyboards through to Windows 8 compliant touch screens.
- Simple CATx Cabling
- The DDX uses widely available SFTP cable to connect the user console 164' and computer dongles 33' to the central switch.
- Single Cable Up to 164'
- Video, USB2.0 HID only and analog audio all pass along a single CATx cable which can be up to 164' in length. The achievable distance is dependent on the monitor resolution and the number of connection breaks for patch panels and wall plates.
- EDID Management
- The extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
- Plug-and-Play
- The AdderLink DDX-USR extender is delivered in a zero-config state so you can plug the units in and start working with them straight away. There is no need for drivers or software to be installed.
- USB Audio Composite Device
- Bi-directional, CD quality audio (stereo channel 16 bit sampled at 48 kHz) from transmitter to receiver. Line out and headphones with microphone input is supported.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder ADDERView DDX USR Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

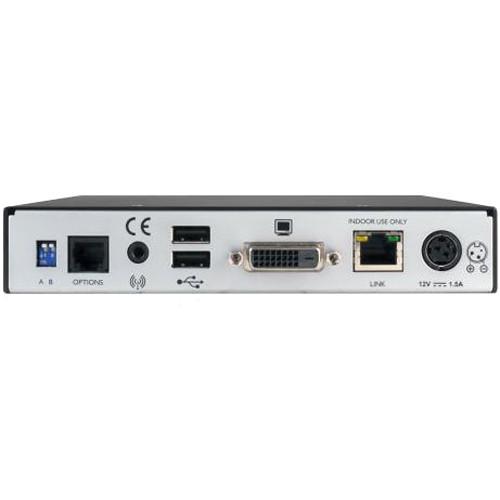

Technical parametersAdder DDX-USR-US Specs | | | Ports | Receiver:
1 x DVI-D (Output)
4 x USB Type-A USB 2.0 (Output)
2 x 3.5 mm Audio (Output)
1 x RJ45 (Input)
1 x 3.5 mm Audio (Input)
1 x RJ45 Control (Input) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | | | DC Input Power | 12 VDC at 1.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.7 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Certifications | CE, FCC, as per Manufacturer | | Dimensions | 6.5 x 1.2 x 4.8" / 170.0 x 31.0 x 120.0 mm | | Weight | 1.3 lb / 0.6 kg |
