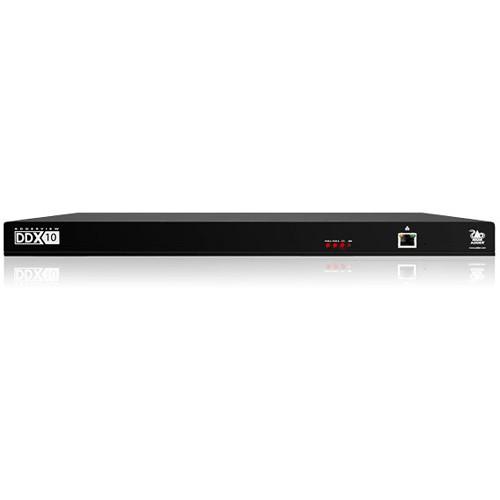

User Manual for Adder ADDERView DDX10 10-Port KVM Switch Click to enlarge the picture
Contents of the user manual for the Adder ADDERView DDX10 10-Port KVM Switch
- Product category: KVM Switches Adder
- Brand: Adder
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adder KVM Switches
|
User manual for the Adder ADDERView DDX10 10-Port KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adder product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adder user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adder product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The ADDERView DDX10 10-Port KVM Switch from Adder comes with ten Ethernet ports that can be configured for user or computer connections, letting you create a mixed user/computer KVM configuration based upon need. The ADDERView DDX10 is designed to support resolutions of up to 1920 x 1200 @ 60 Hz, including touchscreens, as well as keyboards and mice. Adder offers a multi-view OSD solution, which provides a selection of permitted computers direct on your screen. This menu lets you choose from 4 different connection modes, letting you work safely and securely. In addition, the DDX10 comes with a 9-pin RS232 serial port along with a Gigabit Ethernet jack for joining a network.
Optional Computer Access Modules (CAMs) and USR modules are available for connecting the DDX10 to your computer systems and peripherals, such as monitors, keyboards, and mice. The CAMs are designed to form a connection between the DDX10 and your various systems by offering a USB connection and an Ethernet port as well as either a DVI, VGA, or DisplayPort interface. For your peripherals, the user-supplied DDX-USR module switches feature a DVI-D output along with four USB ports. To complete the connection, each USR module has an Ethernet port that connects to the DDX10 via a shielded networking cable and functions from up to 164' (50m) away. - 10-Port KVM Matrix
- The AdderView DDX10 is a flexible 10-port KVM Matrix that can be re-configured to match your requirements. Each port can be configured as a computer input or user output. Once configured, simply connect your Computer Access Modules (DDX CAM) and User stations (DDX USR). Modules are available in DVI, VGA, and DisplayPort options. The DDX10 supports a maximum of nine computer connections and one user or a maximum of nine users with one computer.
- High-Density KVM Matrix
- The DDX10 supports optional "zero U" computer access modules and a high-density 1RU KVM Matrix switch.
- Lossless HD Video Support
- The DDX10 delivers lossless HD video at resolutions of up to 1920 x 1200 @ 60 Hz providing a real-time, "at the PC" experience. Frame-rate matching makes this product suitable for applications using nonstandard refresh rates.
- Optimal USB Technology
- The DDX10 emulates a fully featured keyboard, mouse, and touchscreen experience to all computers, maintaining fast switching speeds and instant USB interaction.
- Multi-View On-Screen Thumbnail Display for Computer Selection
- The unique multi-view OSD provides users with a live preview of permitted computers direct on their screen. Users can highlight their selection using a mouse cursor. Once highlighted, the user can choose from 4 different connection modes.
- Access Permissions
- Each user station can be granted different access permissions on a per-computer basis. Once computer access is permitted, administrators can select which levels of control will be available, allowing users to choose between View only, Shared, Exclusive, or Private connection modes.
- Exclusive and Private Connection Modes
- The DDX10 enables users to work safely and securely with a choice of connection modes. In Exclusive mode, users have full KVM control while being able to share video content with other colleagues. By connecting in Private mode, users can work in privacy.
- Multi-Head Video Support
- DDX10 transmitters and receivers can be grouped to form "Computers" and "Consoles" that support dual-head and quad-head connectivity.
- Secure Web Control Interface
- System administrators can securely access the DDX10 management tools to configure system settings, set access privileges, and control video connections. The interface is secured using HTTPS, and administrators must login each time they connect. An API enables switch control from a 3rd-party control system.
In the Box Adder ADDERView DDX10 10-Port KVM Switch Power Adapter 19" Rack Mount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder ADDERView DDX10 10-Port KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdder DDX10-US Specs | Connections | 10 x Ethernet ports for computer and user connections
1 x Gigabit Ethernet
1 x 9-way D-type RS232 options port
2 x locking, 3-pin power jack | | Power Input | 100 to 240 VAC, 50/60 Hz, 0.7 A | | Power Output | 12 VDC, 18 W | | Maximum Video Resolution | 1920 x 1200 | | Maximum Extension Distance | 164' / 50 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Certifications | CE, FCC | | System Requirements | Internet Explorer 10 or 11
Firefox 24 ESR and above
Chrome 43 and above | | Cabling | Requires Shielded Twisted Pair (STP) cables | | Dimensions (W x H x D) | 17.1 x 1.2 x 6.3" / 435 x 31 x 160 mm | | Weight | 4.2 lb / 1.9 kg |
