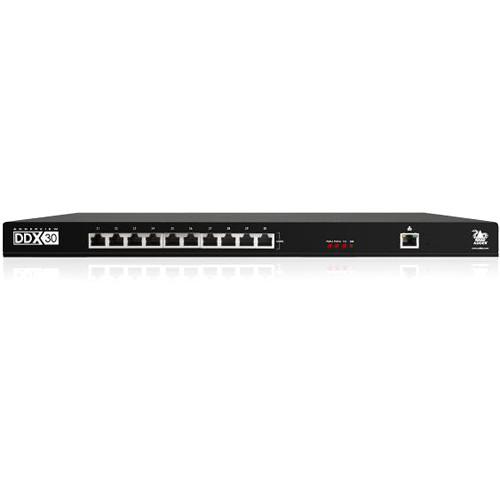

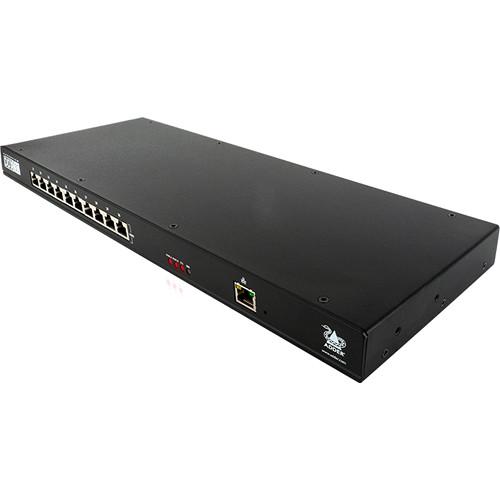

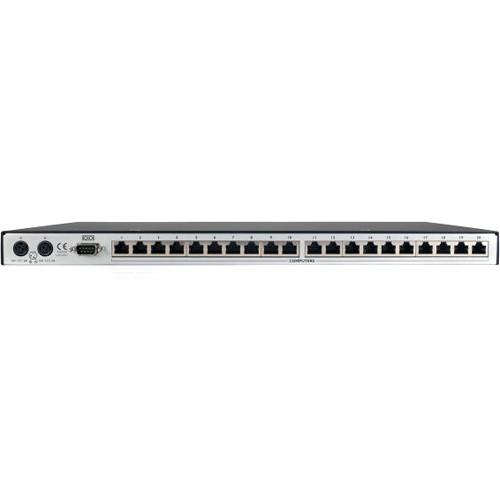

Product description Multi-Monitors: Maximizing Multitasking Read More Designed for industries such as air traffic control and management, audio/visual, banking, broadcast, command and control, data centers, defense, government/federal, medical, and more, the AdderView DDX30 from Adder provides a total of 30 ports, with ten user-console ports on its front panel (seven fixed, three configurable) and twenty configurable ports along its rear panel, helping to make sharing multiple host computers among multiple users simple and straightforward. Each computer that you'd like to share must be linked, via its USB and video (DVI, DisplayPort, or VGA) ports, to Adder's DDX-CAM module, while each set of peripherals must be connected to a DDX-USR module (modules sold separately). All computers and consoles must then be linked with a Cat6a or Cat7 cable with S/FTP, S/STP, or PiMF shielding to a central DDX switch. After this setup is completed, users can gain access to any computer, so long as they are granted privileges by the admin.
If your installation requires a greater number of computers or user consoles, the allocation of select standard ports can be altered. As noted, 23 of the ports can be configured to function as either computer or user-console ports. Included with the ADDERView DDX30 is a power adapter, a power cord, four self-adhesive rubber feet, two 19" rackmount brackets, and four screws. General Features - Flexible 30-Port KVM Matrix
- AdderView DDX30 is a flexible 30-port KVM Matrix that can be re-configured to match your exact requirements. In addition to 7 fixed user ports, there are 23 flexi-ports that can be configured as computer inputs or user outputs. Once the ports are configured, simply connect your separately available Computer Access Modules and User stations.
- High-Density KVM Matrix
- The DDX range features 'zero U' computer access modules and a high-density 1 RU KVM Matrix switch, which is well-suited for installation in heavily populated server racks for small- and medium-sized applications.
- Lossless HD Video Support
- The DDX30 delivers lossless HD video at resolutions of up to 1920 x 1200 @ 60Hz, providing a real-time 'at the PC' experience. Frame-rate matching makes this product a good fit for applications using non-standard refresh rates.
- USB Technology
- The DDX30 emulates a fully featured keyboard, mouse, and touchscreen to all computers, maintaining fast switching speeds and USB interaction. Touchscreens need to be Windows 8 compliant.
- Multi-View On-Screen Thumbnail Display for Computer Selection
- The multi-view OSD provides users with a live preview of permitted computers directly on their screen. Users can highlight their selection using a mouse cursor. Once highlighted, the user has the ability to choose from four different connection modes.
- Access Permissions
- Each user station can be granted different access permissions on a per-computer basis. Once computer access is permitted, administrators can select which levels of control will be available, allowing users to choose between View Only, Shared, Exclusive, or Private connection modes.
- Exclusive and Private Connection Modes
- The DDX30 enables users to work safely and securely with a choice of connection modes. In Exclusive mode, users have full KVM control while being able to share video content with other colleagues. By connecting in Private mode, users can work in privacy.
- Multi-Head Video Support
- DDX30 transmitters (CAMs) and receivers (USRs) can be grouped to form 'Computers' and 'Consoles' that support dual-head and quad-head connectivity. For example, the DDX30 can be used to build a 5-user x 10-computer dual-head matrix.
- 'Zero U' Computer-Access Modules (CAMs)
- Powered by USB, the digital computer-access modules sit in-line and are suitable for racks with limited available space. Modules are available in DVI, VGA, and DisplayPort options.
- Secure Web Control Interface
- System administrators can securely access the DDX30 management tools to configure system settings, set access privileges, and control video connections. The interface is secured using HTTPS, and administrators must login each time they connect. An API enables switch control from a 3rd-party control system.
In the Box Adder AdderView DDX30 30-Port KVM Matrix Switch Power Adapter Power Cord 4 x Self-Adhesive Rubber Feet 2 x Rackmount Brackets (19.0" / 48.3cm) 4 x Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder AdderView DDX30 30-Port KVM Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdder DDX30-US Specs | | | Control Connections | 1 x RJ45
1 x DB-9 (RS232) | | Supported Resolutions | 1920 x 1200 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.7 A | | DC Input Power | 12 VDC at 0.67 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Certifications | CE, FCC, as per Manufacturer | | Dimensions | 17.1 x 1.2 x 6.3" / 435.1 x 31.0 x 160.0 mm | | Weight | 4.2 lb / 1.9 kg |
