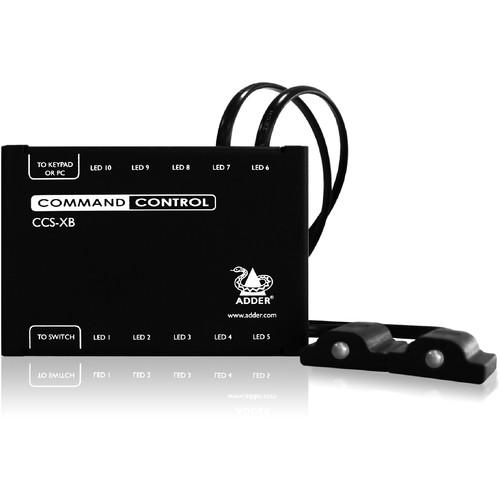

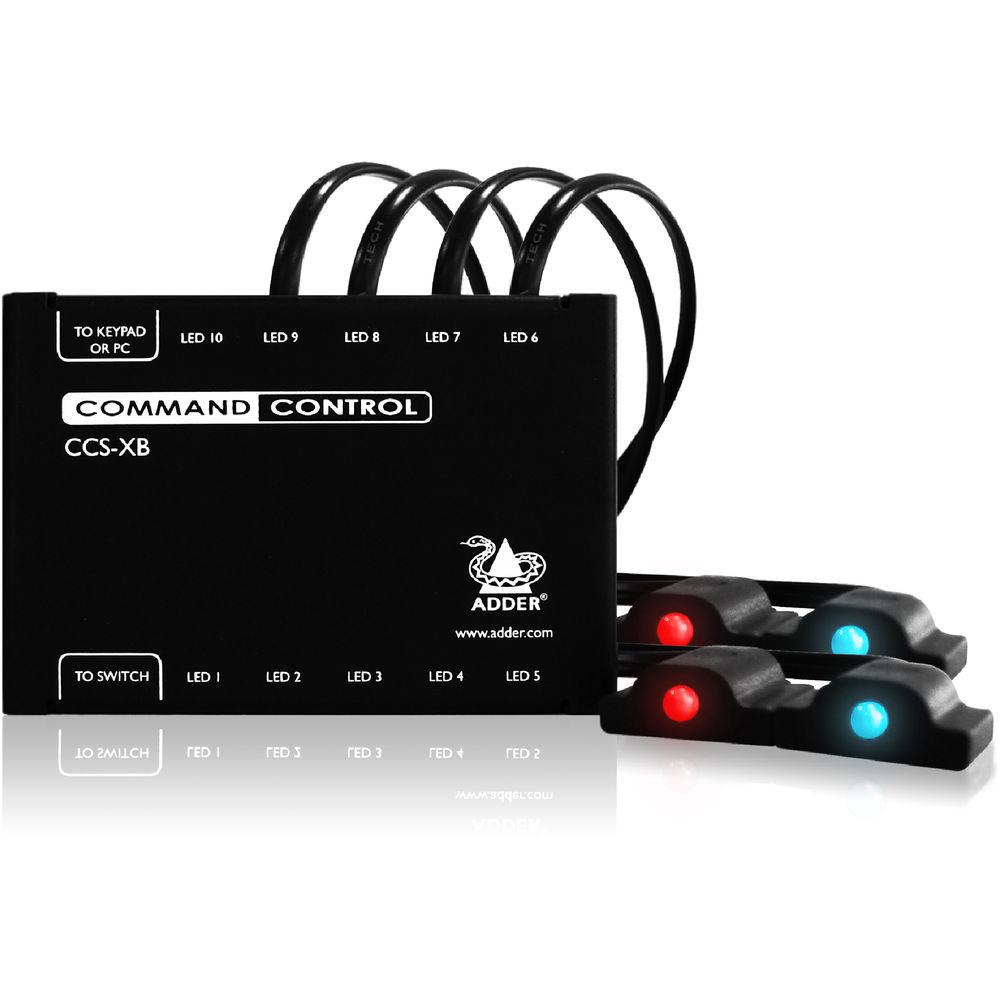

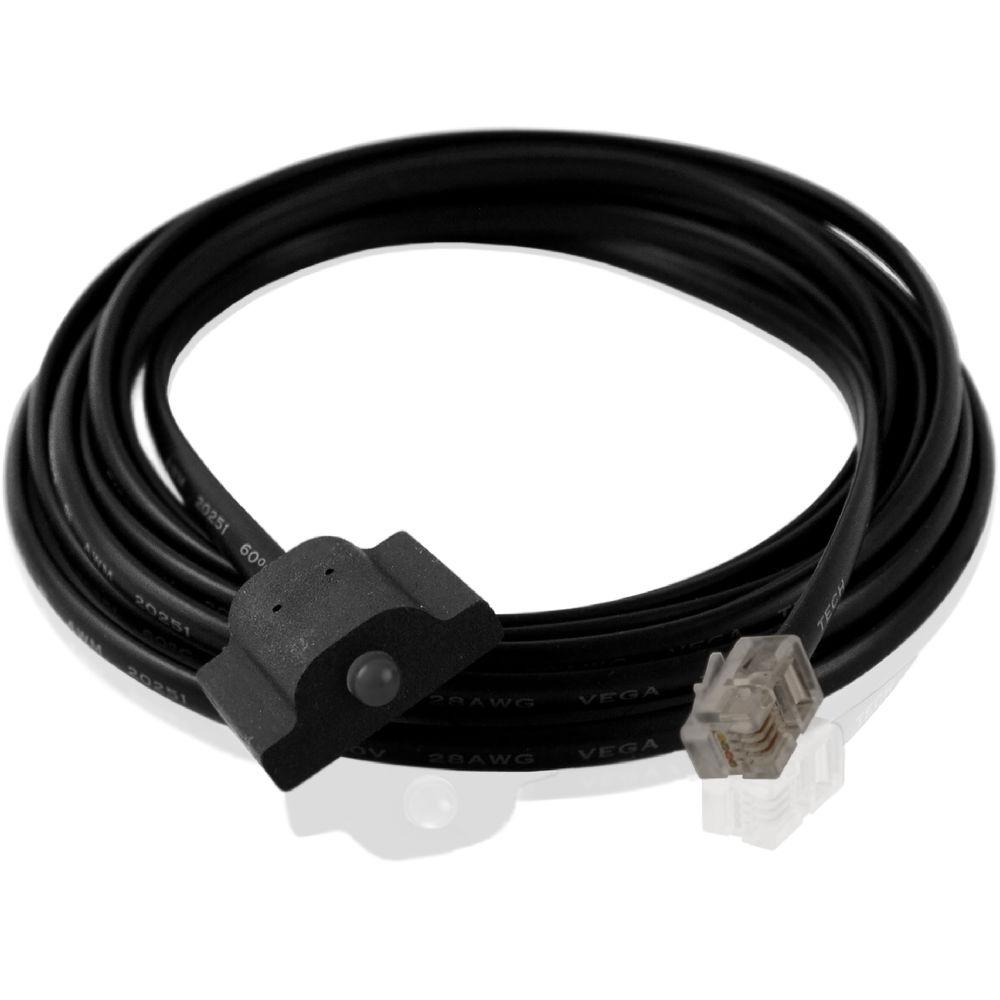

Product description Designed for use with their CCS4-USB or CCS-PRO4 switches with firmware 2.0 or above, the LED Light Module Kit from Adder ships with four LED modules which can be attached to individual video monitor displays. By having an LED indicator mounted on each display, users will be able to more easily identify which screen is currently being controlled. As a CCS-XB module actives, the corresponding LED indicator also activates. Additionally, users will also be able to adjust the LED color and color intensity for each screen using Adder's set up application, and these units also provide loop-through support for additional accessories, such as the RC4 or RC8 remote control units. Each LED module is pre-wired with 9.8' / 3.0m of cable, allowing greater flexibility in routing it to the desired screen. In order to make it easier to tuck the cabling into channeling, wall gaps, or similar room features, it follows an oval profile. In addition to the LED modules, included with this manufacturer's kit is a CCS-XB controller, a CATx link cable, and self-adhesive rubber feet. General Features - Each LED is housed in a sturdy molded enclosure and provided with an adhesive pad allowing the module to be fixed onto a screen bezel or other surface as required.
- The CCS-XB is interface-powered, making installation user-friendly.
- Well-suited for air traffic control & management, audio/visual, banking, broadcast, command & control, defense, government/federal, and medical industries.
In the Box Adder LED Light Module Kit for the CCS4-USB CCS-XB Controller 4 x Individual LED Cables for CCS-XB Light Module Kit ywzzbfqzuwabey CATx Link Cable Self-Adhesive Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adder LED Light Module Kit for the CCS4-USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdder CCS-XB Specs | Hardware Compatibility | For use with CCS4-USB and CCS-PRO4 devices with firmware 2.0 or above | | Connection to CCS4 | 10p10c connector via cable VSC46 (CATx link cable) | | Connections to Desk | 10 x 6p6c connectors for the CCS-LED modules
1 x 10p10c connectors for the upgrade cable or remote control RC4 4-button switch | | Material of Construction | Metal | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Approvals | CE, FCC | | Dimensions | 3.7 x 1.2 x 2.6" / 94.0 x 30.5 x 66.0 mm | | Weight | 1.65 lb / 0.75 kg |
