User Manual for Adesso EasyTouch 630RB Smart Card & Magnetic Stripe Reader Keyboard Click to enlarge the picture
Contents of the user manual for the Adesso EasyTouch 630RB Smart Card &
- Product category: Keyboards Adesso
- Brand: Adesso
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adesso Keyboards
|
User manual for the Adesso EasyTouch 630RB Smart Card & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adesso product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adesso user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adesso product will considerably shorten its lifespan!
|

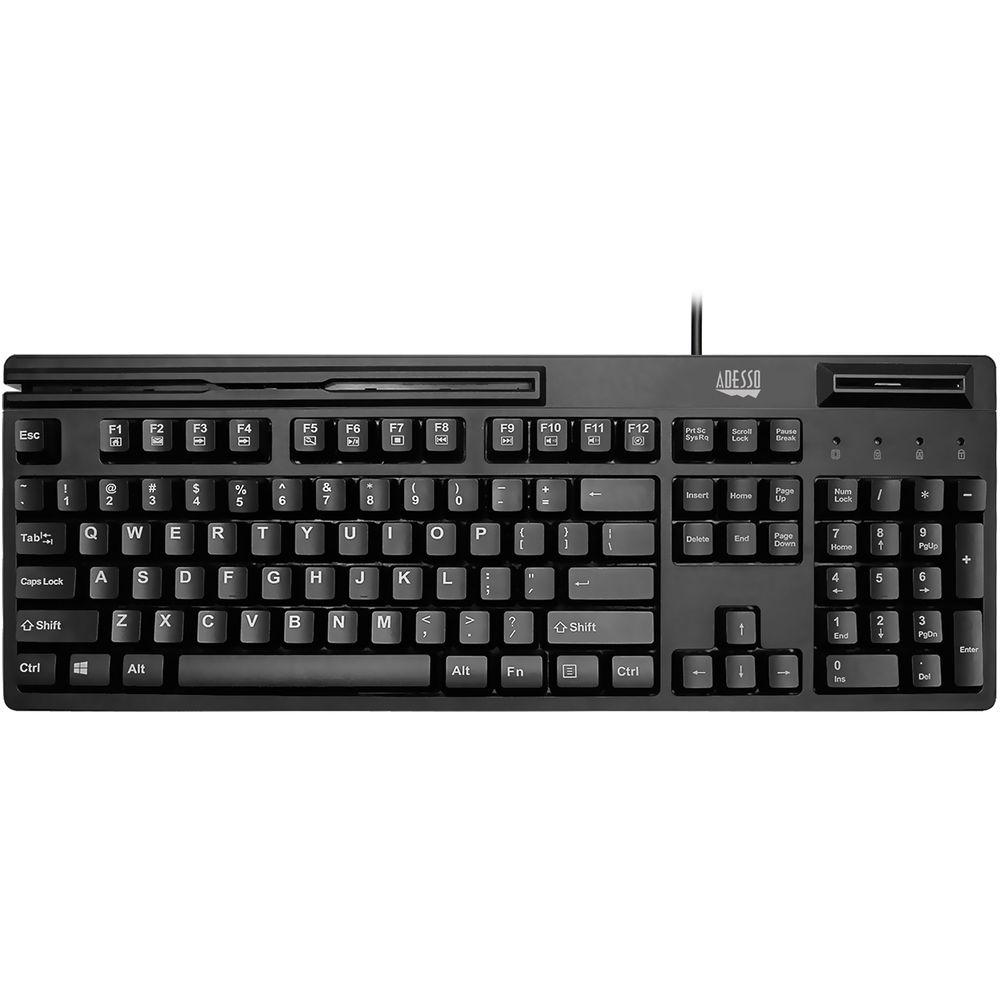

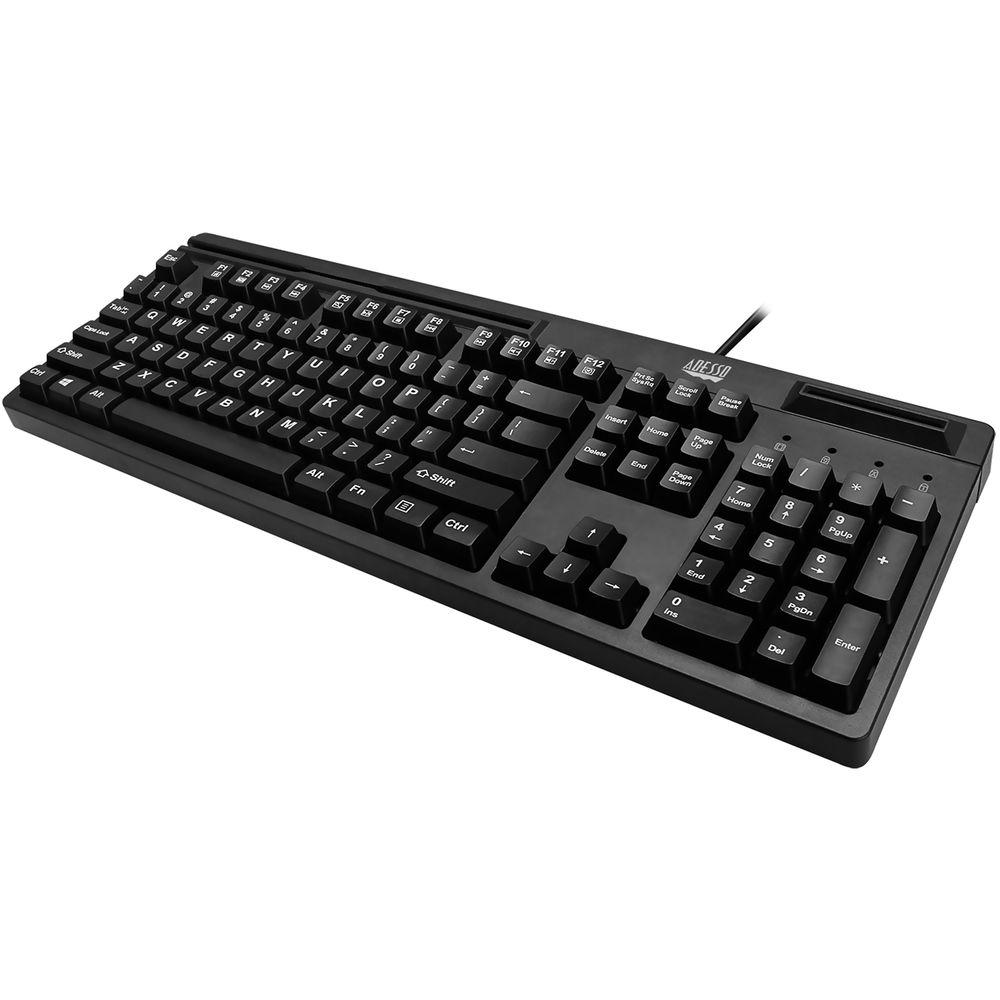

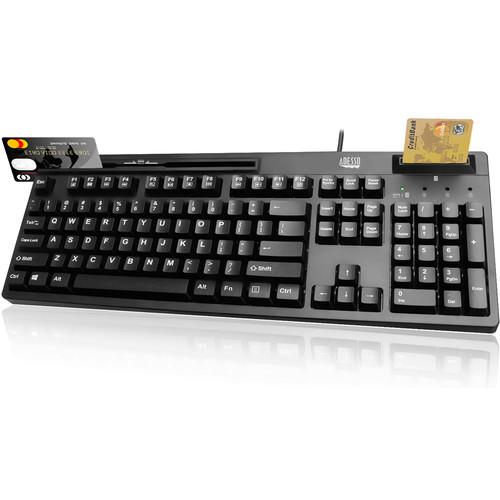

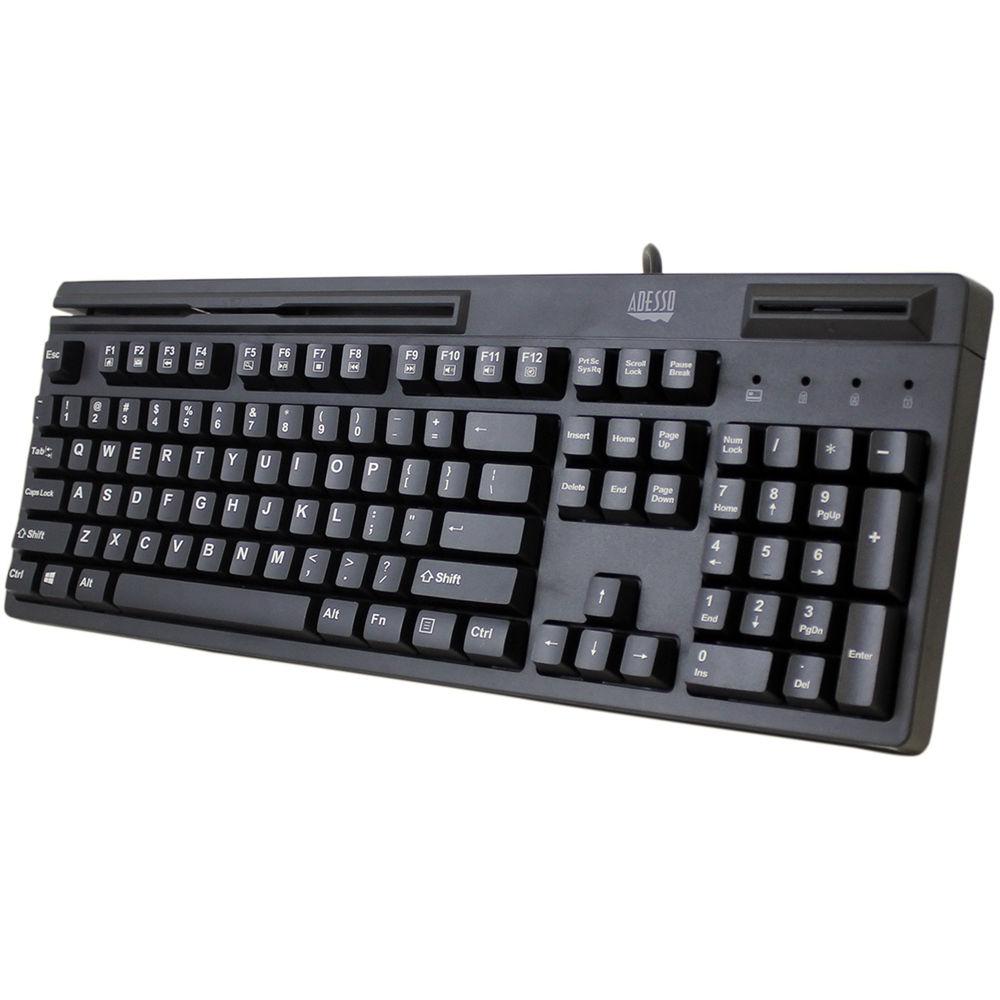

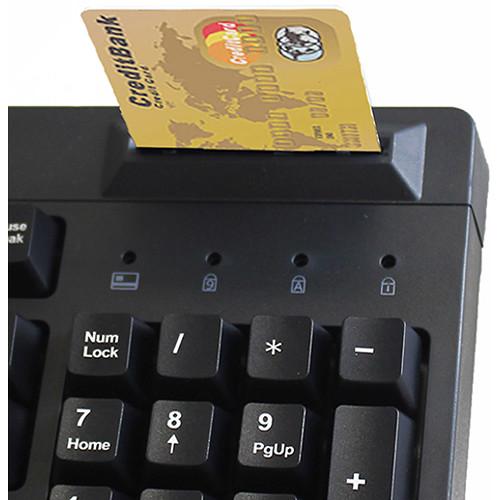

Product description The EasyTouch 630RB Smart Card & Magnetic Stripe Reader Keyboard from Adesso has a standard 104-key US layout and is designed for banking transactions, identification systems, and anywhere else security is needed. Because of its magnetic stripe reader, the EasyTouch 630RB is also ideal for point-of-sale (POS) environments. It's constructed with membrane switches for durability, and has large lettering on the keycaps so they're easy to read. For your convenience, it features built-in Internet and multimedia hotkeys so you can easily browse the Internet and manage your audio. Additionally, it's made from an antimicrobial material that prevents germ and bacteria growth. Connect it to your system via any standard USB Type-A port and you're set. - Smart Card reader enables extra security for banking transactions, identification systems, secure web applications, and secure log-ins

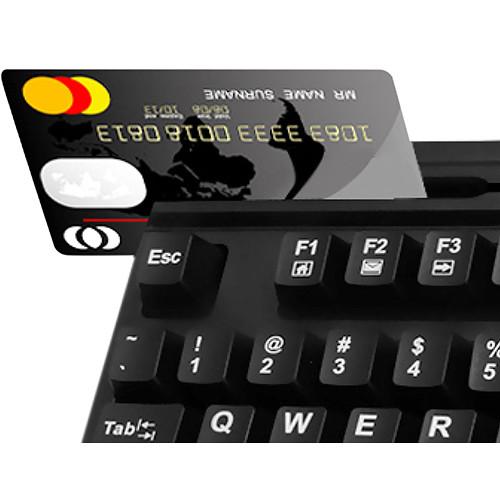

- Magnetic stripe reader reads data from a magnetic stripe like those found in badges and credit cards
- Constructed with antimicrobial material to prevent germs and bacteria
- Large, easy-to-read keycaps
- Membrane switches for durability
- Internet hotkeys (Home, Email, Back, Forward, Search)
- Multimedia hotkeys (Volume Down, Volume Up, Play/Pause, Stop, Prev. Track, Next Track, Mute)
UPC: 783750007313 In the Box Adesso EasyTouch 630RB Smart Card & Magnetic Stripe Reader Keyboard Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adesso EasyTouch 630RB Smart Card & Magnetic Stripe Reader Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdesso 630RB Specs Interface | Wired, USB Type-A | Key Layout | 104-key US | Keyswitch Technology | Membrane | Hotkeys | 5 x Internet hotkeys (Home, Email, Back, Forward, Search) 7 x Media hotkeys (Volume Up, Volume Down, Play/Pause, Stop, Next, Previous, Mute) | Ports | 1 x Smart Card Reader Slot 1 x Magnetic Stripe Reader Slot | Smart Card Support | - EMV 4.0 Level 1 and PBOC2.0 Level 1 certified
- Supports USB 2.0 full speed, USB-IF certified
- Based on ISO7816 implementation
- Supports PC Smart Card industry standard - PC/SC 2.0
- Supports Microsoft Smart Card for Windows
- Meets Microsoft WHQL USB Smart Card Reader requirements
- Meets US Federal Information Processing Standards (FIPS) Publication 201 requirements on smart card reader interoperability
- Supports T0, T1 Protocol
- Supports ISO7816 Class A, B, and C (5 V/3 V/1.8 V) card
- Supports EEPROM for USB descriptors customization (PID/VID/iManufacturer/ iProduct/Serial Number), Direct Web Page Link, and accessing memory card module
| Magnetic Stripe | - Bi-directional
- Standard: ISO7811, IBN, ANSI, JS2
- Head Life: >500,000
- Swipe Card Speed: 3.9 - 47.2 in/s (10 - 120 cm/s)
- Coercive Force: 300 - 4000 oe
- Magnetic Stripe Density:
- Track 1: 210 BPI with max 76 characters
- Track 2: 210 BPI with max 104 characters or 75 BPI with 37 characters
- Track 3: 210 BPI with max 104 characters
| | Current | < 150 mA max | Voltage | DC ± 5 V ± 10% | | Operating Temperature | -22°F to 158°F (-30°C to 70°C) | Operating Humidity | 10% - 90% RH | | System Requirements | Microsoft Windows 7 and above USB Type-A Port | Dimensions | 17.7 x 6.5 x 1" (450 x 165 x 25 mm) | Weight | 2.5 lb (1.13 kg) | | Package Weight | 3.2 lb | Box Dimensions (LxWxH) | 18.2 x 7.6 x 1.8" |
