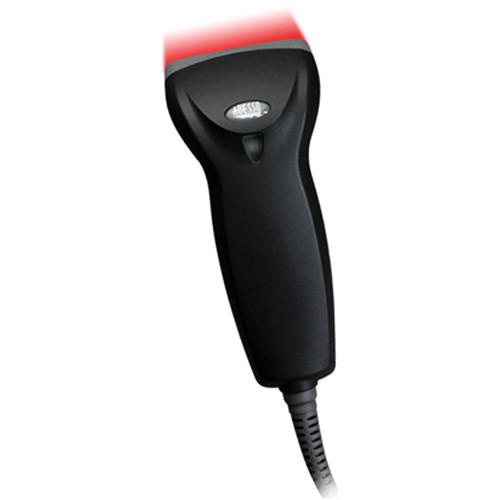

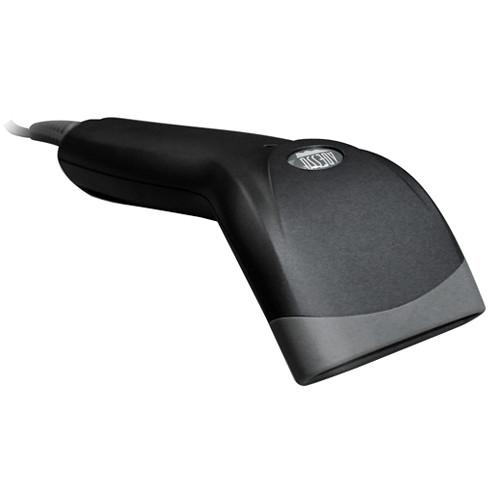

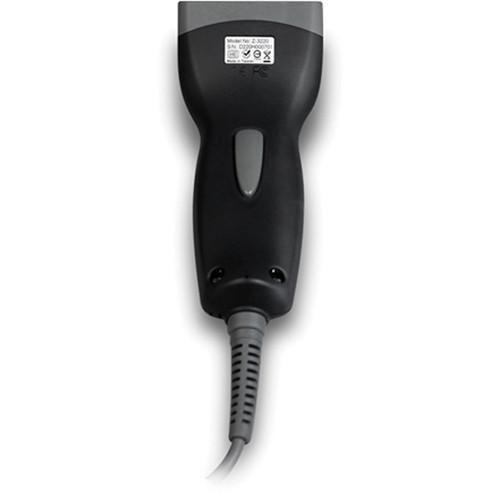

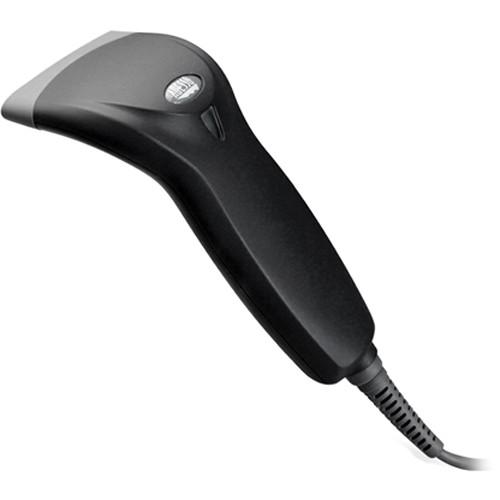

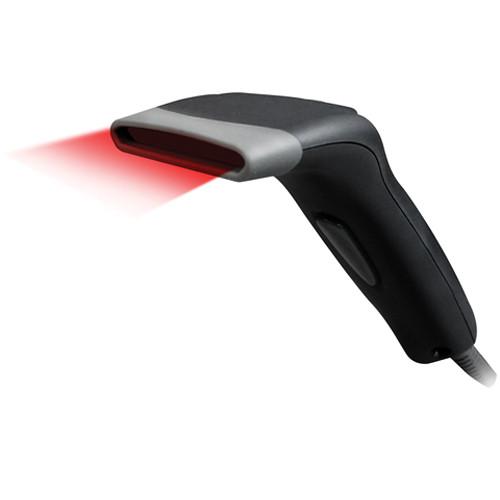

User Manual for Adesso NuScan 1200 Handheld Linear Image Barcode Scanner Click to enlarge the picture
Contents of the user manual for the Adesso NuScan 1200 Handheld Linear Image
- Product category: Barcode Scanners Adesso
- Brand: Adesso
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adesso Barcode Scanners
|
User manual for the Adesso NuScan 1200 Handheld Linear Image contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adesso product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adesso user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adesso product will considerably shorten its lifespan!
|
Product description The NuScan 1200 Handheld Linear Image Barcode Scanner from Adesso features 150 scans per second and plugs in to your PC via USB. The scanner automatically sends data to your active application for fast processing. The scanner is ideal for retail, point of sale, and other repetitive applications while its 5-foot shock resistance makes it suitable for most retail and industrial environments. - Fast Scan Rate
- Using EasilyBuilt with Proprietary Ultrascan Decoding and Advanced Image Capturing Technologies, the scanner can process 150 scans per second
- Plug & Play
- Compatible with Windows and Mac; no drivers required
- Shock Resistance
- Lightweight, durable design withstands drops of up to 5.0'
UPC: 783750005609 In the Box Adesso NuScan 1200 Handheld Linear Image Barcode Scanner Quickstart Guide Limited 1-Year Warranty Brochure PDF 146.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Adesso NuScan 1200 Handheld Linear Image Barcode Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdesso NUSCAN1200U Specs Scan Sensor | 2500 pixel linear sensor | Depth of Field | 2.0" (50.8 mm) | Microprocessor Control | 32-bit | Bar-Code Types | Addendum 2 of 5, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, EAN-99, EAN-Velocity, Industrial 2 of 5, Interleaved 2 of 5, ISBN/ ISSN, JAN-8, JAN-13, MSI, RSS Limited, RSS Expanded, UPC-A, UPC-E, China Postage | Print Contrast | Minimum 25% @ UPC / EAN 100% | Scan Rate | 150 scans per second | Minimum Bar Width | 3.0 mil (Code 39, PCS=60%) minimum width | Indicators | Green, blue LED | Alert | Programmable tone & beep time | Computer Interface | USB | OS Compatibility | Windows 8, Windows 7, Vista, XP, 2000 Mac OS X | System Requirements | USB port | Light Source | 625 nm visible LED | Power Requirements | 5.0 V DC ±5.0% | Current | Operating: 90 mA (average), 150 mA (maximum) Standby: 55 mA typical | Temperature / Humidity | Operating Temperature: 23 to 113°F (-5.0 to 45°C) Operating Humidity: 5 to 95% | Cable Length | 6.0' (1.8 m) | Shock Resistance | Designed to withstand drops up to 5' (1.5 m) | Dimensions | 6.5 x 2.9 x 2.1" (166 x 73 x 54 mm) | Weight | 3.5 oz (100 g) | | Package Weight | 0.65 lb | Box Dimensions (LxWxH) | 12.2 x 8.5 x 3.7" |
