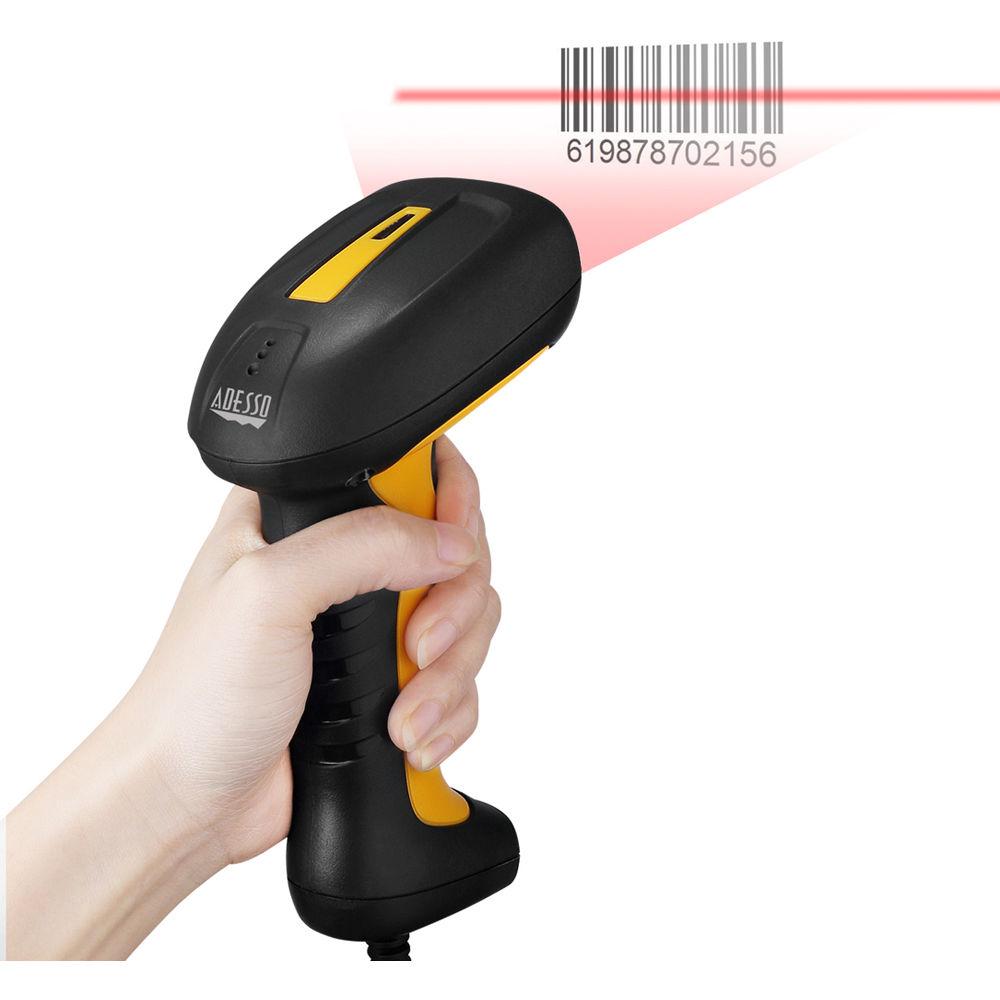

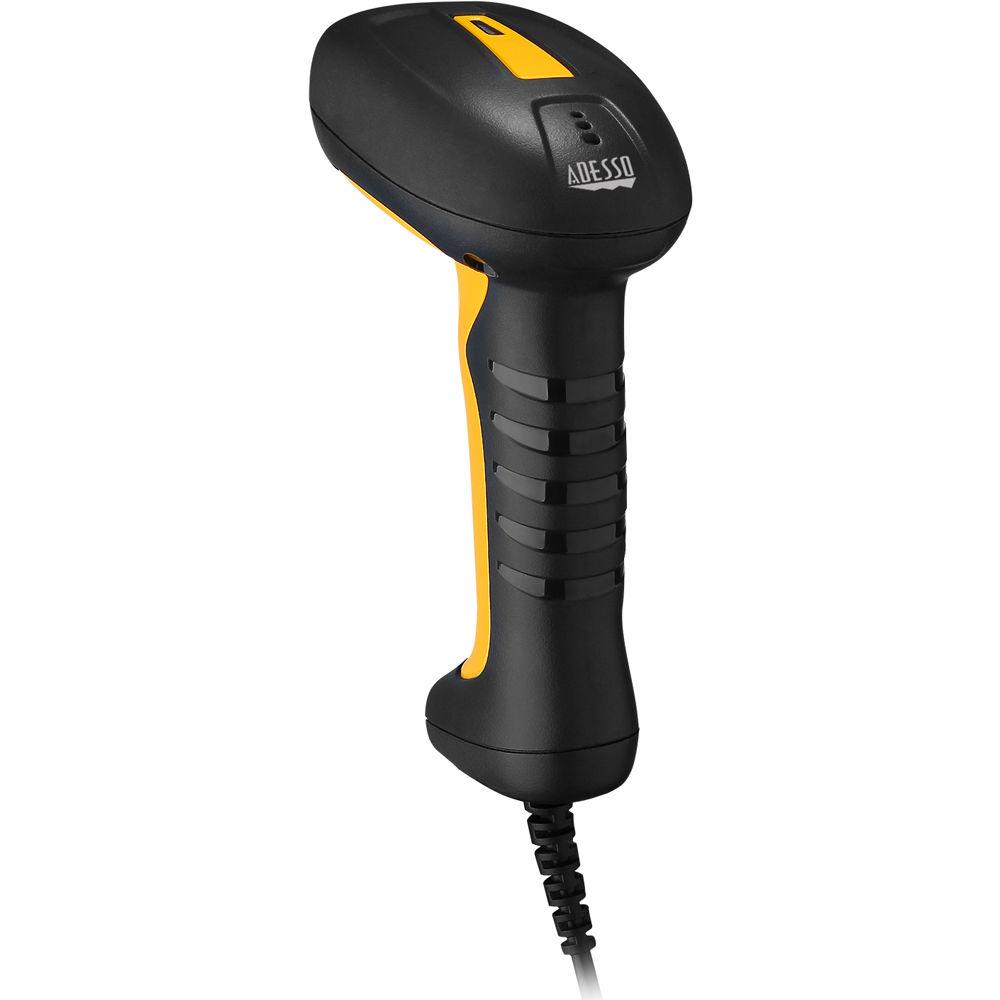

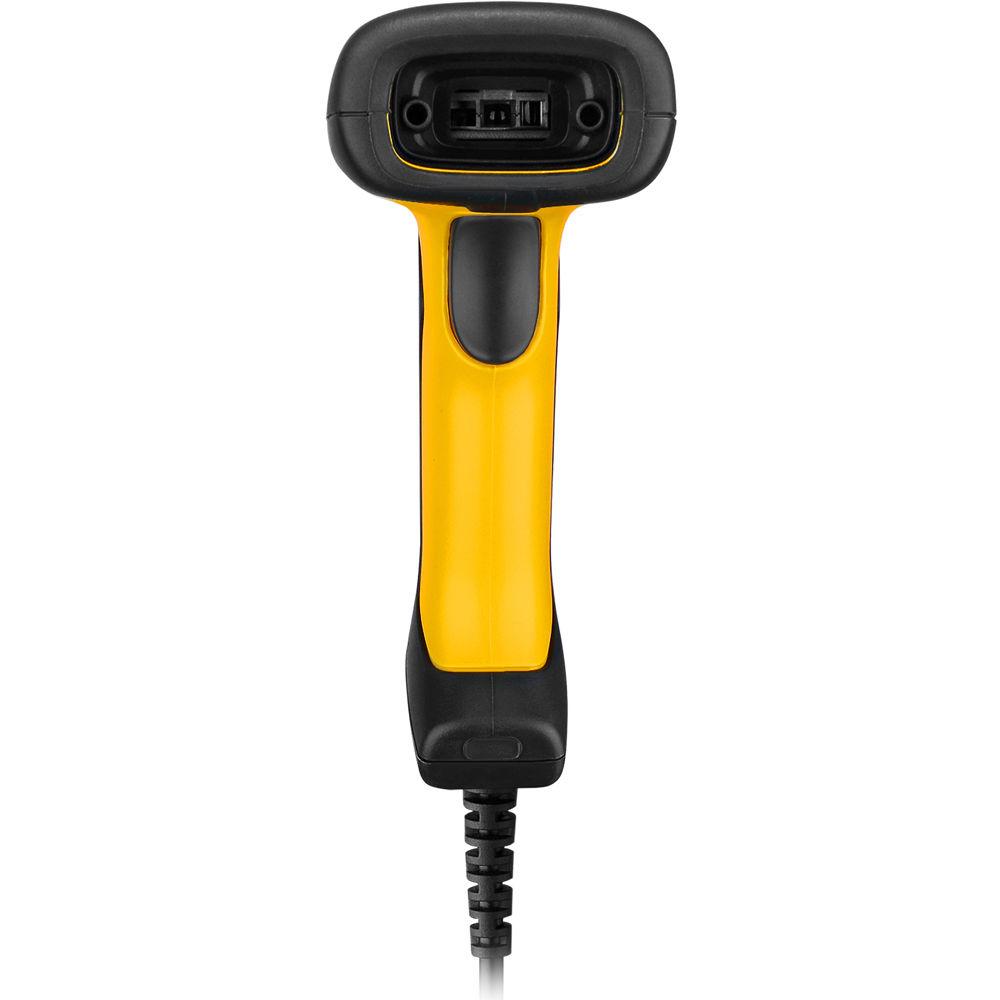

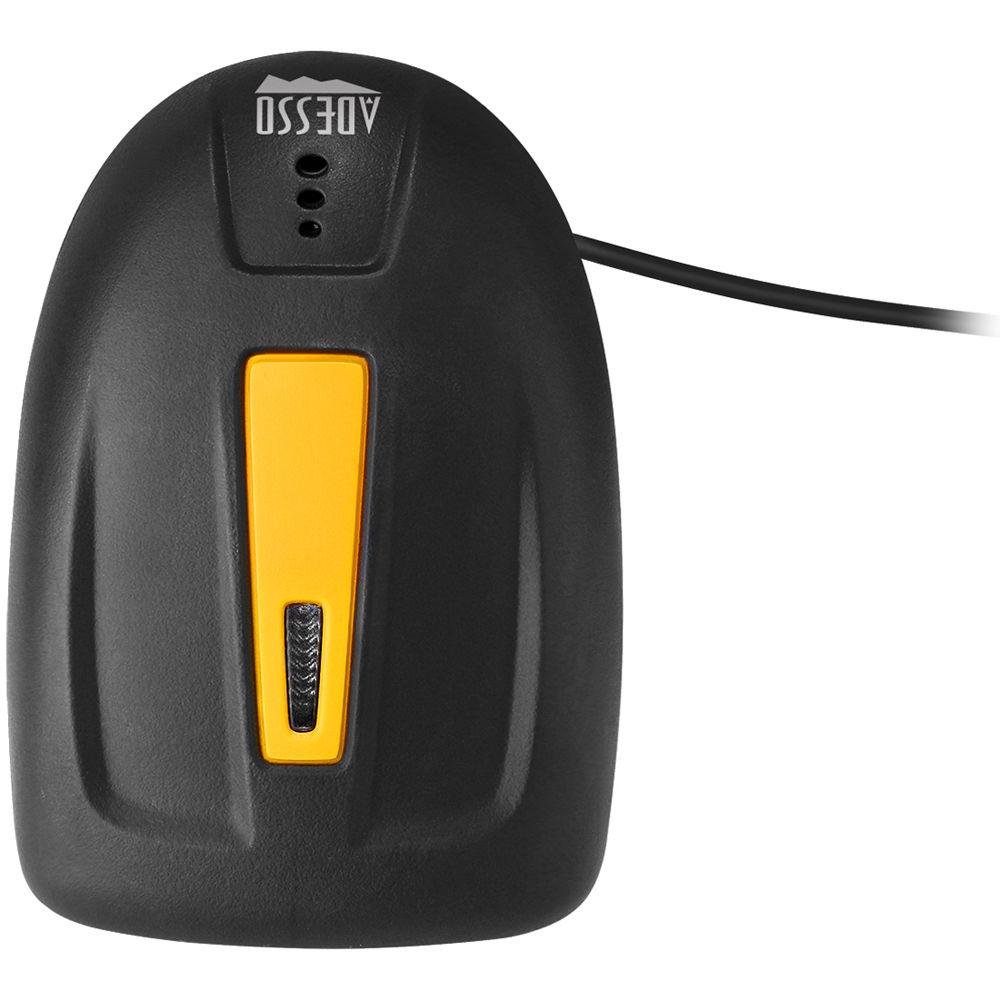

User Manual for Adesso NuScan 2400U USB Handheld CCD Barcode Scanner Click to enlarge the picture
Contents of the user manual for the Adesso NuScan 2400U USB Handheld CCD
- Product category: Barcode Scanners Adesso
- Brand: Adesso
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adesso Barcode Scanners
 |
User manual for the Adesso NuScan 2400U USB Handheld CCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adesso product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adesso user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adesso product will considerably shorten its lifespan!
|

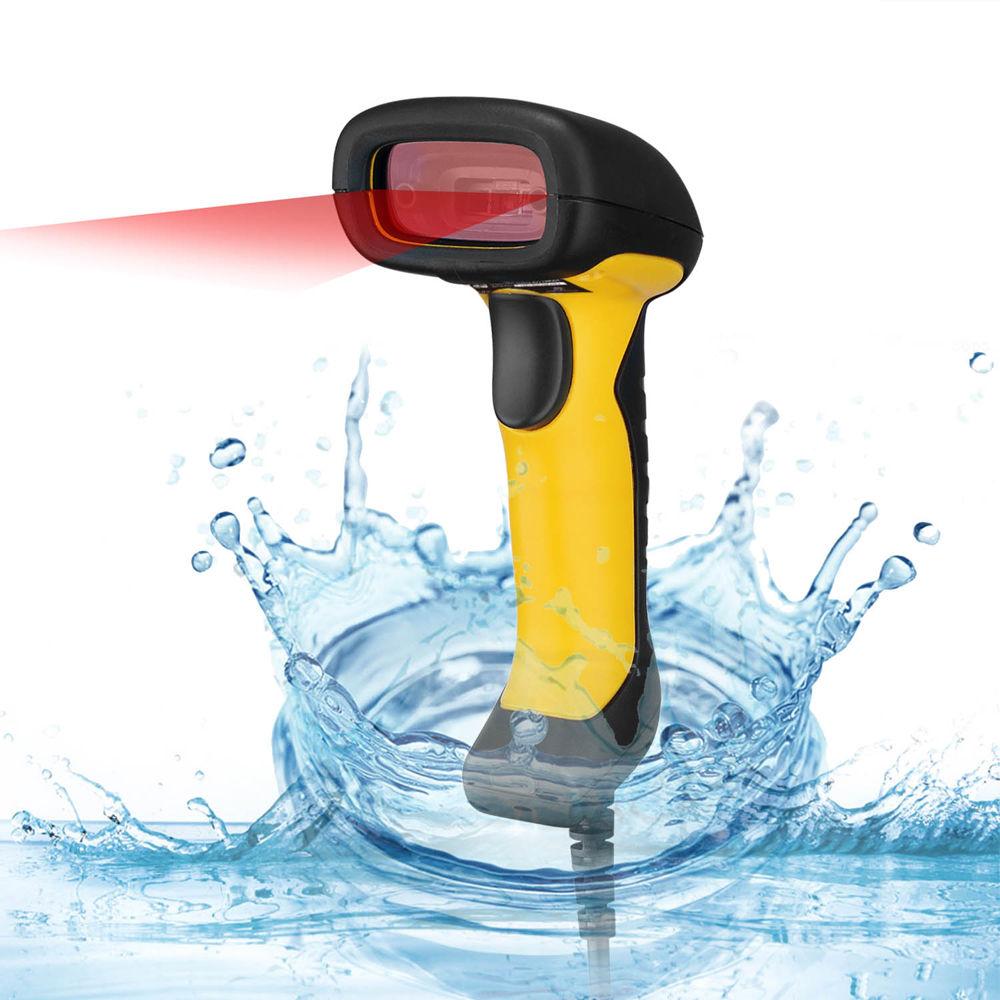

Product description The NuScan 2400U USB Handheld CCD Barcode Scanner from Adesso delivers remarkable performance and versatility for industrial environments. Whether in a medical, manufacturing, warehouse, or retail environment the Barcode Scanner offers durability, accuracy, reliability, and a user-friendly, easy to hold, and comfortable handle for a more productive mobile environment. The scanner withstands accidental drops from up to 20' and is standard IP67-rated water and dust resistant. It can easily scan your barcode from up to a foot away. General - Made from antimicrobial material which prevents the growth of harmful bacteria and protects against the buildup germs
- CCD sensor can scan the majority of 1D symbologies at a comfortable distance of up to 12" away
- With durable silicone plastic material, the scanner is less likely to become damaged due to accidental drops from as high as 20' off the ground
Supported Symbologies -
- UPC/EAN/JAN
- UPC/EAN with supplementary
- JAN 8 & Jan 13
- ISBN/ISSN
- Code 32
- Code 39/Code 39 with full ASCII
- Codabar
- Code 128/Code 128 with full ASCII
- Code 93
- Interleaved 2 of 5 (ITF)
- Addendum 2 of 5
- MSI/Plessy
UPC: 783750007443 In the Box Adesso NuScan 2400U USB Handheld CCD Barcode Scanner Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Adesso NuScan 2400U USB Handheld CCD Barcode Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdesso 2400U Specs | Light Source | 630 nm visible Red LED | | Depth of Field | Up to 12" (30.5 cm) (UPC/EAN 100%, PCS=90%) | | Scan Rate | 200 scans/sec | | Resolution | 4 mil (0.1 mm) | | Print Contrast | 30% or more | | Scan Angle | 42° | | Indicators | Blue LED & beeper | | Interface | USB | | Input Voltage | 5 VDC (±0.5%) | | Operating Current | 130 mA (max) | | System Requirements | Windows 10, 8, 7, Vista, XP, 2000
Mac OS X 10.4 and later
USB port | | Operating Temperature | 14 to 122°F (-10 to 60°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | Operating: 10 to 85% relative humidity
Humidity Storage: 5 to 95% relative humidity | | Dimensions (L x W x H) | 7 x 4 x 2.8" (17.8 x 10.2 x 7.1 cm) | | Weight | 9.2 oz (260 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 8.5 x 4.8 x 3.5" |
