User Manual for Adesso NuScan 6000 Omnidirectional Barcode Scanner Click to enlarge the picture
Contents of the user manual for the Adesso NuScan 6000 Omnidirectional Barcode Scanner
- Product category: Barcode Scanners Adesso
- Brand: Adesso
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Adesso Barcode Scanners
 |
User manual for the Adesso NuScan 6000 Omnidirectional Barcode Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Adesso product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Adesso user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Adesso product will considerably shorten its lifespan!
|

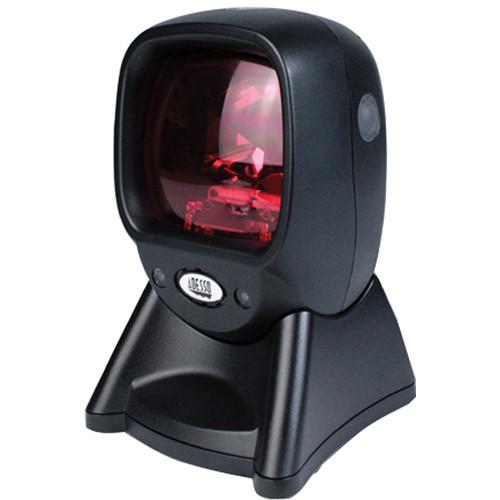

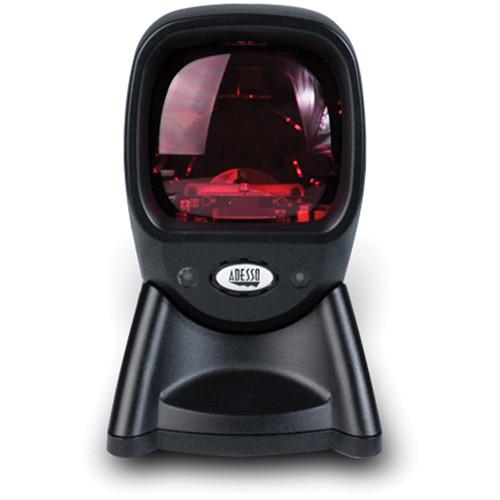

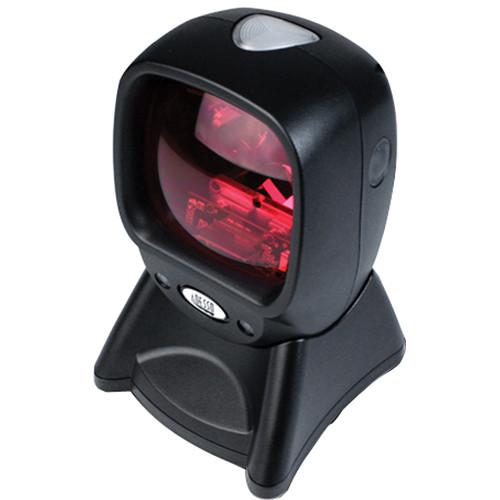

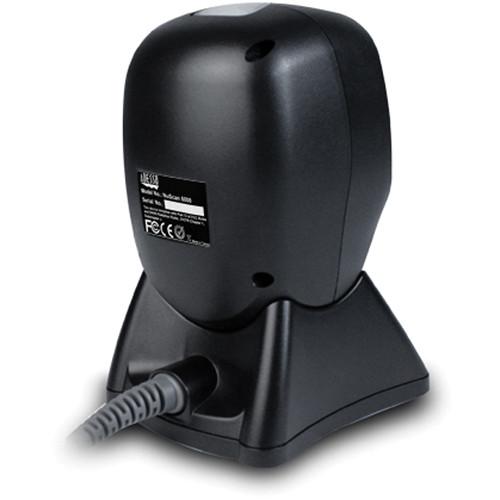

Product description The NuScan 6000 Omnidirectional Barcode Scanner from Adesso features a 650 nm visible laser diode that can handle 2000 scans per second. The scanner is compatible with 1D and 2D barcodes including UPC-A, UPC-E, 8, EAN 13, and ISBN formats. The NuScan 6000 is capable of withstanding frequent 39.4" drops, making it suitable for busy environments. - The omnidirectional 24-line scanning engine achieves scan speeds of up to 2000 scans per second with reliable first-pass read rates when swiping or presenting items over the scan area in many different angles
- The 650 nm laser diode lets you scan with precision and accuracy at an operating distance of up to 8.5" from the barcode

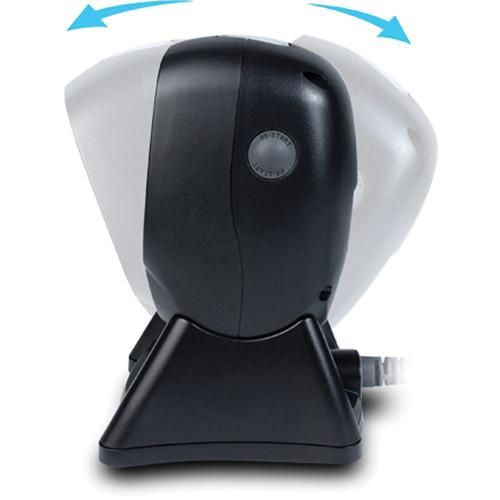

- The sleek compact hands-free design makes it suitable for stationary scanning and minimal handling
- Supports 16+ barcode symbologies so you can scan multiple types of barcodes continuously
UPC: 783750005692 In the Box Adesso NuScan 6000 Omnidirectional Barcode Scanner Quick Start Guide Limited 1-Year Warranty Brochure PDF 673.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Adesso NuScan 6000 Omnidirectional Barcode Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdesso NUSCAN6000U Specs | Depth of Field | Up to 9.84" (250 mm) @ 13 mil (0.33 mm), PCS 90% | | Bar-Code Types | Codabar, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2 of 5, ISBN / ISSN, JAN-13, JAN-8, MSI / Plessy, RSS-Limited, RSS-Expanded, UPC-A, UPC-E | | Print Contrast | > 30% | | Scan Rate | 2000 scans per second | | Scan Pattern | 24 lines, omnidirectional | | Lux | 4800 lux | | Resolution Supported | ≥ 5.0 mil (0.13 mm) | | Indicators | Blue / red LED, buzzer alarm | | Connectivity | USB | | OS Compatibility | Windows 8, Windows 7, Vista, XP, 2000
Mac OS X and older | | System Requirements | USB port | | Light Source | 650 nm visible laser diode (VLD) | | Power Requirements | 5.0 VDC ±5.0%, 340 mA | | Temperature / Humidity | Operating Temperature: 32 to 122°F (0 to 50°C)
Operating Humidity: 20 to 95% | | Shock Resistance | Tested to withstand frequent 39.4" (1.0 m) drops | | Dimensions | 6.14 x 4.07 x 3.57" (156 x 103 x 90 mm) | | Weight | 10.56 oz (300 g) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 12.2 x 8.6 x 4.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
