Advidia 2MP HD-TVI Outdoor Vandal-Resistant Dome

Search your instruction manual in PDF to download

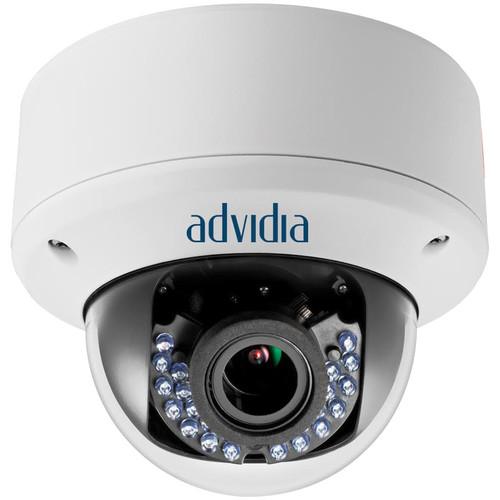

User Manual for Advidia 2MP HD-TVI Outdoor Vandal-Resistant Dome Camera with 2.8 to 12mm Varifocal Lens & Night Vision

Click to enlarge the picture
Advidia 2MP HD-TVI Outdoor Vandal-Resistant Dome Camera with 2.8 to 12mm Varifocal Lens & Night Vision Contents of the user manual for the Advidia 2MP HD-TVI Outdoor Vandal-Resistant Dome
  • Product category: Wired Analog & HD Cameras Advidia
  • Brand: Advidia
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Advidia Wired Analog & HD Cameras

User manual for the Advidia 2MP HD-TVI Outdoor Vandal-Resistant Dome contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Advidia product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Advidia user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Advidia product will considerably shorten its lifespan!



Product description

The 2MP HD-TVI Outdoor Vandal-Resistant Dome Camera from Advidia features a CMOS image sensor and 2.8 to 9mm motorized varifocal lens to capture video at a resolution of up to 1080p. It supports backlight compensation. It features internal synchronization and a motorized varifocal lens. This camera is weather-resistant for outdoor use, and comes with IR emitters for night vision recording.
  • Up to 1080p resolution
  • 2.8 to 12mm motorized varifocal lens
  • Features analog HD output (HD-TVI)
  • Supports true Day/Night function with smart IR
  • 130' night vision range
  • IP66 and IK10 ratings for use outdoors where vandalism is a concern
Table of Contents




Upload User Manual

Have you got an user manual for the Advidia 2MP HD-TVI Outdoor Vandal-Resistant Dome Camera with 2.8 to 12mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Advidia A-T-27-V Specs

Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Effective Pixels (H x V) 1930 x 1088
Min. Illumination 0.01 lux @ (f/1.2, AGC ON)
0 lux with IR
Shutter Time 1/25 (1/30) to 1/50000 sec
Lens Motorized varifocal 2.8 to 12mm @ f/1.4
Angle of View 114.5 to 35.1°
Lens Mount Φ14
Day & Night ICR
Angle Adjustment Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355°
Synchronization Internal
Video Frame Rate 1080p @ 25 fps / 1080p @ 30 fps
HD Video Output 1 x analog HD output, HD-TVI
S/N Ratio >62 dB
Camera ID On / Off (0 to 255)
AGC Yes
D/N Switch Color/B&W/Auto/EXT
White Balance Auto/User/Push/8000K/6000K/4200K/3000K
Privacy Masking On/Off (maximum 2 zones)
Motion Detection On/Off (maximum 4 zones)
Backlight Compensation Yes
Anti-Flicker On/Off
Language English
Operating Conditions -40 to 140°F (-40 to 60°C)
Humidity 90% or less (non-condensing)
Power Supply 12 VDC ±15%, 24 VAC ±15%
Power Consumption Maximum 4 W, -A: Maximum 5 W
Protection Level IP66
Impact Protection IK10
IR Range Up to 131' (40 m)
Communication Up the coax (TVI output)
Dimensions (Ø x H) 5.7 x 4.9" (145.2 x 124.1 mm)
Weight 47.6 oz (1350 g)
