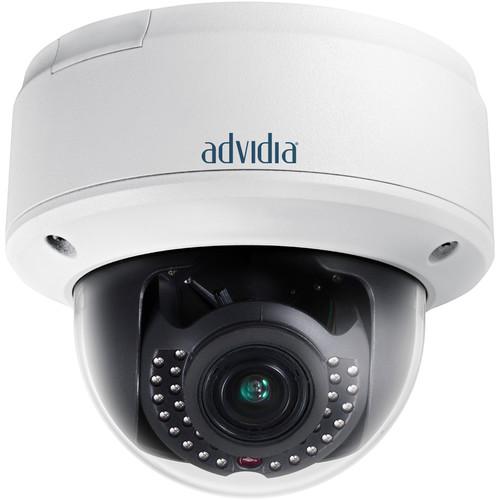

User Manual for Advidia 2MP Network Dome Camera with 2.8 to 9mm Varifocal Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Advidia 2MP Network Dome Camera with
- Product category: Wired IP Cameras Advidia
- Brand: Advidia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Advidia Wired IP Cameras
|
User manual for the Advidia 2MP Network Dome Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Advidia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Advidia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Advidia product will considerably shorten its lifespan!
|
Product description This 2MP Network Dome Camera from Advidia features a 1/3" SONY progressive scan CCD sensor and 2.8 to 9mm varifocal lens to capture video at a resolution of up to 1920 x 1080 at 30 fps. It supports H.264 and MPEG-4 video compression formats and G.711, G.726, and MP2L2 audio compression formats. It is ONVIF-compliant for use in a wide range of locations, and features night vision with built-in IR emitters for day and night recording. - Supports resolution up to 2MP (1920 x 1080)
- Comes with motorized varifocal lens, digital WDR, and two-way audio
- Supports defocus detection, smart face detection, audio exception detection, and intrusion detection features
- 3-axis (pan/tilt/rotation) positioning
- Video Insight VMS License included
- Features backlight compensation and electronic image stabilization
- IR night vision to a range of up to 90'
In the Box Advidia 2MP Network Dome Camera with 2.8 to 9mm Varifocal Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Advidia 2MP Network Dome Camera with 2.8 to 9mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdvidia A-44-IR-V2 Specs | | | Image Sensor | 1/3" SONY progressive scan CCD | | Min. Illumination | 0.014 lux @ (f/1.4, AGC On), 0 lux with IR | | Shutter Speed | 1 to 1/100000 sec | | Slow Shutter | Yes | | Lens | 2.8 to 9mm @ f/1.4 | | Angle of View | 98.4 to 30.2° | | Lens Mount | φ14 | | Auto Iris | DC drive | | Day & Night | IR cut filter with auto switch | | Digital Noise Reduction | 3D-DNR | | | | Video Compression | H.264/MPEG-4 | | Type | H.264: Baseline Profile / Main Profile / High Profile | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio Compression | G.711 / G.726 / MP2L2 | | Audio Bit Rate | 64 kbps (G.711) / 16 kbps (G.726) / 32 to 128 kbps (MP2L2) | | | | Resolution | Maximum: 1920 x 1080 | | Frame Rate | 30 fps (1920 x 1080), 30 fps (1280 x 960), 30 fps (1280 x 720) | | Streams | Third Stream: Independent with main stream and sub stream, up to 20 fps (2048 x 1536) | | Image Settings | Rotate mode, saturation, brightness, contrast adjustable by client software or web browser | | Day/Night Switching | Auto/Schedule/Triggered by Alarm In | | Picture Overlay | LOGO picture can be overlaid on video with 128 x 128 24-bit BMP format | | | | Alarm Trigger | Cross line detection, intrusion detection, scene change detection, defocus detection, audio exception detection, motion detection, face detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IGMP, IPv6, Bonjour | | Security | User Authentication, Watermark, IP address filtering, Anonymous access | | Standard | ONVIF, PSIA | | | | Audio Input | 1-ch 1/8" (3.5 mm) audio interface, Mic in/Line in | | Audio Output | 1-ch 1/8" (3.5 mm) audio interface | | Communication Interface | 1 x RJ45 10M/100M Ethernet port
1 x RS-485 interface | | Alarm Input | 1 | | Alarm Output | 1 | | Video Output | 1 V p-p composite output (75 Ohms/BNC) | | Reset Button | Yes | | | | Operating Conditions | -22 to 140°F (-30 to 60°C)
Humidity 95% or less (non-condensing) | | Power Supply | 12 VDC ±10% / PoE (802.3af) | | Power Consumption | Maximum 9 W | | IR Range | Approximately 30 to 90' (10 to 30 m) | | Impact Protection | IEC60068-275Eh, 50J; EN50102, up to IK10 | | Dimensions (Ø x H) | 5.51 x 4.80" (140 x 121.8 mm) | | Weight | 3.09 lb (1.4 kg) |
