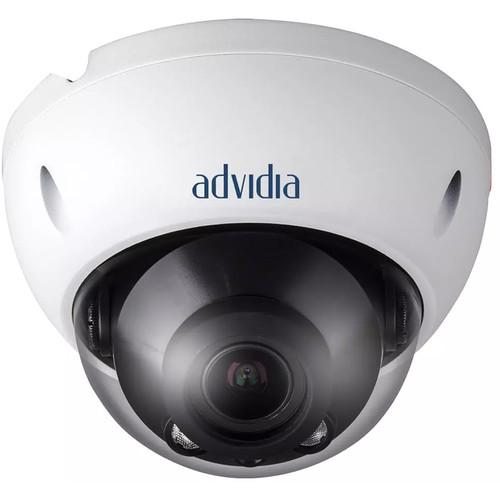

User Manual for Advidia 3MP Vandal-Resistant Outdoor Network Dome Camera with 2.7 to 12mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Advidia 3MP Vandal-Resistant Outdoor Network Dome
- Product category: Wired IP Cameras Advidia
- Brand: Advidia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Advidia Wired IP Cameras
|
User manual for the Advidia 3MP Vandal-Resistant Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Advidia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Advidia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Advidia product will considerably shorten its lifespan!
|
Product description The 3MP Vandal-Resistant Outdoor Network Dome Camera from Advidia utilizes a 1/3" 3MP progressive scan CMOS sensor and features a 2.7 to 12mm motorized lens with a 92 to 28° angle of view. It has a microSD card slot for up to 128GB of local storage (card available separately) and is rated for use outdoors and in areas at risk of vandalism. It also has an S/N ratio of more than 50 dB and 3D noise reduction. -
- 1/3" 3 MP progressive CMOS
- H.264 and MJPEG dual-stream encoding
- DWDR, Day / Night (ICR), 3DNR, AWB, AGC, BLC
- Features a 2.7 to 12mm motorized lens
- microSD card slotfor local storage, (up to 128GB available separately)
- IP67- and IK10-rated for resistance to weather and vandalism
- Night Vision range of 98' for surveillance in complete darkness
- PoE-capable for single-cable installation
In the Box Advidia 3MP Vandal-Resistant Outdoor Network Dome Camera with 2.7 to 12mm Lens & Night Vision Installation Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Advidia 3MP Vandal-Resistant Outdoor Network Dome Camera with 2.7 to 12mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdvidia E-37-V Specs | | | Image Sensor | 1/3" 3 MP progressive scan CMOS | | Effective Pixels | 2304 x 1536 | | Scanning System | Progressive | | Electronic Shutter Speed | Auto / Manual, 1/3(4) to 1/100000 sec | | Min. Illumination | 0.1 lux @ f/1.4 (Color), 0 lux @ f/1.4 (IR on) | | S/N Ratio | More than 50 dB | | | | IR LED | 98.4' (30 m) | | Day/Night | Auto (ICR) / Color / B&W | | Backlight Compensation | BLC / HLC / DWDR | | White Balance | Auto / Manual | | Gain Control | Auto / Manual | | Noise Reduction | 3D | | Privacy Masking | Up to 4 areas | | | | Focal Length | 2.7 to 12mm | | Maximum Aperture | f/1.4 | | Focus Control | Auto | | Angle of View | H: 92 to 28° | | Lens Type | Motorized / Fixed Iris | | Mount Type | Board-in type | | | | Compression | H.264 / H.264H / MJPEG | | Resolution | 3 MP (2304 x 1296 / 2048 x 1536)
1080p (1920 x 1080)
1.3 MP (1280 x 960)
720p (1280 x 720)
D1 (704 x 576 / 704 x 480)
CIF (352 x 288 / 352 x 240) | | Frame Rate | Main Stream: 3 MP (1 to 20 fps) / 1080p (1 to 25 / 30 fps)
Sub Stream: D1 / CIF (1 to 25 / 30 fps) | | Bit Rate | H.264H: 40 to 8192 kbps | | | | Ethernet | RJ45 (10/100Base-T) | | Protocol | IPv4 / IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour | | Compatibility | ONVIF, CGI | | Maximum User Access | 20 users | | | | Memory Slots | microSD , maximum 128 GB (available separately) | | Power Supply | 12 VDC, PoE (802.3af) | | Power Consumption | <8.5 W | | Working Environment | -22 to 140°F (-30 to 60°C), Less than 95% RH | | Ingress Protection | IP67 | | Vandal Resistance | IK10 | | Dimensions | 4.8 x 3.5" (122 x 89 mm) | | Weight | 1.1 lb (0.5 kg) |
