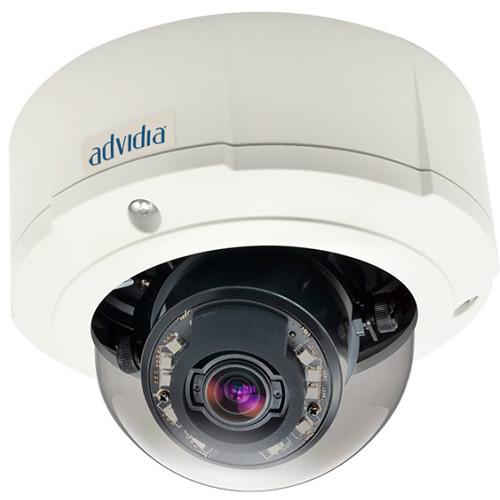

User Manual for Advidia 5MP Vandal-Resistant Outdoor Dome Camera with 3 to 9mm Varifocal Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Advidia 5MP Vandal-Resistant Outdoor Dome Camera
- Product category: Wired IP Cameras Advidia
- Brand: Advidia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Advidia Wired IP Cameras
|
User manual for the Advidia 5MP Vandal-Resistant Outdoor Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Advidia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Advidia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Advidia product will considerably shorten its lifespan!
|
Product description The 5MP Vandal-Resistant Outdoor Dome Camera from Advidia features a 1/3.2" progressive scan CMOS sensor and 3 to 9mm varifocal lens to capture video at a resolution of up to 2592 x 1944 at 15 fps. It supports H.264 and MJPEG video compression formats and auto focus functionality. This camera is weather-resistant and vandal-resistant for outdoor use, and features IR LEDs with a 130' night vision range. - 5MP resolution with 1080p
- Day and night function with adaptive IR LEDs
- IP67- and IK10-rated for resistance to weather and vandalism
- 3x zoom lens with DC iris and auto focus
- Supports basic WDR (74 dB)
- Video Insight VMS license included
- PoE-capable for single-cable installation
In the Box Advidia 5MP Vandal-Resistant Outdoor Dome Camera with 3 to 9mm Varifocal Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Advidia 5MP Vandal-Resistant Outdoor Dome Camera with 3 to 9mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdvidia B-51 Specs | Image Sensor | 1/3.2" progressive scan CMOS | | Minimum Illumination | Color: 0.1 lux at f/1.2 (30 IRE, 2400K)
B & W: 0 lux (IR LED on) | | Shutter Speed | Manual Mode: 1/5 to 1/2000 sec
Auto Mode: 1/5 to 1/1000 sec | | Slow Shutter | Yes | | | | Focal Length | 3 to 9mm | | Aperture | f/1.2 to f/2.1 | | Angle of View | 85.7 to 30.5° | | Iris | DC iris | | Focus | Auto focus | | Mount Type | Board mount | | Digital Noise Reduction | 3D-DNR | | | | Video Compression | MJPEG / H.264 | | H.264 Profile | Baseline profile / main profile / high profile | | Video Bit Rate | 28 kbps to 6 Mbps (per stream) | | Audio Bit Rate | PCM, G.711U, G.726A | | | | Resolution | Maximum 2592 x 1944 | | Frame Rate | 15 fps (2592 x 1944, 2048 x 1536), 30 fps (1920 x 1080, 1280 x 720, 800 x 600, 640 x 480) | | Stream Type | Third Stream: Independent with main stream / sub-stream, up to 20 fps (2048 x 1536) | | Image Enhancement | Basic WDR (74 dB)
White Balance: Automatic, hold, and manual
Brightness
Contrast
Sharpness (auto)
Auto gain control
Digital noise reduction
Flickerless | | Image Orientation | Image flip and mirror | | Day/Night Switching | Auto/Day/Night | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Security | IP address filtering
HTTPs encryption
Password protected user levels
Anonymous login
IEEE 802.1X network access control | | Standard | ONVIF, PSIA | | | | Audio Input | Terminal block | | Audio Output | Terminal block | | Communication Interface | 1 x Ethernet (10/100 Base-T), RJ45 connector | | Digital Input | 2 x terminal block | | Digital Output | 2 x terminal block | | Reset Button | Yes | | | | Alarm Trigger | Video motion detection (3 regions)
External device through digital input | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Power Supply | 12 VDC ±10% / PoE (802.3af) | | Power Consumption | Maximum 9.24 W (built-in heater and IR on) | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); IP67, IK10, NEMA 4X | | IR Range | Approximately 130' (40 m) | | Dimensions | 6 x 4.5" (152 x 114.5 mm) | | Weight | 2.77 lb (1.26 kg) |
