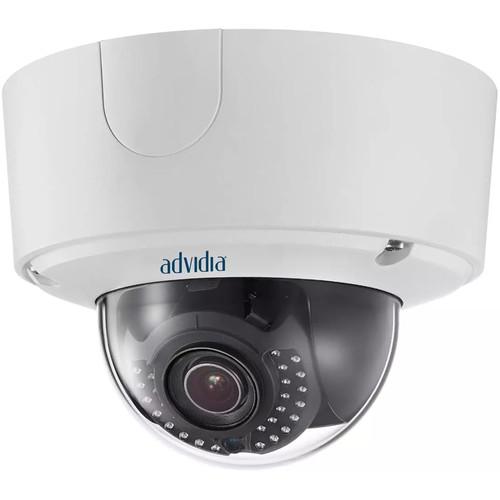

User Manual for Advidia 6MP Vandal-Resistant Outdoor Network Dome Camera with 2.8 to 9mm Varifocal Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Advidia 6MP Vandal-Resistant Outdoor Network Dome
- Product category: Wired IP Cameras Advidia
- Brand: Advidia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Advidia Wired IP Cameras
|
User manual for the Advidia 6MP Vandal-Resistant Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Advidia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Advidia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Advidia product will considerably shorten its lifespan!
|
Product description The 6MP Vandal-Resistant Outdoor Network Dome Camera from Advidia features a 1/1.8" progressive scan CMOS sensor and 2.8 to 9mm varifocal lens to capture video at a resolution of up to 3072 x 2048 at 25 fps. It supports H.264 video compression format, as well as G.711, G.726, and MP2L2 audio compression formats. It features a heater and a motorized lens. This camera is weather-resistant and vandal-resistant for outdoor use, and comes with IR emitters for night vision recording. - Features digital WDR, motorized lens, and motion detection
- Video Insight VMS License included
- IP66-rated with heater for outdoor use
- PoE-capable for single-cable installation
- Up to 90' night vision range
In the Box Advidia 6MP Vandal-Resistant Outdoor Network Dome Camera with 2.8 to 9mm Varifocal Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Advidia 6MP Vandal-Resistant Outdoor Network Dome Camera with 2.8 to 9mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdvidia A-64 Specs | | | Image Sensor | 1/1.8" progressive scan CMOS | | Min. Illumination | 0.014 lux @ (f/1.4, AGC On), 0 lux with IR | | Shutter Speed | 1 to 1/100000 sec | | Slow Shutter | Yes | | Lens | 2.8 to 9mm @ f/1.4 | | Angle of View | 94.5 to 30.5° | | Auto Iris | DC drive | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | Digital | | Day/Night | IR cut filter with auto switch | | | | Video Compression | H.264 | | Bit Rate | 32 kbps to 16 Mbps | | Type | Baseline profile / main profile / high profile | | Audio Compression | G.711 / G.726 / MP2L2 | | Audio Bit Rate | 64 kbps (G.711) / 16 kbps (G.726) / 32 to 128 kbps (MP2L2) | | | | Resolution | Maximum: 3072 x 2048 | | Frame Rate | 25 fps (3072 x 2048, 3072 x 1728, 2560 x 2048, 2560 x 1920, 2048 x 1536, 1920 x 1080, 1280 x 720) | | Backlight Compensation | Yes | | EIS | Yes | | Day/Night | Switch: Auto / Schedule / Triggered by alarm in | | Image Settings | Rotate mode, saturation, brightness, contrast adjustable by web browser | | | | Alarm Trigger | Cross line detection, intrusion detection, scene change detection, defocus detection, audio exception detection, motion detection, face detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IGMP, IPv6, Bonjour | | Security | User Authentication, Watermark, IP address filtering, anonymous access | | System Compatibility | ONVIF (profile S, profile G), PSIA, CGI, ISAPI | | | | Communication Interface | 1 x RJ45 10M/100M Ethernet interface | | Audio Input | 1-ch 1/8" (3.5 mm) audio interface, Mic in / Line in | | Audio Output | 1-ch 1/8"(3.5 mm) audio interface | | Alarm Input | 1 | | Alarm Output | 1 | | Video Output | 1 V p-p composite output (75 Ohms/BNC) | | Reset Button | Yes | | | | Operating Conditions | -22 to 140°F (-30 to 60°C)
Humidity 95% or less (non-condensing) | | Power Supply | 12 VDC / 24 VAC/ PoE (802.3af)
Heater: 12 VDC / 24 VAC / PoE (802.3at) | | Power Consumption | Maximum 12 W
Smart Heater: 17 W | | IR Range | Approximately 30 to 90' (10 to 30 m) | | Impact Protection | IK10 | | Ingress protection | IP66 | | Dimensions (Ø x H) | 6.5 x 5" (164.9 x 127 mm) | | Weight | 4.62 lb (2.1 kg) |
