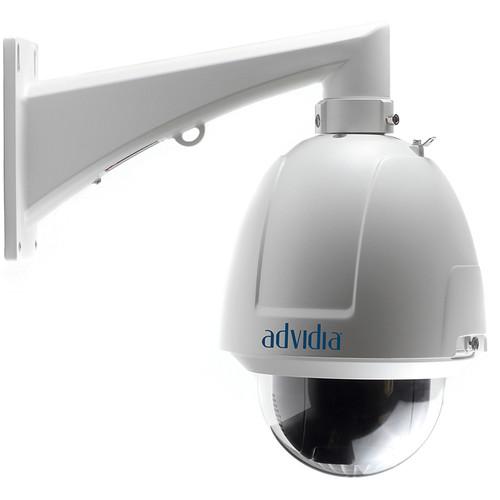

User Manual for Advidia A-200-P 2MP Outdoor Network PTZ Speed Dome Camera with 20x Optical Zoom Click to enlarge the picture
Contents of the user manual for the Advidia A-200-P 2MP Outdoor Network PTZ
- Product category: Wired IP Cameras Advidia
- Brand: Advidia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Advidia Wired IP Cameras
|
User manual for the Advidia A-200-P 2MP Outdoor Network PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Advidia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Advidia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Advidia product will considerably shorten its lifespan!
|
Product description The A-200-P 2MP Network Outdoor PTZ Speed Dome Camera from Advidia features a 1/3" progressive scan CMOS sensor and 4.7 to 9mm varifocal lens to capture video at a resolution of up to 1920 x 1080. Featuring 20x optical zoom, 2MP resolution, and an IP66 weatherproof rating, it can capture detailed video and is suitable for watching parking lots, stadiums, or other wide outdoor areas. It supports H.264 and MPEG-4 video compression standards with a high compression ratio. -
- Hi-PoE injector
- High-speed PTZ
- WDR and auto/manual day and night switch
- Video Insight VMS License included
- IP66-rated weatherproof
In the Box Advidia A-200-P 2MP Outdoor Network PTZ Speed Dome Camera with 20x Optical Zoom Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Advidia A-200-P 2MP Outdoor Network PTZ Speed Dome Camera with 20x Optical Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdvidia A-200-P Specs | Image Sensor | 1/3" progressive scan CMOS | Min. Illumination | 0.5 lux @ f/1.6 | Shutter Speed | 50 Hz: 1/25-1/10000 sec 60 Hz: 1/30-1/10000 | Lens | 4.7 to 9mm, 20x optical zoom | Angle of View | 58.3 to 3.2° (wide-tele) | Mount | Optional long-arm wall mount, corner mount, pole mount, or power box mount | Zoom Speed | Optical 2.7x (optical wide-tele) | Pan Range | 360° endless | Aperture Range | f/1.6 to f/3.5 | Day/Night | IR cut filter with auto switch | | Video Compression | H.264/MPEG-4 | | Image Resolution | Maximum: 1920 x 1080 | Frame Rate | 50 Hz: 25 fps (1920 x 1080), 25 fps (1280 x 960), 25 fps (1280 x 720) 60 Hz: 30 fps (1920 x 1080), 30 fps (1280 x 960), 30 fps (1280 x 720) | | Alarm Trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception | Protocols | IPv4, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | Security | User Authentication, reset button, flickerless, dual stream, heartbeat, mirror, watermark | System Compatibility | ONVIF, PSIA, CGI | | Communication Interface | 1 x RJ45 10M/100M Ethernet interface | | Operating Conditions | Outdoor Dome: -22 to 149°F (-30 to 65°C) Indoor Dome: -14 to 122°F (10 to 50°C) Humidity 90% or less (non-condensing) | Power Supply | Hi-PoE: 40 W maximum (heater 20 W) Hi-PoE injector included 24 VAC: 65 W maximum (heater 5 W) | WDR / BLC | WDR: 120 dB | Weatherproof Rating | IP66 | Dimensions (Ø x H) | 8.66 x 12.81" (22 x 32.5 cm) | Weight | 11.02 lb (5 kg) |
