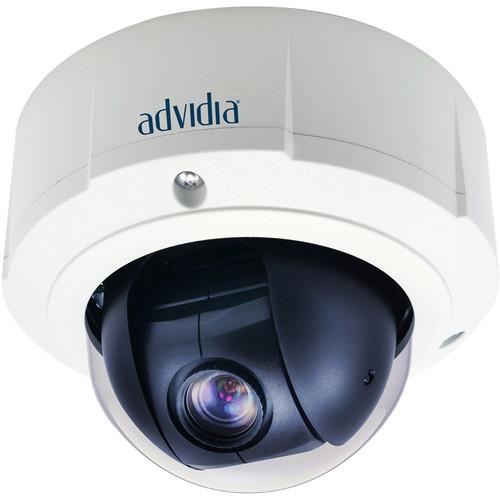

User Manual for Advidia B-210 2MP Outdoor Vandal-Resistant PTZ Network Mini Dome Camera

Click to enlarge the picture
Advidia B-210 2MP Outdoor Vandal-Resistant PTZ Network Mini Dome Camera Contents of the user manual for the Advidia B-210 2MP Outdoor Vandal-Resistant PTZ
  • Product category: Wired IP Cameras Advidia
  • Brand: Advidia
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Advidia Wired IP Cameras

User manual for the Advidia B-210 2MP Outdoor Vandal-Resistant PTZ contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Advidia product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Advidia user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Advidia product will considerably shorten its lifespan!



Product description

The B-210 2MP IR Day/Night Mini Outdoor Vandal-Resistant PTZ Network Mini Dome Network Camera by Advidia features a 1/3" progressive scan CMOS sensor and a 4.9 to 49mm varifocal lens to capture video at a maximum resolution of 1920 x 1080. This day/night camera provides 24-hour surveillance thanks to its removable IR cut filter. Enclosed in an IP66- and IK10-rated housing, the camera can be used in both indoor and outdoor environments that are at high risk of vandalism.
  • 2MP with 1080p
  • Day/night functionality
  • 4.9 to 49mm 10x zoom lens with DC iris, and auto focus
  • Basic WDR (75 dB)
  • Weather-resistant (IP66) and vandal-resistant (IK10) housing
  • Video Insight VMS license included
In the Box Advidia B-210 2MP Outdoor Vandal-Resistant PTZ Network Mini Dome Camera
  • Video Insight VMS License
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Advidia B-210 2MP Outdoor Vandal-Resistant PTZ Network Mini Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Advidia B-210 Specs

    Image Sensor Progressive scan CMOS
    Sensor Size 1/3"
    Minimum Illumination Color: 0.1 lux at f/1.8 (30 IRE, 2400K)
    B&W: 0.05 lux at f/1.8 (30 IRE, 2400K)
    Switch Color to B&W: Configurable
    IR Sensitivity Range 700 to 1100 nm
    Electronic Shutter 1/5 to 1/2,000 sec (manual mode)
    1/5 to 1/10,000 sec (auto mode)
    Focal Length Zoom, 4.9 to 49mm / f/1.8-3.0
    Zoom Ratio 10x optical
    Zoom Speed Maximum 2 sec
    Iris DC
    Focus Auto
    Horizontal Viewing Angle 57.8 to 6.9°
    Maximum Frame Rate vs. Resolution MPEG-4 SP:
    5 fps at 2032 x 1920
    11 fps at 1920 x 1080
    25 fps at 1280 x 720
    30 fps at 640 x 480

    H.264:
    30 fps at 1920 x 1080
    30 fps at 1280 x 960
    30 fps at 1280 x 720
    30 fps at 640 x 480
    15 fps at 320 x 240
    Manual Panning Speed 5 to 90°/s
    Manual Tilting Speed 5 to 90°/s
    Preset Panning Speed 5 to 90°/s
    Preset Tilting Speed 5 to 90°/s
    Panning Range -­175 to 175° (without auto‐flip)
    Tilting Range 0 to 180° (with E­‐flip)
    Control Remote manual control
    256 preset points
    10 preset tours
    Auto
    Preset Panning Accuracy 1.5°
    Preset Tilting Accuracy 1.5°
    Absolute Position Yes
    Protocol Sony VISCA, Pelco D, Pelco P
    Compression H.264, MJPEG
    Streaming Simultaneous dual streams based on two configurations
    Bit Rate 28 kb/s to 6 Mb/s (per stream)
    Bit Rate Mode Constant, variable
    Wide Dynamic Range 75 dB
    White Balance Automatic, hold, manual
    Automatic Gain Control Yes
    Image Enhancement Brightness, Contrast, Sharpness, Digital noise reduction, Flickerless
    Text Overlay User-defined text on video
    Image Orientation Image flip and mirror
    Audio 2-way
    Compression 8 kHz, Mono, PCM, 16-bit encoding
    G.711
    Audio In Terminal block
    Audio Out Terminal block
    Protocols TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P
    Ethernet Port 1, Ethernet (10/100Base-­T), RJ45 connector
    Security IP address filtering
    HTTPS encryption
    Password protected user levels
    Anonymous login
    IEEE 802.1X network access control
    Alarm Trigger Video motion detection (3 regions)
    External device through digital input
    Alarm Response Go to PTZ preset point or preset tour
    Change camera settings
    Command other devices
    Email notification with snapshots
    Save video or snapshot to local storage
    Upload video or snapshot to FTP server
    Activate external device through digital output
    Digital Input 1, terminal block
    Digital Output 1, terminal block
    Local Storage microSDHC/microSDXC memory card slot (card not included)
    Power Source and Consumption PoE Class 3 (IEEE 802.3af)/12.95 W (built-in heater and fan on)
    12 VDC (adapter not included)/10.36 W (built-in heater and fan on)
    Environmental Casing Weatherproof (IP66-rated)
    Vandal-resistant (IK10-rated)
    Transparent dome cover
    Mount Type Surface, pendant, wall, corner, pole, flush
    Starting Temperature -4 to 122°F (­‐20 to 50°C)
    Operating Temperature -4 to 122°F (­‐20 to 50°C)
    Operating Humidity 10 to 85% RH
    Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart Class B), IP66, IK10, NEMA 4X
    System Compatibility ONVIF-compliant
    Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality), Safari with QuickTime installed, and other browsers
    Dimensions (Ø x H) 6 x 4.6" (153 x 116 mm)
    Weight 2.78 lb (1.2 kg)
