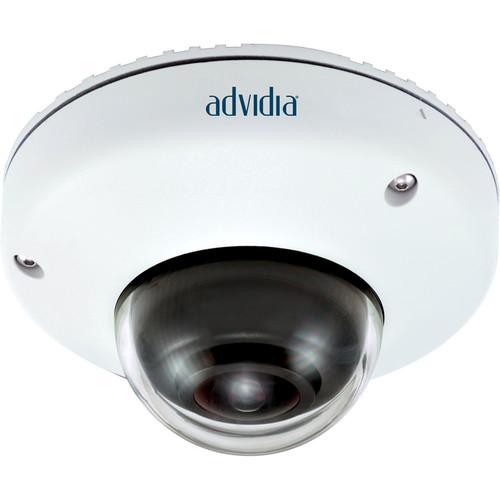

User Manual for Advidia B-5360 5MP Outdoor Vandal-Resistant Mini Dome Camera with Fisheye Lens Click to enlarge the picture
Contents of the user manual for the Advidia B-5360 5MP Outdoor Vandal-Resistant Mini
- Product category: Wired IP Cameras Advidia
- Brand: Advidia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Advidia Wired IP Cameras
|
User manual for the Advidia B-5360 5MP Outdoor Vandal-Resistant Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Advidia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Advidia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Advidia product will considerably shorten its lifespan!
|
Product description The B-5360 5MP Weatherproof Vandal-Resistant Mini Dome Camera from Advidia features a fixed iris fisheye lens with 360° view. Rated as weatherproof (IP68), vandal-resistant (IK10), and vibration proof, this camera is suitable for outdoor applications in vulnerable environments. It supports H.264 and MPJEG video compression codecs and simultaneous dual streams. -
- Basic WDR (74 dB)
- 360° fixed fisheye lens
- Weatherproof (IP68), vandal-resistant (IK10), and vibration proof
- Video Insight VMS license included
- microSDHC/microSDXC memory card slot (card not included)
In the Box Advidia B-5360 5MP Outdoor Vandal-Resistant Mini Dome Camera with Fisheye Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Advidia B-5360 5MP Outdoor Vandal-Resistant Mini Dome Camera with Fisheye Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAdvidia B-5360 Specs | | | Type | Outdoor mini fisheye | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/3.2" | | Minimum Illumination | Color: 0.1 lux @ f/2.0 (30 IRE, 2400K) | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode)
1/5 to 1/10,000 sec (auto mode) | | | | Focal Length | 1.19mm | | Lens Type | Fixed fisheye lens | | Aperture | f/2.0 | | Iris | Fixed | | Focus | Fixed | | Horizontal Viewing Angle | 180° (overview area), 109.8° (high detail area) | | Viewing Angle Adjustment | Rotation: ±90° | | | | Compression | H.264, MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps @ 1920 x 1080, 30 fps @ 1280 x 960, 30 fps @ 1280 x 720, 30 fps @ 640 x 480, 15 fps @ 320 x 240 | | Mode | Fisheye streaming, dewarped streaming in 180/360° panorama, ePTZ | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR (75 dB), automatic white balance, hold, and manual
Brightness, contrast, sharpness, automatic gain control, digital noise reduction, flickerless | | Privacy Mask Type | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Audio In | Mic-in, cable with 3.5 mm phone jack | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, SSNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P | | Ethernet Port | 1 x Ethernet (1-/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPS, encryption, password protected user levels, anonymous login, IEEE 802.1x network access control | | | | Alarm Trigger | Video motion detection (3 regions) | | Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video, snapshot to FTP | | | | Local Storage | microSDHC/microSDXC memory card slot (card not included) | | | | Power | PoE class 1 (IEEE 802.3af) / TBC | | Environmental Casing | Weatherproof (IP68), vandal-resistant (IK10), and vibration proof (EN 50155-ready without certificate), transparent dome cover | | Mount Type | Surface, gang box | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Approvals | CE (EN 55022 class B, EN 55024), FCC (part 15 subpart B class B), IK10 IP68, NEMA, 4X | | System Compatibility | ONVIF | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 10 to 85% RH | | Dimension | 4.3 x 2.4" (110 x 60 mm) | | Weight | Not Specified by Manufacturer |
