User Manual for AEE AP CAM AP9 with ActionCam S40 Pro 1080p Camera Click to enlarge the picture
Contents of the user manual for the AEE AP CAM AP9 with ActionCam
- Product category: See All Drones AEE
- Brand: AEE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AEE See All Drones
 |
User manual for the AEE AP CAM AP9 with ActionCam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AEE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AEE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AEE product will considerably shorten its lifespan!
|

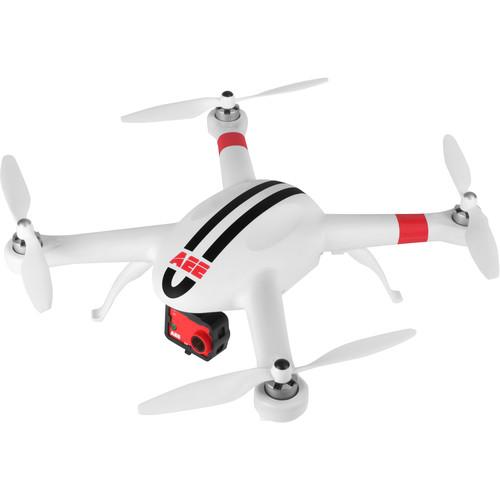

Product description Aerial Photography and Drone Glossary Read More ttbydrfztyzbuzctusceurytwbyfwtvwyb The AP CAM AP9 from AEE is an aerial photography bundle that features the 1080p ActionCam S40 Pro as well as a static camera mount. Ready-to-fly, the AP9 comes paired with an 8-channel transmitter (radio controller), a 5300mAh flight battery, and a battery charger. In addition to video, the S40 Pro ActionCam can also take still photos at up to 16MP and features a burst mode capable of capturing up to 8 images per second. - Wind Tunnel Tested Design
- An aerodynamic design that has been refined by testing in wind tunnels helps keep the copter more stable and allows for precise

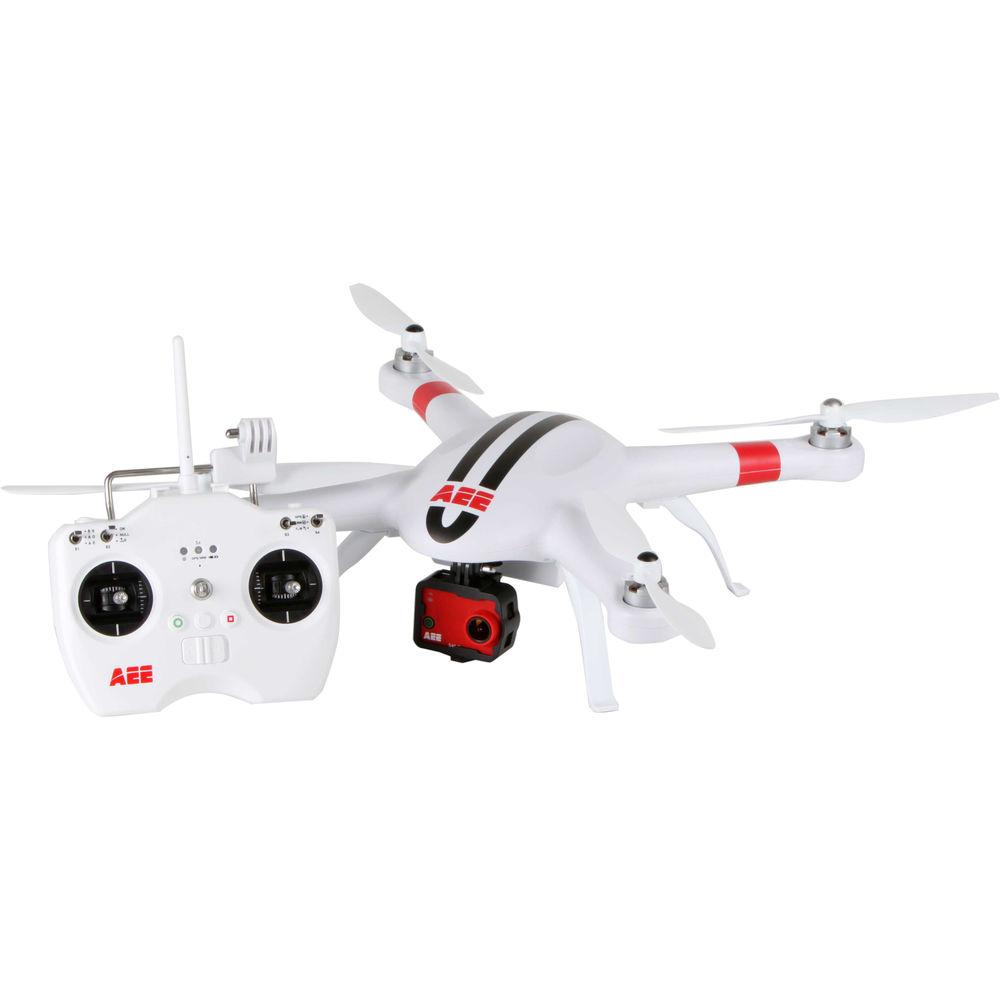

- Ready to Fly - Transmitter Included
- The AP9 includes an 8-channel transmitter (radio controller) that is pre-bound to the aircraft. The transmitter features a range of up to 1,600' line-of-sight. Power comes from four AA batteries (available separately)
- Auto Return Home
- If you ever lose track of the AP9 or are simply done flying, you can active the GPS-guided auto return home and land function from the transmitter. If the AP9 ever loses contact with the transmitter, the return home function kicks in automatically to help avoid a "flyaway"
- LED Running Lights
- LEDs illuminate during flight to help you maintain visual contract with the AP9 as well as stay on top of its orientation

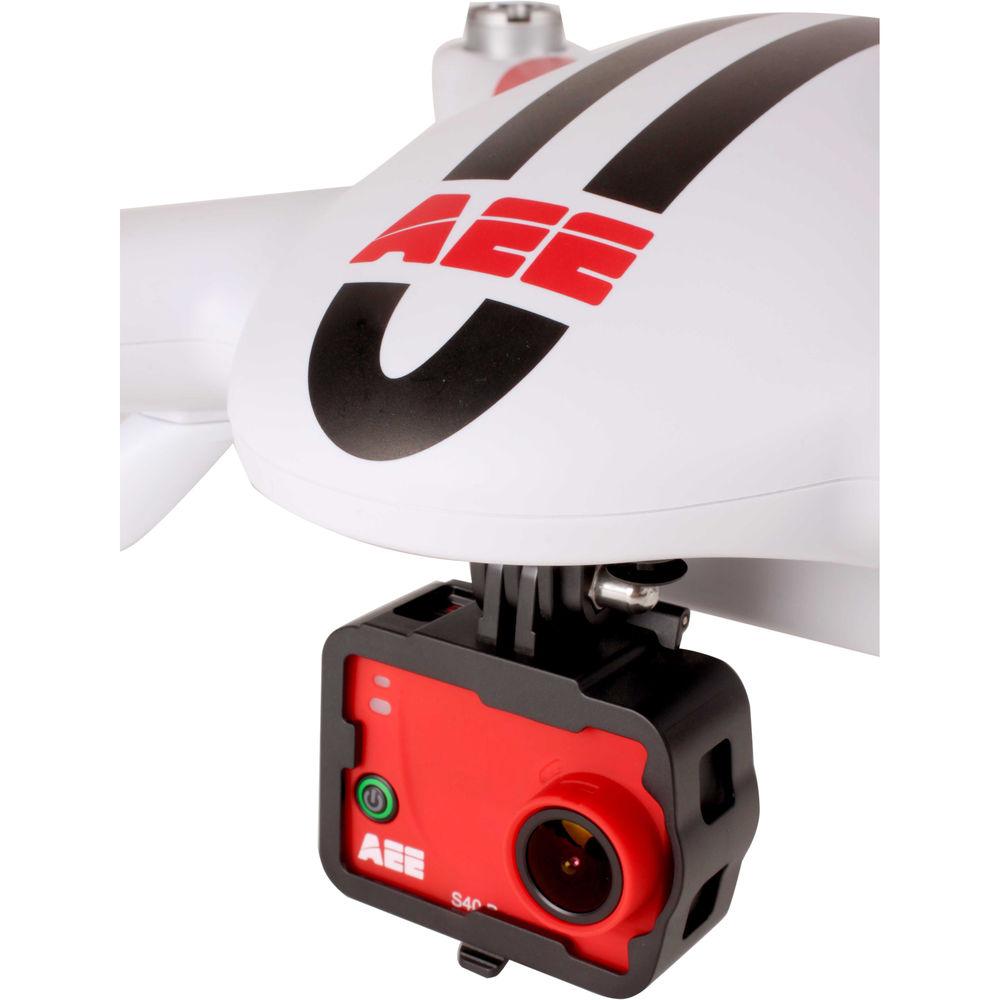

- ActionCam S40 Pro
- Allowing you to record you aerial adventures in Full HD, the AP9 includes the S40 Pro camera. Featuring a wide 120° FOV lens, the camera records 1080p30 video to microSD memory cards up to 64GB in size
- Up to 25 Minutes Flying Time
- The included flight battery powers the AP9 for up to 25 minutes, depending on conditions. With the included charger, recharging is estimated to take two hours. An alarm will alert if the battery starts to run critically low
UPC: 851942006229 In the Box AEE AP CAM AP9 with ActionCam S40 Pro 1080p Camera 8-Channel Transmitter S40 Pro 1080p Action Camera Flight Battery Battery Charger 2 x 10" Propeller Sets 4 x AA Batteries USB Charging Cable Action Camera Mount Tools Limited 12-Month Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the AEE AP CAM AP9 with ActionCam S40 Pro 1080p Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAEE AP9 Specs | | | Flight Time | Up to 25 minutes | | Maximum Speed | Horizontal: 65.6 ft/second / 20 m/second
Ascent: 19.7 ft/second / 6 m/second
Descent: 13.1 ft/second / 4 m/second | | Wind Resistance | Level 4 | | Hovering Accuracy | Horizontal: ±8.2' / 2.5m
Vertical: ±2.6' / 0.8m | | Maximum Tilt Angle | 30° | | Maximum Flying Height | 65.6' / 20 m above ground level (AGL) | | | | Mobile App | iOS 6.1 or above
Android 4.0 or above | | | | Wi-Fi | Supported | | GPS Support | GPS | | | | Number of Channels | 8 | | Range | 1640.4' / 500 m | | Power Consumption | 150 mA / 6 V | | Power Requirements | 4 x AA batteries
Battery Life: Up to 8 hours | | | | Model | ActionCam S40 Pro | | Lens | FOV: 130°
Aperture: f/2.4 | | Video Resolution | 1080: 30p
720: 60p
WVGA (800 x 480): 120p | | Photo Resolution | 16 MP
8 MP
5 MP
3 MP | | Burst Mode | Up to 8 photos/second | | Recording Format | Video: MP4
Audio: WAV | | Recording Media | microSD/SDHC/SDXC up to 64 GB in capacity (Class 4 or faster) | | Battery | Capacity: 1250 mAh
Life: Up to 3 hours | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 2.3 x 0.9 x 1.7" / 5.8 x 2.2 x 4.3 cm | | Weight | 2.6 oz / 72.6 g | | | | Chemistry | Lithium-ion (LiPo) | | Capacity | 5300 mAh | | Charge Time | ~ 2 hours | | | | Dimension | Diagonal Length: 450 mm / 1.5' | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 9.75 lb | | Box Dimensions (LxWxH) | 17.3 x 17.0 x 9.6" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
