User Manual for AEE AP11 Quadcopter with Camera and 3-Axis Gimbal System Click to enlarge the picture
Contents of the user manual for the AEE AP11 Quadcopter with Camera and
- Product category: See All Drones AEE
- Brand: AEE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AEE See All Drones
 |
User manual for the AEE AP11 Quadcopter with Camera and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AEE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AEE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AEE product will considerably shorten its lifespan!
|

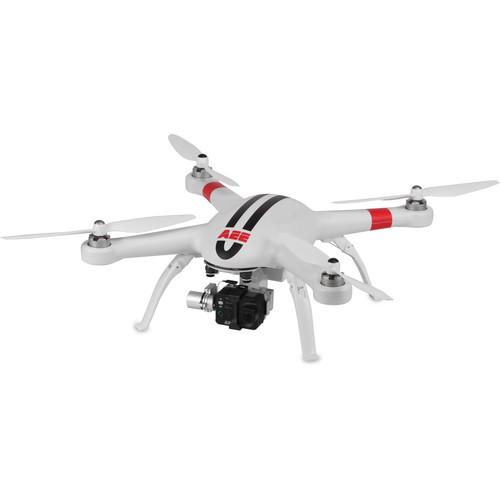

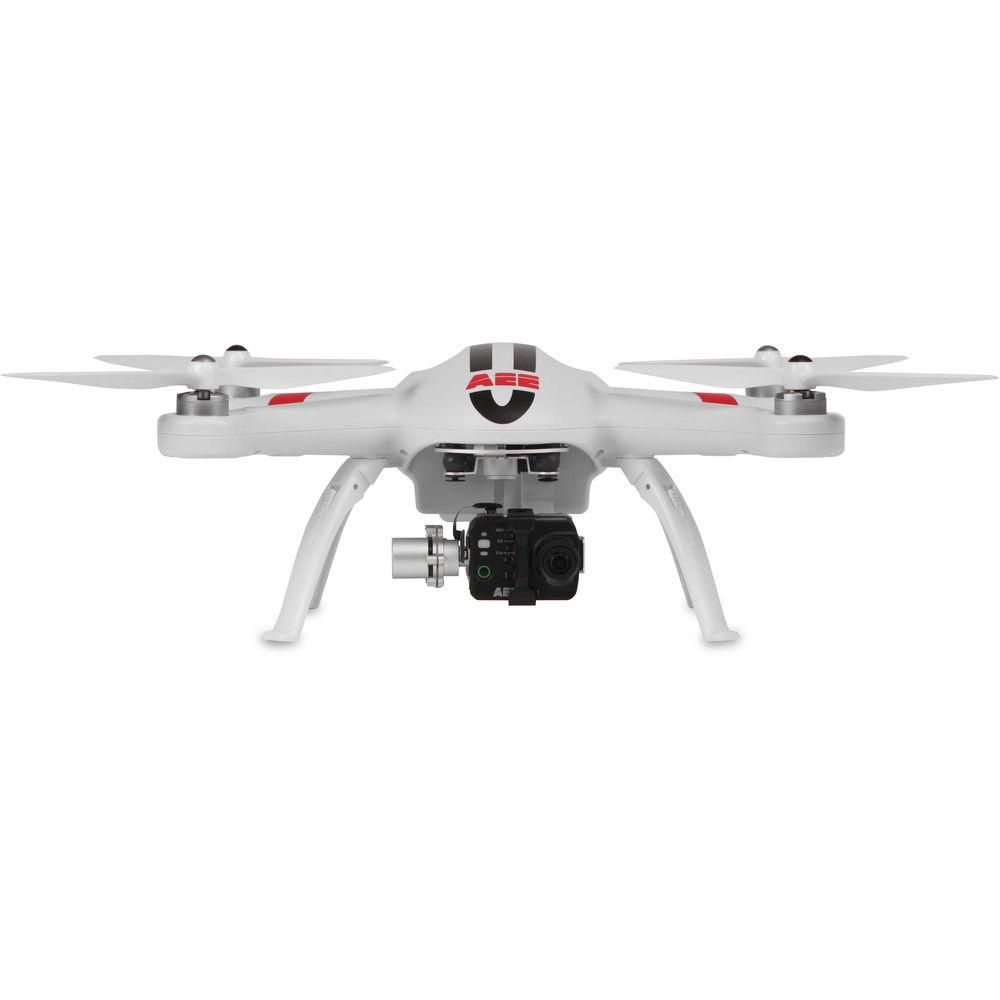

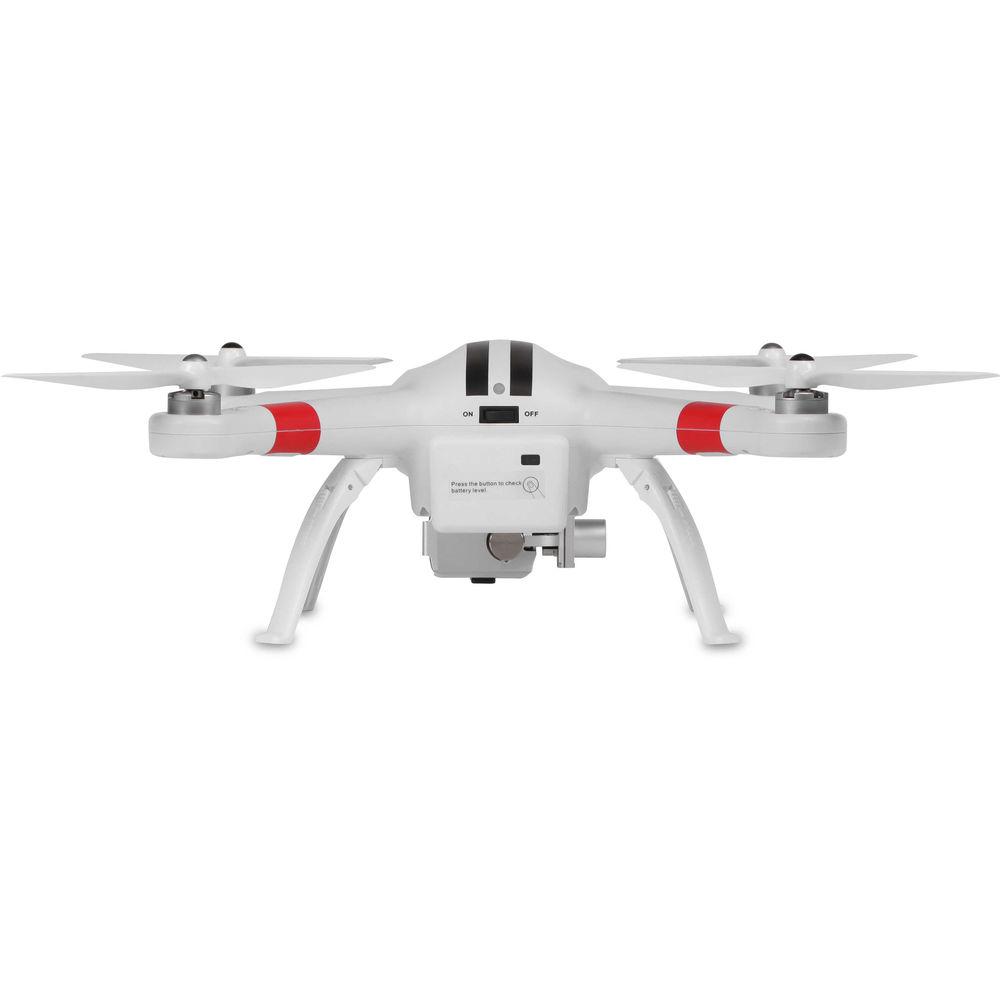

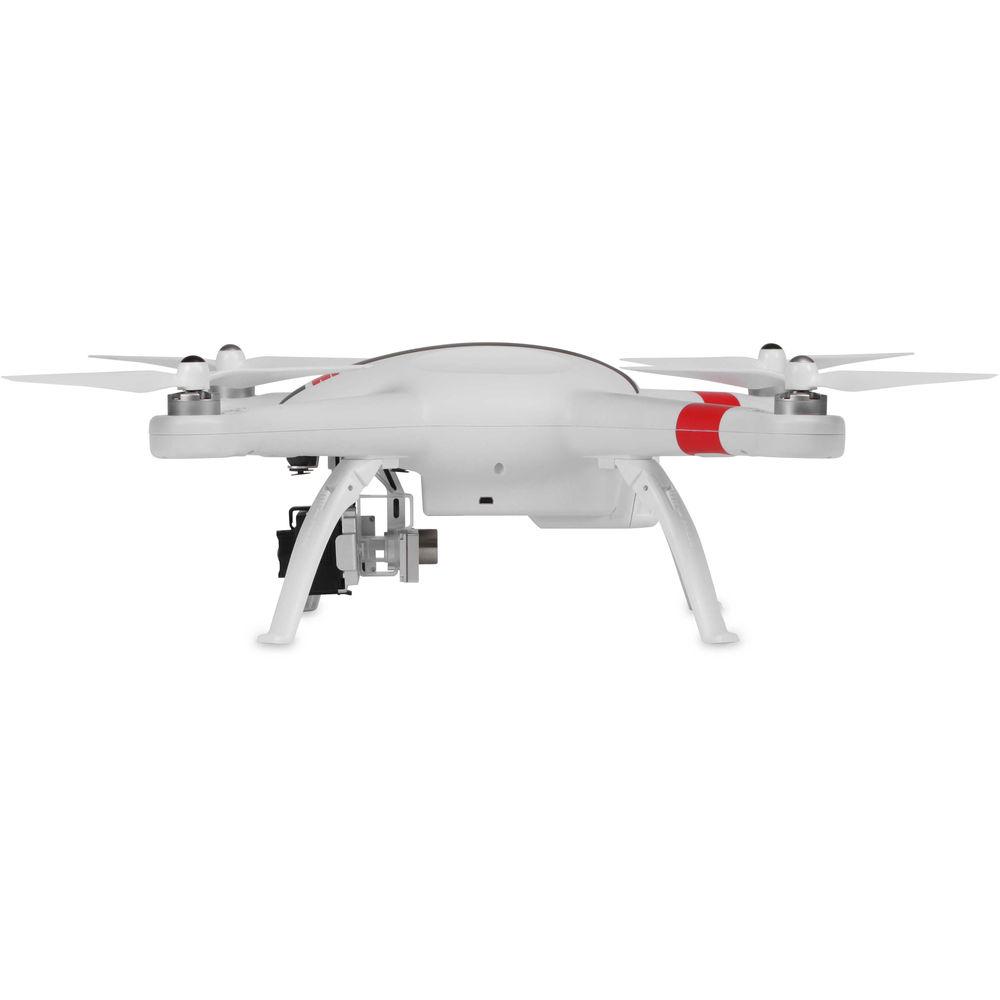

Product description Aerial Photography and Drone Glossary Read More fdwsreyzsvtabzdcucbuydvtwtuuwzswwttttu Enjoy flights of up to 25 minutes with the AP11 Quadcopter with Camera and 3-Axis Gimbal System from AEE. This ready-to-fly RC drone comes pre-equipped with the basics to get you started, including a 6400 mAh flight battery plus charger, a pre-bound transmitter (radio controller), two sets of propellers (four pairs total), AA batteries from the transmitter, and more. In addition, the AP11 is camera-equipped, featuring AEE's own S61 action camera along with a 3-axis gimbal to provide stabilization. A Wi-Fi connection in the camera plus a Wi-Fi range extender enable you to view a live video feed plus remotely operate the camera from the ground. A smartphone holder is included allowing you to clamp your smartphone to the transmitter. The S16 camera is compatible with apps for Android and iOS. - S61 1080p camera takes 60 fps video and 16MP still photos
- 3-axis gimbal stabilizes camera
- 2.4 GHz Wi-Fi downlink for smartphones
- iOS and Android apps for remote operation of camera and live view
- Smartphone holder included
- Follow Me mode tracks a moving subject with mobile device
- GPS-based autopilot with Return to Home
- Stationary hovering in GPS and Normal flight modes
- 10" self-tightening propellers
- LED Indicators and low voltage protection

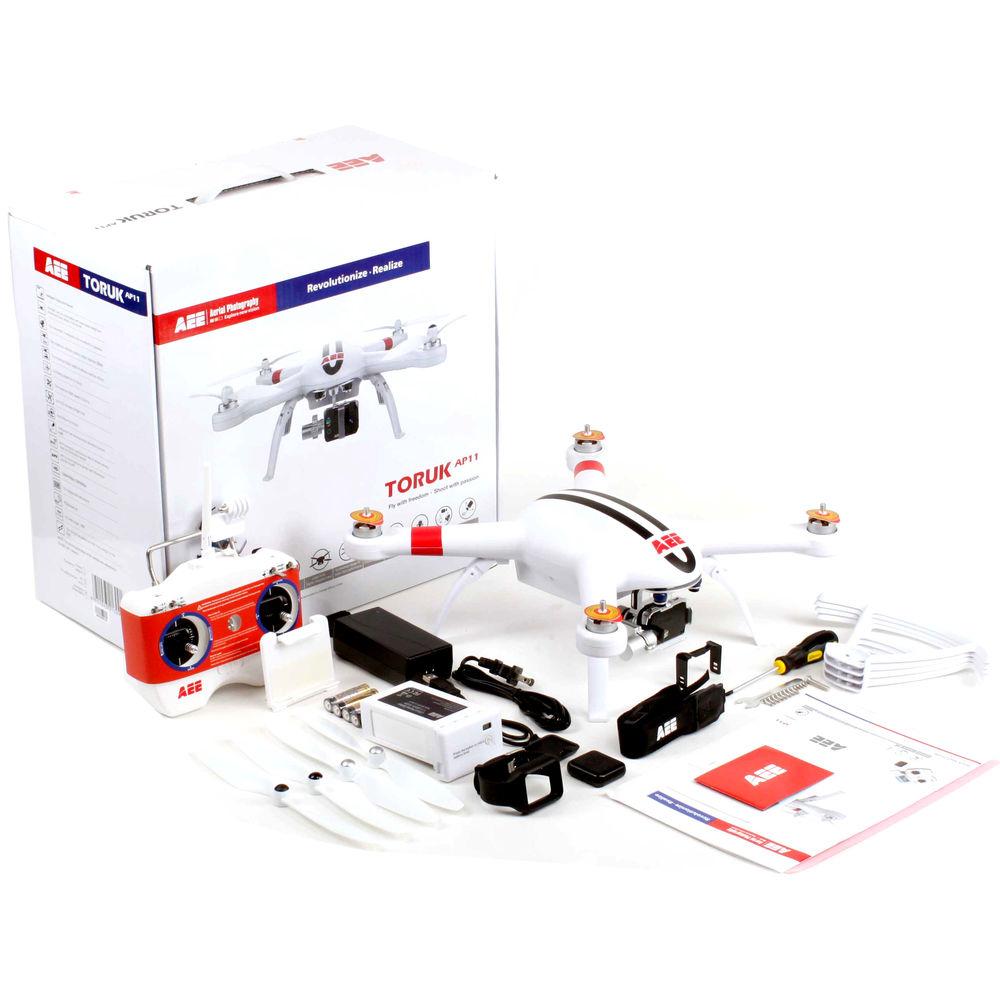

UPC: 851942006113 In the Box AEE AP11 Quadcopter with Camera and 3-Axis Gimbal System AEE S61 Action Camera 3-Axis Gimbal Transmitter (Radio Controller) Smartphone Holder 6400 mAh Flight Battery AC Battery Charger Landing Gear (Pair) 4 x Self-Tightening Propeller Pair Wrench Screwdriver USB Cable 4 x AA Battery Limited 1-Year Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the AEE AP11 Quadcopter with Camera and 3-Axis Gimbal System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAEE AP11 Specs | | | Flying Time | Up to 25 minutes | | Takeoff Weight | < 3.3 lb / < 1500 g | | Maximum Speed | Flight Velocity: 65.6 ft/s / 20 m/s
Ascent: 26.2 ft/s / 8 m/s
Descent: 16.4 ft/s / (5 m/s | | Hovering Accuracy (GPS Mode) | Vertical: ±3.2' / 1 m
Horizontal: ± 6.6' / 2 m | | Maximum Angular Velocity | Yaw: 200°/s | | Maximum Tilt Angle | 35° | | | | Model | AEE S61 | | Sensor | 1/2.3" CMOS | | Resolution | Video: 1080p
Photo: 16MP | | Frame Rate | 60 fps | | Photo Modes | Single, Burst | | Recording Media | microSD up to 64 GB | | Wi-Fi Interface | 2.4 GHz / IEEE 802.11 b/g | | Wireless Range | With Range Extender: Up to 3280' / 1000 m | | Latency | < 0.1 seconds (100 ms) | | System Requirements (App) | iOS / Android | | | | Range | 3280' / 1000 m | | Frequency | 915 MHz (ISM) | | Number of Channels | Not specified by manufacturer | | Control Modes | GPS, Normal | | Working Current/Voltage | 150 mA / 6 VDC | | Power Requirements | 4 x AA batteries | | | | Frequency | 2412 to 2462 MHz | | Range | 2625' / 500 m | | Transmit Power | <= 17 dBm | | Power Consumption | 1.5 W | | | | Chemistry | Lithium-polymer (LiPo) | | Voltage | 3S (11.1 VDC) | | Capability | 6400 mAh | | Charger | Power Requirements: 100 to 240 VAC | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Size | Diagonal Distance: 17.71" / 450 mm motor center to motor center | | Dimensions | Overall: 14.6 x 14.6 x 5.5" / 37 x 37 x 14 cm | | Weight | 3.6 lb / 1.6 kg | | | | Package Weight | 11.4 lb | | Box Dimensions (LxWxH) | 17.1 x 16.8 x 9.7" |
