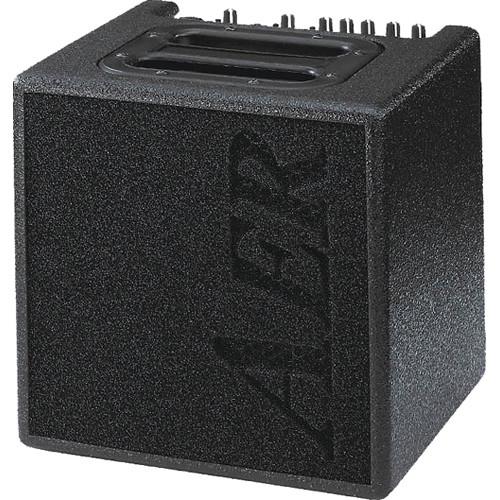

Product description The Alpha Amplifier System from AER is a 40W amplifier with an 8" twin-cone speaker system. It has one channel and two independent input stages (line and microphone/line). The triple-band equalizer of your Alpha provides you with an active sound interaction tool that supports the natural tone of instruments and voice whilst simultaneously offering you the possibility of a controlled accentuation.
The Alpha has a built-in (internal) reverb effect. The EFX level control determines the intensity of the internal effects. A standard double footswitch (on/off switch) can be plugged into the footswitch socket on the rear side of the amplifier via a stereo cable. The footswitch allows you to switch the internal and external effects on and off.
Microphones requiring 48V phantom power can be directly connected to the XLR socket of input 1. Factory-provided phantom power is activated but if required, may be deactivated by an internal jumper. In contrary 9V phantom power, if required, can additionally be activated in input 2 by an internal jumper. UPC: 846614000568 In the Box AER Alpha Amplifier System (40W) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AER Alpha Amplifier System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAER ALPHA Specs | | | Input 1 | Switchable line or microphone input
Combo socket, XLR + 1/4" phone jack
Line Mode (Jack Only):
Unbalanced high-impedance input for instrument pickups and line-level sources
Minimum Input Voltage: 16 mV (-36 dBV)
Maximum Input Voltage: 7 V (+17 dBV)
Input Impedance: 2 MOhms, 300 pF
Equivalent Input Noise, A-Weighted:
2.1 µV (-114 dBV)
Microphone Mode (Jack or XLR)
XLR (balanced), stereo jack (balanced), or mono jack (unbalanced) microphone input
Minimum Input Voltage: 2 mV (-54 dBV)
Maximum Input Voltage: 1 V (0 dBV)
Input Impedance (Balanced): 1.2 kOhms
Input impedance (Unbalanced): 2.7 kOhms
Voice Filter: -10 dB at 260 Hz (ref. to 10 kHz)
Equivalent Input Noise, A-Weighted: 0.7 μV (-123 dBV)
Phantom Power: 48 V (XLR only), R = 6.8 kOhms per terminal, total current max. 10 mA, short circuit protected. | | Input 2 | Unbalanced high-impedance input for instrument pick-ups and line-level sources
1/4" mono phone jack
Minimum Input Voltage: 14 mV (-37 dBV)
Maximum Input Voltage: 5 V (+14 dBV)
High / Low Switch: Attenuator -10 dB
Input Impedance: 2.2 MOhms, 300 pF
Equivalent Input Noise, A-Weighted: 1.2 μV (-118 dBV) | | Return | Return input for effect loop
1/4" mono phone jack
Minimum Input Voltage: 150 mV (-17 dBV)
Maximum Input Voltage 5 V (+14 dBV)
Input Impedance: 20 kOhms (5 kOhms if effect is switched off by footswitch) | | Clip LED Threshold | Headroom: Minimum 8 dB | | | | Headphones | Headphones output. Suitable for headphones with stereo jack. Does not work with mono jacks. When plugged in, the internal speaker is switched off
1/4" stereo phone jack, L/R connected
Maximum Output Power: 2 x 65 mW/1000 Ohms
Input Sensitivity for 2 x 50 mW/1000 Ohms: 19 mV (-35 dBV) at input 1, line mode | | Line Out | Preamplifier output after master volume
1/4" mono phone jack
Output Voltage: 1.4 V (+3 dBV) | | Tuner | Tuner output
1/4" mono phone jack
Output Voltage: 450 mV (-7 dBV) | | Output | DI-Out:
Balanced XLR output before master, after tone controls, without effects
Output Voltage (Differential): 190 mV (-15 dBV) | | Send | Send output for effect loop, before master, after tone controls
1/4" mono phone jack
Output Voltage: 450 mV (-7 dBV) | | | | Footswitch | Connector for a dual footswitch
1/4" stereo phone jack
Tip = internal effect on/off
Ring = external effect on/off
Sleeve = common (ground)
Effect is OFF when the footswitch is ON | | | | Tone Controls | Color (input 2): -3 dB at 700 Hz, +10 dB at 8 kHz, switchable
Bass: ±8 dB at 100 Hz, shelf type
Middle: ±6 dB at 800 Hz
Treble: ±8 dB at 10 kHz, shelf type | | | | Internal | Built-in digital reverb | | External | Parallel effect loop (effect blended with dry sound) | | | | Power Amp | 40 W/4 Ohms at 1% THD, DMOS, monolithic I.C.
Dynamic Range, A-Weighted: 92 dB | | Limiter Threshold Range | 35 W/4 Ohms | | Analog Signal | Subsonic filter, adaptive peak limiter processing | | Speaker System | 8" (200 mm) twin cone full-range speaker, bass reflex enclosure | | Mains Power | Mains Voltage (depending on model): 100, 120, 230, or 240 VDC, 50-60 Hz
Power Consumption: Max. 100 W | | Fuse | Size: 5 x 20 mm
For 230 and 240 V Models: T 1 A L
For 100 and 120 V Models: T 2 A L | | | | Cabinet | 12 mm birch plywood | | Finish | Water-based acrylic, black spatter finish | | Dimensions | 10.24 x 10.43 x 9.25" (260 x 265 x 235 mm) | | Weight | 13.7 lb (6.2 kg) | | | | Package Weight | 18.315 lb | | Box Dimensions (LxWxH) | 14.45 x 14.35 x 12.7" |
