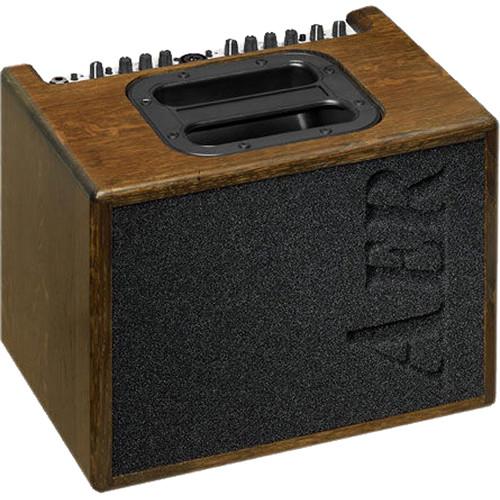

User Manual for AER Compact 60 3 Twin-Channel Acoustic Amplifier Click to enlarge the picture
Contents of the user manual for the AER Compact 60 3 Twin-Channel Acoustic
- Product category: Guitar Amplifiers AER
- Brand: AER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AER Guitar Amplifiers
|
User manual for the AER Compact 60 3 Twin-Channel Acoustic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AER product will considerably shorten its lifespan!
|
Product description The oak Compact 60/3 Twin-Channel Acoustic Amplifier from AER is a professional, compact, and powerful amplifier system which features two input channels. Especially developed for the enhancement of acoustic instruments, it is also suitable for use with other instruments, even electrical ones. The combination XLR / 1/4" input on Channel 2 can be used to connect either a second instrument or a microphone, making the Compact 60/3 an ideal choice for singer/songwriters playing club gigs. The triple-/dual-band equalizer of the Compact 60/3 provides you with an active and high-quality sound interaction tool that supports the natural tone of instruments and voice whilst simultaneously offering you the possibility of a controlled accentuation. With all controls in mid position, the filters are set to produce a very pleasing and natural sound impression that you can "color up" by using the color filter with the effect of lowering the mids and lifting the trebles. The tone becomes more open and light, and is especially suited for fingerpicking techniques. The equalization can support or soften the effect of the color filter and allows a differentiated mids accentuation. The Compact 60/3 has a built-in digital effects processor, and with the select-switch you can choose between 4 different effects: reverb 1, reverb 2, delay, and chorus. The efx-level-control determines the intensity of the internal effects. Additional external effects units can be connected using the send and return jacks for the amp's effects loop. With the efx-pan control, the internal and external effects can be blended with the original signal. Furthermore, the effects can be switched on and off using a standard double footswitch and stereo cable (both available separately), which can be connected to the footswitch jack on the back of the amp. UPC: 846614003293 In the Box AER Compact 60/3 Twin-Channel Acoustic Amplifier (Oak) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AER Compact 60 3 Twin-Channel Acoustic Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAER COMPACT-60/3-ONT Specs | | | Channels | Channel 1:
High impedance, unbalanced input for instruments (pickups) and line-level sources
1/4" Mono phone jack socket
Sensitivity: 22 mV @ 33 dBV
High/low (attenuator) switch: -10 dB
Impedance: 2.2 MOhms
Equivalent input noise, A-weighted: 1 uV @ -120 dBV
Phantom power: 9 VDC / maximum 100 mA
Headroom: minimum 8 dB
Channel 2:
Switchable instrument or microphone input
Combo socket, 1 x XLR and 1 x 1/4" phone jack
Line mode:
High impedance, unbalanced input for instruments (pickups) and line-level sources
Sensitivity: 27 mV @ -31 dBV
Impedance: 1 MOhm
Equivalent input noise, A-weighted: 2.4 uV @ -112 dBV
Microphone mode:
XLR (balanced), stereo phone jack (balanced), or mono phone jack (unbalanced) input
Sensitivity: 3.3 mV @ 50 dBV
Impedance (balanced mode): 1.2 kOhms
Impedance (unbalanced mode): 2.7 kOhms
Voice filter: -10 dB at 270 Hz (referred to 10 kHz)
Equivalent input noise, A-weighted: 0.8 uV @ 122 dBV
Phantom power (XLR only): 48 V, maximum 10 mA
Headroom: minimum 8 dB | | Return | Input from external parallel effect loop, or supplementary input, before master volume
1/4" Mono phone jack
Sensitivity: 320 mV @ 10 dBV
Impedance: 20 kOhms | | | | Headphones | 1/4" Stereo phone jack socket, L/R connected
Maximum output power: 2 x 100 mW / 1000 Ohms
Input sensitivity for 2 x 50 mW / 1000 Ohms
Channel 1 input: 23 mV @ 33 dBV
Impedance: 470 Ohms
Note: Suitable for headphones with stereo phone jack. Does not work with mono phone jacks. | | Tuner | 1/4" Mono phone jack socket
Output voltage: 340 mV @ 9 dBV | | Line Out | 1/4" Mono phone jack
Output voltage: 1.4 V @ +3 dBV | | DI Output | Balanced XLR output before master, after tone controls, without effects
1 = ground
2 = positive
3 = negative
Differential output voltage: 140 mV @ 17 dBV | | Send | Output to external parallel effect loop
Before master, after tone controls
1/4" Mono phone jack
Output voltage: 1.4 V @ +3 dBV | | Footswitch | 1/4" Stereo phone jack socket for a dual footswitch
Tip = internal effect on/off
Ring = external effect on/off
Sleeve = common (ground) | | Tone Control | Channel 1:
Color -3 dB at 700 Hz, +10 dB at 8 kHz
Bass: ±8 dB at 100 Hz
Middle: ±6 dB at 800 Hz
Treble: ±8 dB at 10 kHz
Channel 2:
Bass: ±8 dB at 100 Hz
Treble: ±11 dB at 10 kHz | | Effects | Internal Effects: Reverb 1, Reverb 2, Delay, Chorus
External Effects: Parallel effects loop | | | | Amplifier Power | 60 W / 4 Ohms, DMOS, monolithic I.C.
Dynamic range, A-weighted: 92 dB | | Limiter Threshold Range | 50 W | | Signal Processing | Analog Signal Processing: Dedicated equalizer, subsonic filter, adaptive peak limiter | | Speaker System | 8.0" (200.0 mm) twin-cone full-range speaker, bass reflex enclosure | | Mains Power | Mains voltage: 100, 120, 230, or 240 VAC, 50 to 60 Hz
Power consumption: maximum 120 W | | Fuse | Mains: 5 x 20 mm
T 1 A L / 250 V for 230 and 240 V models
T 2 A L / 250 V for 100 and 120 V models | | | | Cabinet | 0.47" (12.0 mm) birch plywood | | Finish | Water-based acrylic | | Dimensions | 10.2 x 12.8 x 9.3" (260.0 x 325.0 x 235.0 mm) | | Weight | 14.3 lb (6.5 kg) |
