User Manual for AER Compact Slope 60W 2-Channel Acoustic Guitar Combo Amplifier Click to enlarge the picture
Contents of the user manual for the AER Compact Slope 60W 2-Channel Acoustic
- Product category: Guitar Amplifiers AER
- Brand: AER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AER Guitar Amplifiers
 |
User manual for the AER Compact Slope 60W 2-Channel Acoustic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AER product will considerably shorten its lifespan!
|

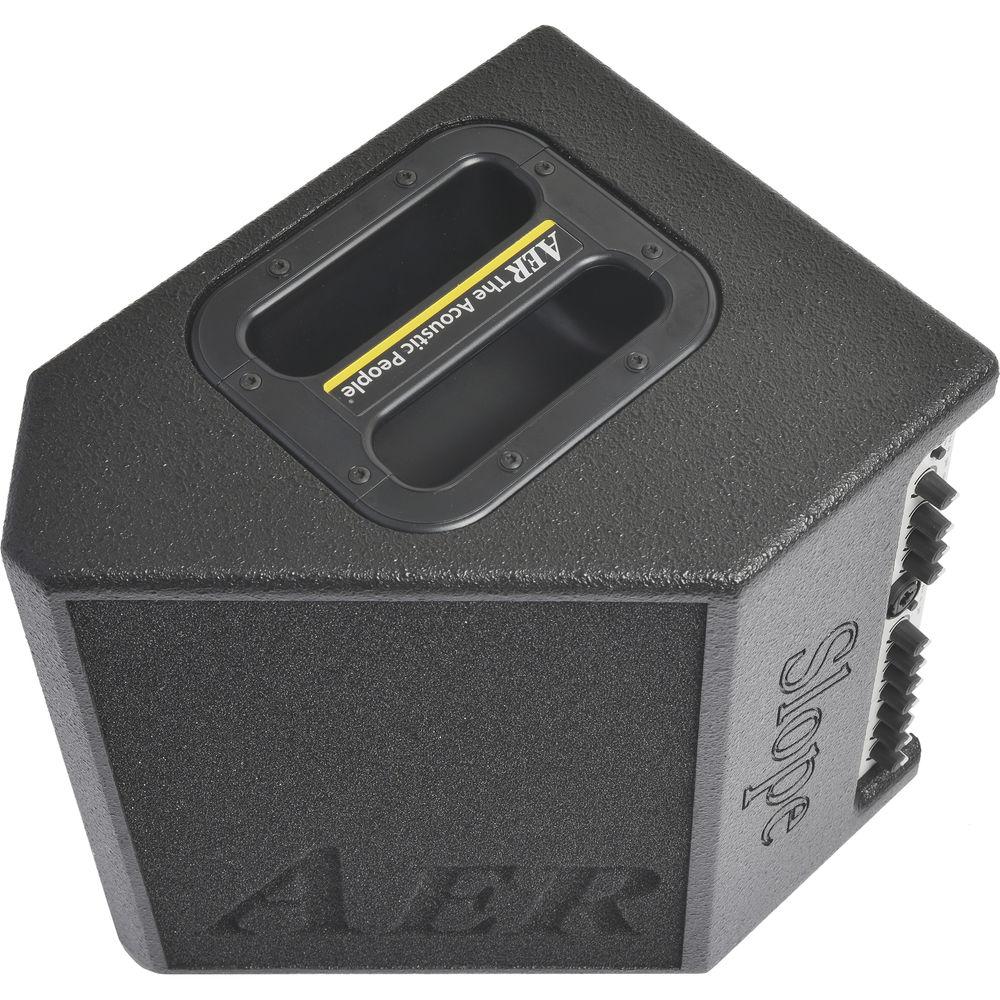

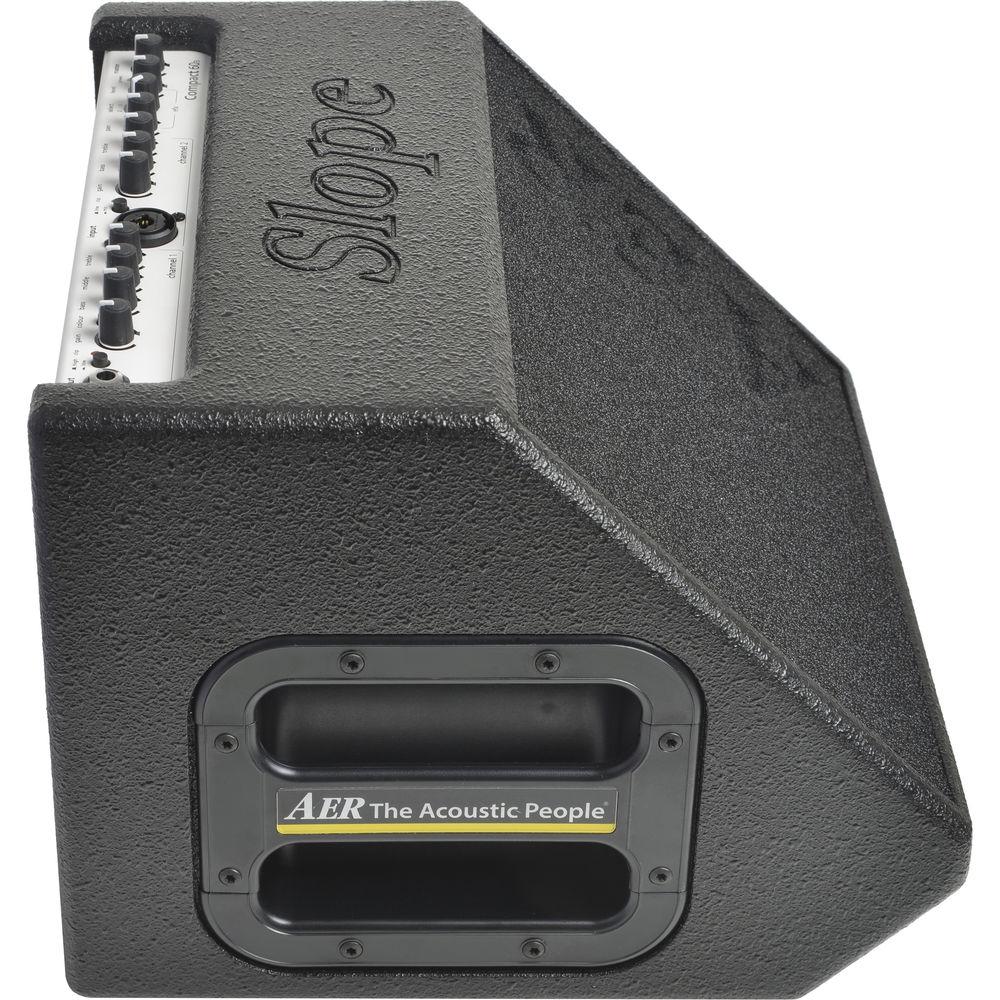

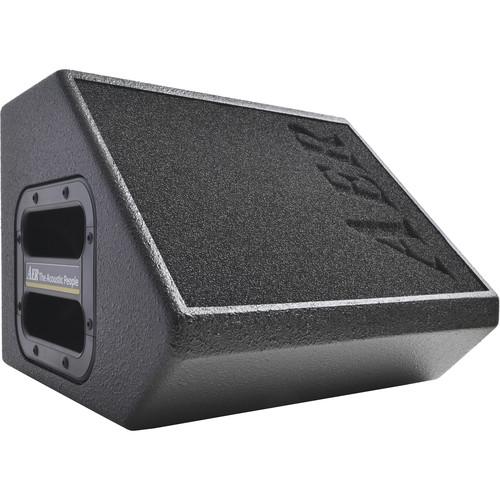

Product description Designed to provide 60W of amplification through its 1x8" twin-cone speaker, the Compact Slope from AER is a two-channel combo amplifier geared toward acoustic guitarists who prefer to have their sound coming up at them from angle from a stage's floor. Because of this amplifier's 45° slope, placement of this amp on the floor will allow you to hear your sound better from a standing position. It's modeled on AER's Compact 60, giving you a dual-channel operation quite suitable for singer/songwriters, with independent tone sections for your guitar and your voice.

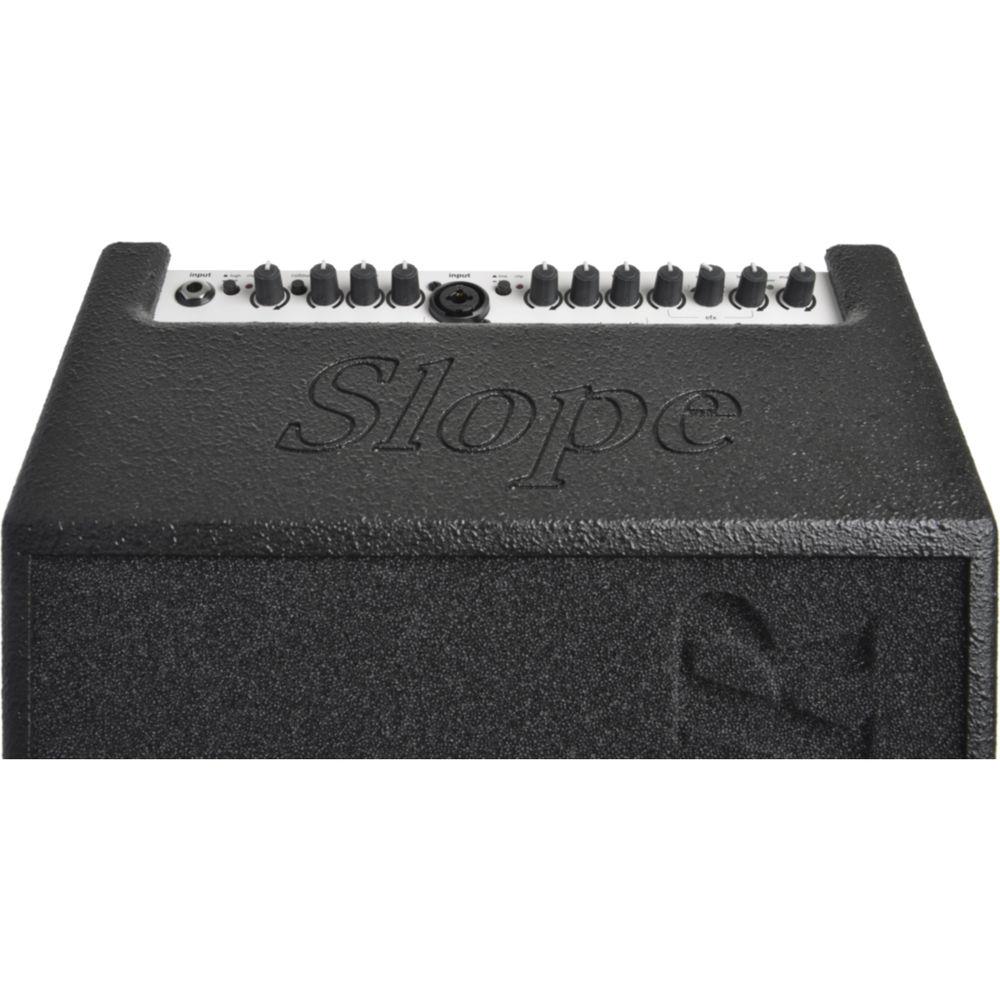

The front panel allows you a conventional 1/4" instrument input for channel one, while channel two utilizes a combination jack, and thus, allows for both XLR and 1/4" connections. Channel one provides gain, bass, middle, and treble controls, as well as a high/low selector to suit various types of pickups. The Colour button activates a tone-shaping filter, changing the behavior of the mids in relation to the high-frequencies. On channel two you'll find gain, bass, and treble controls, as well as a selector that allows you to choose between mic and line inputs. - On-Board Effects
- A comprehensive effects section allows you to access two types of reverb, a delay, and a chorus, with the level knob dictating the dry/wet signal ratio.
- Parallel Effects Loop
- Should you wish to utilize outboard gear, you can do so through a parallel effects loop, the output of which can be blended, at varying degrees, with channel one, channel two, or any combination thereof—all via the pan knob.
- Phantom Power
- This amplifier provides phantom power for condenser microphones on channel 2, though this feature can be disabled by means of an internal jumper. Conversely, phantom power can also be instantiated, through an internal jumper, on channel one.
- Clip Indicators
- Clip indicators on both channels let you know when you're playing too loud for the amplifier.

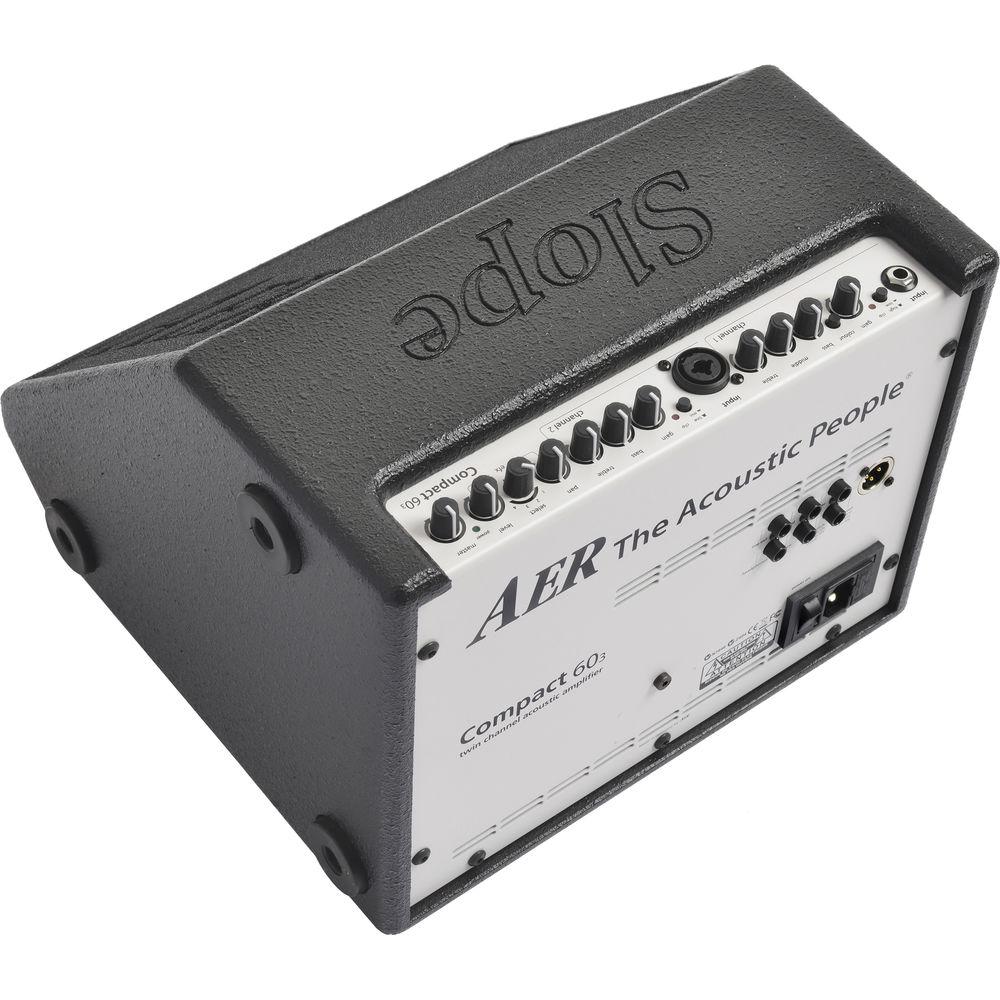

- Rear Panel Connectivity
- Turn your attention to the rear panel and you'll note a bevy of connection points-no fewer than seven, in fact. You'll also find connections for headphones, a 1/4" line out, a tuner, a footswitch, and your effects loop. Lastly, an XLR output allows you to feed a DI to a mixer, interface, or PA system.
In the Box AER Compact Slope 60W 2-Channel Acoustic Guitar Combo Amplifier Limited 1-Year Warranty on Amplifier Limited 6-Month Warranty on Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the AER Compact Slope 60W 2-Channel Acoustic Guitar Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAER COMPACT-SLOPE Specs | | | Amplifier Type | Solid-State | | Output Power | 60 W RMS | | Channels | 2 | | Output Impedance | 4 Ohms Mono | | Effects Loop | Yes, Parallel | | Built-In Effects | Chorus, Delay, Digital Reverb | | Master Volume | Yes | | Inputs | 2 x 1/4" Mono Instrument
1 x XLR Mono Mic Level
1 x 1/4" Mono Effects Return
1 x 1/4" Stereo Footswitch
2 x RCA Mono Line Level | | Outputs | 1 x 1/4" Mono Line Level
1 x 1/4" Mono Effects Send
1 x 1/4" Stereo Headphone
1 x 1/4" Mono Tuner
1 x XLR Mono DI | | Tone Section | Channel 1: Bass, Gain, Mid, Treble
Channel 2: Bass, Gain, Mid, Treble | | | | Configuration | 1 x 8" Speaker(s) | | Cabinet Type | Angled Closed Mono | | Power Rating | 60 W RMS | | Input Impedance | 4 ohms Mono | | Construction Material | Birch | | | | Dimensions (WxHxD) | 10.2 x 13.0 x 12.8" / 259.0 x 331.0 x 326.0 mm Combo | | Weight | 15.87 lb / 7.2 kg Combo |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
