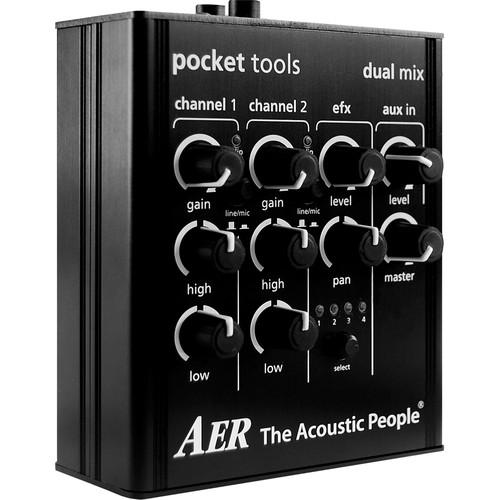

Product description The Dual Mix Audio Preamp from AER is a high quality two-channel preamp for instrument, line, or microphone signals. The unit offers two inputs, each for one microphone or instrument and line-level signal with switchable 24V phantom power. The Dual Mix is especially suited as channel extension in connection with amplifiers, as instrument/microphone stage preamp, and as a headphone rehearsal amplifier. This audio preamp features four multi-effect presets; two reverbs, one echo and one chorus. - Two inputs, each for one microphone or instrument and line-level signal with switchable 24V-phantom power
- Separate active two-band EQ networks for each input
- Four-preset multi-effect unit with two reverbs, one echo, and one chorus
- Line-out and DI-out, plus a stereo headphone preamp
UPC: 846614090743 In the Box AER Dual Mix Audio Preamp Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AER Dual Mix Audio Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAER DUAL-MIX Specs | | | Channels | Switchable microphone or line input
Connectors:
2 x Combo XLR 1/4" phone jack, balanced microphone/line input
2 x RCA L/R, unbalanced aux input
1 x 3.5 mm stereo phone jack, unbalanced aux input
Line mode:
Gain adjustment range: +3 to +20 dB
Minimum input voltage: 100 mV @ -20 dBV
Maximum input voltage: 3 V @ +10 dBV
Input impedance: 2.2 Mohms, 60 pF
Signal-to-noise ratio, A-weighted
Minimum gain: 108 dB
Maximum gain: 98 dB
Frequency response: 20 Hz - 20 kHz @ ±1 dB
THD + N (1 kHz): < 0.3%
Microphone mode:
Gain adjustment range: +4 to +40 dB
Minimum input voltage: 10 mV @ -40 dBV
Maximum input voltage: 3 V @ +10 dBV
Input impedance: 2.1 kΩ
Unbalanced: 1.1 kΩ
Signal-to-noise ratio, A-weighted
Minimum gain: 108 dB
Maximum gain: 93 dB
Frequency response: 20 Hz to 20 kHz @ ±1 dB
THD + N (1 kHz): < 0.1%
Phantom power: 24 V, R = 1.2 kΩ per terminal, switchable for each channel, total current maximum 10 mA per channel, short circuit protected
Indicators:
LED Red
Headroom: 8 dB | | AUX Input | Level control
Minimum input voltage: 2 x 250 mV @ -14 dBV
Maximum input voltage: 2 x 10 V @ +20 dBV
Input impedance: 10 kΩ | | | | Connectors | 1/4" phone jack, line output
1/4" phone jack, headphones output
XLR male, DI output | | Line Out | Nominal output voltage: 1 V @ 0 dBV
Maximum output voltage: 9 V @ +19 dBV
Output impedance: 47 Ω
Min. load impedance: 2 kΩ
Residual noise (master fully anticlockwise): A-weighted: 1 µV @ -120 dBV | | Headphones | Output power, 1 kHz, THD = 1%:
Typ. 2 x 40 mW / 32 Ω
Residual noise (master fully anticlockwise): A-weighted: 3.3 µV @ -110 dBV
Note: Suitable for headphones with stereo phone jack only. Do not connect any mono phone jacks. | | DI Output | Level control
Nominal output voltage (differential), adjustment range: 41 to 410 mV @ -28 to -8 dBV
Output impedance:
47 Ω each terminal to ground
Minimum load impedance (differential): 1 kΩ
Residual noise (both channels in line mode), A-weighted: 3.3 µV @ -110 dBV | | Tone Controls | Low: ±12 dB at 100 Hz (shelf type)
High: ±13 dB at 10 kHz (shelf type) | | Effects | Built-in effect: Digital effect processor with 4 presets
1 = Reverb with short predelay
2 = Reverb with long predelay
3 = Repeating delay
4 = Chorus | | Footswitch | Connector: 1/4" stereo phone jack, channels mute control
Function: Switch ON = channel muted | | Power | Supply voltage: 24 VDC, 0.5 A
Mains adapter: Mains voltage: 100 - 240 VAC
Power consumption when used with Dual Mix: maximum 10 W | | | | Housing | Aluminum | | Finish | Anodized black | | Dimensions | 2.56 x 4.13 x 5.31" (65 x 105 x 135 mm) | | Weight | 1.06 lb (480 g) |
