Product description

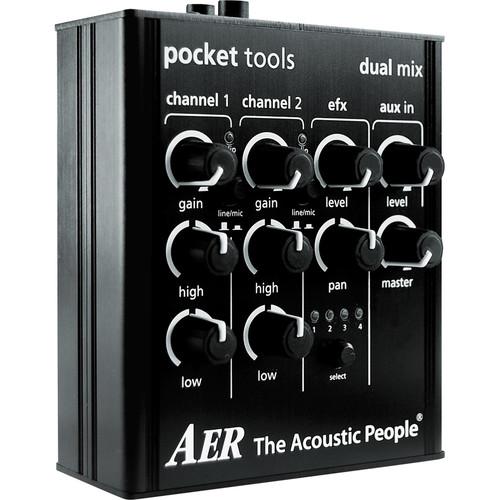

The AER Pocket Tools 2-Channel Dual Mix Preamplifier is a preamplifier for instrument/line or microphone signals. It features two inputs, each for one microphone or instrument, and line-level signals. The preamplifier comes with separate active two-band EQ networks for each input. Plus, it has a stereo aux input.
  • Switchable 24V phantom-power
  • 4-Preset multi-effects-unit with two reverbs, one echo, and one chorus
  • Stereo aux-in
  • Line-out and DI-out
  • Stereo-headphone-preamplifier
UPC: 846614006416 In the Box AER Pocket Tools 2-Channel Dual Mix Preamplifier
  • Mains Adapter
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AER Pocket Tools 2-Channel Dual Mix Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AER DUAL-MIX-2 Specs

    Number of Channels 2
    Inputs Switchable microphone or line input
    Combo socket, XLR and 1/4" jack (6.35 mm)
    Line Mode (Jack Input)
    Unbalanced high impedance input for instrument pick-ups and line-level sources
    Gain adjustment range: +3 to +20 dB
    Minimum Input Voltage: 100 mV (-20 dBV)
    Maximum Input Voltage: 3 V (+10 dBV)
    Input Impedance: 2.2 MOhms || 60 pF
    Signal-To-Noise Ratio, A-weighted
    Minimum Gain: 108 dB
    Maximum Gain: 98 dB
    Frequency Response: 20 Hz to 20 kHz / ±1 dB
    THD + N (1 kHz): < 0.3%
    Mic Mode (XLR Input)
    Balanced microphone input
    Gain Adjustment Range: +4 to +40 dB
    Minimum Input Voltage: 10 mV (-40 dBV)
    Maximum Input Voltage: 3 V (+10 dBV)
    Input impedance: 2.1 kOhms
    Unbalanced: 1.1 kOhms
    Signal-To-Noise Ratio, A-weighted
    Minimum Gain: 108 dB
    Maximum Gain: 93 dB
    Frequency Response: 20 Hz to 20 kHz / ±1 dB
    THD + N (1 kHz): < 0.1%
    Phantom Power: 24 V, R = 1.2 kOhms per terminal, switchable for each channel,
    Total Current maximum 10 mA per channel, short circuit protected
    24 V phantom power switch off (not pushed)
    Clip Indicator: Red LED
    Headroom: 8 dB
    Aux In
    Auxiliary stereo input (mono-mixed), e.g. for CD player
    Cinch (RCA) sockets (left / right) and 3.5 mm stereo jack socket
    Level control
    Minimum Input Voltage: 2 x 250 mV (-14 dBV)
    Maximum Input Voltage: 2 x 10 V (+20 dBV)
    Input impedance: 10 kOhms
    Outputs Line Out
    Unbalanced line output after master
    Mono jack, 1/4" (6.35 mm)
    Nominal Output Voltage: 1 V (0 dBV)
    Maximum Output Voltage: 9 V (+19 dBV)
    Output Impedance: 47 Ohms
    Minimum Load Impedance: 2 kOhms
    Residual Noise (Master Fully Anticlockwise): A-weighted: 1 μV (-120 dBV)
    Headphones: Stereo jack, 1/4" (6.35 mm)
    Output Power, 1 kHz, THD = 1%: Typical 2 x 40 mW / 32 Ohms
    Residual Noise (Master Fully Anticlockwise): A-weighted: 3.3 μV (-110 dBV)
    DI-Out: Balanced XLR output
    Nominal Output Voltage (Differential), Adjustment Range: 41 to 410 mV (-28 to -8 dBV)
    Output Impedance: 47 Ohms each terminal to ground
    Minimum Load Impedance (Differential): 1 kOhms
    Residual Noise (both Channels in Line Mode), A-weighted: 3.3 μV (-110 dBV)
    Tone Controls Low: ±12 dB at 100 Hz (shelf type)
    High: ±13 dB at 10 kHz (shelf type)
    Effects Digital effect processor with 4 presets
    1 = Reverb with short predelay
    2 = Reverb with long predelay
    3 = Repeating delay
    4 = Chorus
    Footswitch Connector for a dual footswitch
    Stereo jack, 1/4" (6.35 mm)
    Tip = footswitch for muting channel 1
    Ring = footswitch for muting channel 2
    Sleeve = ground (common)
    Function: Switch ON = channel muted
    Supply Voltage 24 VDC, 0.5 A
    Adapter Mains Voltage: 100 to 240 VAC
    Power Consumption when used with Dual Mix: Maximum 10 W
    Housing Aluminum
    Dimensions (WxDxH) 4.13 x 5.31 x 2.56" (105 x 135 x 65 mm)
    Weight 1.06 lb (0.48 kg)
