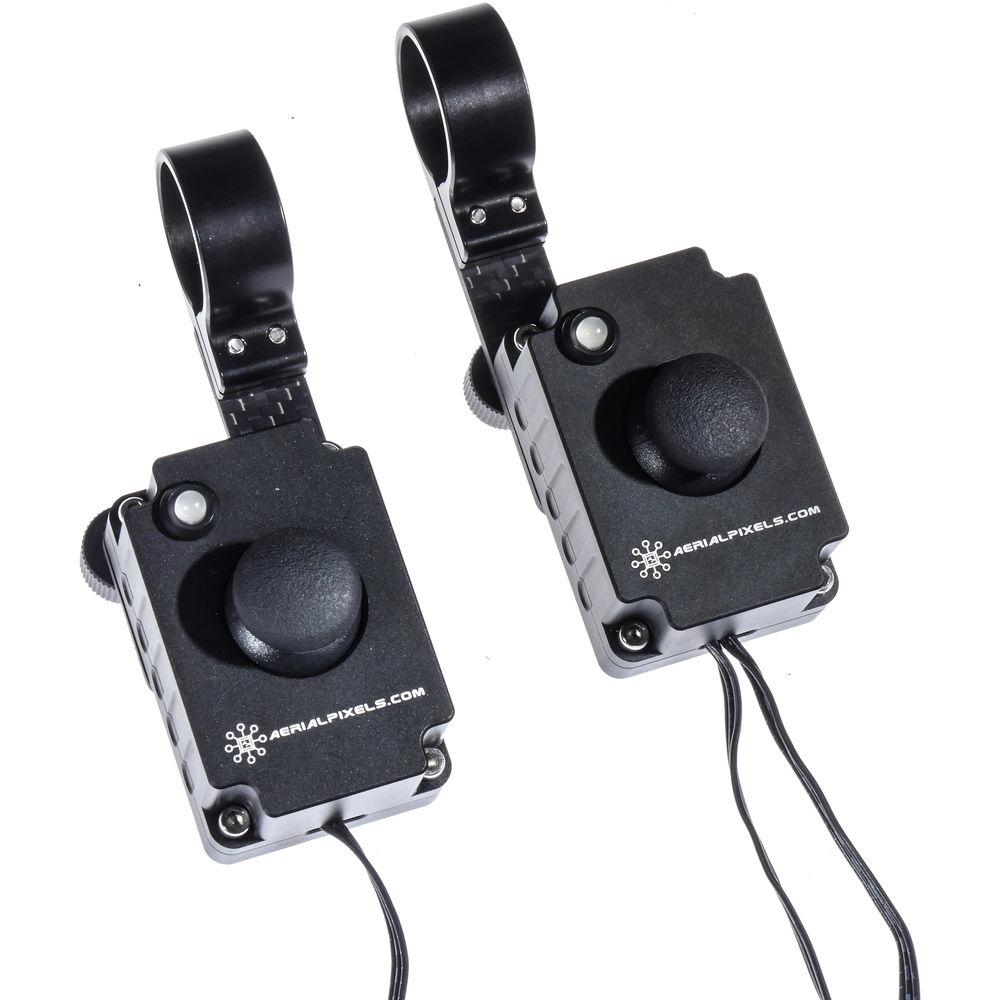

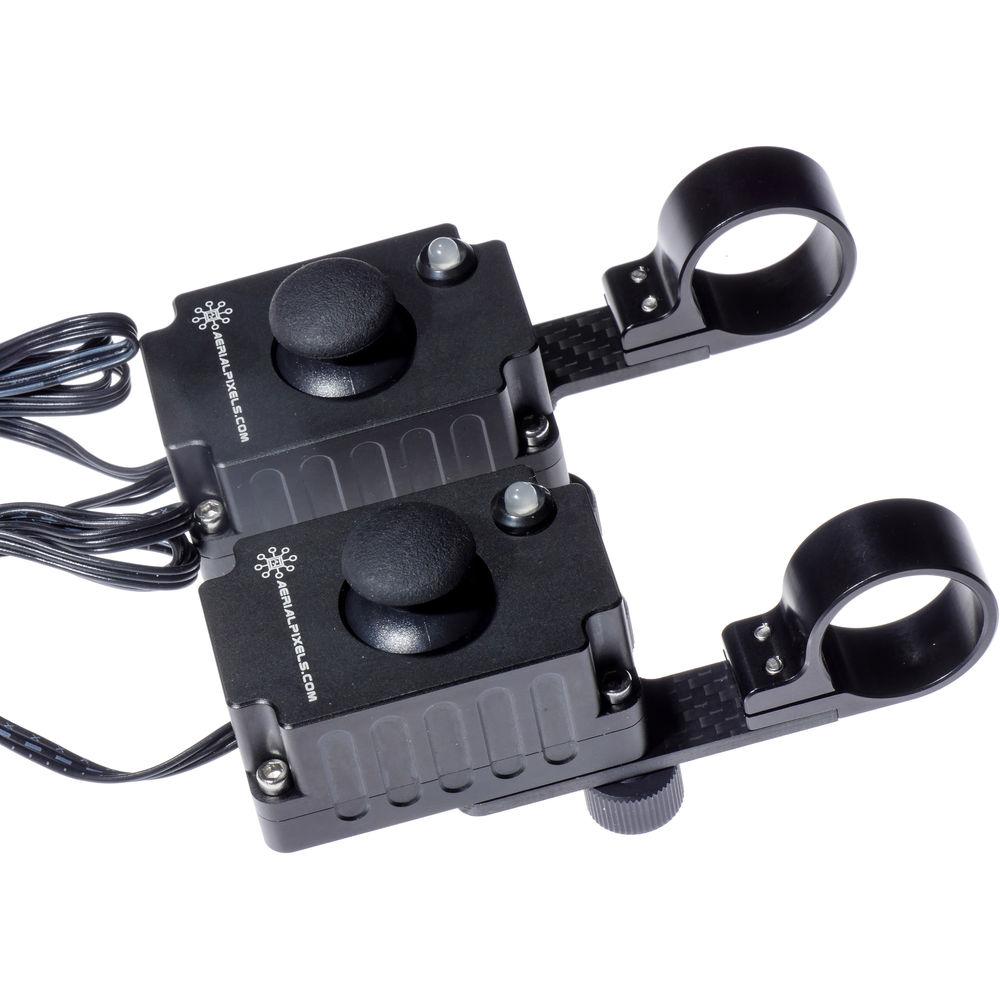

Product description The Proportional Dual Rate 3-Axis Thumb Joysticks for DJI Ronin-M from Aerialpixels allows a single operator to fully control of pan, tilt, and roll on a DJI Ronin-M while handholding the stabilizer. It features two joystick units that clamp directly onto the stabilizer's support bar, letting you position them near the handles for easy control with your thumbs. The two units are linked via an integrated cable, with a second cable connecting them to the Ronin's D-BUS input. One of the joysticks controls the pan and tilt of the gimbal, while the other controls roll.
By default, when you power up the stabilizer with the joysticks plugged in, the joysticks will start on full speed mode. By pushing down on each joystick (two clicks), you can change the throw rate in half speed, letting you make slower movements and precise angle corrections. Another two clicks of the joysticks changes them back to full speed mode. - Key Features
-
- Proportional control of pan, tilt, and roll
- On-the-fly dual rate (2 speed) control by button click
- Single cable connection to the D-BUS input on the DJI Ronin-M
- 25.6" soft and lightweight silicone cable
- Adjustable CNC-machined aluminum clamps with carbon fiber plate
- Red LED power indicator
- Plug-and-play operation
- Matte black finish
- Tools for mounting the joysticks are included
UPC: 867311000118 In the Box Aerialpixels Proportional Dual Rate 3-Axis Thumb Joysticks for DJI Ronin-M Pan/Tilt Control Joystick Roll Control Joystick 2 x Adjustable CNC Aluminum Clamp with Carbon Fiber Mounting Plate 2mm Allen Wrench 2.5mm Allen Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aerialpixels Proportional Dual Rate 3-Axis Thumb Joysticks for DJI Ronin-M in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAerialpixels DJIRONINJOYSTICK3X Specs | Cable Length | 25.6" (65 cm) | | Weight | 2.3 oz (65 g) per joystick | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.3 x 4.8 x 2.5" |
