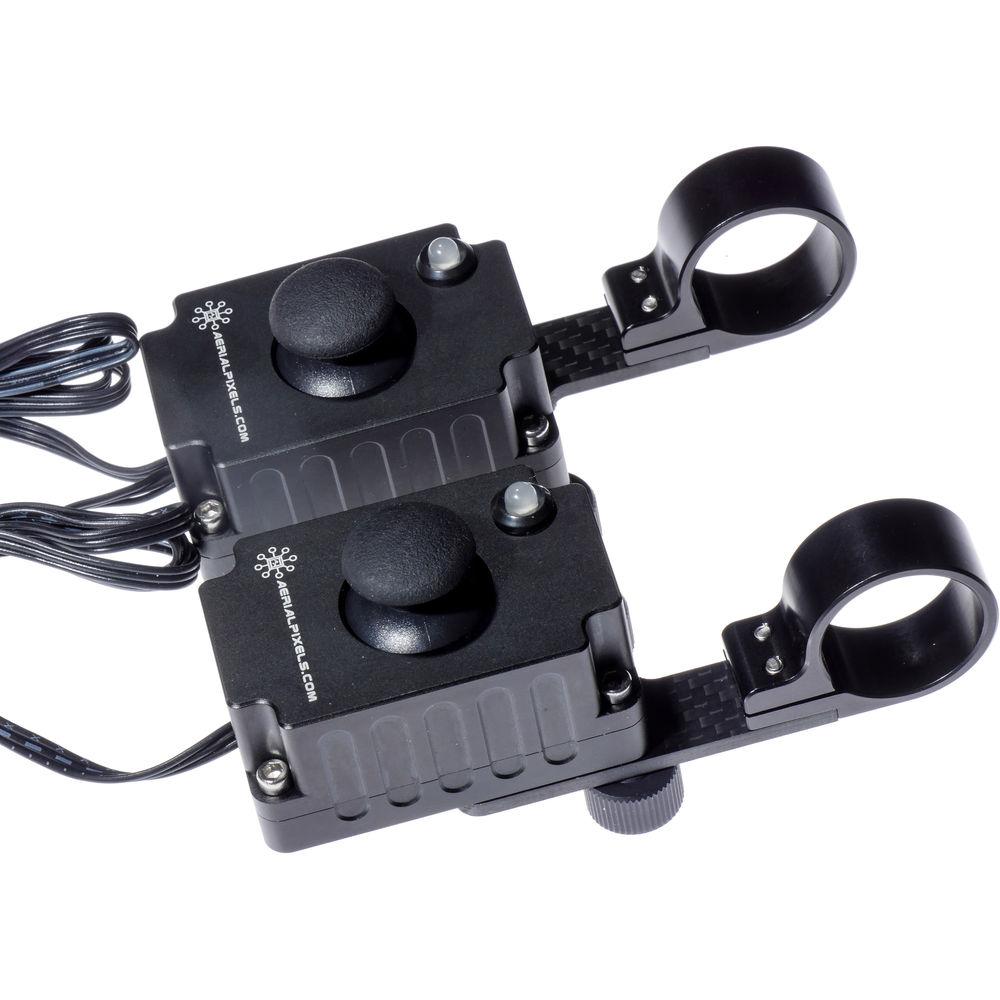

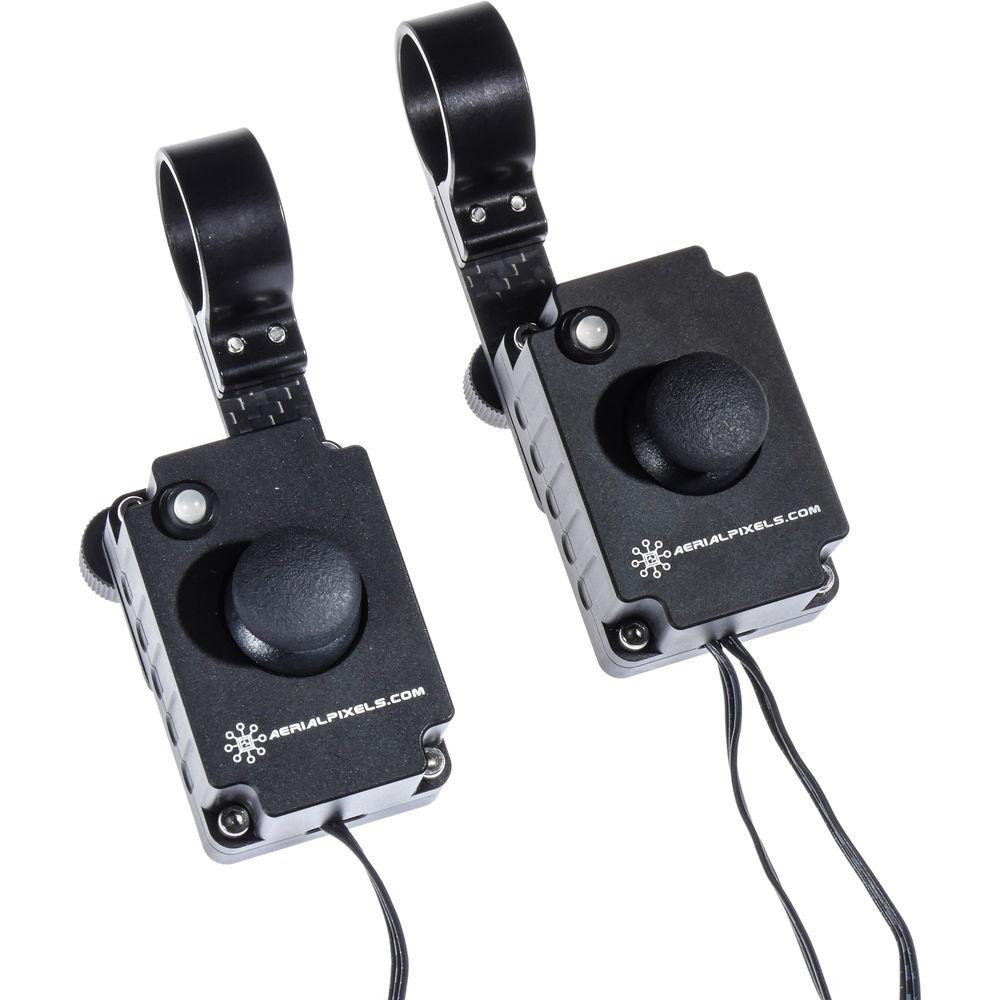

Product description The Proportional Dual Rate Thumb Joystick for MoVI M5, M10, and M15 from Aerialpixels enables control of pitch and yaw on a MoVI M5, M10, or M15 3-Axis Gimbal Stabilizer. It clamps directly onto the stabilizer's support bar, letting you position the joystick near one of the handles for easy control with your thumbs. Once attached and connected to the MoVI's S-BUS input using an integrated cable, a single user operate can operate the stabilizer while simultaneously controlling the pan and tilt of the gimbal.
By default, when you power up the stabilizer with the joystick plugged in, the joystick will start on full speed mode. By pushing down on the joystick (two clicks) you can change the throw rate in half speed, letting you make slower movements and precise angle corrections. Another two clicks of the joystick changes the mode back to full speed. Three clicks of the joystick allow to you change the MoVI between Majestic and Dual Operator modes, mimicking the three-position switch found on RC transmitters. Red, blue, and green LEDs are provided to indicate which mode you're in. - Key Features
-
- Proportional control of pitch and yaw
- On-the-fly dual rate (2 speed) control by button click
- Single cable connection to the D-BUS input on the MoVI M5, M10, and M15
- 25.6" soft and lightweight silicone cable
- Adjustable CNC-machined aluminum clamp with carbon fiber plate
- 3-click mode change with multi-colored LEDs to indicate current mode (Majestic, Dual operator, Off)
- Plug-and-play operation
- Matte black finish
- Tools for mounting the joystick are included
UPC: 867311000125 In the Box Aerialpixels Proportional Dual Rate Thumb Joystick for MoVI M5, M10, and M15 2mm Allen Wrench 2.5mm Allen Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aerialpixels Proportional Dual Rate Thumb Joystick for MoVI M5, M10, and M15 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAerialpixels MOVIJOYSTICK Specs | Cable Length | 25.6" (65 cm) | | Weight | 2.3 oz (65 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.354 x 3.701 x 1.969" |
