Afinia EinScan-SE 3D Scanner with Turntable

Search your instruction manual in PDF to download

User Manual for Afinia EinScan-SE 3D Scanner with Turntable

Click to enlarge the picture
Afinia EinScan-SE 3D Scanner with Turntable Contents of the user manual for the Afinia EinScan-SE 3D Scanner with Turntable
  • Product category: 3D Scanners Afinia
  • Brand: Afinia
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Afinia 3D Scanners

Afinia EinScan-SE 3D Scanner with Turntable Afinia EinScan-SE 3D Scanner with Turntable Afinia EinScan-SE 3D Scanner with Turntable Afinia EinScan-SE 3D Scanner with Turntable Afinia EinScan-SE 3D Scanner with Turntable Afinia EinScan-SE 3D Scanner with Turntable
User manual for the Afinia EinScan-SE 3D Scanner with Turntable contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Afinia product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Afinia user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Afinia product will considerably shorten its lifespan!



Product description

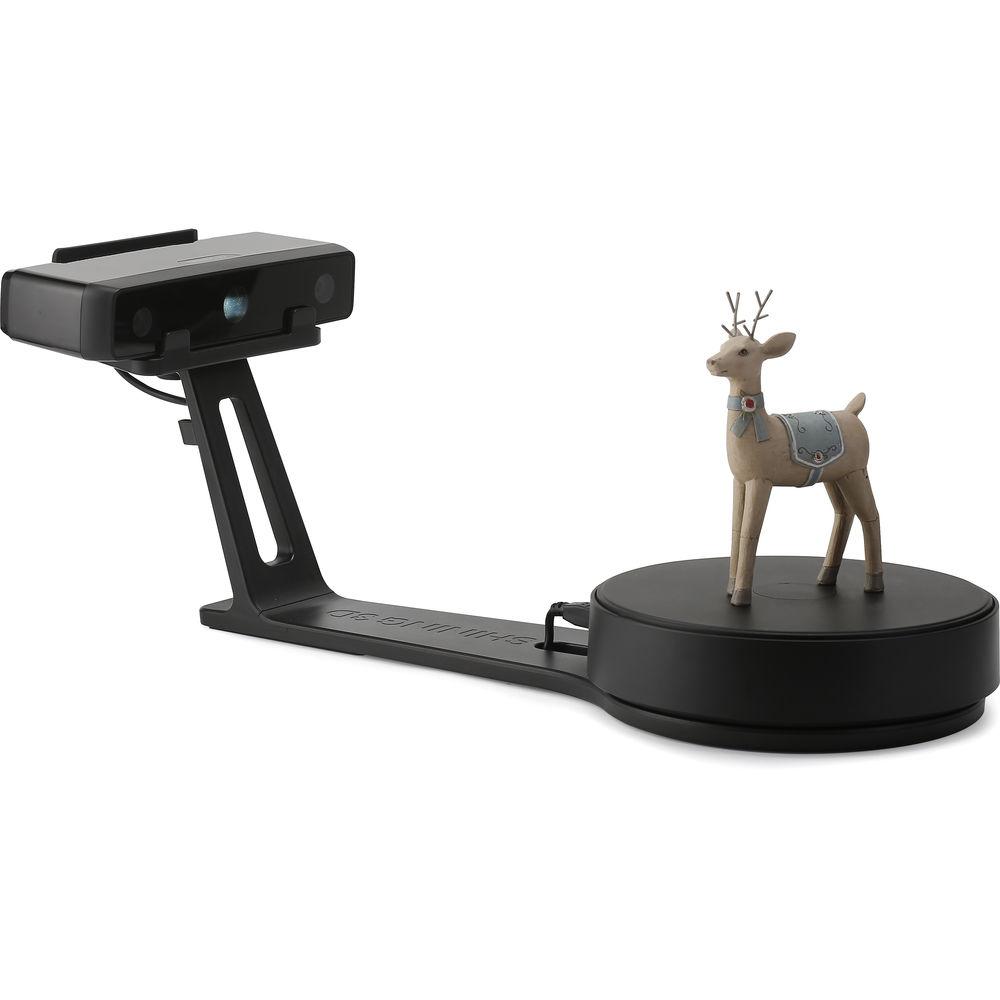

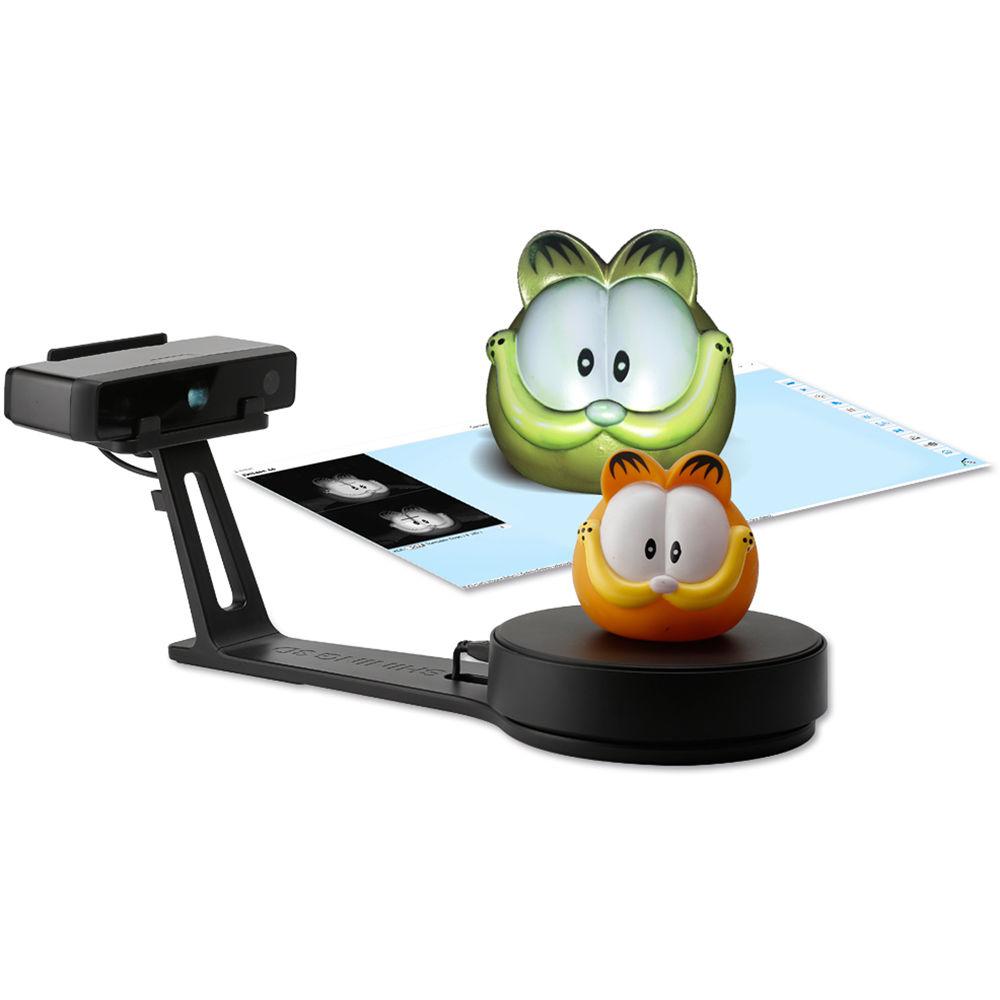

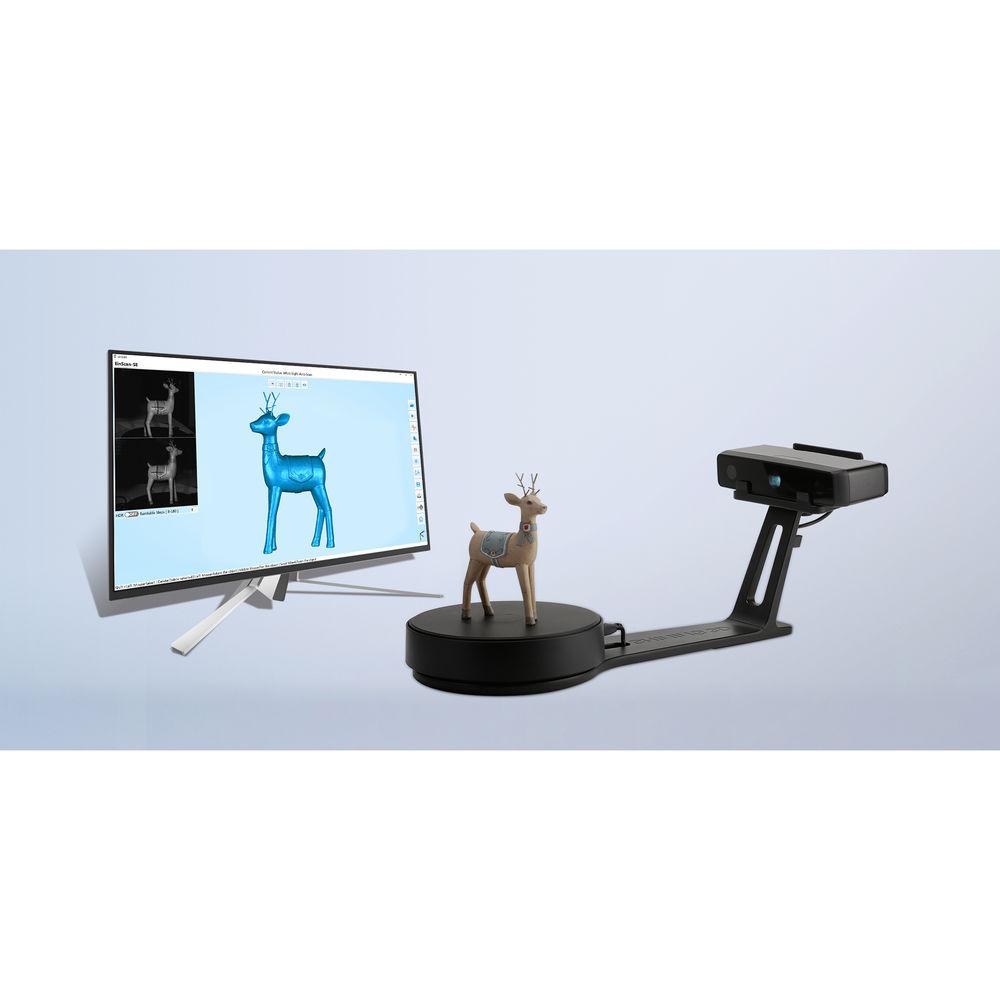

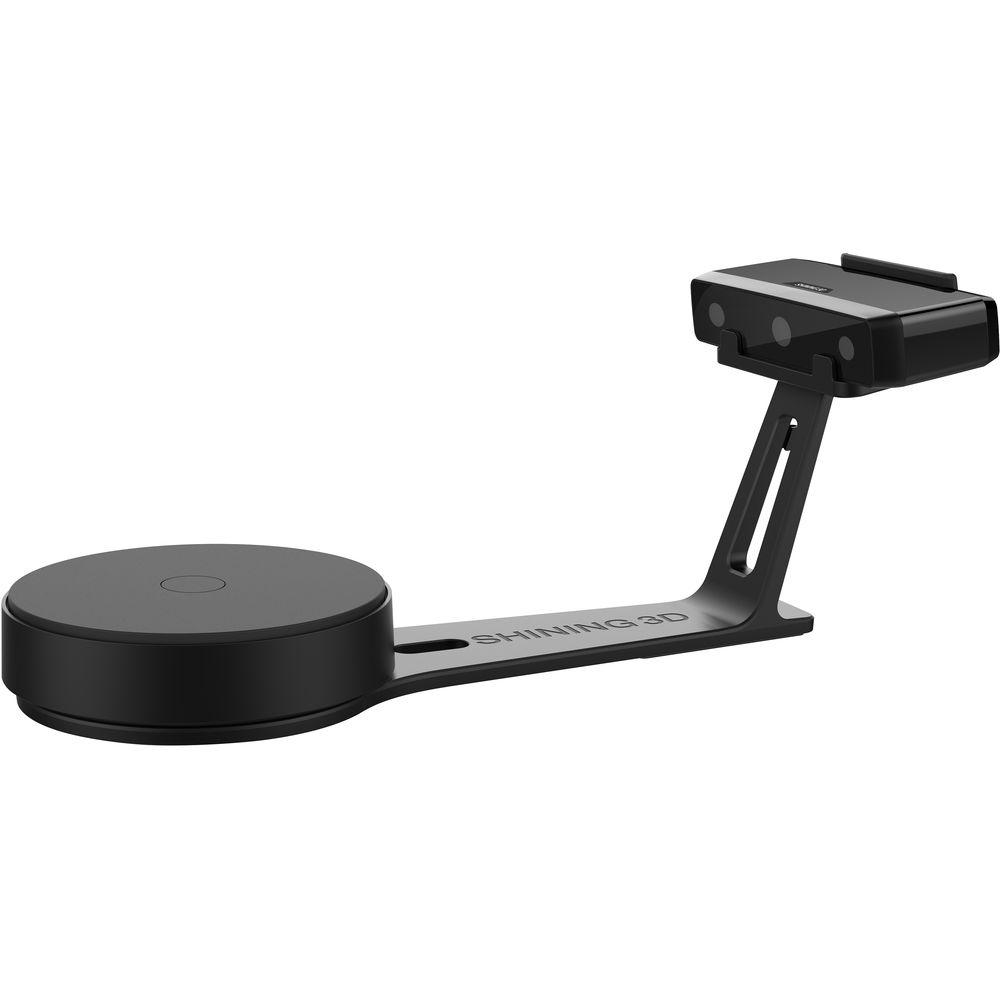

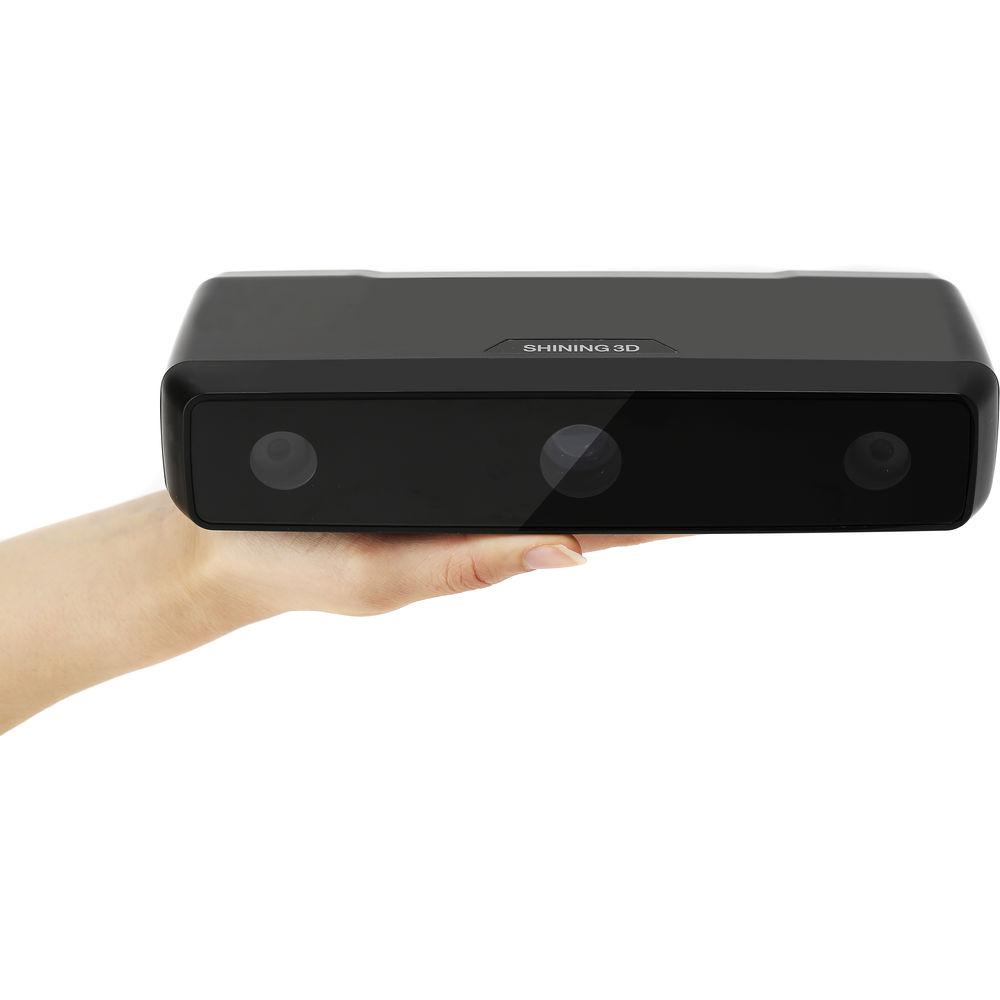

Designed for educators and home hobbyists, the EinScan-SE (Elite) 3D Scanner with Turntable from Afinia is able to create 3D models with high accuracy for a range of creative 3D printing and design applications. The EinScan-SE is able to scan using two modes - auto and fixed. A fixed scan is used without the turntable, where the user has to manually turn the object and perform a scan after each time the object is turned, making it useful for objects too large for the turntable. Fixed scans are usually done with the scanner head mounted on a user-supplied tripod. In auto scan mode, the object to be scanned is placed on the turntable and the scanning software will automatically turn the object and scan the item from multiple angles that add up to 360°. The software also automatically stitches each of these scans into one object. The EinScan-SE must be used with either the turntable or a tripod and does not have any handheld functions.

The Afinia EinScan-SE scans using a white light source, which is created by a projector and is safer than laser scanning, has an accuracy of ≤0.1mm, can scan items as small as 1.2 x 1.2 x 1.2", and as large as 27.6 x 27.6 x 27.6". Automatic scanning takes around 2 minutes, while fixed scans take around 8 seconds, and completed scans can be printed on Afinia's H800+, H480, and H400 3D printers. This scanner is compatible with Windows 10, 8, and 7 systems running at least a Core i5 CPU with 8GB of RAM, 16GB of hard drive space, and an NVIDIA series graphics card with 1GB of video memory. Included is a calibration pattern assembly, a USB cable, a power cord, and a power adapter.

General Features

    High Accuracy
  • ≤0.1mm accuracy with light phase shifting technology
    Scan Small to Large
  • Scan items as small as 1.2 x 1.2 x 1.2". Automatic mode maximum scan size is larger, at up to 27.6 x 27.6 x 27.6"
    Fast Scan Times
  • Automatic scan takes around 2 minutes to complete, while a fixed scan takes around 8 seconds
    Simple to Use
  • Scanning can be done with just one click, making it a user-friendly experience
    Ready to Print
  • Digital models created by the EinScans are ready to be printed on a 3D printer such as the Afinia H800+, H480, or H400
    Eye Safety Lighting
  • White light scanning is safer than laser scanning. The white light is created by a projector very similar to those used in classrooms and offices
    Portable
  • The EinScan-SE is lightweight and can be taken almost anywhere
    EinScan 2.0 Software
  • Powerful and intuitive software interface

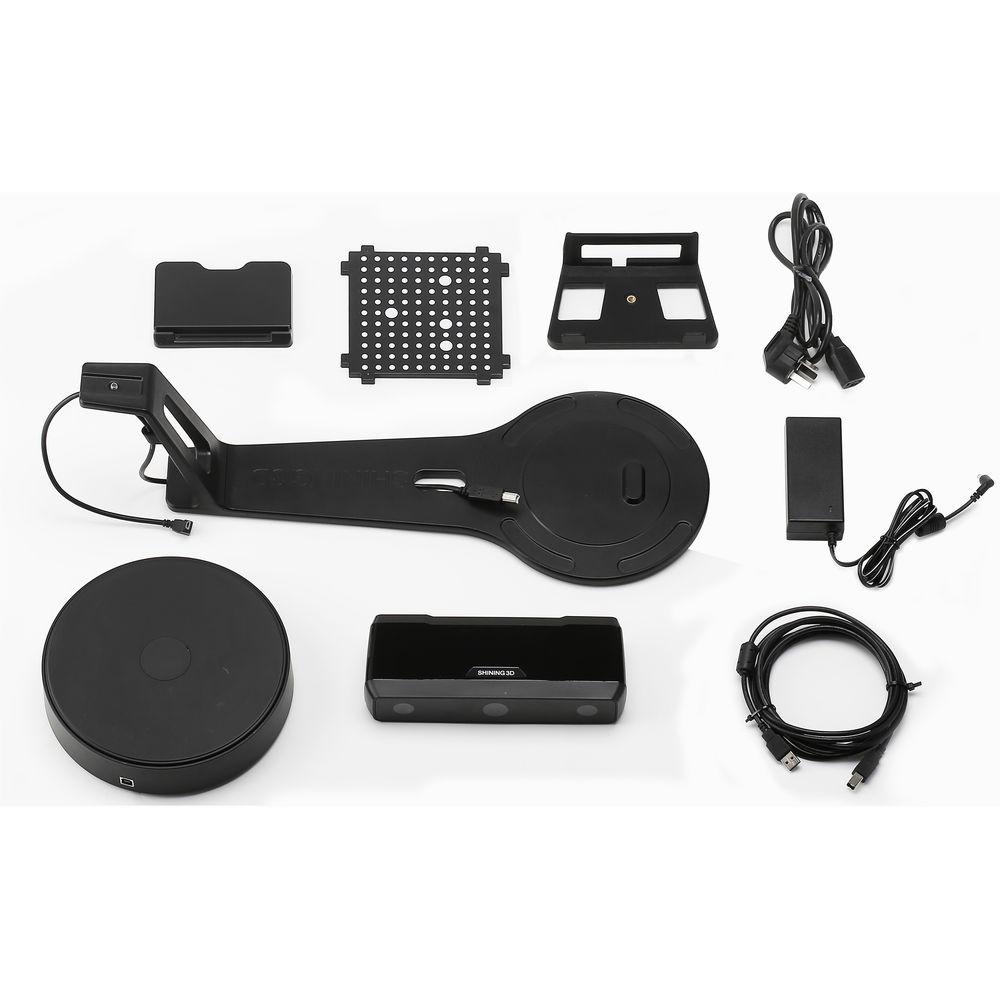

In the Box Afinia EinScan-SE (Elite) 3D Scanner with Turntable
  • Calibration Pattern Assembly
  • USB Cable
  • Power Adapter
  • Power Cord
  • Limited 1-Year Parts & Labor Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Afinia EinScan-SE 3D Scanner with Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Afinia EINSCAN-SE Specs

    Single Shot Accuracy ≤3.9 mil / 0.1 mm
    Scan Speed Fixed Scan: <8 seconds
    Auto Scan: <2 seconds
    Minimum Scan Volume 1.2 x 1.2 x 1.2" / 30.0 x 30.0 x 30.0 mm
    Maximum Scan Volume Fixed Scan: 27.6 x 27.6 x 27.6" / 700.0 x 700.0 x 700.0 mm
    Auto Scan: 7.9 x 7.9 x 7.9" / 200.0 x 200.0 x 200.0 mm
    Range of Single Capture 7.9 x 5.9" / 200.0 x 150.0 mm
    Alignment Mode Fixed Scan: Feature, Manual
    Auto Scan: Turntable, Manual
    Maximum Scan Volume Fixed Scan: No
    Auto Scan: Yes (with purchase of color pack)
    Point Distance 0.01 - 0.01" / 0.17 - 0.20 mm
    Texture Yes
    File Output OBJ, STL, ASC, PLY
    Camera Resolution 1.3 MP
    Light Source White Lights
    Stand-off Distance 11.42 x 18.90" / 290.0 x 480.0 mm
    Power Supply / Input Voltage 50 W / 12 VDC, 3.33 A
    Calibration Board Standard
    Turntable / Load Capacity Standard / 11.0 lb / 5.0 kg
    Dimensions 22.4 x 8.3 x 8.3" / 570.0 x 210.0 x 210.0 mm
    Weight 5.5 lb / 2.5 kg
    Operating System Windows 10, 8, and 7 (64-bit)
    Processor Intel Core i5 or higher
    Memory 8 GB
    Hard Drive Space 16 GB
    Graphics Card NVIDIA Series with at least 1 GB of video memory
    USB 1 x USB 3.0 or 2.0 port
    Compatible 3D Printers Afinia H800+, H480, H400
    Package Weight 10.5 lb
    Box Dimensions (LxWxH) 24.5 x 13.0 x 8.5"

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4 of 5
