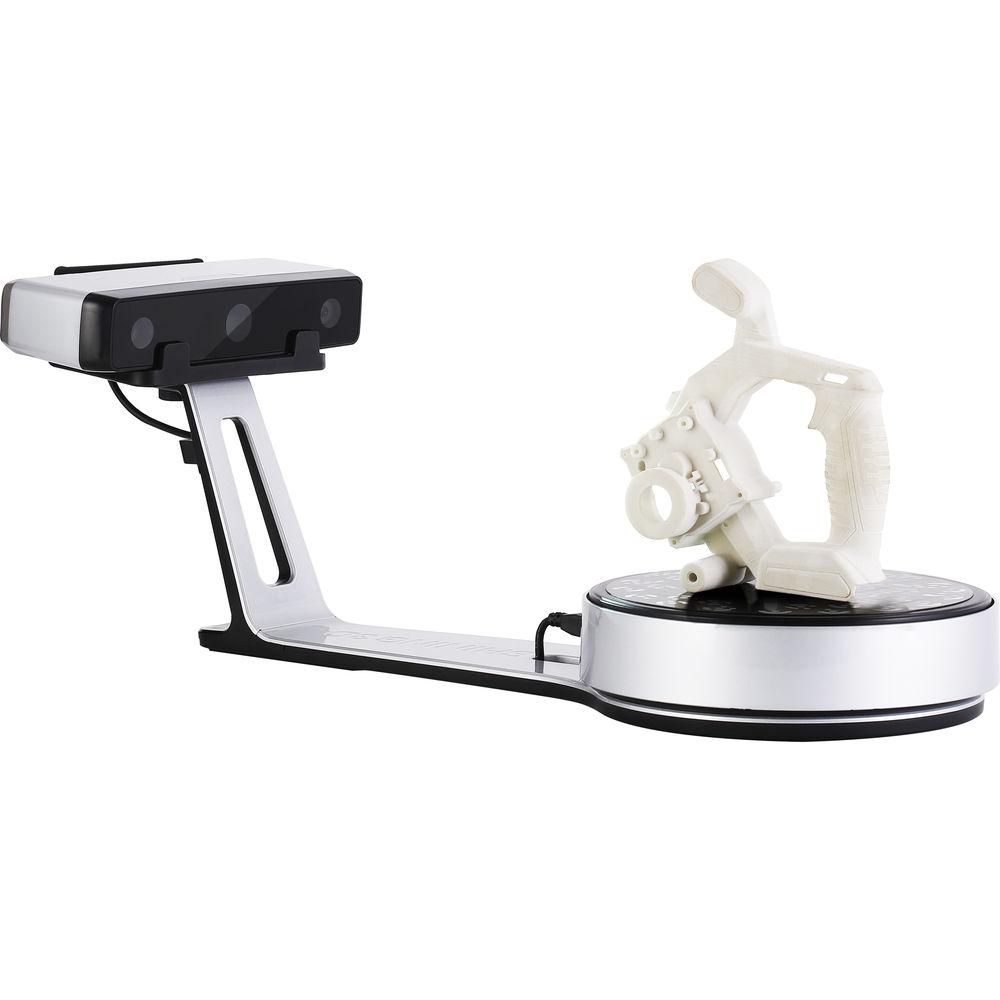

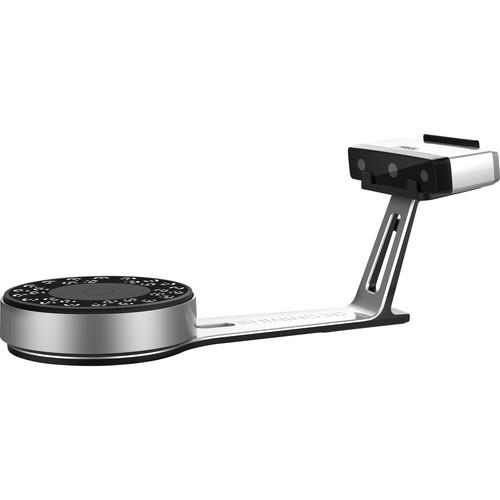

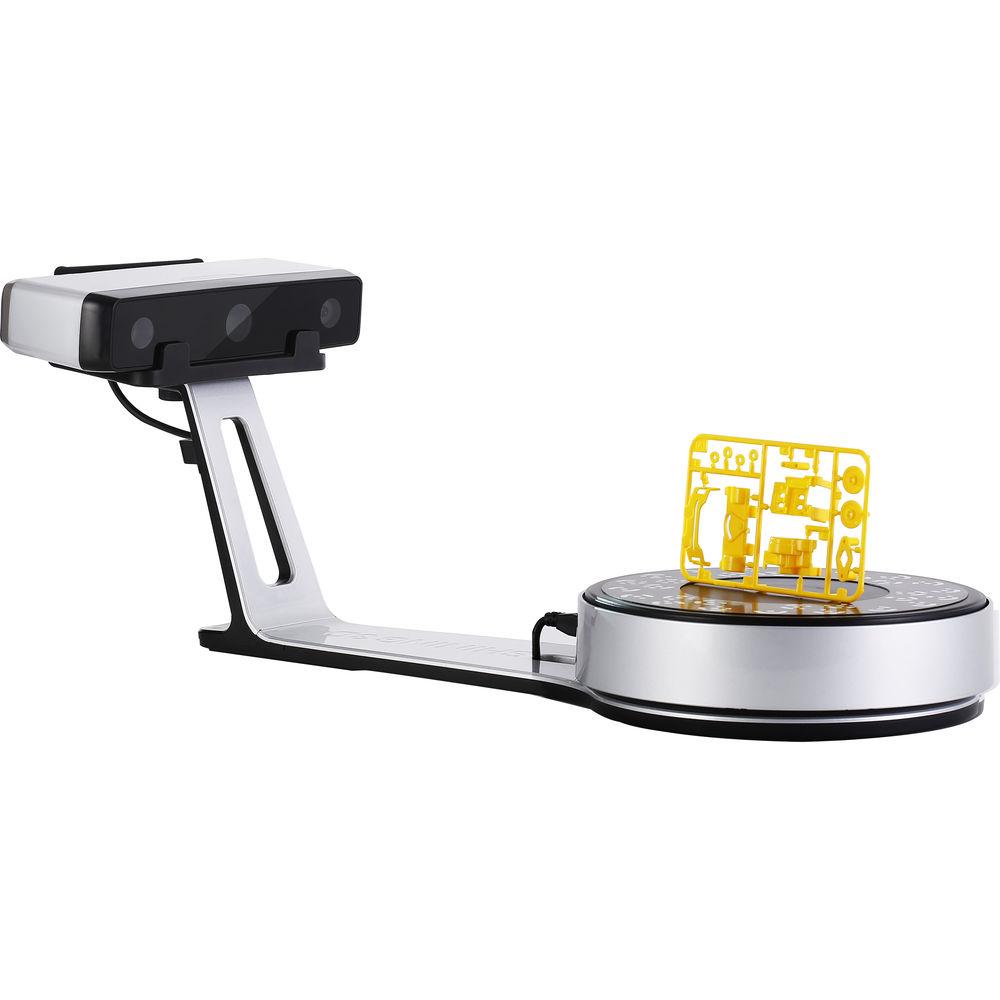

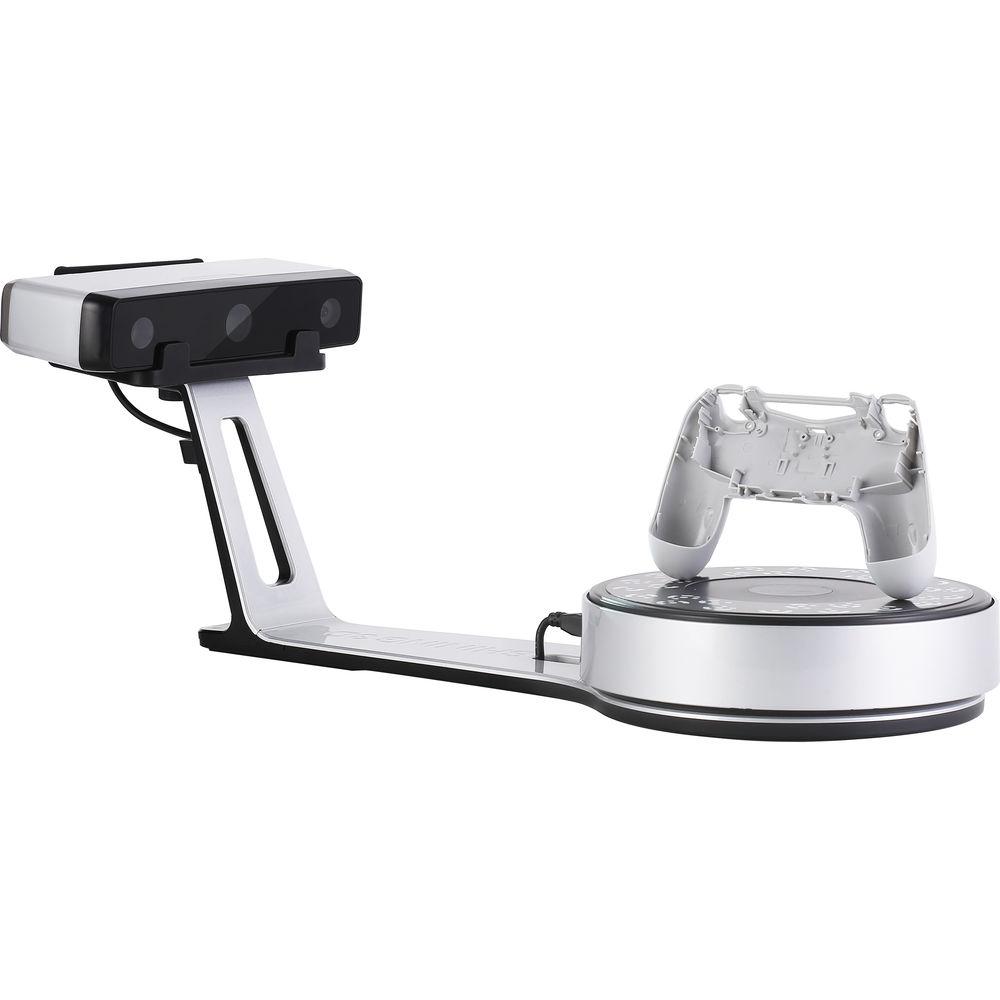

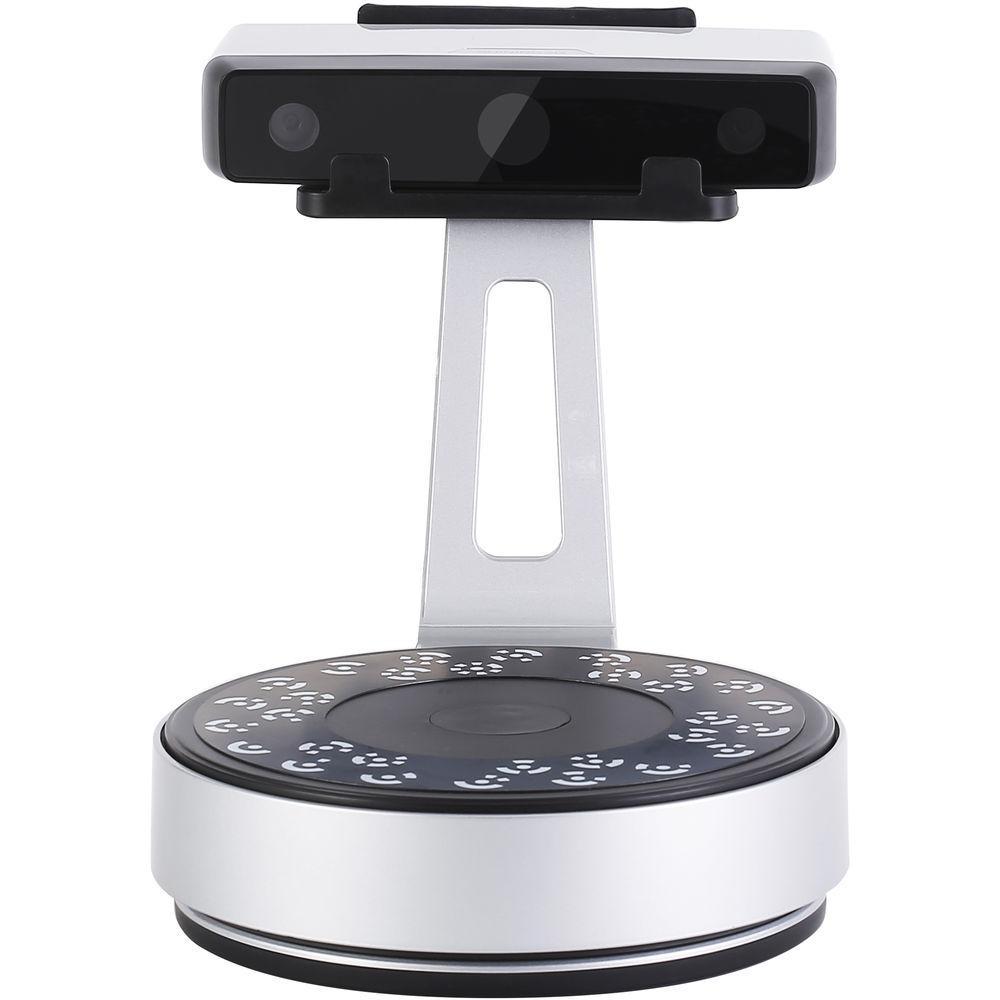

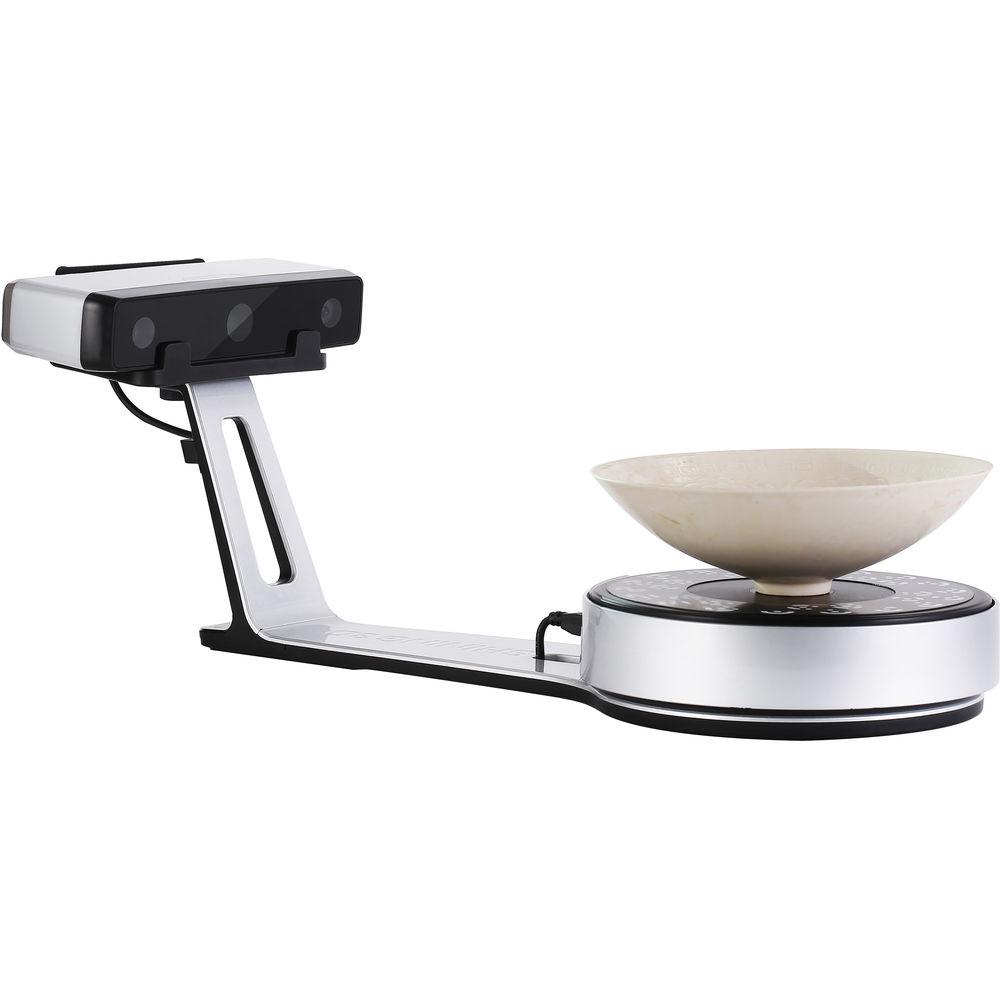

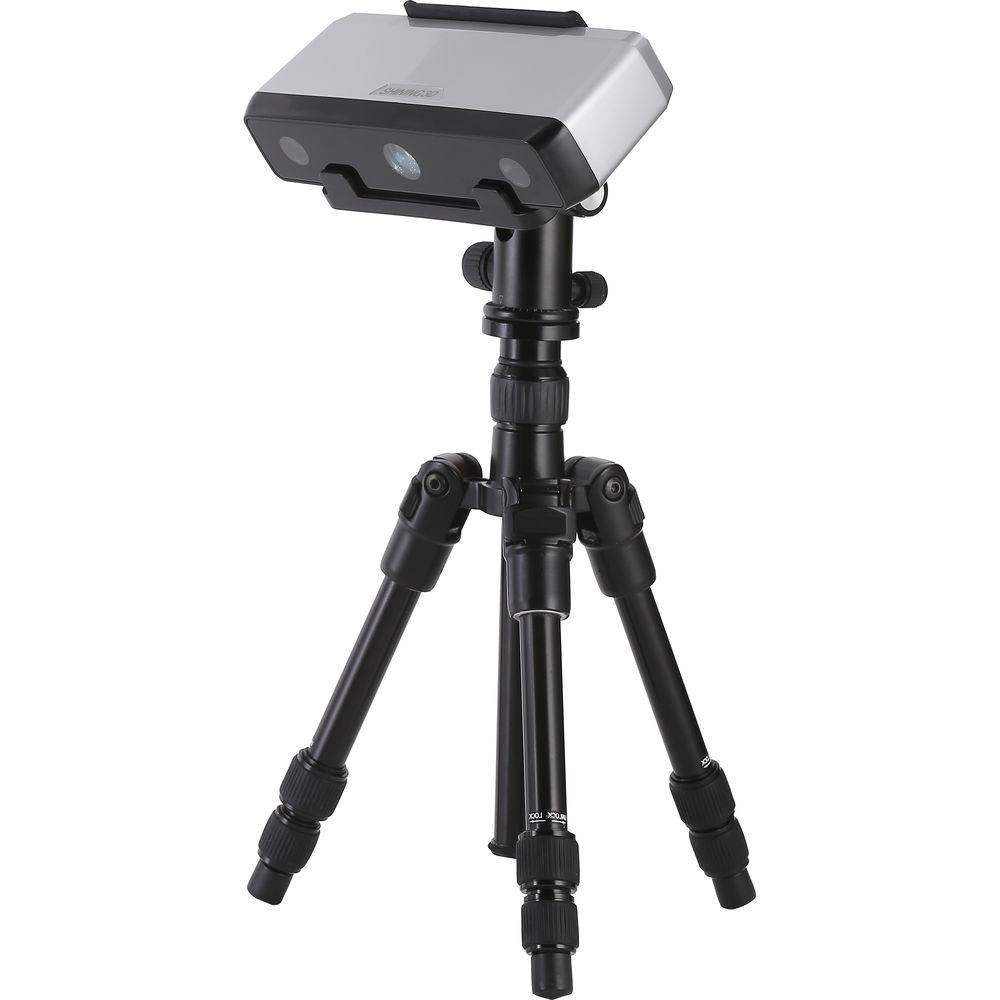

Product description Create 3D scans with high accuracy for a variety of creative 3D printing and designing applications with the Einscan-SP (Platinum) 3D Scanner with Turntable. In Turntable mode, it can do full scans in less than one minute. The EinScan-SP is geared towards engineers and designers. Using white light scanning instead of laser scanning, the EinScan-SP scanner is safer for eyes. Thanks to its high accuracy at 0.05mm, it can scan items as small as 7.9 x 7.9 x 7.9" and as large as 47.2 x 47.2 x 47.2". The digital models created by the EinScan-SP scanner can be printed on the Afinia H400, H480, and H800+ 3D printers. - High Accuracy
- ≤ 0.05mm accuracy with light phase shifting technology
- Scan Small to Large
- Scan items as small as 7.9 x 7.9 x 7.9" or as large as 47.2 x 47.2 x 47.2"
- Faster
- Automatic scan takes less than 1 minute to complete
- Simple to Use
- Anyone can scan with just one click
- Ready to Print
- Digital models created by the EinScans are ready to be printed on a 3D printer, such as the Afinia H400, H480, and H800+
- Eye Safety Lighting
- While light scanning is safer than laser scanning because it is created by a projector
- Portable
- The EinScan-SP is lightweight and can be taken with you
- EinScan 2.0 Software
- Powerful and intuitive software interface

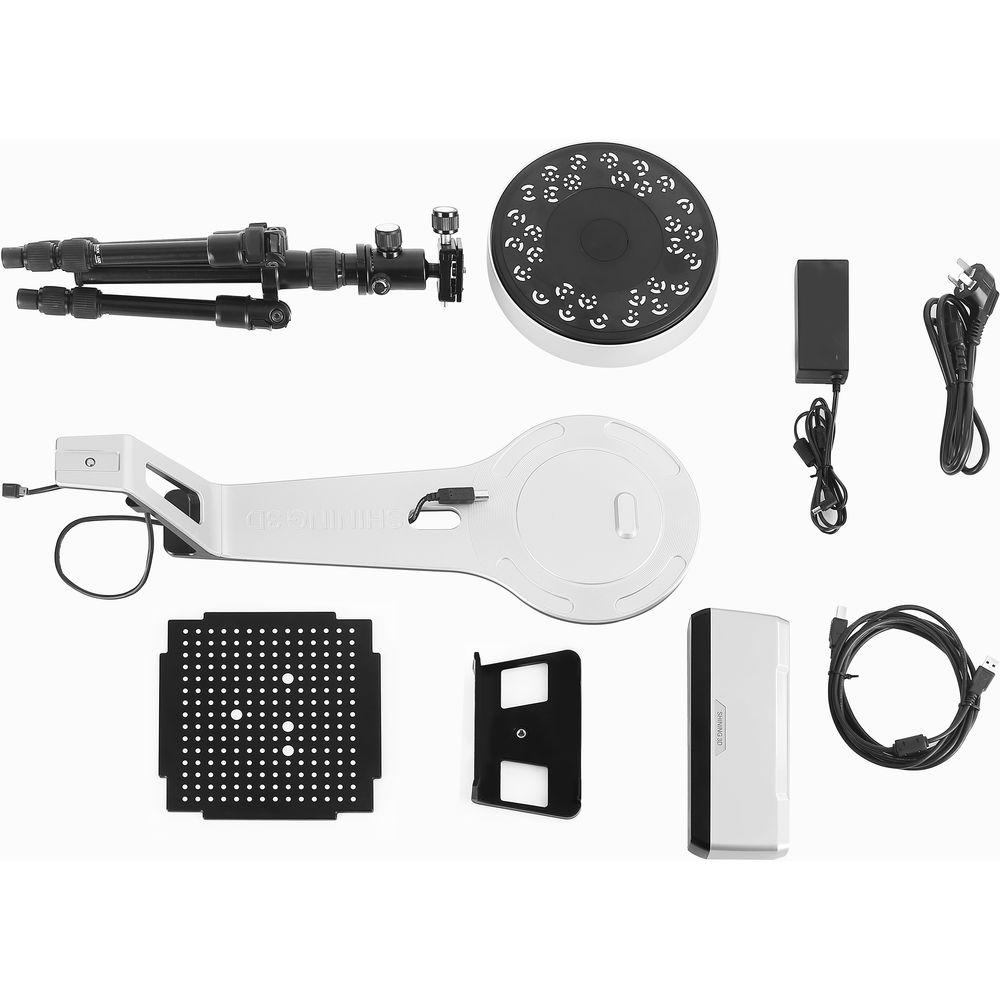

In the Box Afinia EinScan-SP (Platinum) 3D Scanner with Turntable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Afinia EinScan-SP 3D Scanner with Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAfinia EINSCAN-SP Specs | Scan Mode | Fixed Scan
Auto Scan | | Single Shot Accuracy | ≤ 0.05 mm | | Scan Speed | Fixed Scan: < 4 seconds
Auto Scan: < 1 minute | | Minimum Scan Volume | 1.2 x 1.2 x 1.2" / 30 x 30 x 30 mm | | Maximum Scan Volume | Fixed Scan: 47.2 x 47.2 x 47.2" / 1200 x 1200 x 1200 mm
Auto Scan: 7.9 x 7.9 x 7.9" / 200 x 200 x 200 mm | | Point Distance | 0.17-0.2 mm | | File Output | OBJ, STL, ASC, PLY | | Camera Resolution | 1.3 MP | | Stand-off Distance | 11.4 x 18.9" / 290 x 480 mm | | Calibration Board | HD | | Turntable / Load Capacity | 11 lb / 5 kg | | Power Supply | 50 W | | Input Voltage | DC: 12 V, 3.33 A | | Supported Operating Systems | Microsoft Windows 7, 8, and 10 (64-bit) | | System Requirements | Processor: Intel Core i5 CPU or higher
RAM: 16 GB
Storage: 16 GB
Graphics Card: NVIDIA GeForce GTX 660 or higher
VRAM: 2 GB+ | | Dimensions | 22.4 x 8.3 x 8.3" / 570 x 210 x 210 mm | | Weight | Packed: 9.25 lb / 4.2 kg
Unpacked: 15.4 lb / 7 kg | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 25.0 x 17.0 x 8.5" |
