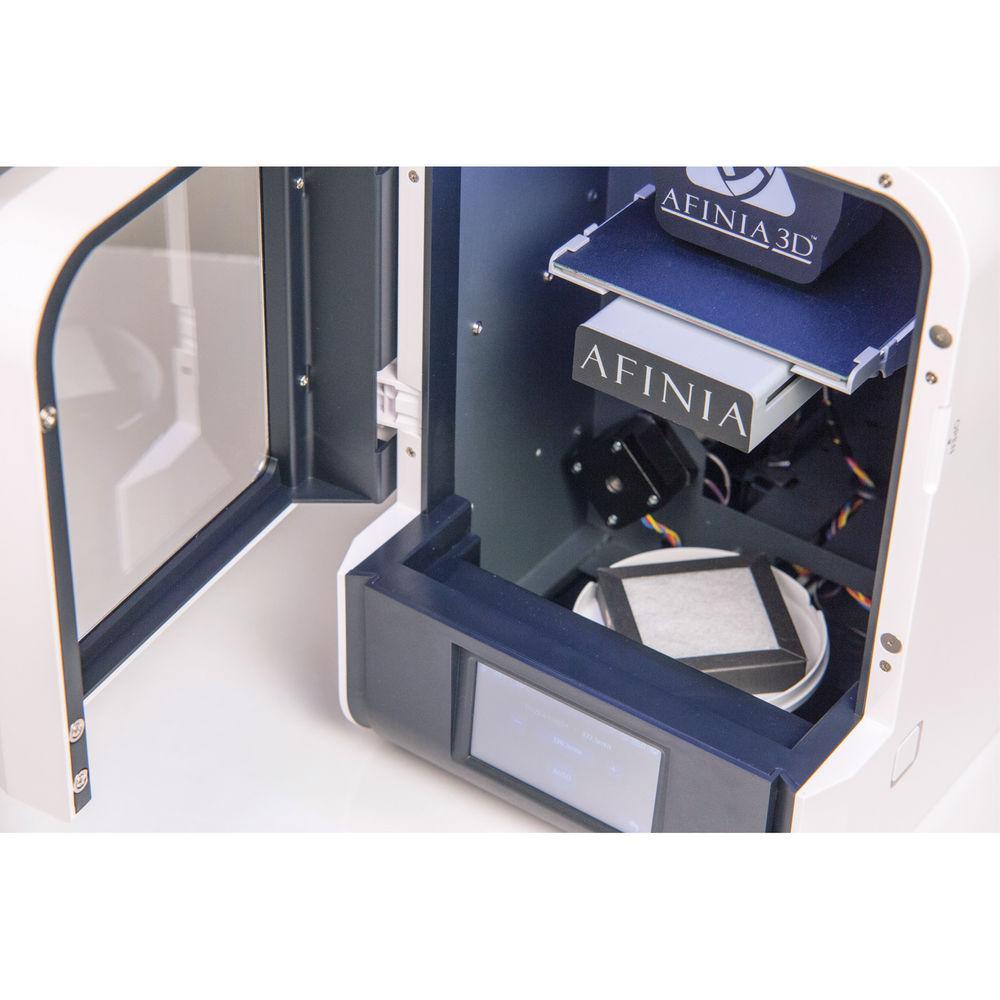

Product description Designed for educators, hobbyists, and engineers who want to start printing out of the box, the H400+ 3D Printer from Afinia has been improved over their original H400. The H400+ has been upgraded with an Ethernet socket, for printing over wired networks. Thanks to print queue functionality, multiple users can submit print jobs to the same H400+ from different devices via USB, LAN, and Wi-Fi, while an updated 4.3" LCD touchscreen has additional features and functionality and can also be upgraded with future software updates. Lastly, a HEPA and activated carbon filter helps to reduce toxic elements generated from certain printing materials, such as ABS.
The Afinia H400+ employs melted extrusion modeling (MEM) print technology, features a build volume of 4.7 x 4.7 x 4.7", and has a layer resolution of 150-350 microns. It uses 1.75mm ABS and PLA filaments and has an enclosed print chamber. The print bed itself features software-assisted leveling, is heated, and utilizes automatic nozzle height detection. This 3D printer can be controlled locally using the 4.3" LCD color touchscreen display, as well as remotely using Wi-Fi connectivity via Afinia's mobile app. It is able to print using USB 2.0 Type-B, LAN, and Wi-Fi connectivity, and it also has a USB 2.0 Type-A port for printing from a flash drive. It operates using an included 90W power adapter that runs using 100-240 VAC at 50-60 Hz. In the case that power to the H400+ is interrupted, Power Failure Protection allows printing to resume where it left off after power is restored.The Afinia H400+ 3D Printer is compatible with Windows 7 and later, Mac OS 10.10, and iOS devices, such as the iPad and iPhone. It comes with a 500g spool of 1.75mm ABS filament to get you started printing right away. General Features - Ethernet Socket
- An Ethernet socket allows you to connect your printer to a wired LAN for increased security.
- Print Queue
- Allows multiple users to send print jobs from different devices to the same printer via USB, Wi-Fi, and LAN.
- Updated 4.3" LCD Touchscreen
- An updated 4.3" LCD touchscreen has more features and functionality, plus the ability to upgrade with future software updates.

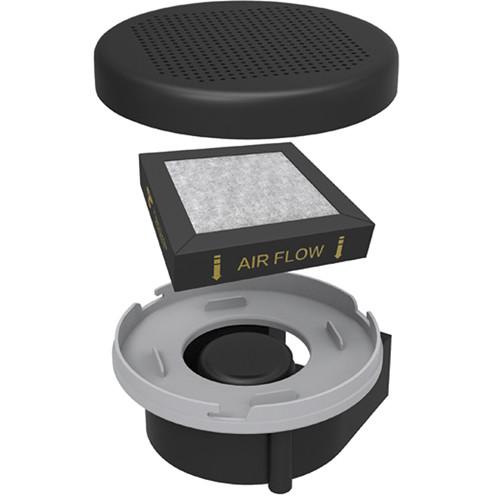

- HEPA and Activated Carbon Filter
- 3D printing certain materials, such as ABS, can generate potentially harmful UFP and VOC emissions. The HEPA and Activated Carbon Filter effectively reduces these toxic elements, known to be triggers for those suffering from asthma and other pulmonary disorders
- Wi-Fi
- Transfer your print job wireless from a computer or mobile app.
- Improved Resolution
- Print with a layer thickness as fine as 150 microns / 0.15mm.
- Power Failure Protection
- In the event of a power failure, you'll be able to resume printing where it left off.
- Automatic Nozzle Height Detection
- This helps ensure your print adheres securely to the print bed.
- Software-Assisted Leveling
- This compensates for warped or imperfect print surfaces to help you achieve a successful print.
- Ships Fully Assembled
- The Afinia H400+ is shipped fully assembled, ready to use, and with all the materials you'll need, so you can start printing in minutes. Just install the software (compatible with Windows, macOS, and iOS) and print via Wi-Fi, USB, or Ethernet.
UPC: 678621110097 In the Box Afinia H400+ 3D Printer Afinia External Spool Holder Afinia H400+ Extruder Afinia 90W Power Supply Power Cable 2 x Afinia Flex Board 2 x Perf Board 500g Spool of 1.75mm ABS Filament Calibration Card Filament Guide USB Cable Spare Nozzle Nozzle Wrench Gloves Scraper Pliers Hex Wrench Spare Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Afinia H400 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAfinia H400+ 3D Printer Specs | | | Print Technology | Fused Filament Fabrication (FFF), Marketed as Melted Extrusion Modelling (MEM) | | Build Volume | 4.7 x 4.7 x 4.7" / 11.9 x 11.94 x 11.9 cm | | Number of Extruders | 1 | | Layer Resolution | Z Axis: 150 to 350 micron / 0.15 to 0.35 mm (5 Settings) | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Extruder Nozzle Temperature | 570°F / 299°C | | Positioning Precision | XY Axis: 2 micron / 0.002 mm
Z Axis: 2 micron / 0.002 mm | | Print Speed | 150 mm/s | | Filament Compatibility | 1.75 mm Diameter:
ABS, PLA | | | | Build Area Type | Enclosed | | Build Plate Features | Auto Leveling, Heated | | Build Plate Temperature | 158°F / 70°C | | Filament Spool Storage | External | | 3D Scanner | No | | Monitoring Camera | No | | | | Wired Connections | 1 x RJ45 Gigabit Ethernet
1 x USB Type-A (USB 2.0)
1 x USB Type-B (USB 2.0) | | Wi-Fi | Wi-Fi 4 (802.11n) | | Media Card Slots | Yes | | | | Supported Operating Systems | Windows 7 or Later
iOS (Version Unspecified)
macOS X 10.1 or Later | | Supported 3D File Types | .3ds, .3mf, .gcode, .obj, .off, .ply, .stl, .tsk, .up3, .ups | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions (W x H x D) | 19.1 x 19.5 x 20.5" / 48.51 x 49.53 x 52.07 cm | | Weight | 17.4 lb / 7.9 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 29.8 lb | | Box Dimensions (LxWxH) | 23.6 x 18.8 x 13.8" |
