User Manual for Afinia H800 3D Printer Click to enlarge the picture
Contents of the user manual for the Afinia H800 3D Printer
- Product category: 3D Printers Afinia
- Brand: Afinia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Afinia 3D Printers
 |
User manual for the Afinia H800 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Afinia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Afinia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Afinia product will considerably shorten its lifespan!
|

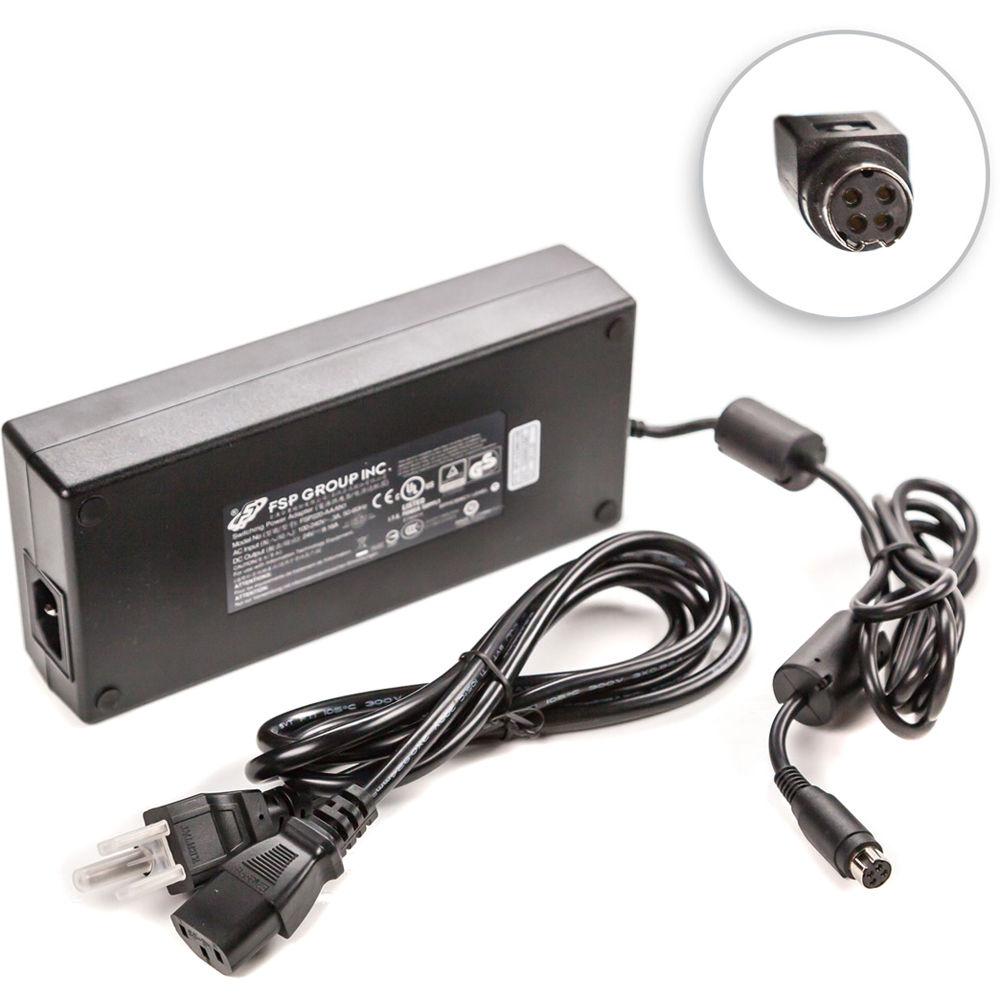

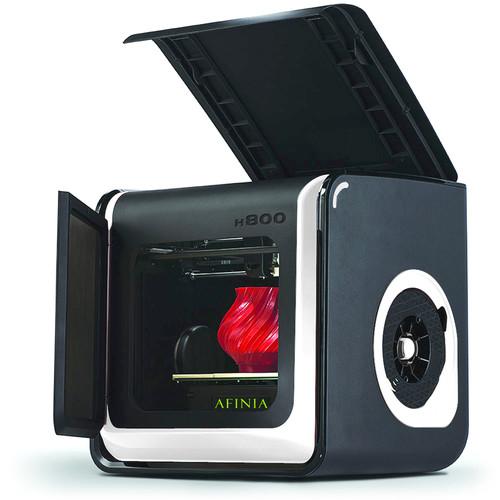

Product description Designed for educators, engineers, and hobbyists, the H800+ 3D Printer from Afinia has been designed to be user-friendly, regardless of your 3D printing experience. It features Melted Extrusion Modeling (MEM), also known as Fused Filament Fabrication (FFF) printing technology; a build volume of 10 x 8 x 8"; a layer resolution of 100-400 microns; supports STL, UP3, and UPP files; and uses 1.75mm ABS, PLA, PC, Flexible Plastic Filament, and PETG filaments, with filament run-out protection. Users may print their projects in an enclosed print chamber with mood lighting that employs a HEPA 7 air filtration system that continually cleans the air within the enclosure of particulates and odors as the model is printing. The print bed itself has been factory-leveled, is heated, and utilizes both auto-nozzle height detection and software-assisted leveling. This 3D printer can print using USB 2.0 and Wi-Fi connectivity and operates using an included 110-220 VAC power adapter. In the case that power to the H800+ is interrupted, Power Loss Print Recovery allows printing to resume where it left off after power is restored.

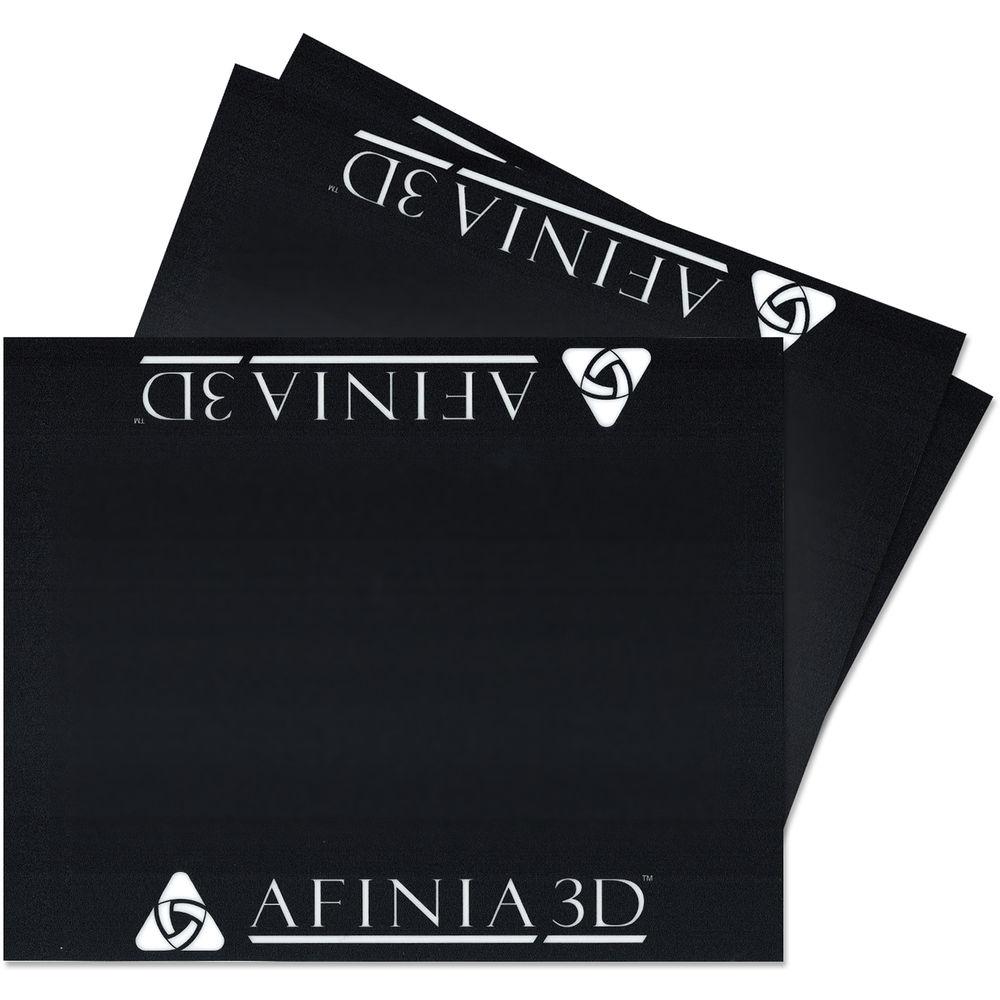

The Afinia H800+ 3D Printer is compatible with Windows 8, 7, Vista, and XP (32/64-bit), Mac OS 10.7, and iOS devices, such as the iPad and iPhone. It also allows for custom temperature settings of the nozzle and heated platform, which allows for the use of materials other than ABS and PLA filaments that require different temperature settings. Also included is one 500g roll of white ABS filament, a USB cable, an extra nozzle, a nozzle wrench, hex wrenches, a putty knife, snipping pliers, a flex board, and two perf boards. General Features - Fully-enclosed system with HEPA filtration
- Fully-automated platform leveling and height sensing
- Power loss print recovery and "out of filament" pause switch
- Customizable nozzle and platform temperatures
- One button filament color changing
- Smart support material technology
- Upgraded printhead and gantry system
- Ultra-fine 100 micron print resolution
- Easy filament spool loading
UPC: 678621110080 In the Box Afinia H800+ 3D Printer 1 x Spool of White Premium ABS Filament (500g) 1 x Flex Board 2 x Perf Boards Power Supply and Cord USB Cable Extra Nozzle Nozzle Wrench Hex Wrenches Putty Knife Snipping Pliers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Afinia H800 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAfinia H800+ Specs | | | Build Volume | 10 x 8 x 8" / 25.4 x 20.32 x 20.3 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 100 to 400 micron / 0.1 to 0.4 mm (7 Settings) | | Supported Extruder Nozzle Diameter | 400 micron / 0.40 mm | | Filament Compatibility | 1.75 mm Diameter:
ABS, PLA | | | | Build Area Type | Enclosed | | Build Plate Features | Auto Leveling, Heated | | Filament Spool Storage | Internal | | 3D Scanner | No | | Monitoring Camera | No | | | | Wired Connections | 1 x USB Type-B (USB 2.0) | | Wi-Fi | Yes | | Media Card Slots | Yes | | | | Supported Operating Systems | Windows (Version Unspecified)
iOS (Version Unspecified)
macOS X (Version Unspecified) | | Supported 3D File Types | .stl, .up3, .upp | | | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | | Dimensions (W x H x D) | 19.1 x 19.5 x 20.5" / 485.14 x 495.3 x 520.7 mm | | Weight | 55 lb / 24.9 kg | | | | Package Weight | 63.0 lb | | Box Dimensions (LxWxH) | 26.0 x 23.5 x 23.3" |
