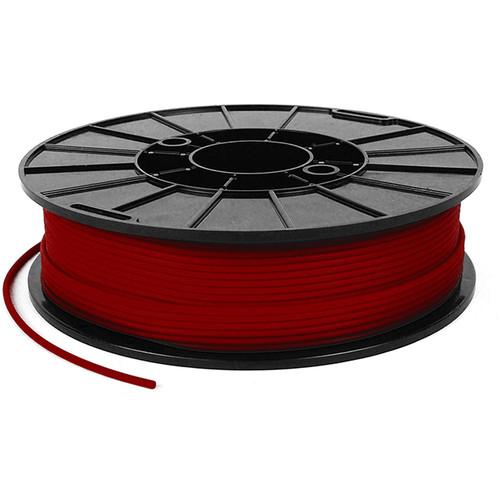

User Manual for Afinia NinjaTek Cheetah 1.75mm Flexible Filament Click to enlarge the picture
Contents of the user manual for the Afinia NinjaTek Cheetah 1.75mm Flexible Filament
- Product category: All 3D Printer Filament/Cartridges Afinia
- Brand: Afinia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Afinia All 3D Printer Filament/Cartridges
|
User manual for the Afinia NinjaTek Cheetah 1.75mm Flexible Filament contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Afinia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Afinia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Afinia product will considerably shorten its lifespan!
|
Product description The fire red NinjaTek Cheetah 1.75mm Flexible Filament from Afinia has been developed to optimize the 3D printing experience, resulting in a filament that is printable across all types of desktop 3D printers of ABS and PLA speeds. Cheetah filament possesses an impact strength up to 84% greater than ABS filament, giving it a good balance of speed, toughness, and strength. It is well-suited for designing seals, plugs, hinges, sleeves, and snap-fit parts. General Features - Prints at speeds greater than 60mm/s with standard ABS settings
- Greater impact strength than widely used materials, such as 84% greater than ABS
- Provides toughness and durability to ensure longevity in printed parts
- Abrasion resistance 40% higher than ABS and 76% higher than PLA
- 580% elongation capabilities improve the ability to withstand wear and tear
- Patented low friction exterior allows for smooth feeding
- Chemical resistance to many materials, including: naphtha, ASTM Oils #1-3, petroleum, and Freon
- Consistent diameter and material properties provide reliable, high quality prints
- REACH and RoHS 2002/95/EC Directive compliant
Table of Contents
|
Upload User Manual
Have you got an user manual for the Afinia NinjaTek Cheetah 1.75mm Flexible Filament in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAfinia 3DCH031175050 Specs | | | Extruder Temperature | 455 to 473°F / 235 to 245°C | | Platform Temperature | Room temperature - 104°F / 40°C (Glue or blue painters tape is suggested if not using a heated bed) | | | | Top and Bottom Layers | 30-45 mm per sec / 600-1200 mm per min | | Infill Speeds | 60-80 mm per sec / 3600-4800 mm per min (Layer 2+ use cooling fan if available) | | | | Filament Diameter | 1.75 mm | | Weight | 17.6 oz / 500.0 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 5.0" |
