Product description

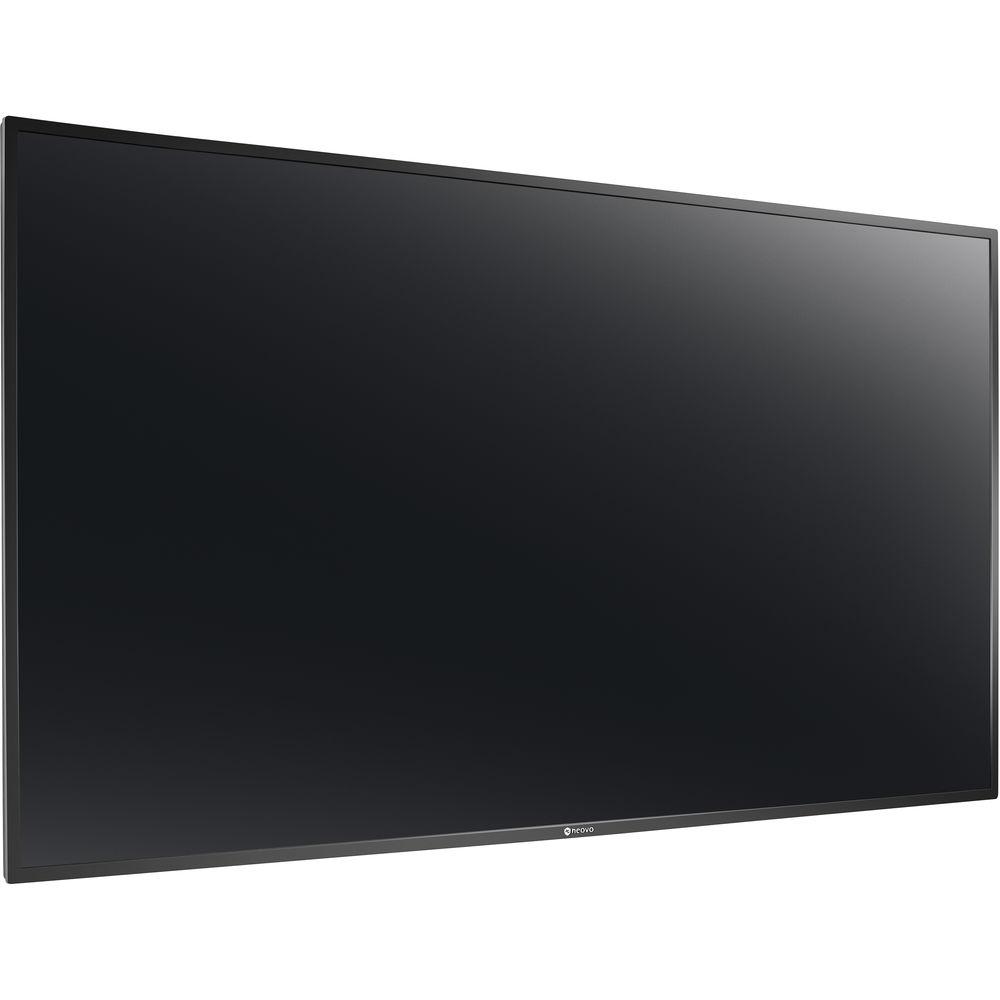

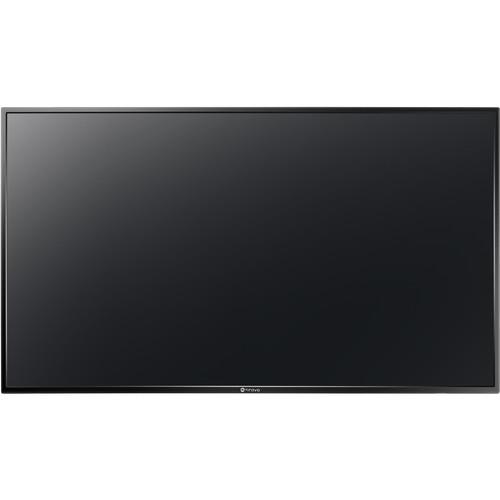

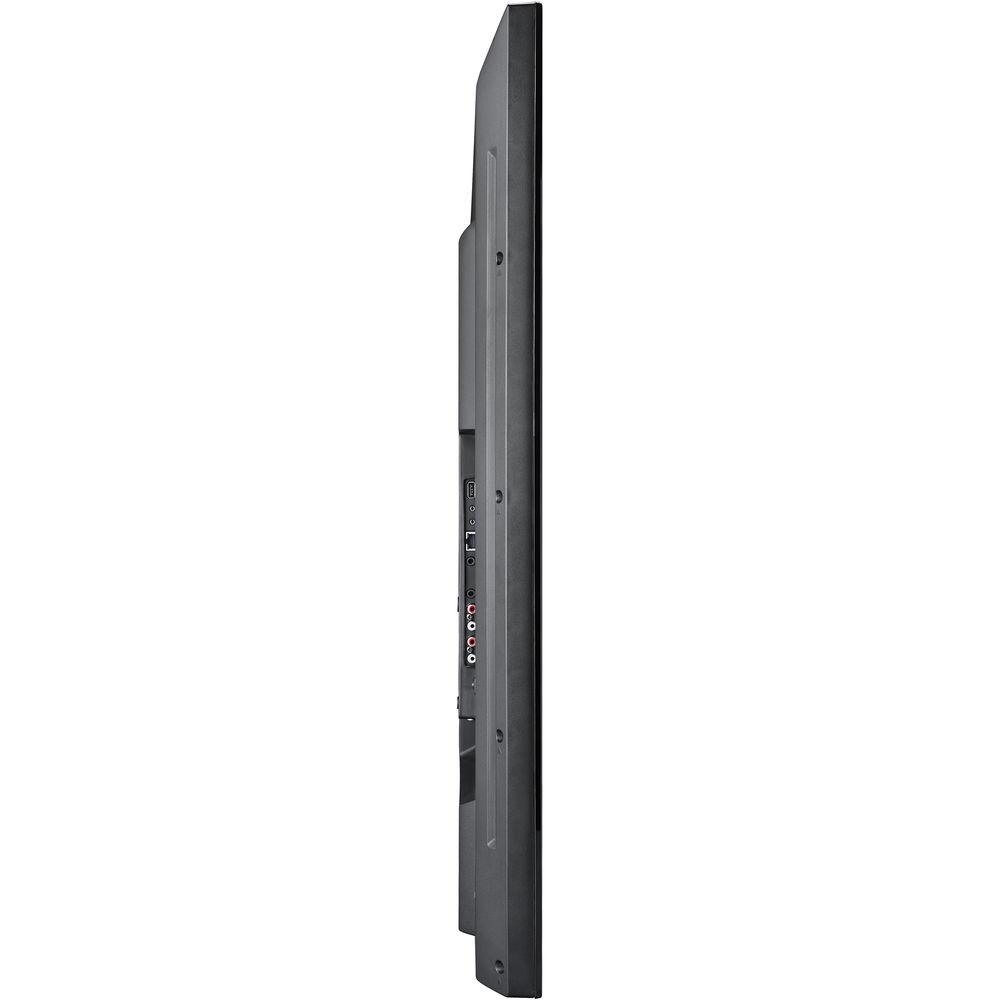

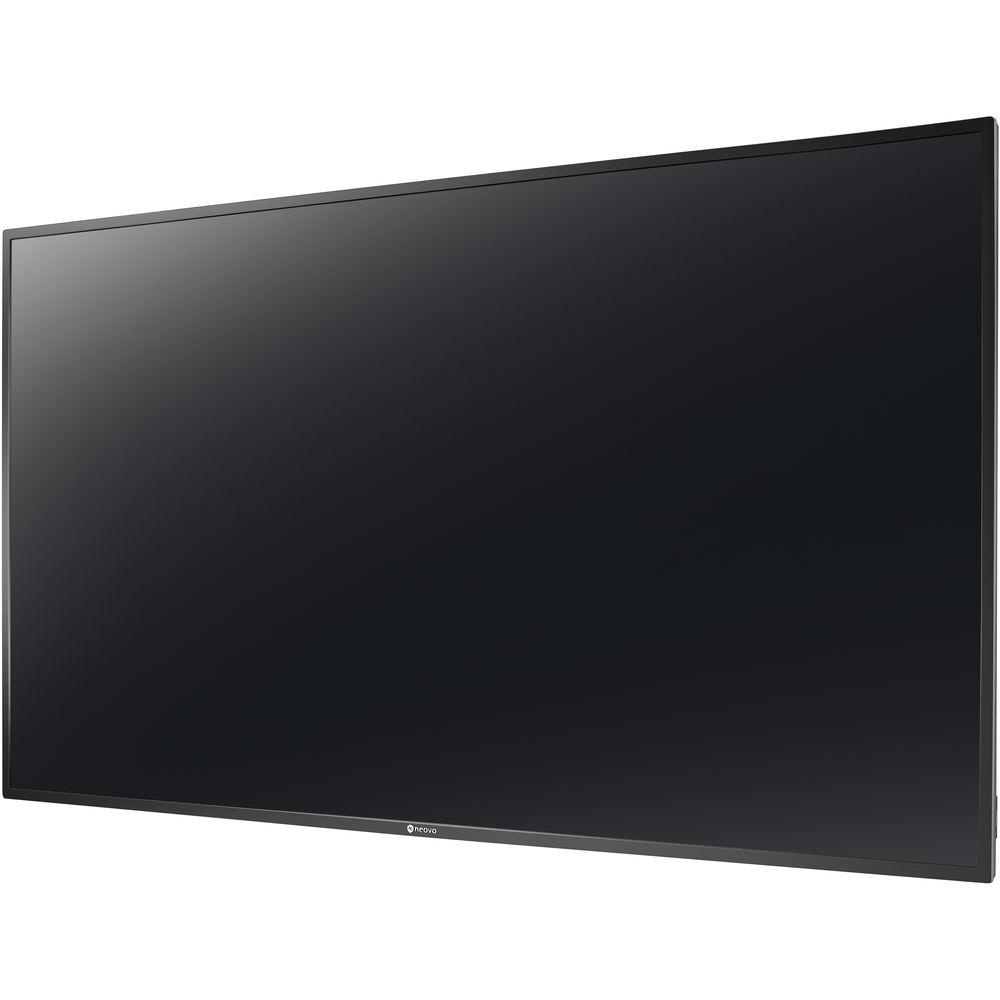

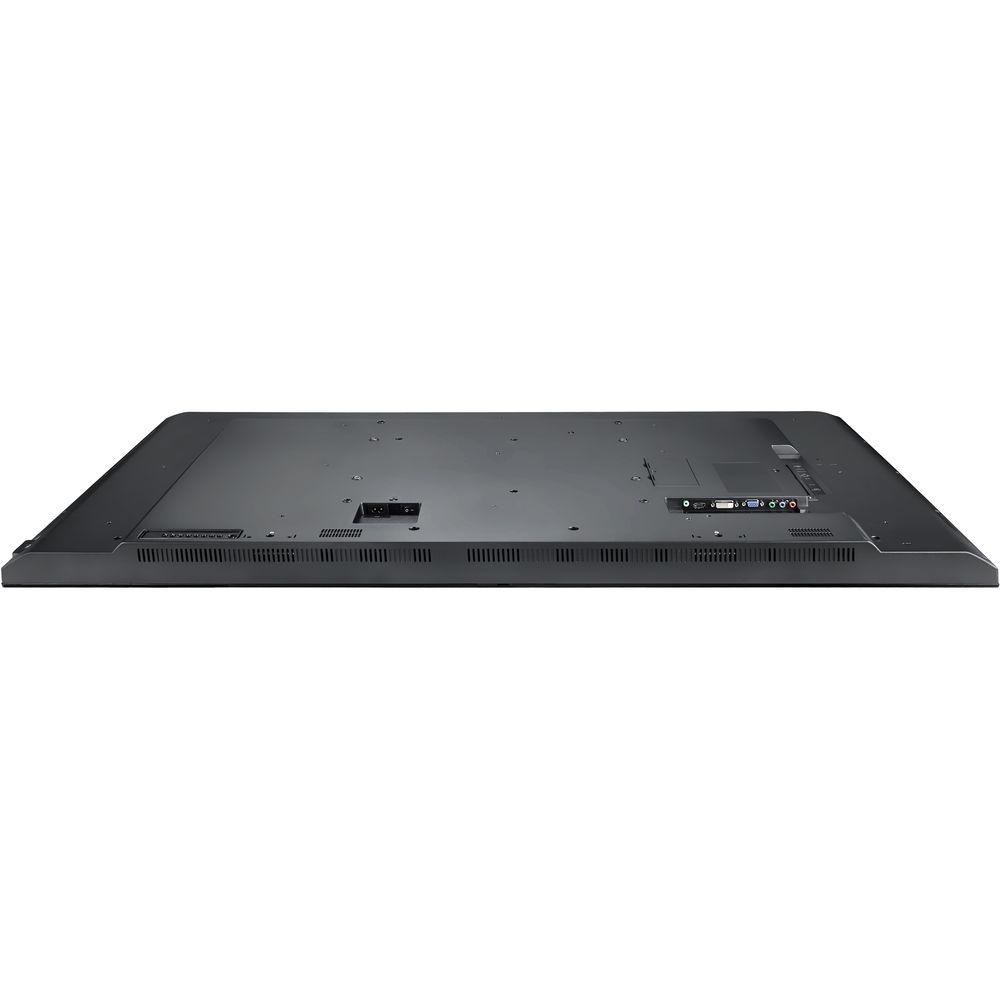

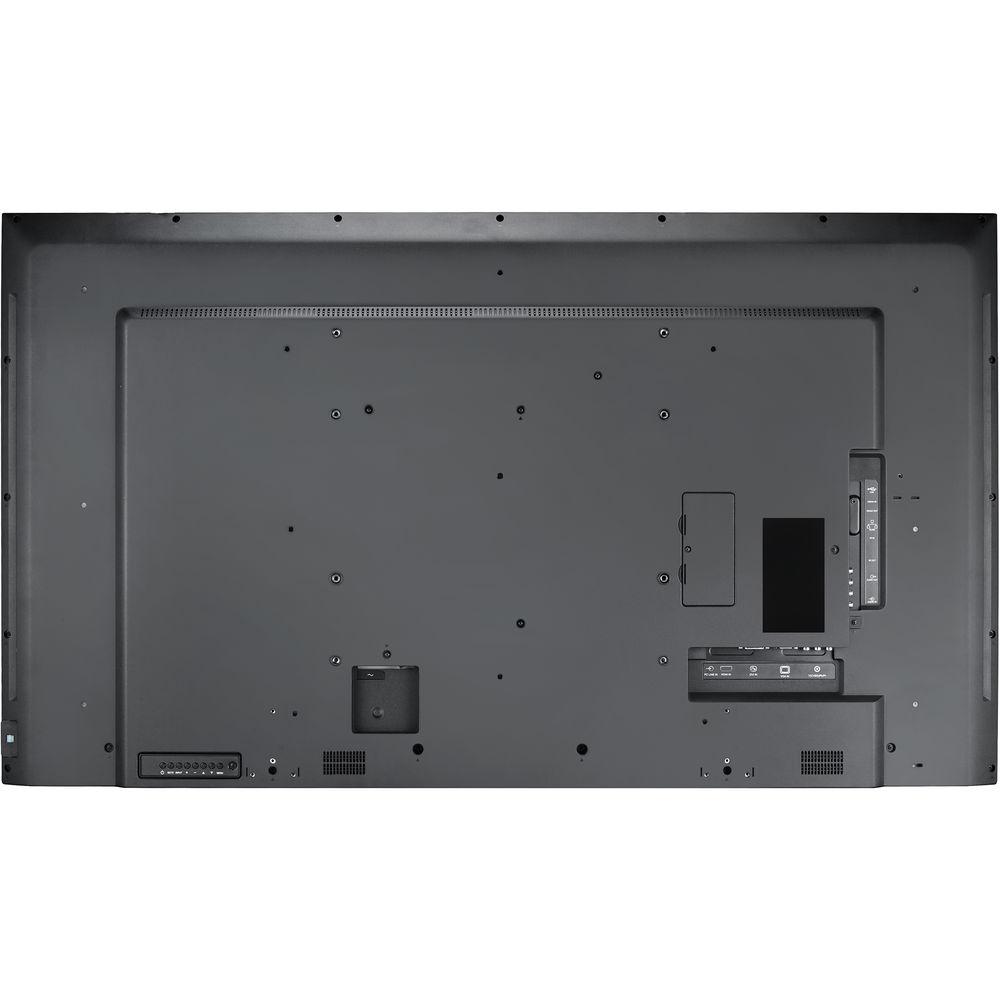

The 55" Display from AG Neovo is an LED-backlit IPS panel display that supports a resolution of up to 1920 x 1080. It features RS-232, RJ45, and IR connections for remote control of the display from your laptop or desktop. The built-in programmable scheduler enables automatic on-and-off switching at any pre-set time. It is equipped with VGA, DVI, HDMI, composite, and component ports for versatile connectivity as well as two stereo audio inputs and a stereo audio output. USB playback and DLNA compliance support flexible sharing of various digital contents including music, movies, and photos. Designed with Anti-Burn-In technology, built-in image enhancers, and two 10W built-in speakers, the PM-55 is suitable to perform in digital signage settings. It can be 400 x 400mm and 400 x 200mm VESA FPMPMI mounted and includes a remote control, power cord, 15-pin D-Sub cable, and RS-232 cable.
  • IPS panel for wide viewing angle
  • 0.5" left/right/top and 0.6" bottom slim bezel width
  • Built-In Image Enhancer: 3D comb filter, de-interlace, noise reduction
  • USB playback function
  • DLNA compliance
  • Built-in scheduler allows different program scheduling
  • Suitable for 16/7 operations
UPC: 813086003656 In the Box AG Neovo 55" Full HD Digital Signage Indoor LED Display
  • Remote Control
  • Power Cord
  • 15-Pin D-Sub Cable
  • RS-232 Cable
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AG Neovo 55" Full HD Digital Signage Indoor LED Display in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AG Neovo PM-55 Specs

    Panel Type LED-backlit TFT LCD (IPS panel)
    Panel Size 54.64"
    Resolution 1920 x 1080 max.
    Brightness 350 cd/m2 (typical)
    Contrast Ratio 1200:1 (typical)
    Viewing Angle 178°/178°
    Display Color 16.7 million
    Response Time 5 ms (GTG)
    Frequency Horizontal: 31-92 kHz
    Vertical: 48-85 Hz
    Inputs 1 x 15-pin Sub-D port
    1 x 24-pin DVI-D port
    1 x HDMI port
    1 x 3RCA component video port (composite video capable)
    External Control 1 x RS-232 2.5 mm jack, input/output
    1 x RJ45 port, LAN
    1 x IR 3.5 mm phone jack, input/output
    Audio 1 x 3.5 mm stereo audio input jack for PC
    1 x RCA stereo audio input
    1 x RCA stereo audio output
    Internal Speaker 2 x 10 W
    USB USB 2.0
    Power Supply Internal
    Power Requirements 100-240 V, 50/60 Hz
    Power Consumption Up to 179 W
    Up to 0.5 W (active off/off)
    Operating Temperature 32-104°F / 0-40°C
    Operating Humidity 20-80% (no condensation)
    Storage Temperature -4-140°F / -20-60°C
    Storage Humidity 5-95% (no condensation)
    Mounting 400 x 400 and 400 x 200 mm VESA FPMPMI
    Regulation Approval CB, CE, FCC, WEEE, RoHS, REACH
    Dimensions Without Base: 48.8 x 28.0 x 2.4" / 123.9 x 71.1 x 6.0 cm
    Weight Without Base: 35.3 lb / 16 kg
