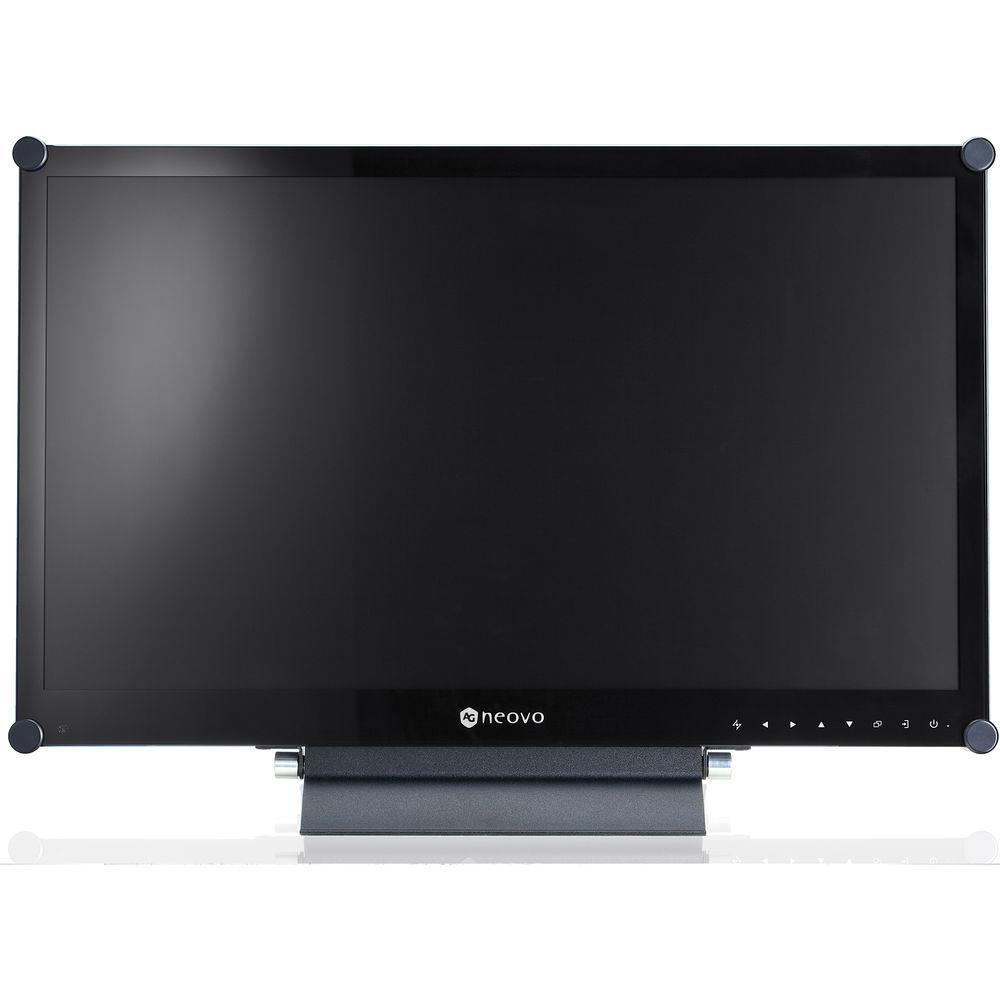

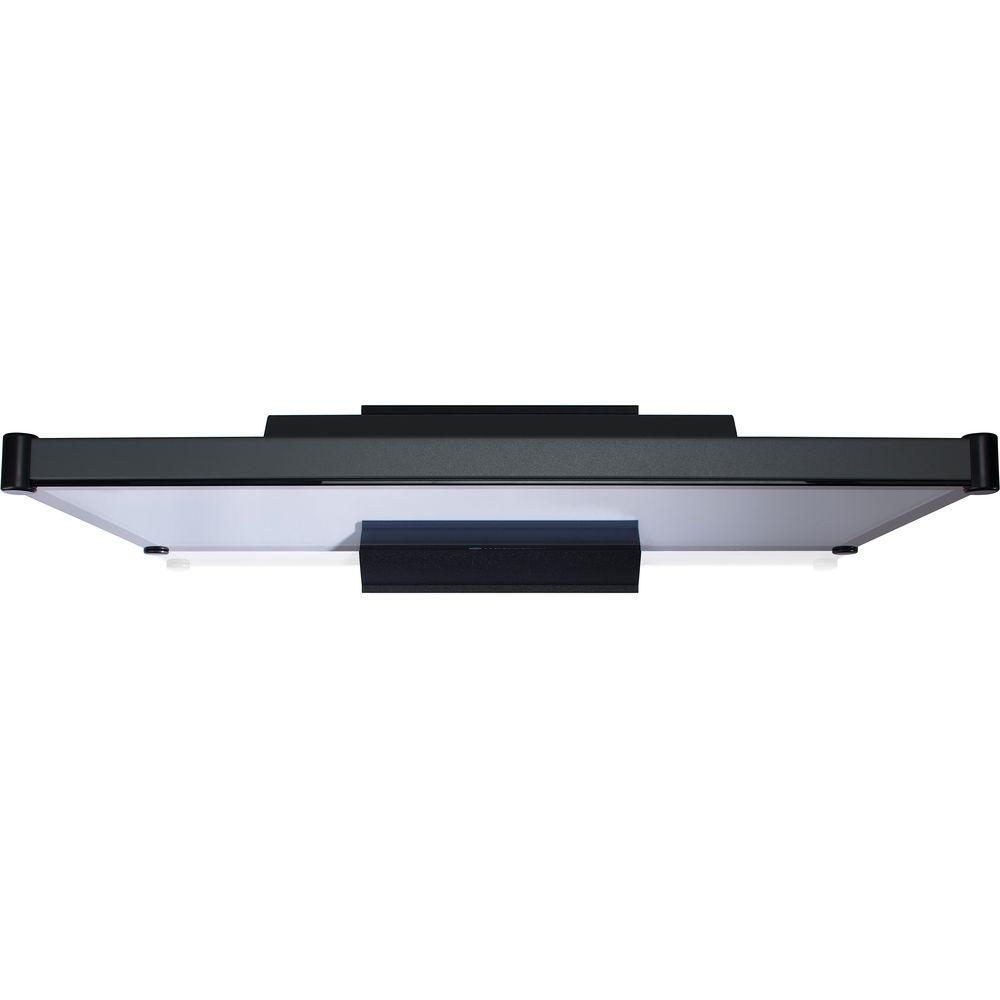

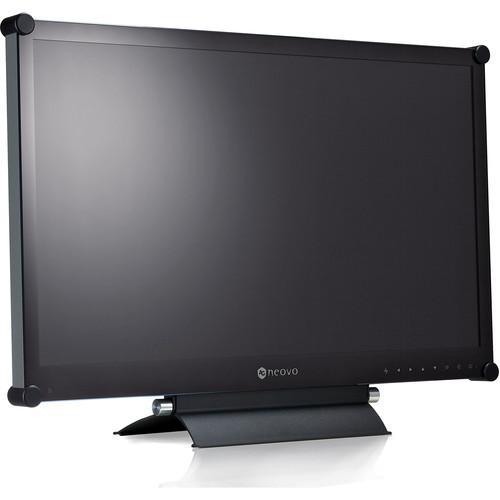

User Manual for AG Neovo HX-24 24" CCTV LCD Monitor Click to enlarge the picture
Contents of the user manual for the AG Neovo HX-24 24" CCTV LCD
- Product category: Surveillance Monitors AG Neovo
- Brand: AG Neovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AG Neovo Surveillance Monitors
 |
User manual for the AG Neovo HX-24 24" CCTV LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AG Neovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AG Neovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AG Neovo product will considerably shorten its lifespan!
|

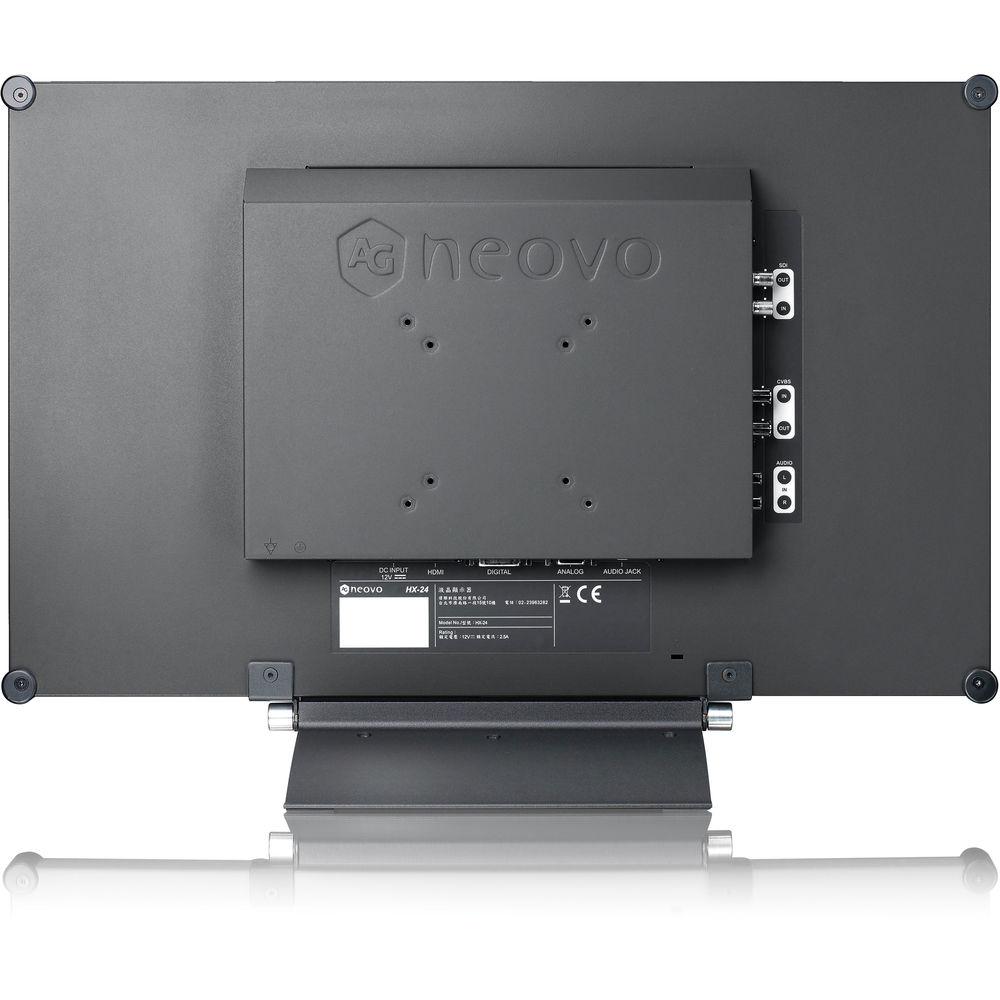

Product description Equipped with NeoV optical glass and Anti-Burn-in technology, the HX-24 24" CCTV LCD Monitor from AG Neovo is designed for use in public environments. These technologies protect the monitor from the damages it might sustain in an exposed setting and from screen discoloration caused by constant usage, enabling you to use the device in 24/7 security-critical and broadcasting scenarios. The monitor can support a maximum resolution of 1920 x 1080 at up to 60 fps, and it features a 1000:1 contrast ratio. Numerous video inputs and outputs, such as VGA, DVI, HDMI, SDI, and CVBS, provide maximum versatility, and the monitor has a 3.5mm audio input and two built-in speakers for full audio capability. Additionally, the SDI connection provides up to eight channels of embedded audio at 48 kHz. The monitor can be VESA mounted with either a 100 x 100mm pattern or a 75 x 75mm pattern, and a durable metal housing provides additional protection against bumps and scratches. - 1920 x 1080 Full HD resolution
- NeoV optical glass for protection
- Anti-burn-in technology for professional applications
- AIP technology; PIP and PBP functions; 3D comb filter / deinterlace / noise reduction; image rotation function / freeze

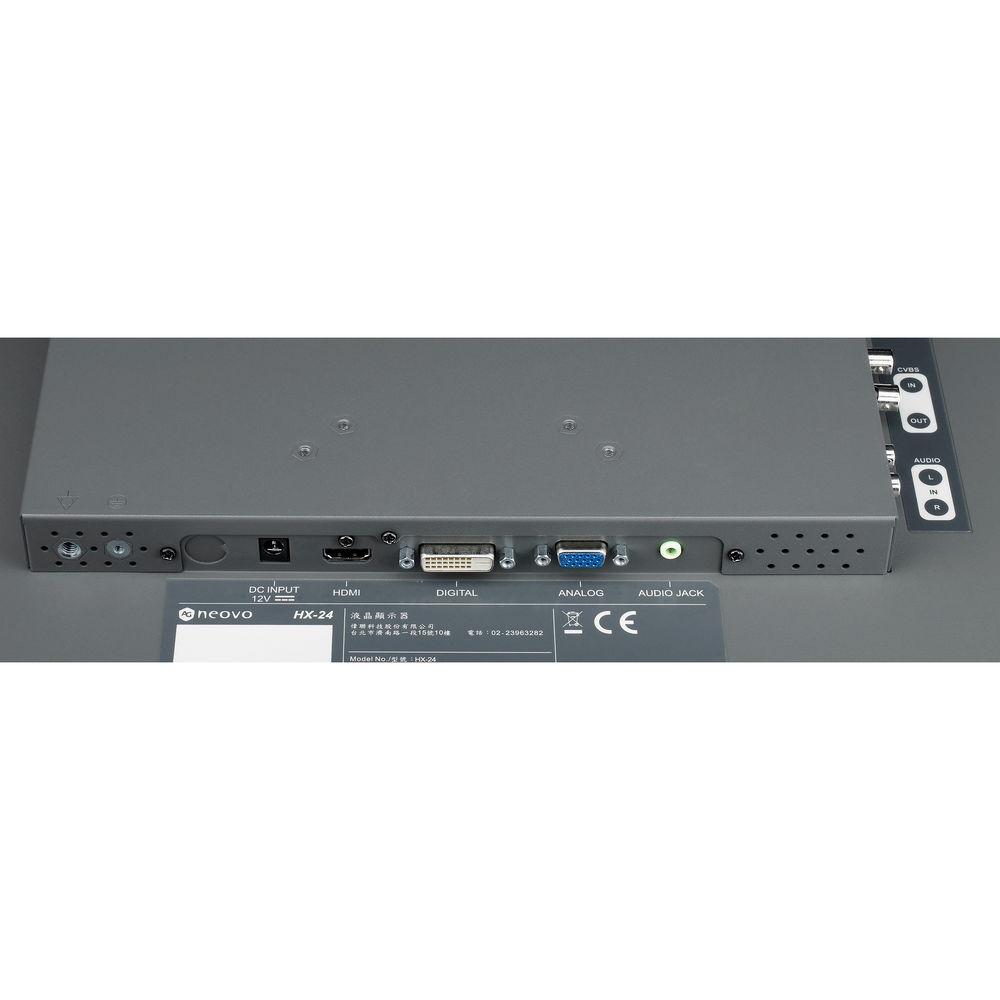

- Versatile inputs, including: 3G SDI in/out, CVBS in/out, HDMI, DVI, VGA, and audio in
- SDI connection supports 3 Gb/s, 1.5 Gb/s HD, SD-SDI video inputs
- Capable of receiving digital video signals over a 75 Ohms RG6 coaxial cable or equivalent (3G-SDI: 328', HD-SDI: 492', SD-SDI: 984')
- SDI serial digital looping through
- Embedded audio in SDI up to 8 channels of 48 kHz
- EcoSmart Sensor automatically adjusts backlight according to ambient lighting conditions
UPC: 813086002703 In the Box AG Neovo HX-24 24" CCTV LCD Monitor Power Adapter Power Cord 15-Pin D-Sub Cable Audio Cable Limited 3-Year Warranty on Parts & Labor Brochure PDF 625.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo HX-24 24" CCTV LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAG Neovo HX-24 Specs | | | Type | TFT LCD | | Backlight Type | LED-Backlit | | Size | 23.6" (59.9 cm) | | Maximum Resolution | FHD 1920 x 1080 | | Pixel Pitch | 0.2715 mm | | Brightness | 300 cd/m2 (Typical) | | Contrast Ratio | 1000:1 (Typical) | | Viewing Angle (H/V) | 170° / 160° (Typical) | | Display Color | 16.7 million | | Response Time (GtG) | 3 ms | | | | Horizontal | 24 to 83 kHz | | Vertical | 50 to 85 Hz | | | | VGA | 15-Pin D-Sub | | DVI | 24-Pin DVI-D | | HDMI | 1 x HDMI | | SDI | 1 x BNC | | CVBS | 1 x BNC | | | | Audio In | 1 x 1/8" / 3.5 mm jack for PC stereo audio
RCA (L+R) jack for video | | Speaker | 2 x 2 W | | SDI | Embedded Audio: Up to 8 channels, 24-bit, 48 kHz | | | | SDI | 3G-SDI (SMPTE 424M):
1080p @ 50/60 fps
HD-SDI (SMPTE 292M):
1080p @ 24/25/30 fps
1080i @ 50/60 fps
720p @ 24/25/30/50/60 fps
SD-SDI (SMPTE 259M):
625i (PAL) / 525i (NTSC) | | | | Power Supply | External | | Power Requirements | 12 VDC | | Consumption | On: < 27 W
Active Off: < 0.5 W
Off: < 0.5 W | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10 to 90% (non-condensing) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Storage Humidity | 5 to 95% (non-condensing) | | VESA Pattern | 75 x 75 mm and 100 x 100 mm | | Certifications and Compliance | CB, CE, RoHS, GOST-R, WEEE, REACH | | Dimensions (W x H x D) | 22.1 x 15.6 x 6.1" (56.1 x 39.6 x 15.5 cm) | | Weight | 17.4 lb (7.9 kg) | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 26.0 x 20.6 x 8.7" |
