AG Neovo HX-Series 32" 1080p LED

Search your instruction manual in PDF to download

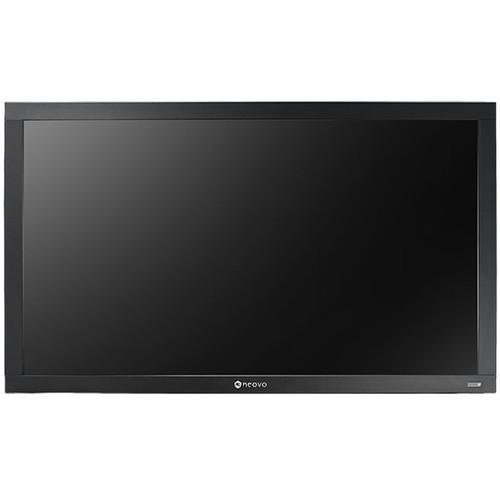

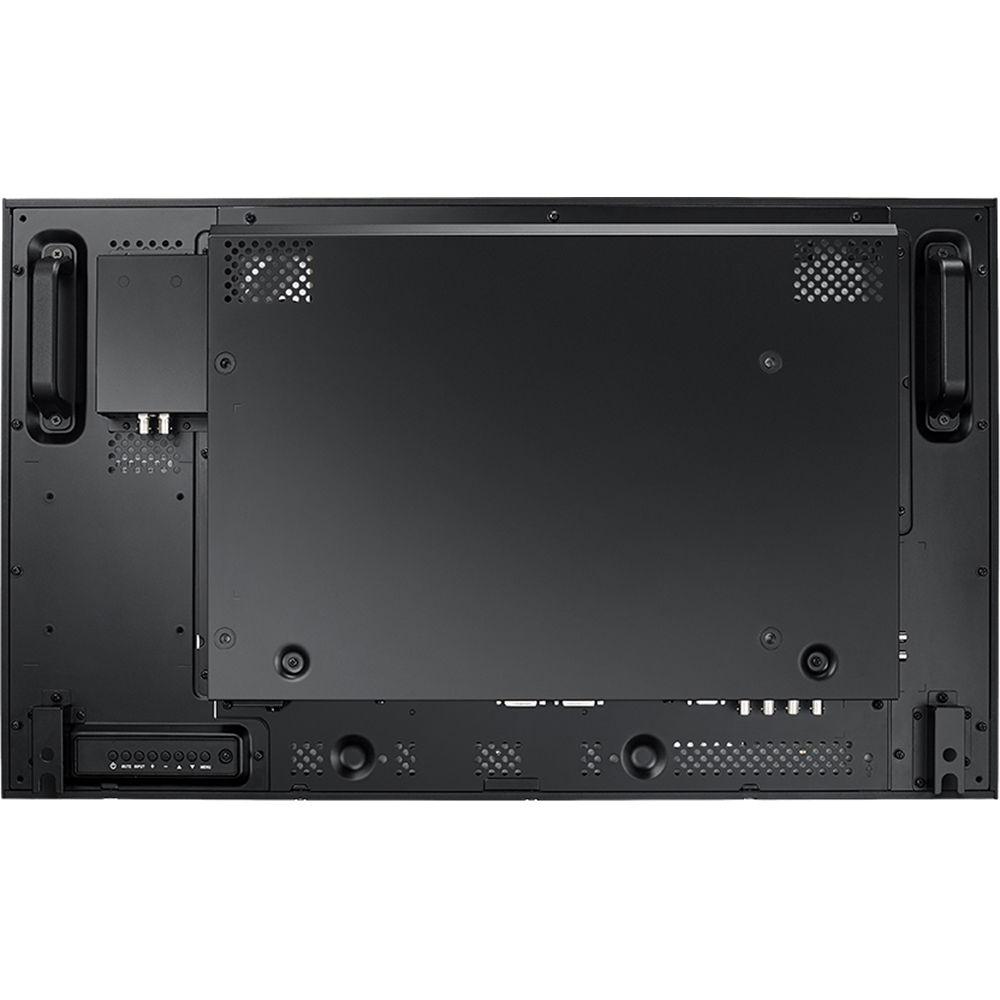

User Manual for AG Neovo HX-Series 32" 1080p LED CCTV Monitor

Click to enlarge the picture
AG Neovo HX-Series 32" 1080p LED CCTV Monitor Contents of the user manual for the AG Neovo HX-Series 32" 1080p LED
  • Product category: Surveillance Monitors AG Neovo
  • Brand: AG Neovo
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AG Neovo Surveillance Monitors

AG Neovo HX-Series 32" 1080p LED CCTV Monitor AG Neovo HX-Series 32" 1080p LED CCTV Monitor
User manual for the AG Neovo HX-Series 32" 1080p LED contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AG Neovo product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AG Neovo user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AG Neovo product will considerably shorten its lifespan!



Product description

The HX-Series 32" LED CCTV Monitor from AG Neovo 10W displays 1920 x 1080 full HD resolution video with 178/178° wide viewing angles, and consistency of picture quality. Image settings can enhance color, brightness, sharpness, and contrast ratio. The HX-32E is designed for broadcast and surveillance and supports SD, HD, and 3G-SDI formats. An HD-SDI input and loop through output make it easy to connect other gear without need for a splitter.
  • Embedded audio in SDI up to eight channels of 48 kHz
  • 2 x 10W built-in speakers
  • Anti-Burn-in technology prevents image ghosting
  • NeoV Optical Glass and metal housing for easy cleaning and protection
  • VA panel technology ensures accurate colors and offers high contrast ratios with wide viewing angles
  • Image enhancer: 3D Comb Filter / Deinterlace / Noise Reduction
  • Versatile connectivity: 3G-SDI, DisplayPort, HDMI, DVI, VGA, Component, and Composite
  • Built-in USB media player for simple signage content delivery
  • DisplayPort, HDMI, DVI, VGA, Composite, RS-232, and IR daisy chain support
  • An integrated scheduler allows content programming based on time and day
  • RJ45, RS-232, and IR device control support
  • Native tiling support for easy video wall setup (up to 10 x 10)
  • EcoSmart Sensor automatically adjusts brightness levels according to ambient lighting conditions
  • Selectable gamma curves optimize different kinds of images
  • Supports landscape or portrait display
  • Designed and developed for continuous 24/7 operation
In the Box AG Neovo HX-Series 32" 1080p LED CCTV Monitor
  • Power Cord
  • RS-232 Cable
  • RS-232 Daisy Chain Cable
  • Remote Control with Batteries
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AG Neovo HX-Series 32" 1080p LED CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AG Neovo HX-32E Specs

    Panel Size 31.5" / 80 cm
    Panel Type LED-Backlit TFT LCD (VA Technology)
    Maximum Resolution 1920 x 1080
    Pixel Pitch 0.364 x 0.364 mm
    Brightness 500 cd/m²
    Contrast Ratio 3000:1
    Viewing Angle Horizontal: 178°
    Vertical: 178°
    Display Colors 16.7 Million
    Response Time 5 ms
    Frequency Horizontal: 31 to 92 kHz
    Vertical: 48 to 85 Hz

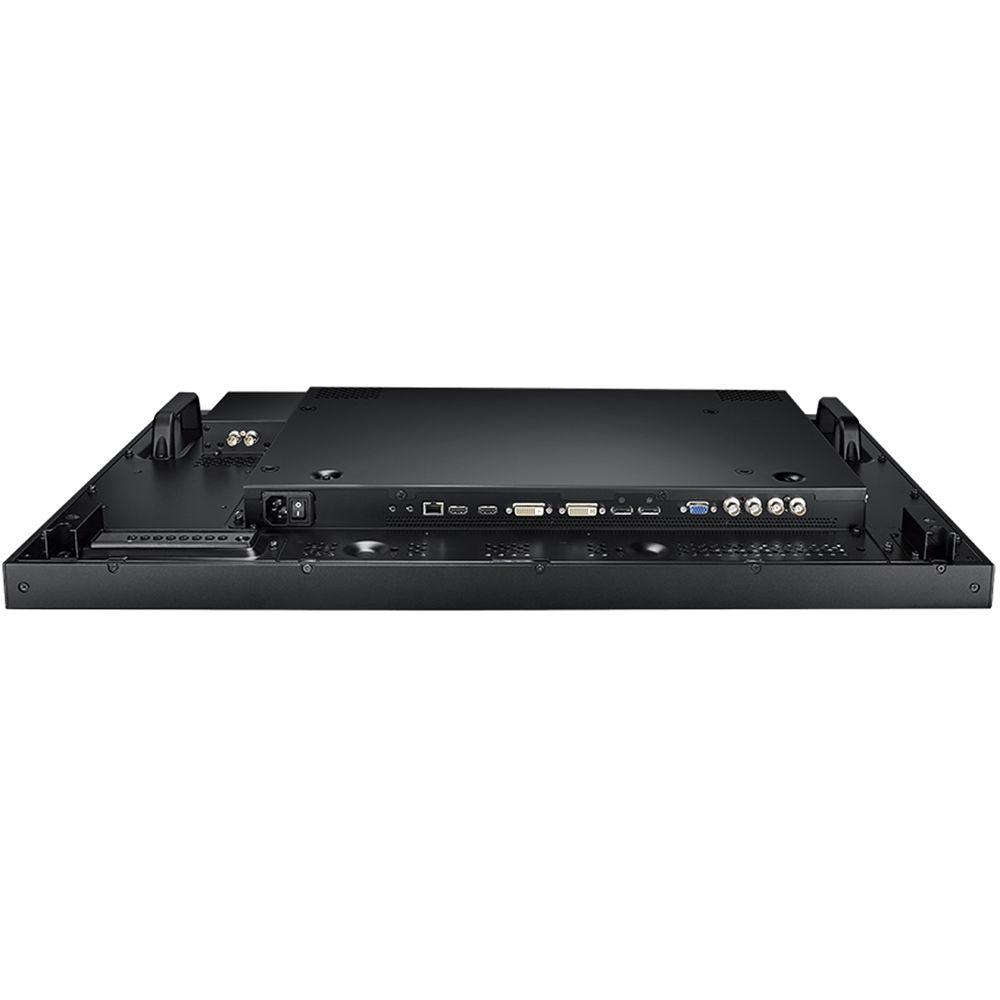

    Video Inputs 1 x BNC
    1 x DisplayPort 1.2
    2 x HDMI 1.4
    1 x 24-pin DVI-D
    1 x 15-pin Sub-D, VGA
    1 x BNC, Component
    1 x BNC, Composite
    Video Outputs 1 x BNC
    1 x DisplayPort 1.2
    1 x 29-pin VGA/DVI-I/HDMI
    1 x BNC, Composite
    Audio Input 1 x 3.5mm Stereo Jack
    1 x RCA Stereo Jack
    Audio Outputs 1 x 3.5mm Stereo Jack
    Other Connectors 1 x 3.5mm Jack, IR Input/Output
    1 x 2.5mm Jack, RS-232 Input/Output
    1 x RJ45 LAN
    1 x USB 2.0, Service / Media Playback
    Internal Speaker 2 x 10 W
    SDI 3G-SDI (SMPTE 424M): 1080p at 50/60 fps
    HD-SDI (SMPTE 292M): 720p at 25/30/50/60 fps, 1080p at 24/25/30/50/60 fps, 1080i at 50/60 fps
    SD-SDI (SMPTE 259M): 480i at 60 fps, 576i at 50 fps
    Power Requirements 100 to 240 VAC, 50/60 Hz
    Power Consumption On: 65 W
    Standby: <0.5 W
    Off: <0.5 W
    Optical Glass Thickness: 0.16" / 4 mm
    Reflection Rate: <1%
    Transmission Rate: >97%
    Hardness: >9H
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -4 to 140°F / -20 to 60 °C
    Operating Humidity 20 to 80%
    Storage Humidity 5 to 90%
    Mounting VESA FPMPMI 400 x 200 mm
    Approvals FCC, CE, LVD, WEEE, RoHS, REACH
    Dimensions 29.8 x 17.8 x 3.0" / 75.8 x 45.2 x 7.5 cm without Base
    Weight 33.5 lb / 15.2 kg without Base
