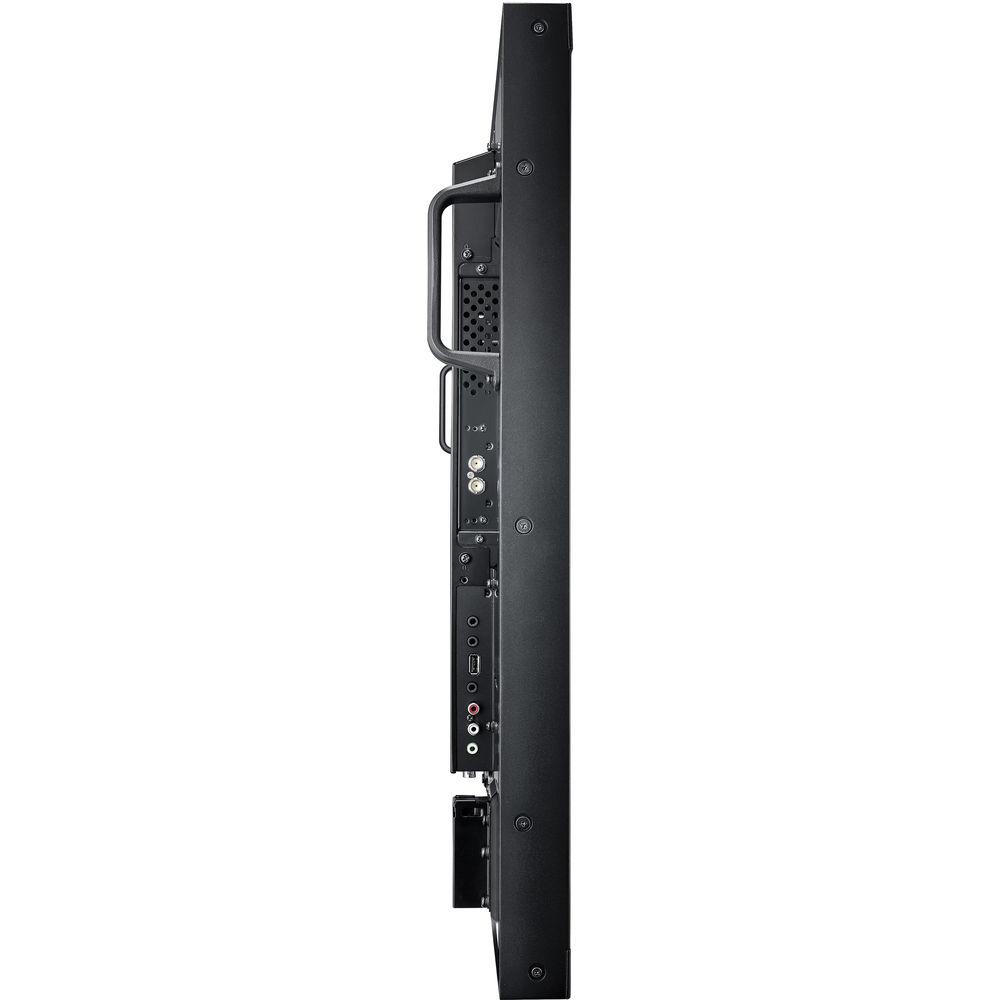

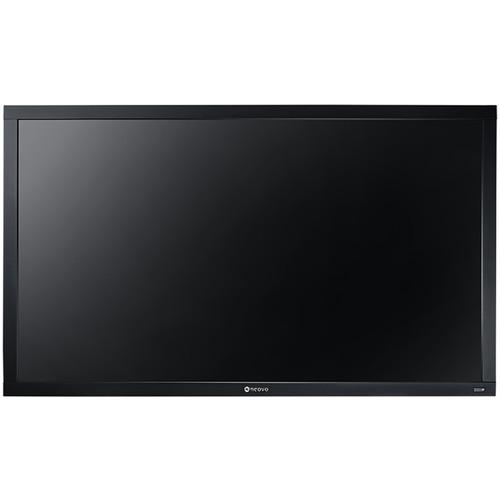

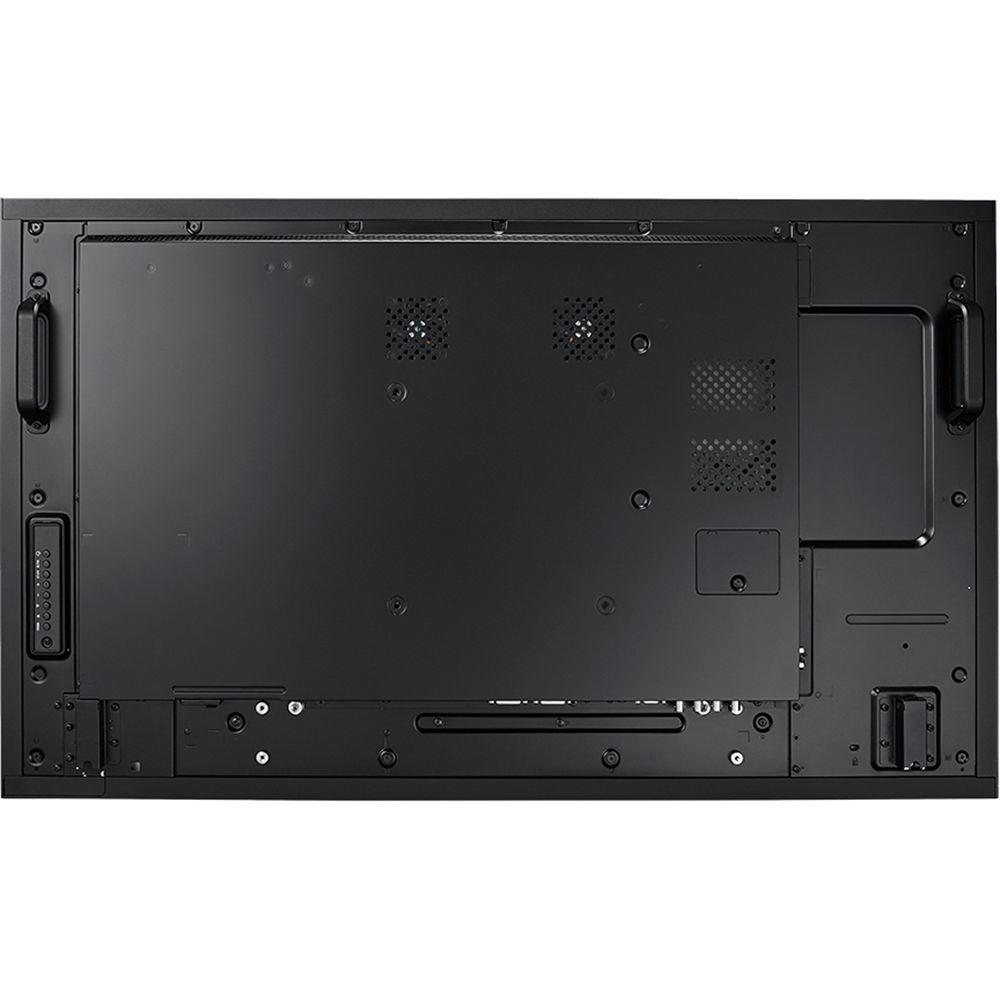

User Manual for AG Neovo HX-Series 42" 1080p LED CCTV Monitor Click to enlarge the picture
Contents of the user manual for the AG Neovo HX-Series 42" 1080p LED
- Product category: Surveillance Monitors AG Neovo
- Brand: AG Neovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AG Neovo Surveillance Monitors
|
User manual for the AG Neovo HX-Series 42" 1080p LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AG Neovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AG Neovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AG Neovo product will considerably shorten its lifespan!
|
Product description The HX-Series 42" 1080p LED CCTV Monitor from AG Neovo displays 1920 x 1080 full HD resolution video with 178/178° viewing angles and consistent picture quality. Image settings can enhance color, brightness, sharpness, and contrast ratio. The HX-42E is designed for broadcast and surveillance and includes support for SD, HD, and 3G-SDI formats. An HD-SDI input and loop through output make it easy to connect other gear without the need for a splitter. - Embedded audio in SDI up to eight channels of 48 kHz
- 2 x 10W built-in speakers
- Anti-burn-in technology prevents image ghosting
- NeoV Optical Glass and metal housing for easy cleaning and protection
- IPS panel technology ensures accurate colors and offers high contrast ratios with wide viewing angles
- Image enhancements include: 3D Comb Filter / Deinterlace / Noise Reduction
- Versatile connectivity: 3G-SDI, DisplayPort, HDMI, DVI, VGA, Component, and Composite
- Built-in USB media player for simple signage content delivery
- DisplayPort, HDMI, DVI, VGA, Composite, RS-232, and IR daisy chain support
- An integrated scheduler allows content programming based on time and day
- RJ45, RS-232, and IR device control support
- Native tiling support for easy video wall setup (up to 10 x 10)
- EcoSmart Sensor automatically adjusts brightness levels to compensate for ambient lighting conditions
- HeatControl sensors automatically activate the internal cooling fans when temperature rises
- Selectable gamma curves optimize different kinds of images
- Supports landscape or portrait display
- Designed and developed for continuous 24/7 operation
In the Box AG Neovo HX-Series 42" 1080p LED CCTV Monitor Power Cord RS-232 Cable RS-232 Daisy Chain Cable Remote Control with Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo HX-Series 42" 1080p LED CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAG Neovo HX-42E Specs Panel Size | 41.9" / 106.4 cm | Panel Type | LED-Backlit TFT LCD (IPS Technology) | Maximum Resolution | 1920 x 1080 | Pixel Pitch | 0.483 x 0.483 mm | Brightness | 700 cd/m² | Contrast Ratio | 1300:1 | Viewing Angle | Horizontal: 178° Vertical: 178° | Display Colors | 16.7 Million | Response Time | 5 ms | Frequency | Horizontal: 31 to 92 kHz Vertical: 48 to 85 Hz | Video Inputs | 1 x BNC 1 x DisplayPort 1.2 2 x HDMI 1.4 1 x 24-Pin DVI-D 1 x 15-Pin Sub-D, VGA 1 x BNC, Component 1 x BNC, Composite | Video Outputs | 1 x BNC 1 x DisplayPort 1.2 1 x 29-Pin VGA/DVI-I/HDMI 1 x BNC, Composite | Audio Input | 1 x 3.5mm Stereo Jack 1 x RCA Stereo Jack | Audio Outputs | 1 x 3.5mm Stereo Jack | Other Connectors | 1 x 3.5mm Jack, IR Input/Output 1 x 2.5mm Jack, RS-232 Input/Output 1 x RJ45 LAN 1 x USB 2.0, Service / Media Playback | Internal Speaker | 2 x 10 W | SDI | 3G-SDI (SMPTE 424M): 1080p at 50/60 fps HD-SDI (SMPTE 292M): 720p at 25/30/50/60 fps, 1080p at 24/25/30/50/60 fps, 1080i at 50/60 fps SD-SDI (SMPTE 259M): 480i at 60 fps, 576i at 50 fps | Power Requirements | 100 to 240 VAC, 50/60 Hz | Power Consumption | On: 94 W Standby: <0.5 W Off: <0.5 W | Optical Glass | Thickness: 0.16" / 4 mm Reflection Rate: <1% Transmission Rate: >97% Hardness: >9H | Operating Temperature | 32 to 104°F / 0 to 40°C | Storage Temperature | -4 to 140°F / -20 to 60 °C | Operating Humidity | 20 to 80% | Storage Humidity | 5 to 90% | Mounting | VESA FPMPMI 200 x 200 mm | Security | Kensington Security Slot | Approvals | FCC, CE, WEEE, RoHS, REACH, LVD | Dimensions | 38.9 x 22.9 x 3.3" / 98.7 x 58.1 x 8.3 cm without Base | Weight | 51.1 lb / 23.2 kg without Base |
