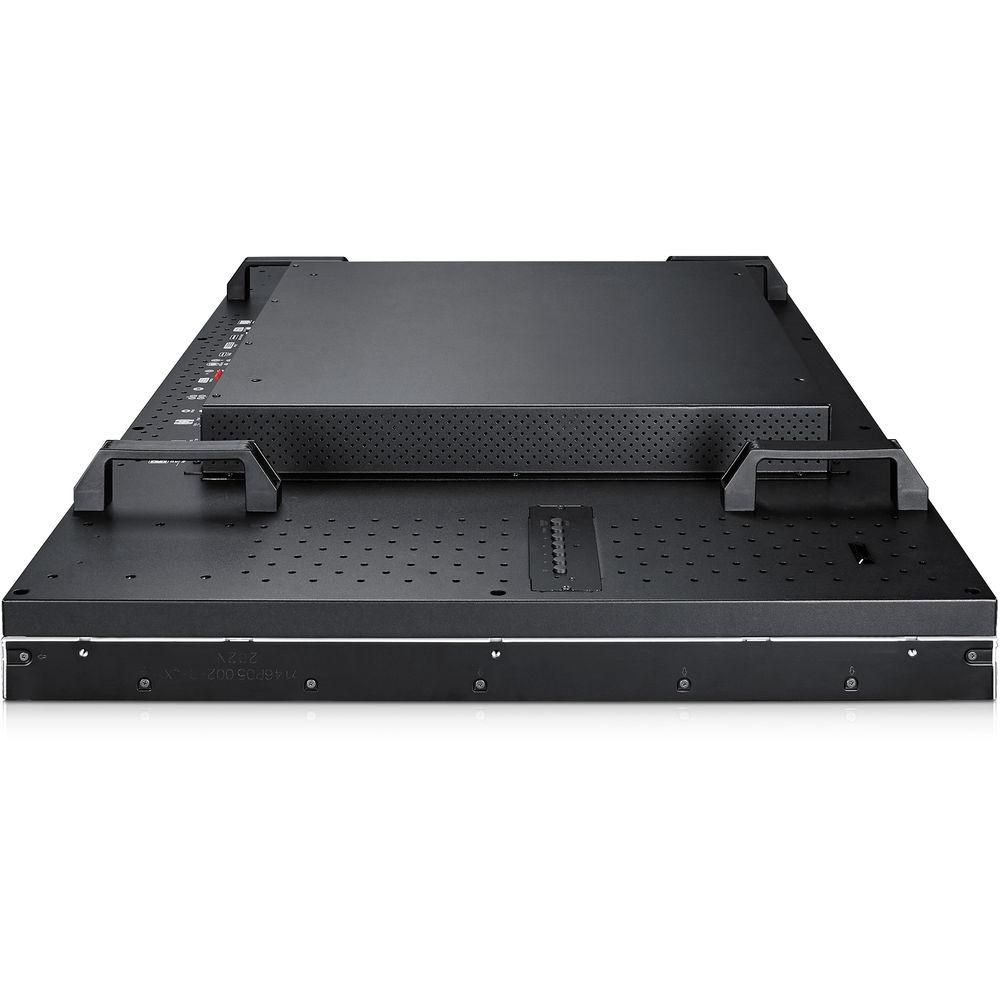

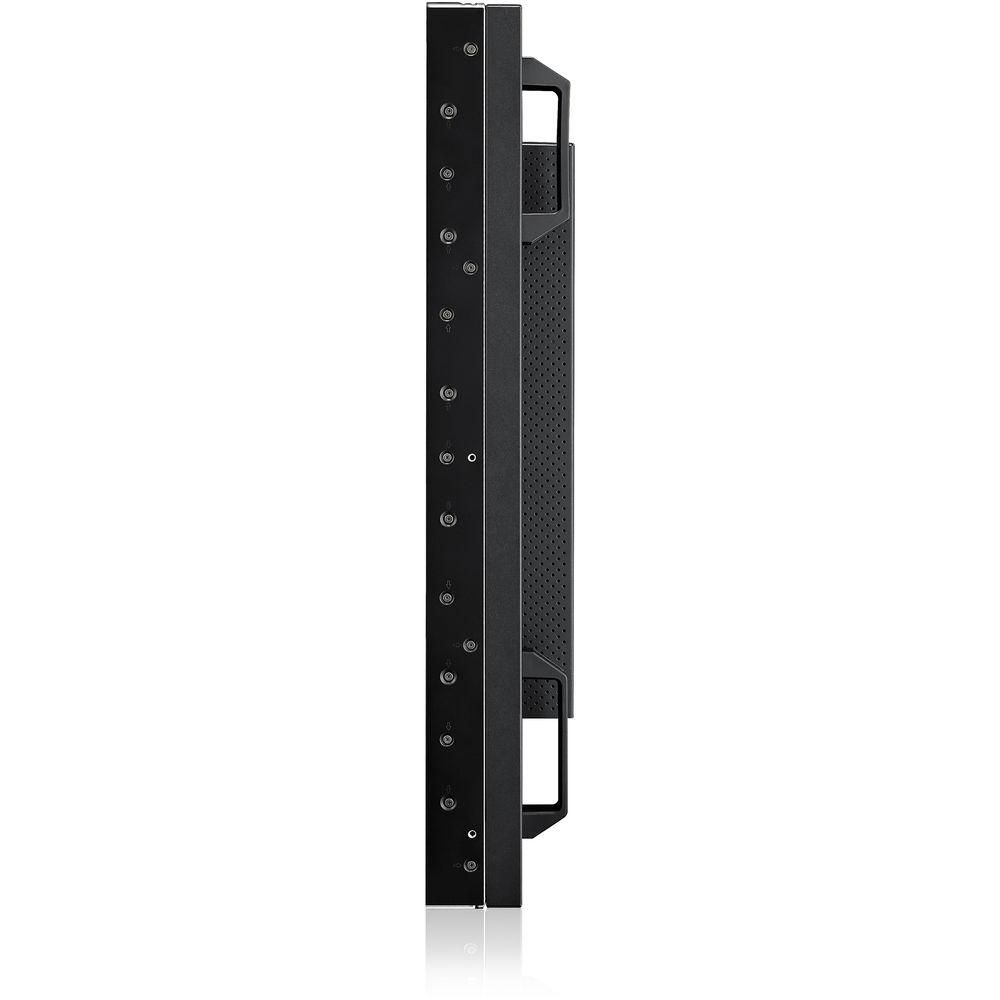

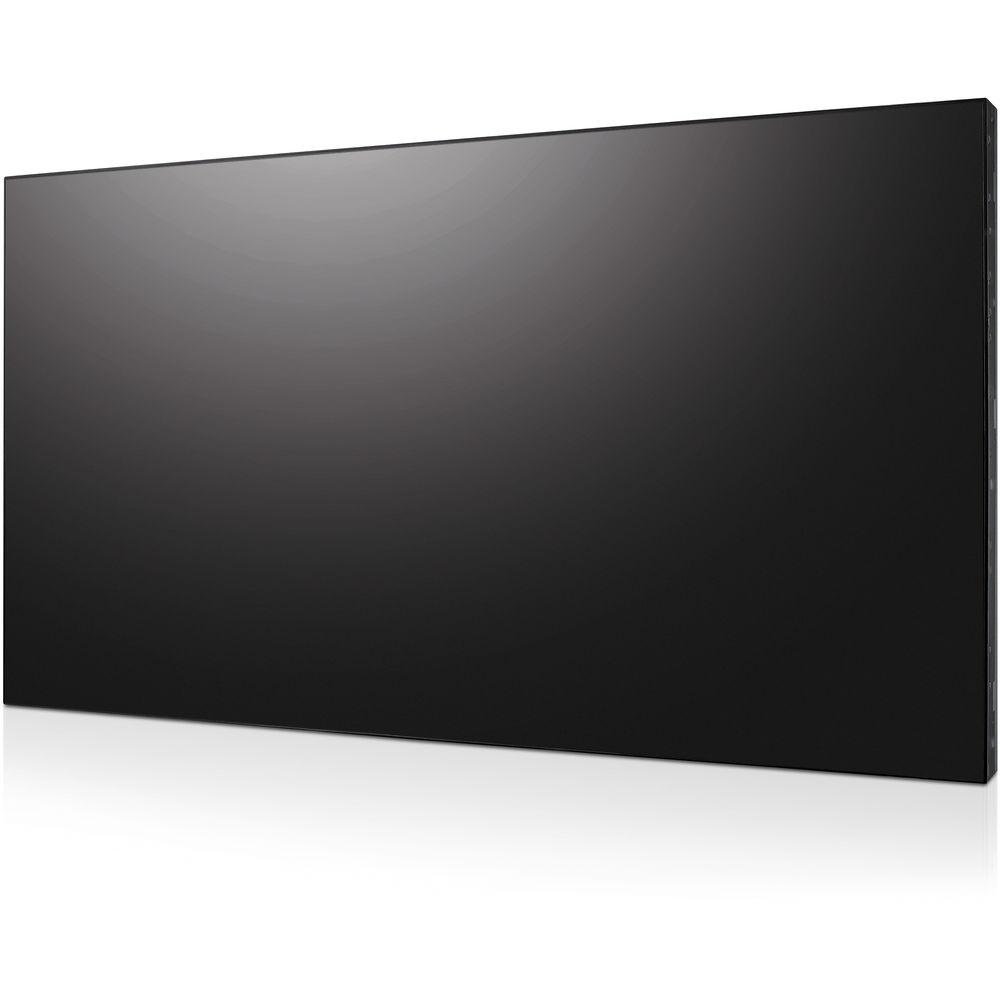

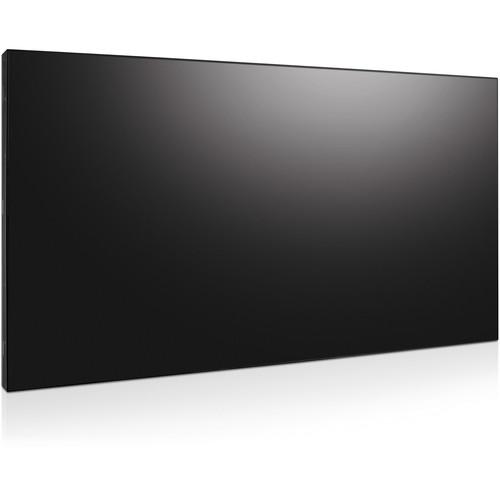

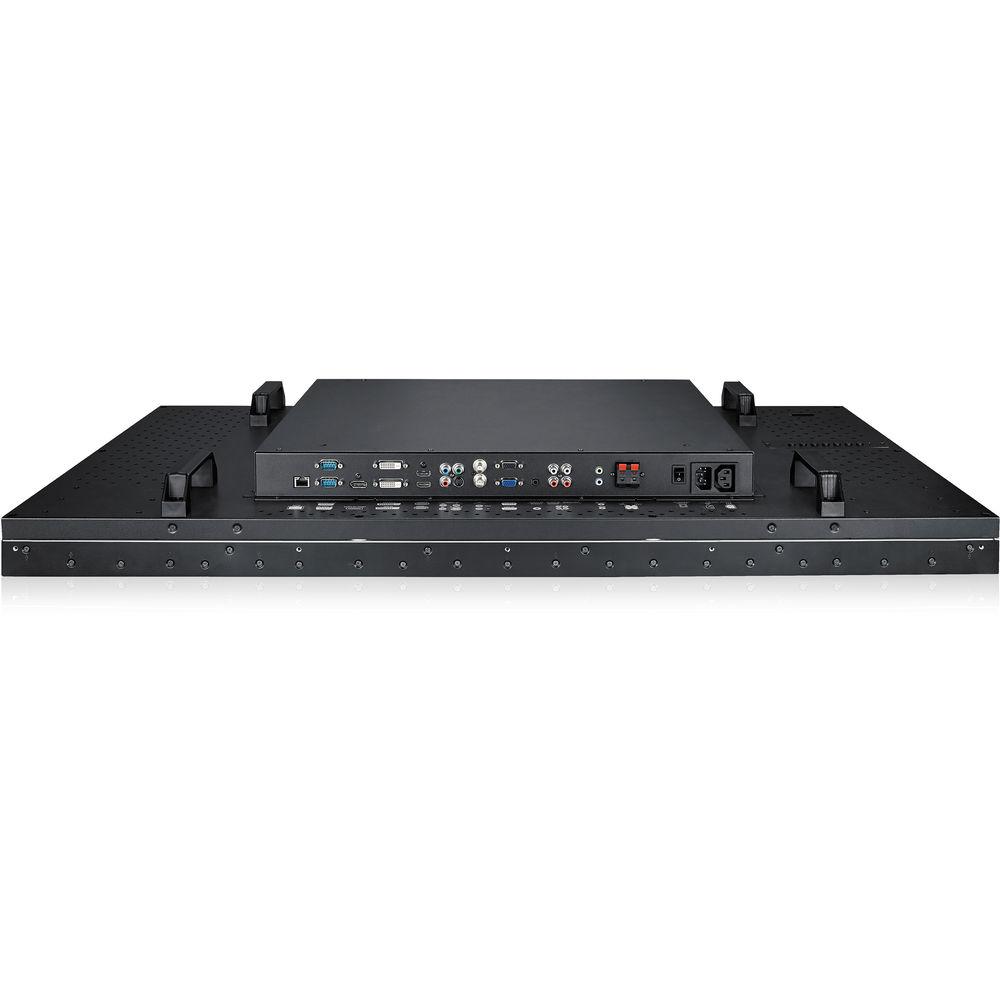

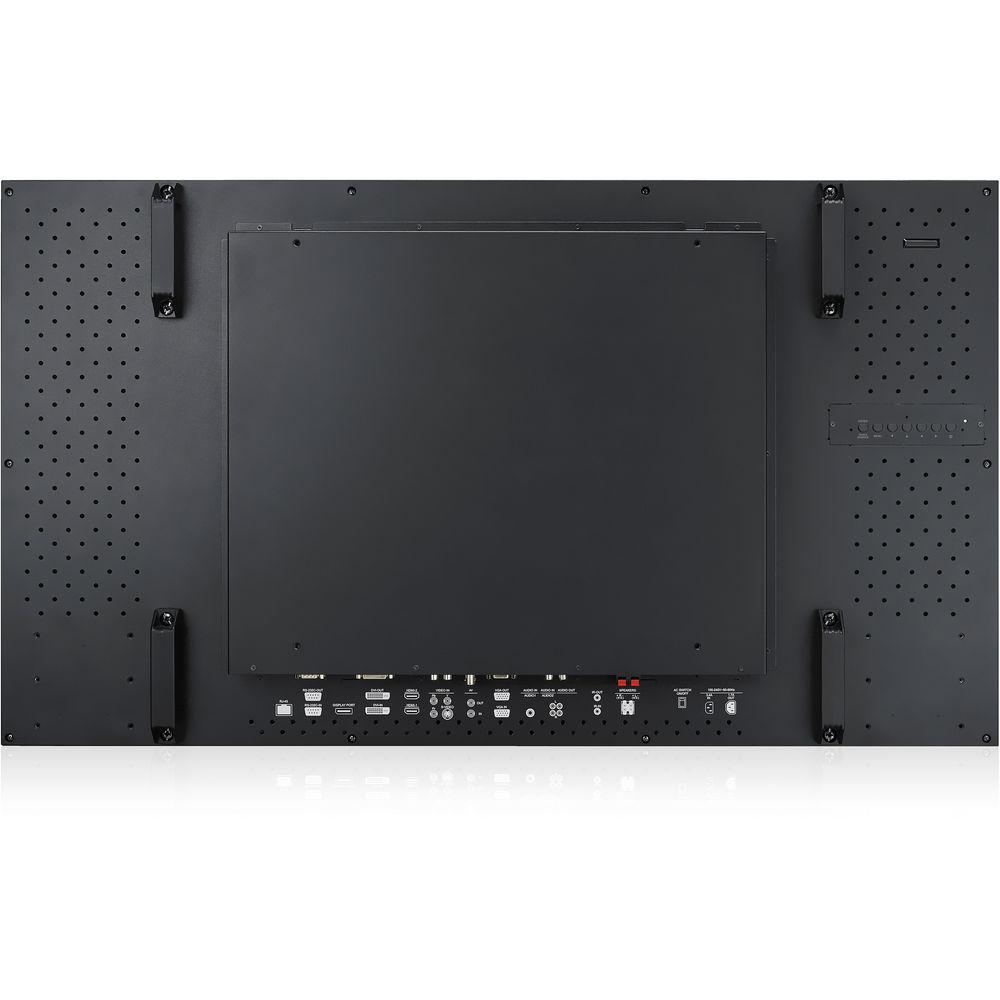

User Manual for AG Neovo PN-46D 46" Full HD Widescreen LED-Backlit MVA LCD Digital Signage Display Click to enlarge the picture
Contents of the user manual for the AG Neovo PN-46D 46" Full HD
- Product category: Commercial Monitors AG Neovo
- Brand: AG Neovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AG Neovo Commercial Monitors
 |
User manual for the AG Neovo PN-46D 46" Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AG Neovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AG Neovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AG Neovo product will considerably shorten its lifespan!
|
Product description The AG Neovo PN-46D 46" Full HD Widescreen LED-Backlit MVA LCD Digital Signage Display can display high-quality images at a resolution of up to 1920 x 1080 with 1.07 billion display colors and a maximum contrast ratio of 4000:1. Thanks to the MVA panel, the display offers a viewing angle of 178° (horizontal and vertical). Featuring slim bezel (0.08" bottom/right, 0.13" top/left), this display is suitable for video walls. The built-in tiling function allows easy image setting in a video wall matrix (up to 10 x 10 configuration supported). In addition, the support for portrait or landscape orientation offers flexibility in video wall configurations. The display offers a wide range of connectivity options including VGA in/out, DVI in/out, HDMI, DisplayPort, CVBS in/out, Component, and S-Video. The RS-232 and RJ45 controls make it convenient for operating single or multiple installed displays directly from a PC. Coupled with the built-in scheduler, the PN-46D Full HD Display can be switched on and off automatically at a preset time. The Anti-Burn-in and HeatControl Sensor technologies help prolong the life of the monitor in professional digital signage and 24/7 industrial applications. - Full HD 1920 x 1080 resolution with LED backlight
- Premium-grade panel for high reliability and long product lifetime
- Super-narrow bezel (0.08" bottom/right and 0.13" top/left)
- Advanced Image Platform (AIP) Technology: 3D comb filter, deinterlace, noise reduction, PIP, and PBP
- Versatile connectivity: VGA in/out, DVI in/out, HDMI, DisplayPort, CVBS in/out, Component, S-Video
- RS-232 in/out, RJ45 and IR in/out allow controlling multiple installed displays remotely
- Tiling function allows easy image setting in a video wall matrix (supports up to 10 x 10 configuration)
- DVI, VGA, and CVBS loop-through functions (daisy chaining support) make video wall installation easy and quick
- Built-in scheduler automatically activates and deactivates the display with designated input signal, according to programmed schedules
- HeatControl Sensor detects the display temperature and automatically activates the internal cooling fans to cool down or shut down the display, thereby prolonging the monitor's life
- Support for portrait and landscape orientations
- Built-in 12W stereo speakers
- Made from rigorously screened components for 24/7 operation
In the Box AG Neovo PN-46D 46" Full HD Widescreen LED-Backlit MVA LCD Digital Signage Display Remote Control & AAA Batteries Power Cord 15-Pin D-Sub Cable IR Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo PN-46D 46" Full HD Widescreen LED-Backlit MVA LCD Digital Signage Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAG Neovo PN-46D Specs | | | Screen Size (Diagonal) | 46" | | Native Resolution | 1920 x 1080 | | Panel Type | VA LCD | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 450 cd/m
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
