User Manual for AG Neovo QF-28 28" 16:9 4K UHD LCD Monitor Click to enlarge the picture
Contents of the user manual for the AG Neovo QF-28 28" 16:9 4K
- Product category: Surveillance Monitors AG Neovo
- Brand: AG Neovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AG Neovo Surveillance Monitors
 |
User manual for the AG Neovo QF-28 28" 16:9 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AG Neovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AG Neovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AG Neovo product will considerably shorten its lifespan!
|

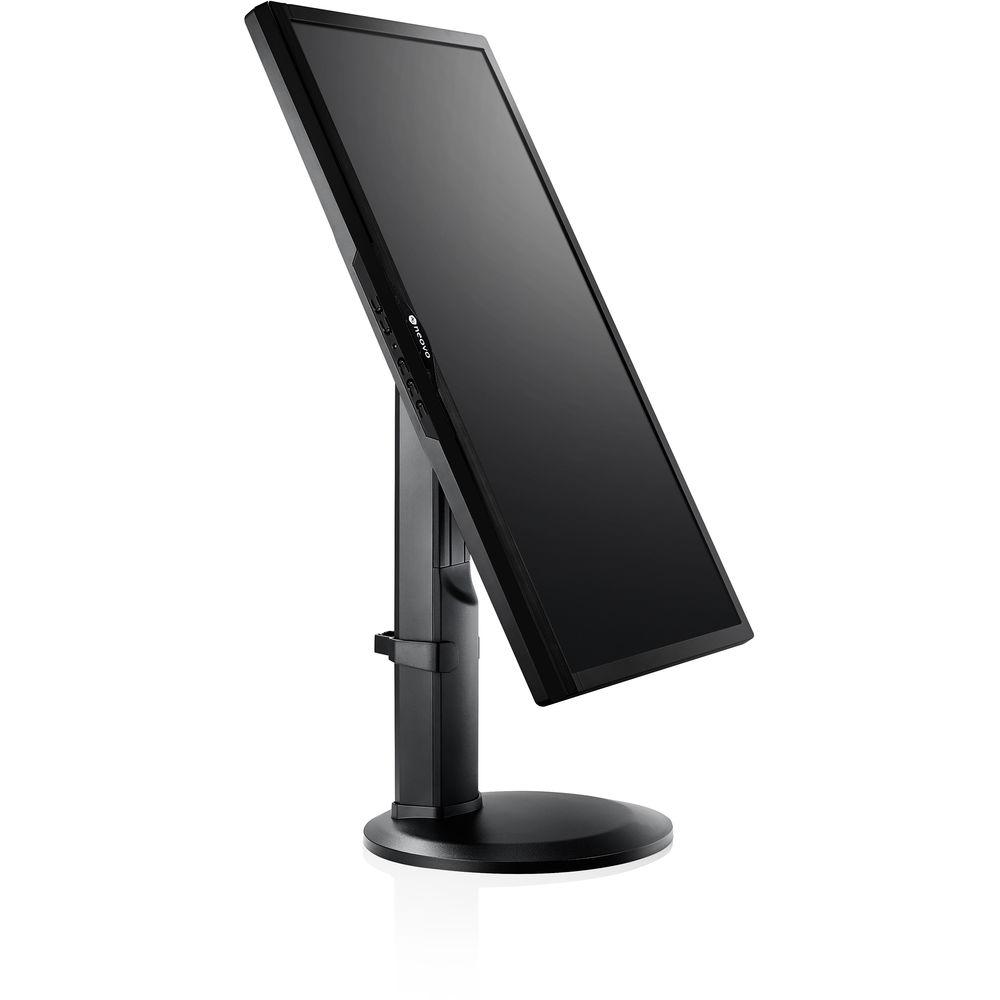

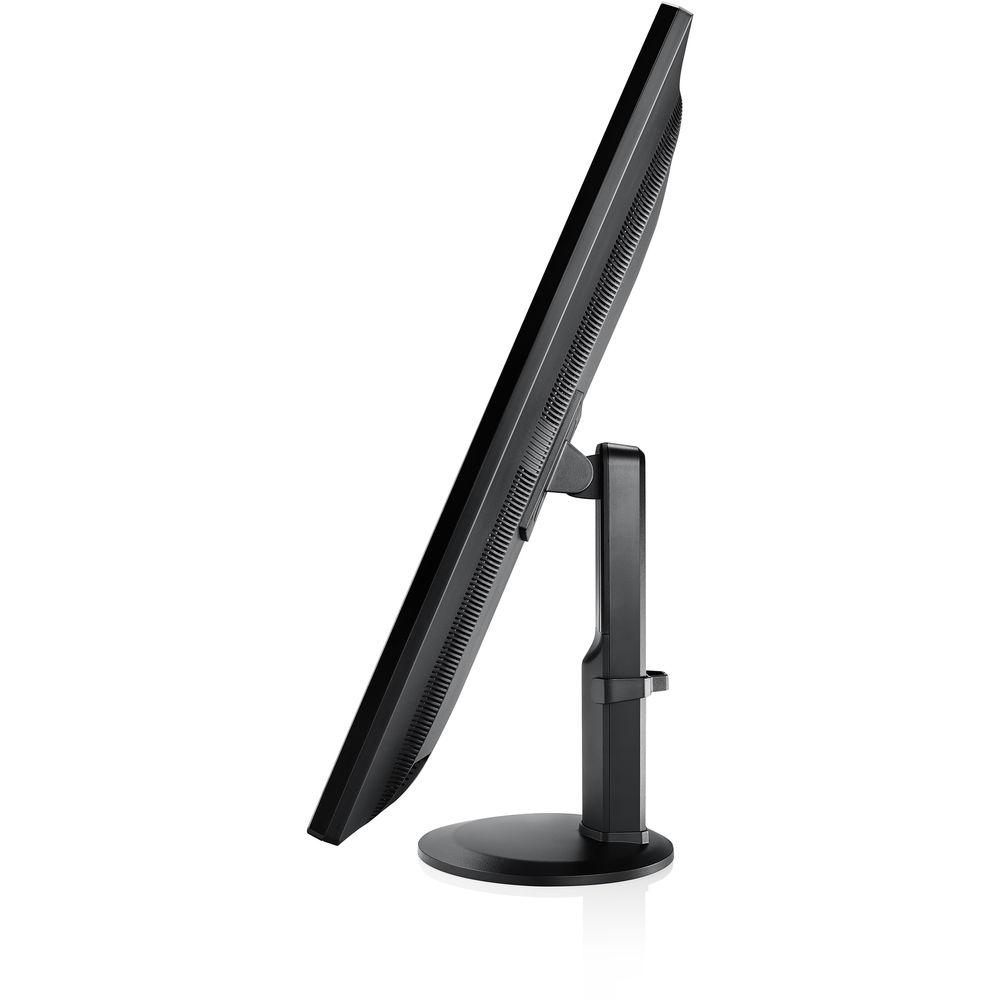

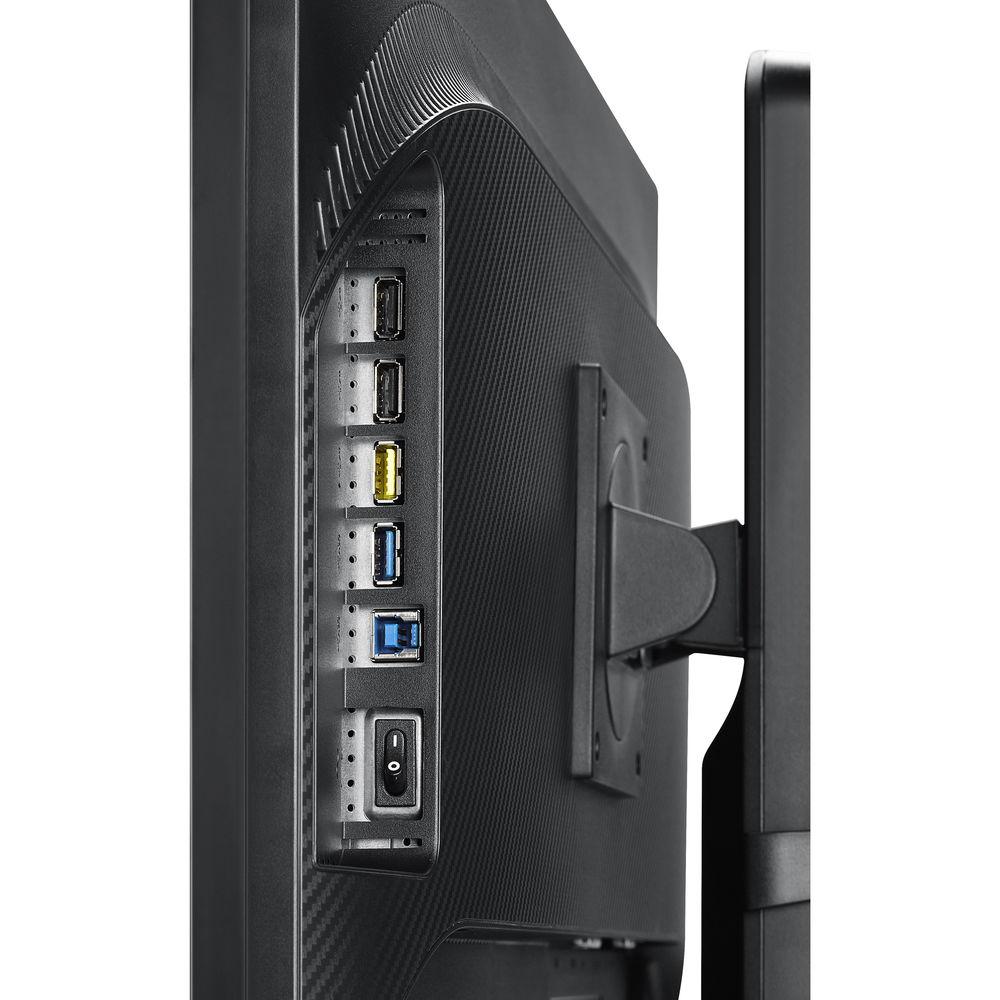

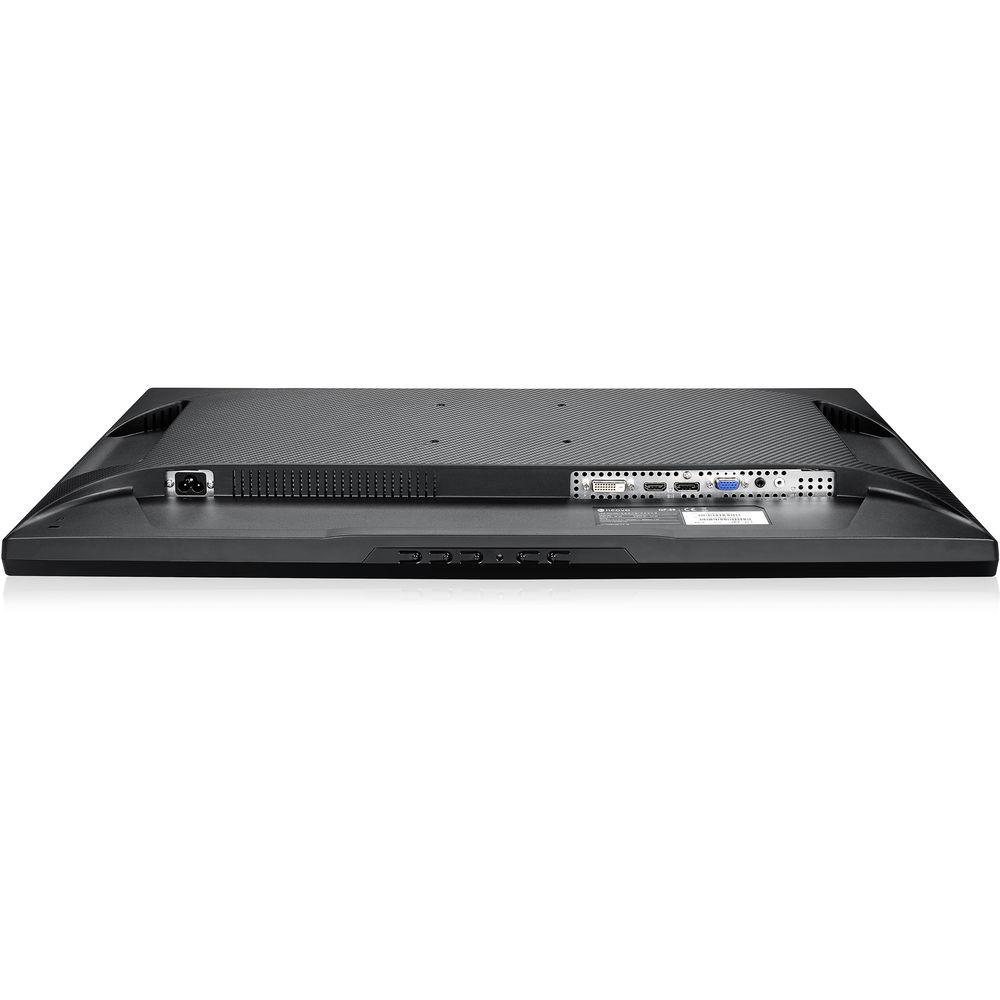

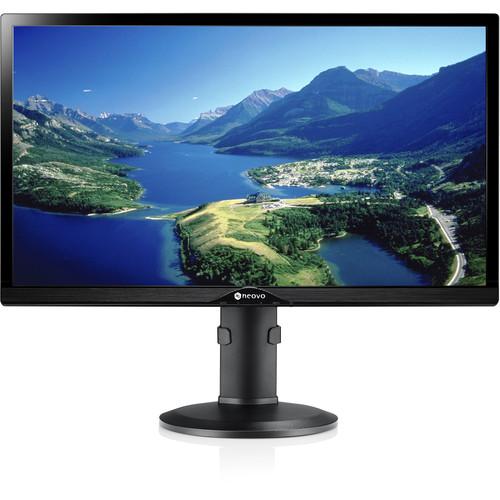

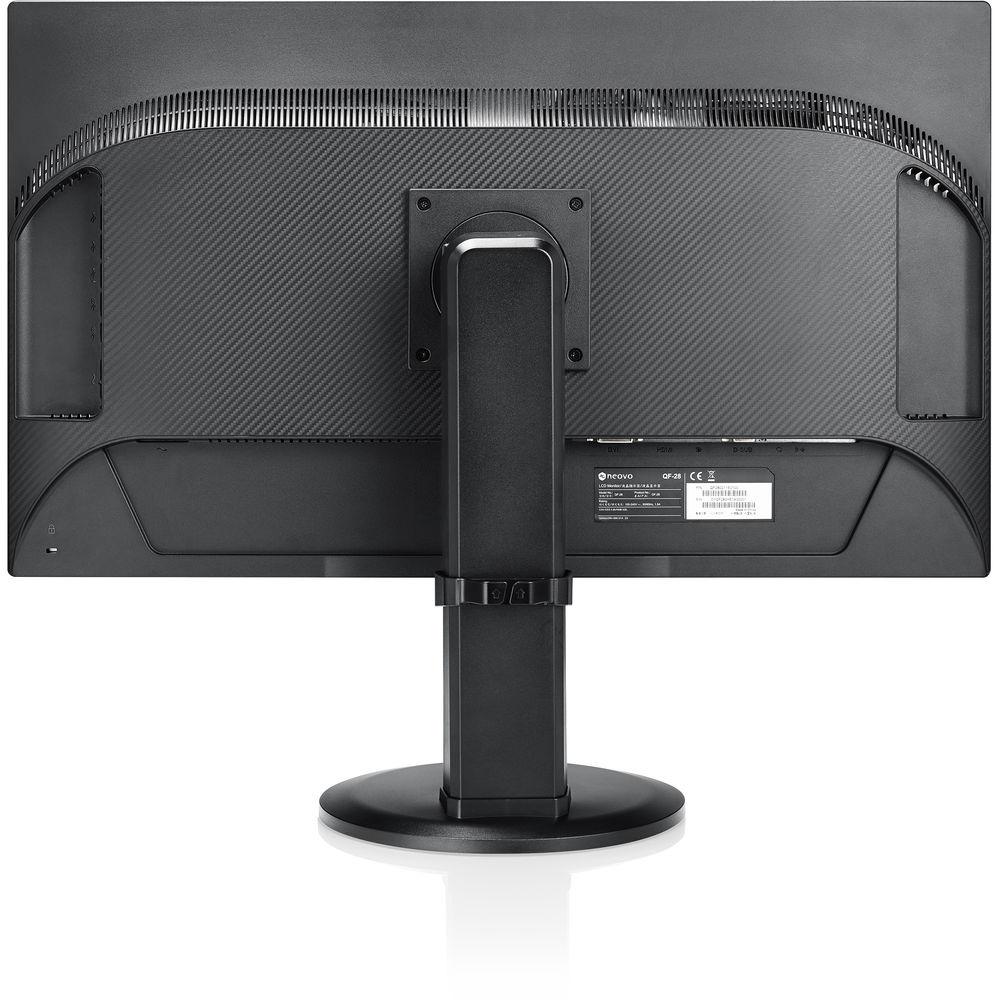

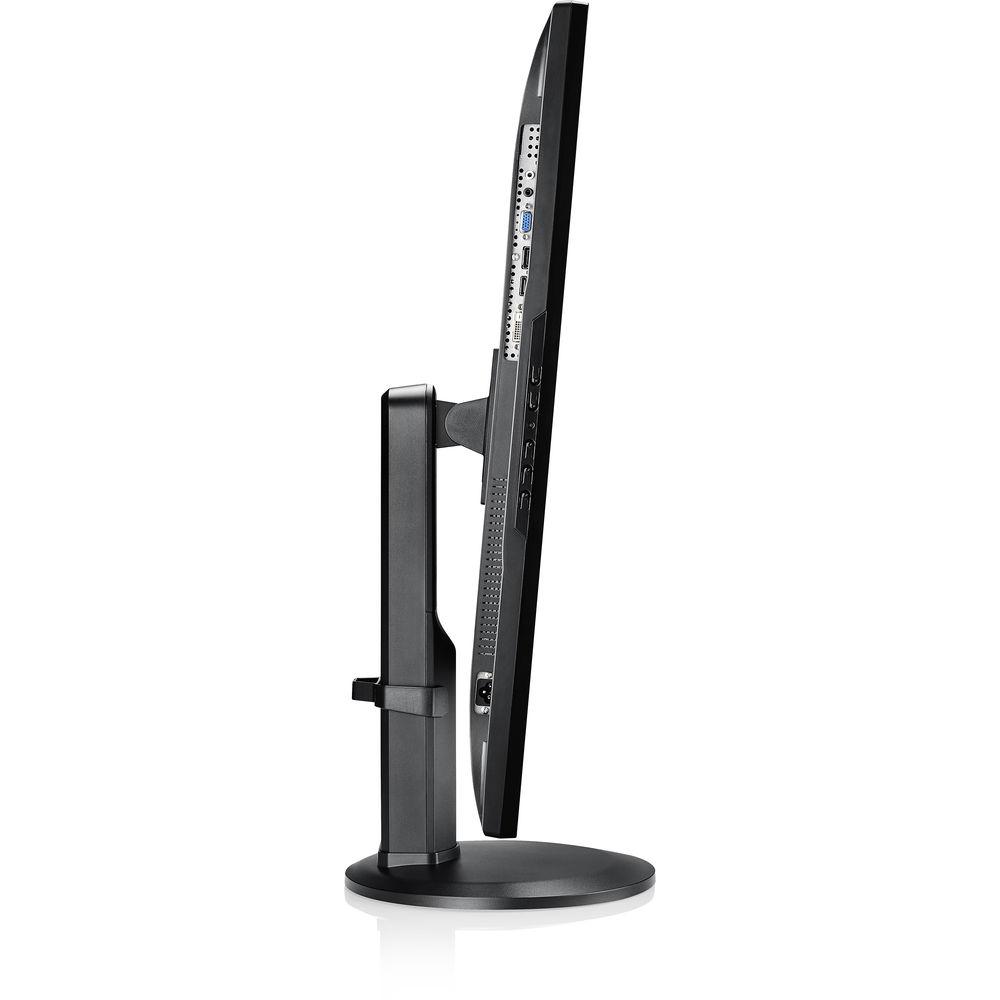

Product description The QF-28 28" 16:9 4K UHD LCD Monitor from AG Neovo features a 3840 x 2160 4K UHD resolution so you can enjoy crisp and clear 4K content. With a 3 ms response time, a 300 cd/m² brightness rating, and a 1000:1 static contrast ratio, the QF-28 delivers lag-free content reproduction with darker blacks and brighter bright colors. It also supports up to 1.07 billion colors making it ideal for color-sensitive work and applications. The QF-28 is also equipped with built-in speakers, audio in/out jacks, and USB 3.0 and 2.0 ports for your convenience. Connect this display to your system via VGA, DVI-D, HDMI, or DisplayPort then tilt, swivel, pivot, and adjust its height to your viewing preference. Otherwise, you can install an alternative stand or mount using its 100 x 100mm VESA mounting holes on the back. UPC: 813086003182 In the Box AG Neovo QF-28 28" 16:9 4K UHD LCD Monitor Power Cable DVI-D Cable DisplayPort Cable Limited 3-Year Warranty Guides & Manuals fsdersbrcyubur Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo QF-28 28" 16:9 4K UHD LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the AG Neovo QF-28 28" 16:9 4K UHD LCD Monitor can be downloaded in PDF format at the link stated below.
Technical parametersAG Neovo QF-28 Specs | Panel Type | LED-Backlit TFT LCD | | Panel Size | 28" (711.2 mm) | | Max Resolution | 3840 x 2160 | | Pixel Pitch | 0.16 mm | | Brightness | 300 cd/m² | | Static Contrast Ratio | 1000:1 | | Viewing Angle (H x V) | 170°/160° | | Colors Supported | 1.07 Billion | | Response Time (GtG) | 3 ms | | Frequency | Horizontal: 30 - 99 kHz
Vertical: 50 - 76 Hz | | Audio | 1 x 3.5 mm Audio in
1 x 3.5 mm Audio out
2 x 3 W Speakers | | USB | 2 x USB 2.0 Type-A
2 x USB 3.0 Type-A | | Inputs | 1 x VGA (15-Pin D-Sub)
1 x DVI-D (24-Pin)
1 x HDMI 1.4 (HDCP supported)
1 x DisplayPort 1.2 (@ 60 Hz) | | | | VESA Compatibility | 100 x 100 mm | | Tilt | -5 to 23° | | Swivel | ±160° | | Pivot | 0 to 90° | | Height Adjustment | 5.12" (130 mm) | | | | Power Supply | Internal | | Power Requirements | 100-240 V, 50-60 Hz | | Power Consumption (Active) | < 65 W | | Power Consumption (Standby/Sleep) | < 0.5 W | | | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Storage Temperature | -4 - 131°F (-20 - 55°C) | | Operating Humidity | 10 - 85% (No condensation) | | Storage Humidity | 5 - 93% (No condensation) | | | | Regulations and Standard Compliance | CE, CB | | Dimensions (W x H x D) | With Stand: 26 x 21.9 x 9.6" (659.7 x 555.4 x 244.5 mm)
Without Stand: 26 x 15.4 x 1.9" (659.7 x 390.9 x 49.3 mm) | | Weight | With Stand: 17.4 lb (7.9 kg)
Without Stand: 11.7 lb (5.3 kg) | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 30.0 x 19.0 x 8.5" |
