User Manual for AG Neovo RX-24E LED-Backlit 24" LCD Security Display Click to enlarge the picture
Contents of the user manual for the AG Neovo RX-24E LED-Backlit 24" LCD
- Product category: Surveillance Monitors AG Neovo
- Brand: AG Neovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AG Neovo Surveillance Monitors
|
User manual for the AG Neovo RX-24E LED-Backlit 24" LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AG Neovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AG Neovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AG Neovo product will considerably shorten its lifespan!
|

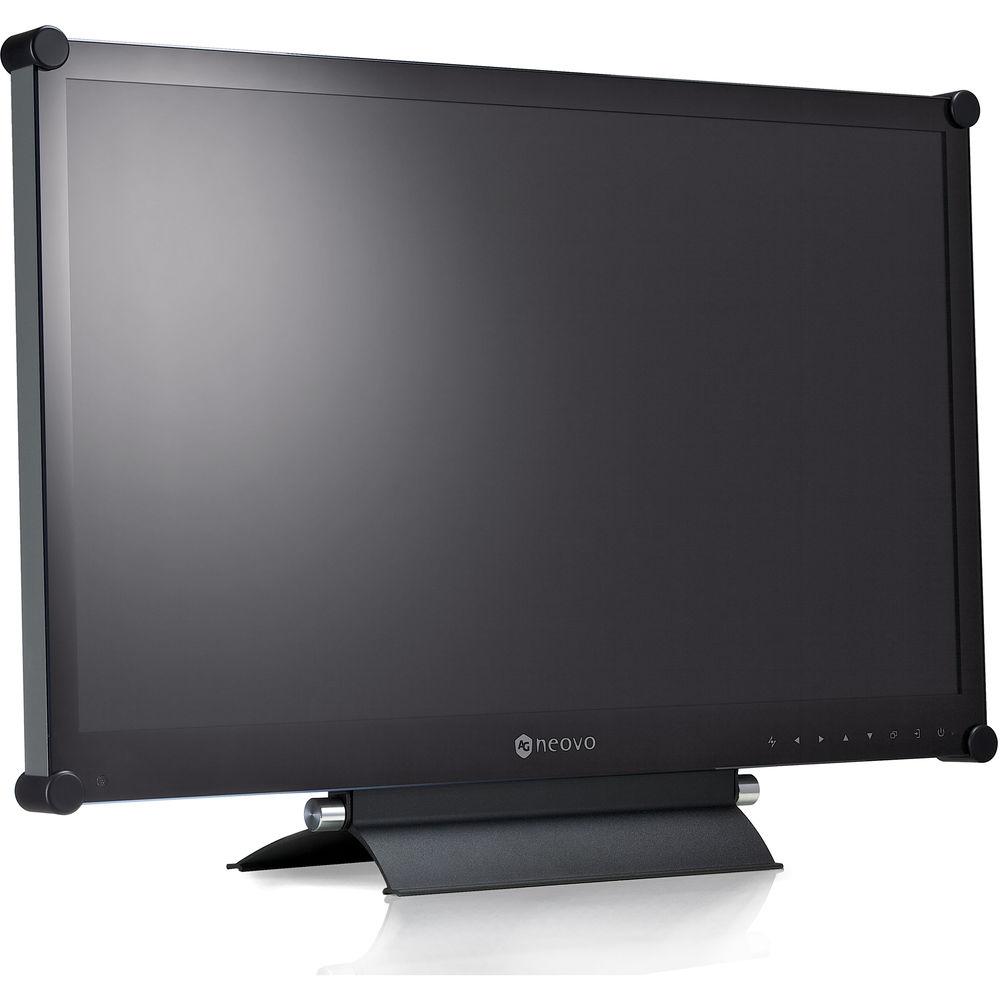

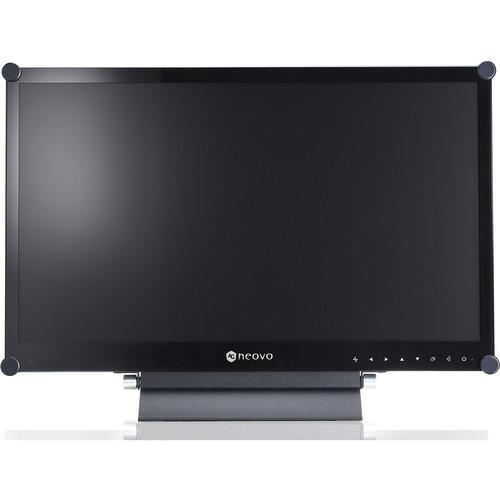

Product description The AG Neovo RX-24E LED-Backlit 24" LCD Security Display is a Full HD 1920 x 1080 resolution VESA mount surveillance monitor designed for 24/7 operation. The display allows for gamma correction and black-level alignment to deliver high quality images in even unfavorable environments, and it features AG Neovo's Anti-Burn-in technology, which prevents ghosting non-stop around the clock.
Additionally, built-in automatic 3:2/2:2 pull-down capability ensures a smooth viewing experience, with dynamic compensation correcting for incomplete, botched images. The monitor is built with NeoV Optical Glass and has a metal housing to protect it against scratches or other damage.
The monitor provides an array of video, audio, and control ports and has a quick signal-switching time of only ≤0.8 seconds. It offers a selectable aspect ratio and zoom function, has built-in speakers, integrates an EcoSmart sensor for low power consumption, and includes much more (see below). - Key Features
-
- Anti-Burn-in technology
- NeoV Optical Glass
- Gamma correction for image clarity under even critical sources
- 3D comb filter / deinterlace / noise reduction / freeze
- BNC horizontal resolution up to 700 TVL
- EcoSmart sensor for low power consumption
- Selectable aspect ratio and zoom function for ultimate image size
- Adjustable VGA/DVI input settings for analog images

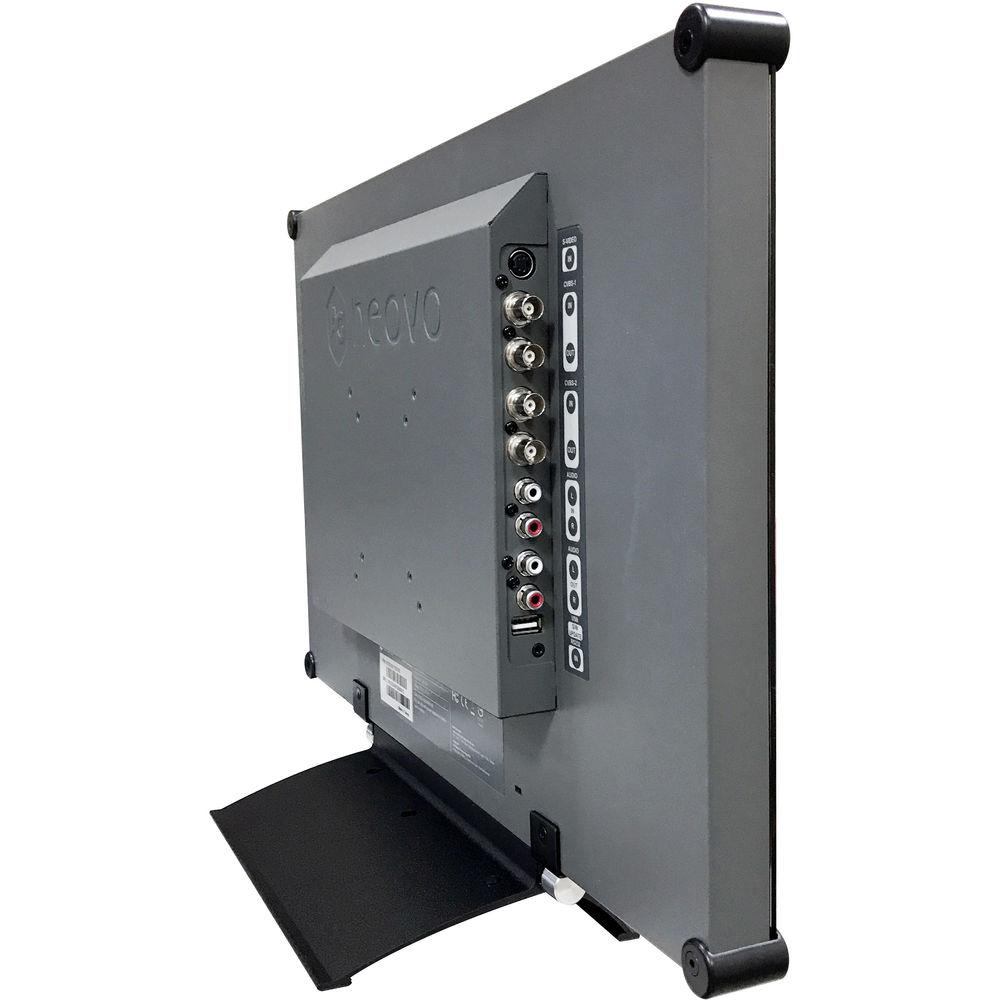

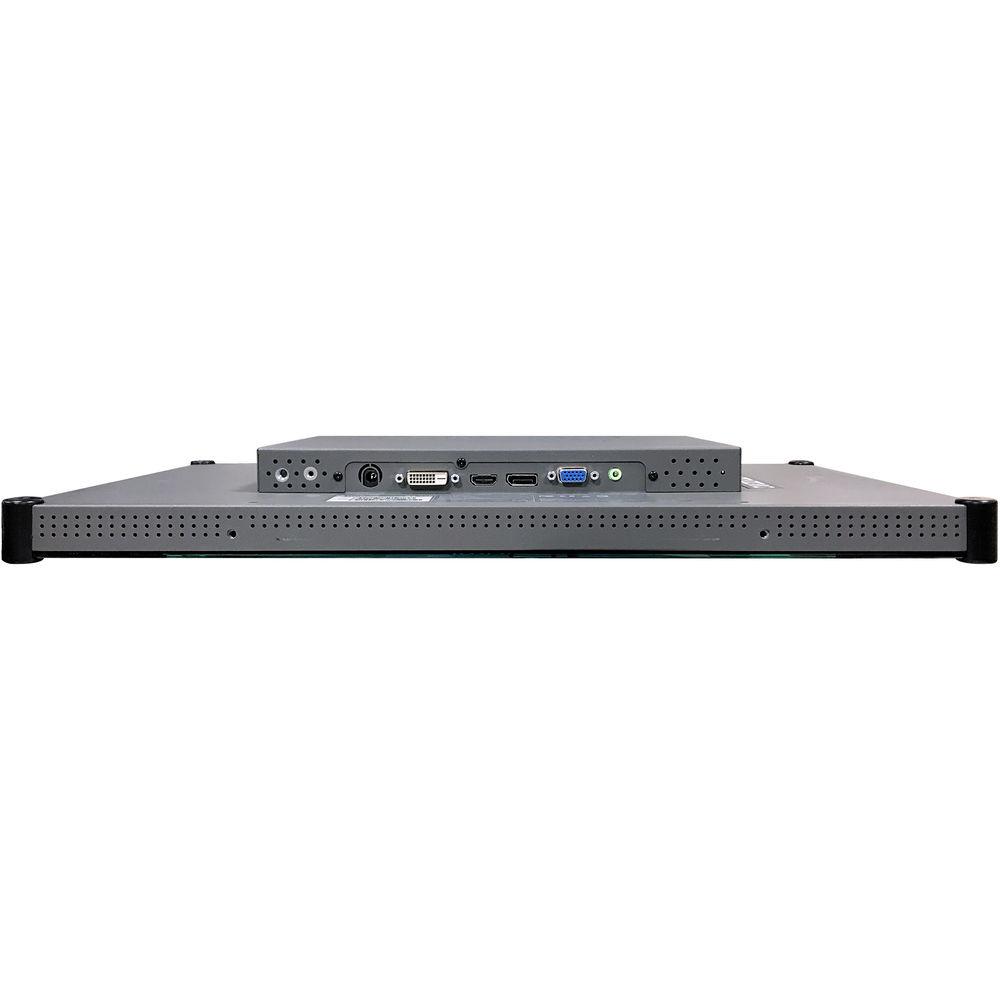

- Versatile inputs: VGA, DVI, 2 x CVBS on BNC, HDMI, S-Video, Display Port 1.2, and RS-232
- Quick signal-switching time (≤0.8 seconds)
- Backlight flicker-free
- HDMI-CEC function for centralized device control
- CVBS (2 x BNC) and audio passive looping
- 2 x 2W built-in speakers
- Durable metal housing
UPC: 190695001397 In the Box AG Neovo RX-24E LED-Backlit 24" LCD Security Display Power Cord Power Adapter VGA Cable Audio Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo RX-24E LED-Backlit 24" LCD Security Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAG Neovo RX-24E Specs Panel Type | LED-backlit TFT LCD (VA panel) | Panel Size | 23.6" (61 cm) (diagonal) | Resolution | Up to 1920 x 1080 (no upscaling; displays resolution of input signal) | Pixel Pitch | 0.2715 mm | Brightness | 250 cd/m
