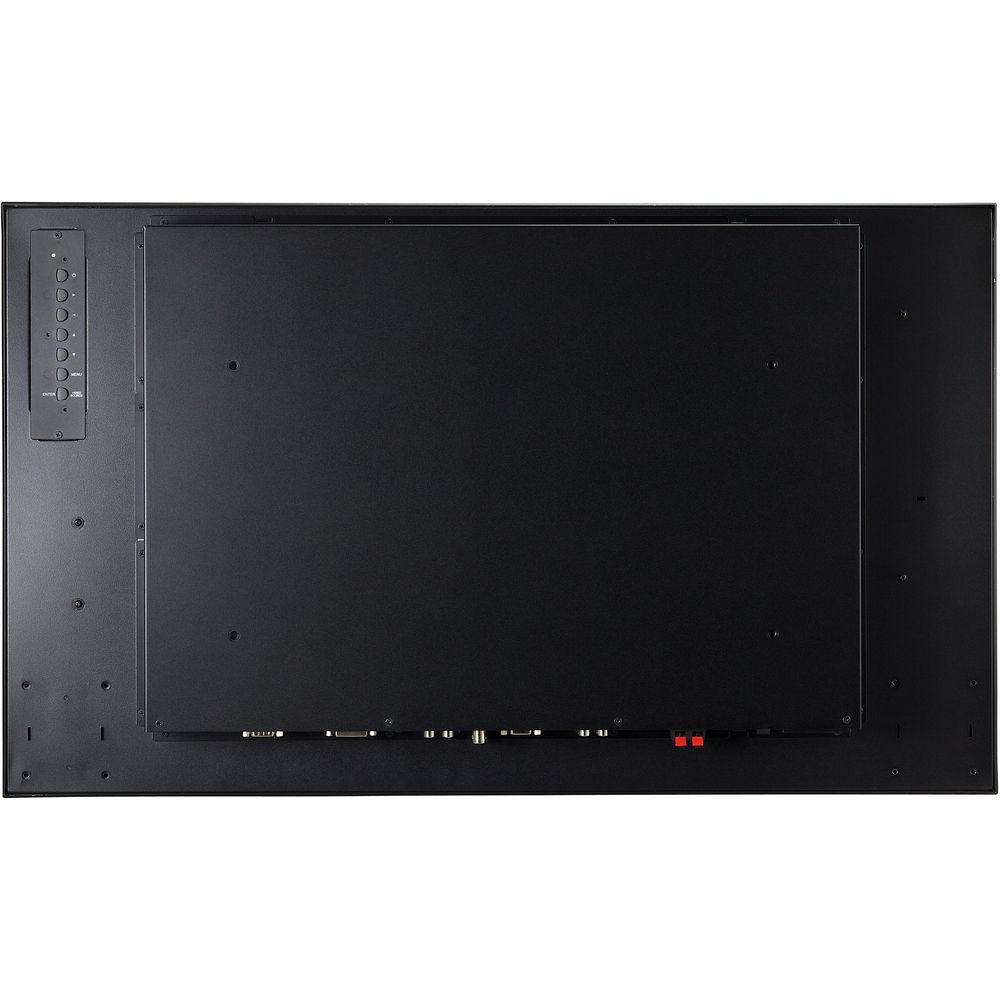

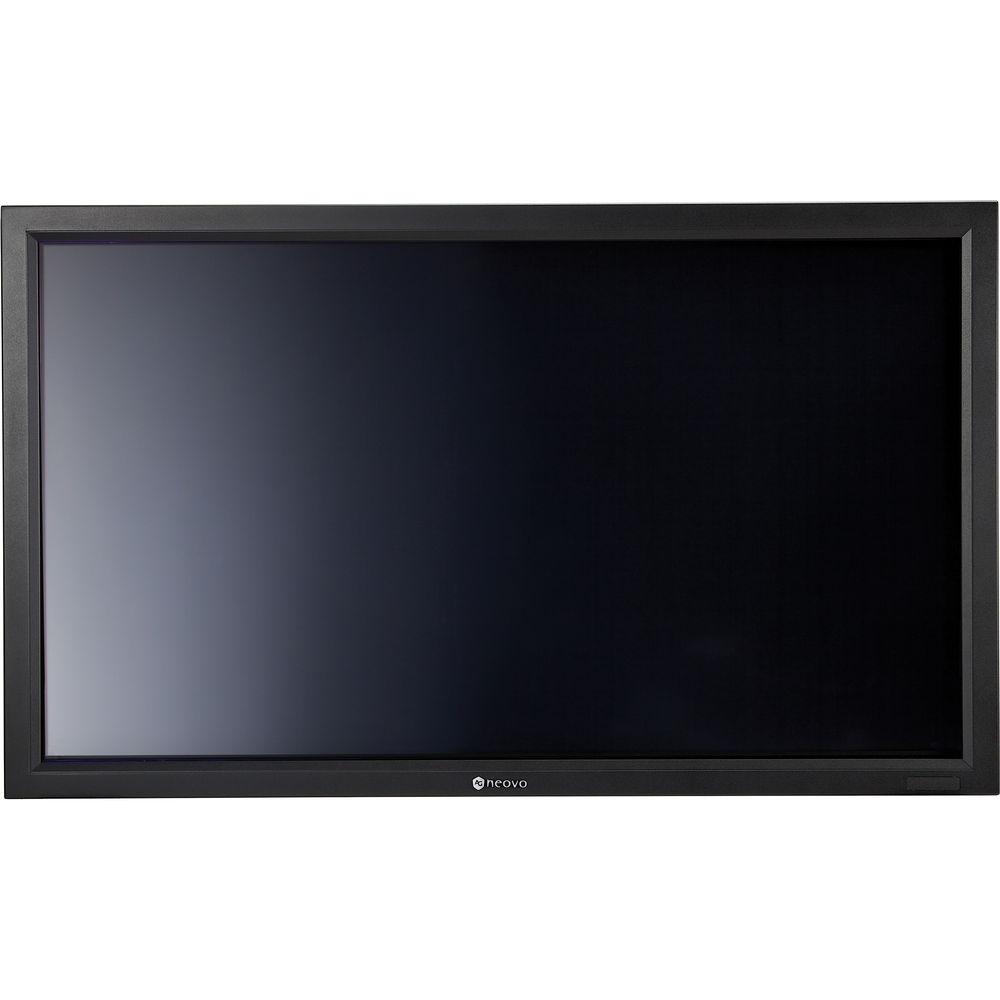

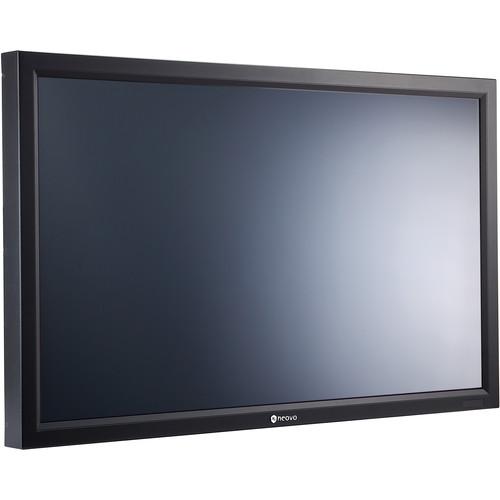

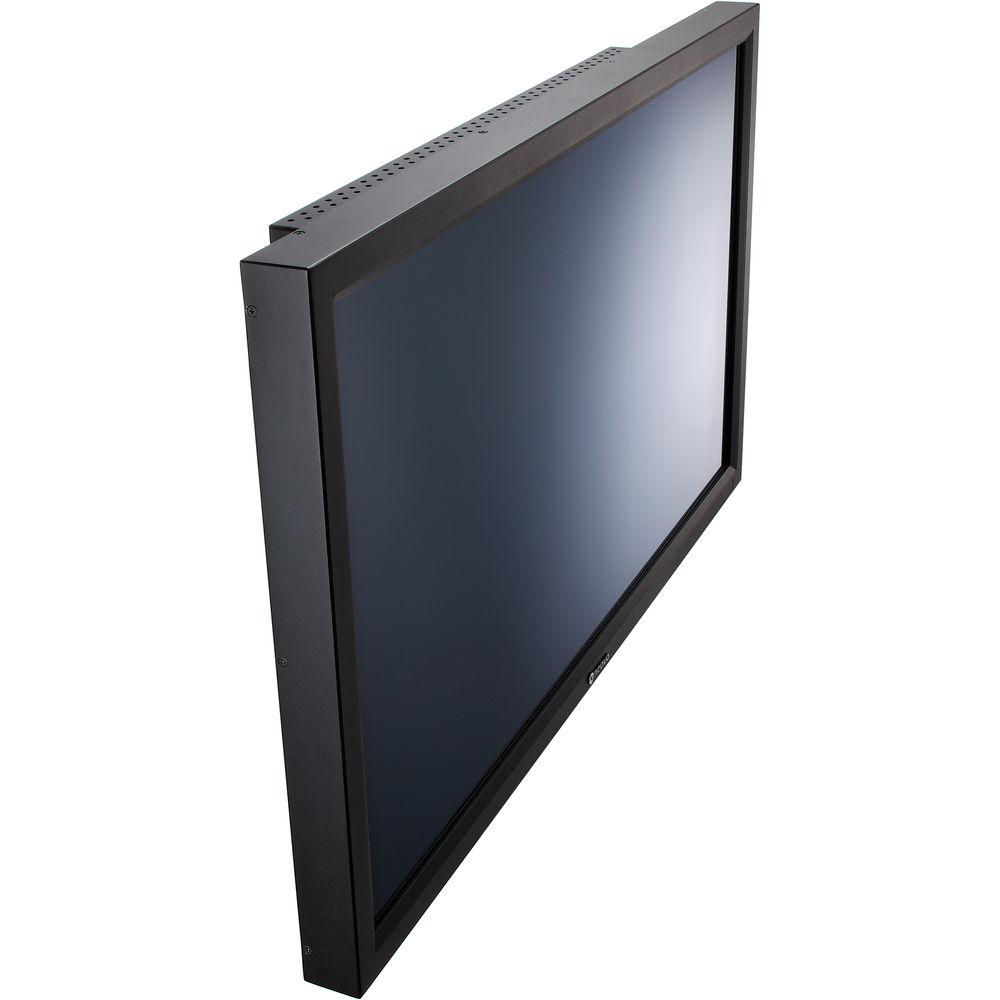

User Manual for AG Neovo RX-42 42" LED-Backlit Full HD TFT LCD Display Click to enlarge the picture
Contents of the user manual for the AG Neovo RX-42 42" LED-Backlit Full
- Product category: Surveillance Monitors AG Neovo
- Brand: AG Neovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AG Neovo Surveillance Monitors
 |
User manual for the AG Neovo RX-42 42" LED-Backlit Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AG Neovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AG Neovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AG Neovo product will considerably shorten its lifespan!
|
Product description The AG Neovo RX-42 42" LED-Backlit TFT LCD Display (IPS Panel) is built on an LED-backlit panel and delivers Full HD resolution. Equipped with AIP technology, it not only ensures quality image reproduction but also provides flexible viewing options. Coupled with tiling function, programmable scheduler, and DisplayPort connectivity, it is a ready fit for various digital signage applications. Advanced features include Anti-Burn-in technology, and internal EcoSmart & HeatControl Sensors. While integrating the protective NeoV Optical glass with a sturdy metal casing, the display delivers high-end performance with high reliability and durability for professional security and industrial environments. - LED-backlit technology with 1920 x 1080 Full HD resolution
- NeoV optical glass protects against scratches, impacts, and other physical damage
- Anti-Burn-in technology prevents image sticking
- AIP technology, PIP/PBP function, 3D comb filter, deinterlace, noise reduction
- EcoSmart Sensor detects ambient lighting condition and automatically adjusts brightness level to reduce power consumption

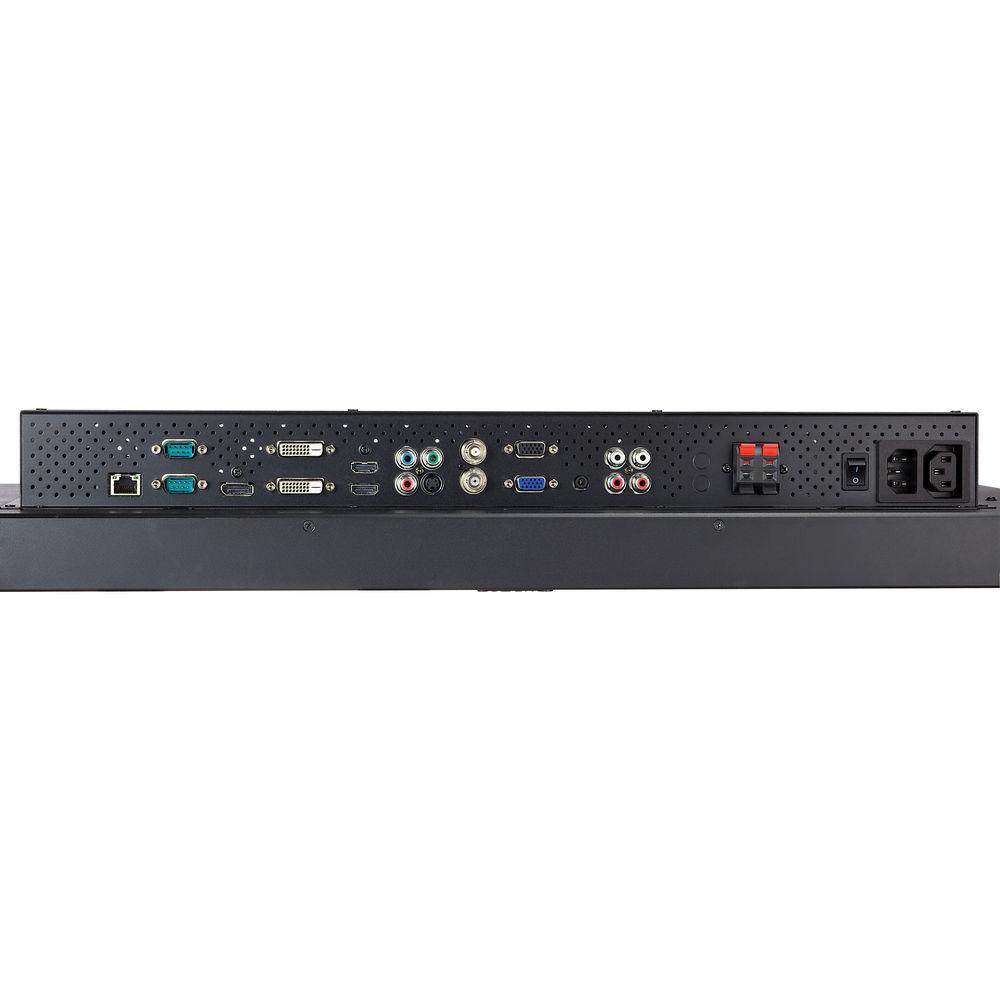

- Versatile connectivity (VGA in/out, DVI in/out, HDMI, DisplayPort, BNC in/out, S-Video, Component, Audio in/out)
- Built-in scheduler allows different scheduled activations
- Tiling function for easy video wall setup (supports up to 5 x 5)
- Flexible Display Orientation: portrait / landscape
- HeatControl Sensor prevents the display from overheating
- Selectable aspect ratio (Native, Overscan, Underscan)
- NTSC/PAL/SECAM video system support
- RS-232 (in/out) and RJ45 for display control from a remote location
- Durable metal casing for enhanced strength and secure mounting
UPC: 813086002642 In the Box AG Neovo RX-42 42" LED-Backlit Full HD TFT LCD Display (IPS Panel) 15-Pin D-Sub Cable Power Cord Remote Control Batteries Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo RX-42 42" LED-Backlit Full HD TFT LCD Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAG Neovo RX-42 Specs | | | Panel Type | LED-Backlit TFT LCD (IPS Panel) | | Panel Size | 42.0" (106.6 cm) | | Maximum Resolution | FHD 1920 x 1080 | | Refresh Rate | 60 Hz | | Pixel Pitch | 0.4833 mm | | Brightness | 400 cm/m2 (Typical) | | Contrast Ratio (Typical) | 1000:1 | | Viewing Angle (H/V) | 178°/178° | | Display Color | 16.7 million | | Response Time (GtG) | 6 ms | | Bezel Width | 1.8" (48.0 mm) | | | | Horizontal | 30 to 75 kHz | | Vertical | 50 to 75 Hz | | | | VGA | 15-Pin D-Sub | | DVI | 24-Pin DVI-D | | S-Video | 4-Pin mini DIN | | Component (Y/Pb/Pr) | RCA | | HDMI | 2 x HDMI | | CVBS | BNC | | DisplayPort | DisplayPort | | | | VGA | 15-Pin D-Sub | | DVI | 24-Pin DVI-D | | CVBS | BNC | | | | RS-232 | In / Out: 9-Pin D-Sub | | RJ45 Connector | RJ45 | | | | Audio In | 1 x 3.5 mm jack for PC stereo audio
1 x RCA stereo audio | | Audio Out | 1 x RCA stereo audio | | Speakers | Internal: 2 x 12 W
External Speaker Out: 2 x 12 W | | | | Type | NeoV optical glass | | Thickness | 0.12"(3.00 mm) | | Reflection | Rate: <1% | | Transmission Rate | >96% | | Coating | Hardness: >9H | | | | Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 10 to 80% (No condensation) | | | | Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 10 to 90% (No condensation) | | | | Mounting | VESA FPMPMI: Yes (400 x 200 mm) | | | | Power Supply | Internal | | Power Requirements | 100 to 240 V, 50/60 Hz | | Consumption | On: <150 w
Standby: <0.5 W
Off: <0.5 W | | | | Regulation Approval | FCC, CB, CE, CEL, CCC, BSMI, RoHS, GOST-R, WEEE, REACH | | Dimensions | 38.6 x 22.6 x 4.9" (98.0 x 57.4 x 12.4 cm) | | Weight | 56.5 lb (25.7 kg) | | | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 44.5 x 28.3 x 11.2" |
