Product description

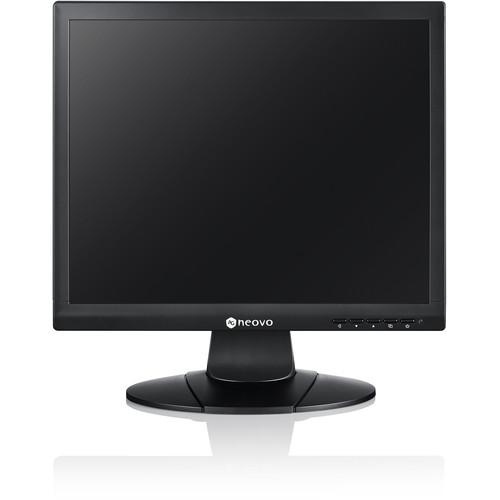

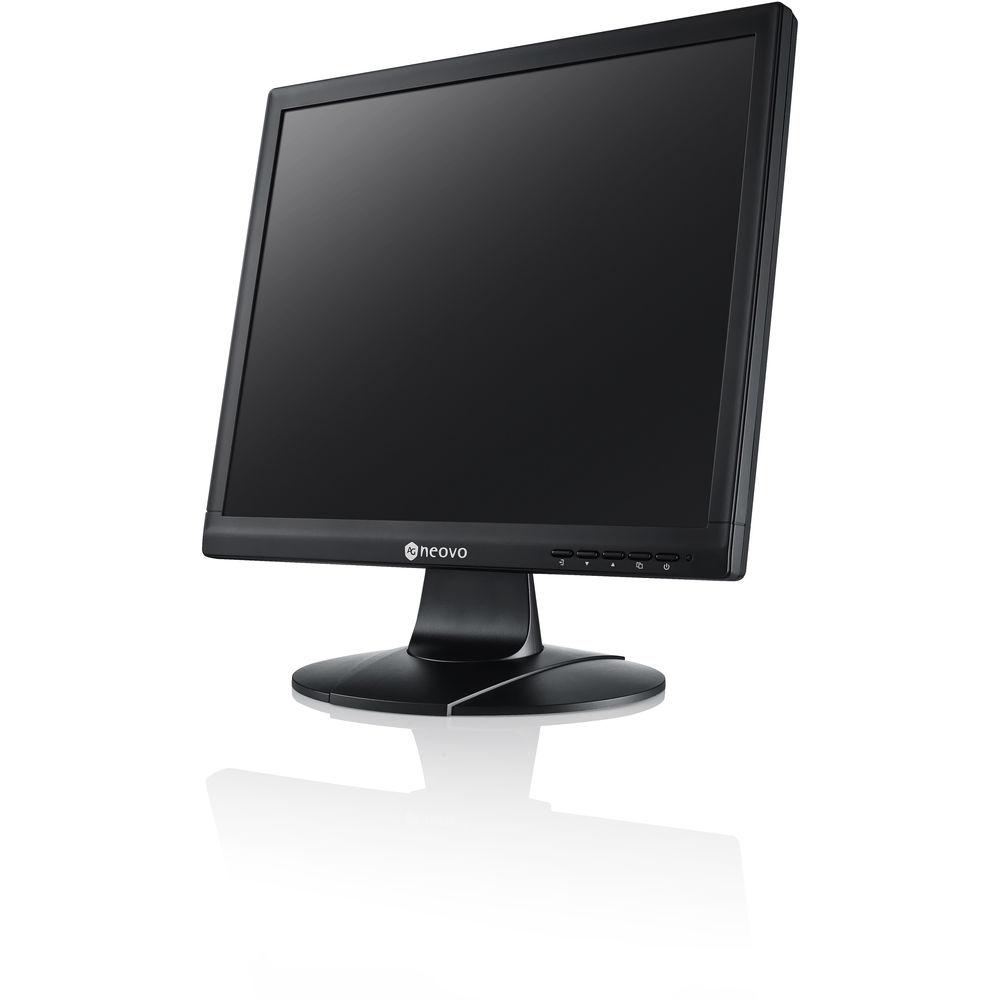

The SC-17AH 17" Analog HD TFT LCD Surveillance Display from AG Neovo supports up to 1920 x 1080 resolution AHD, TVI, or CVBS video from your surveillance camera. The 17" LED-backlit TFT display features anti-burn-in technology to prevent screen discoloration, and built-in image enhancers such as a 3D comb filter, deinterlace, and noise reduction to deliver the best video quality possible.

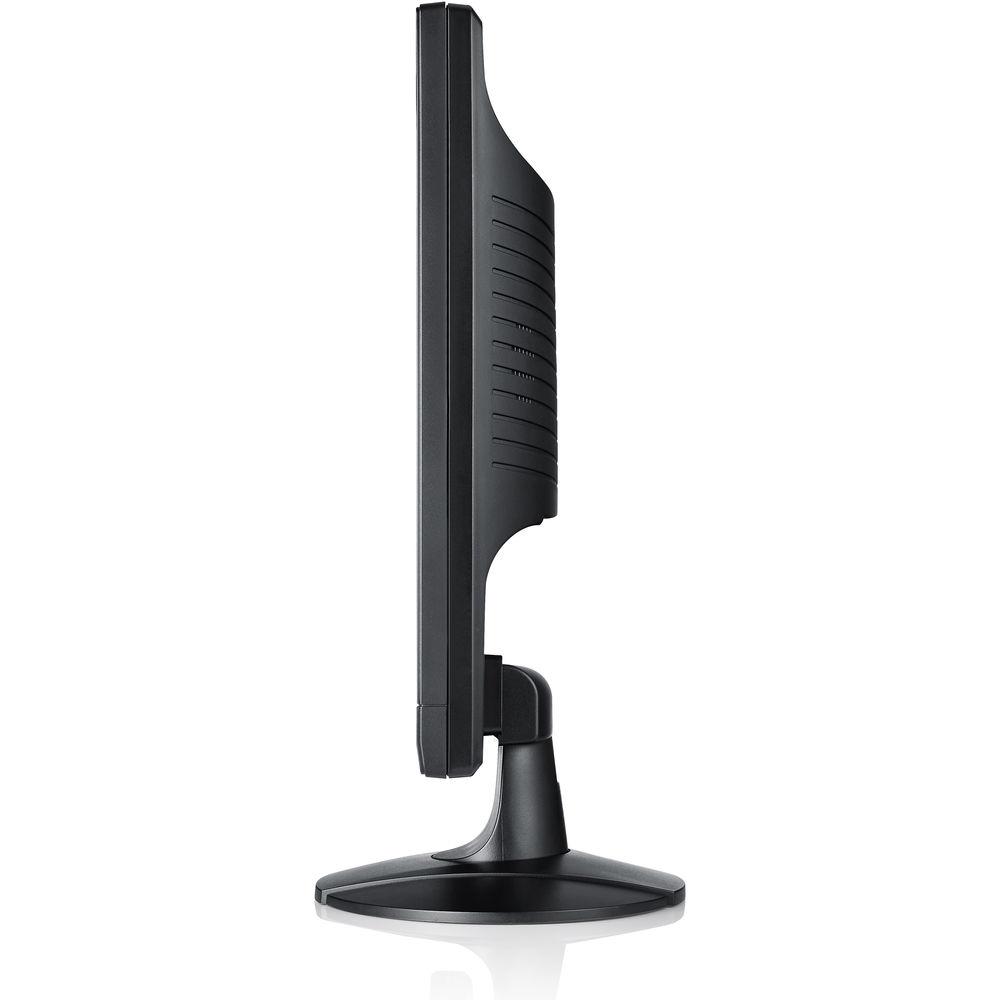

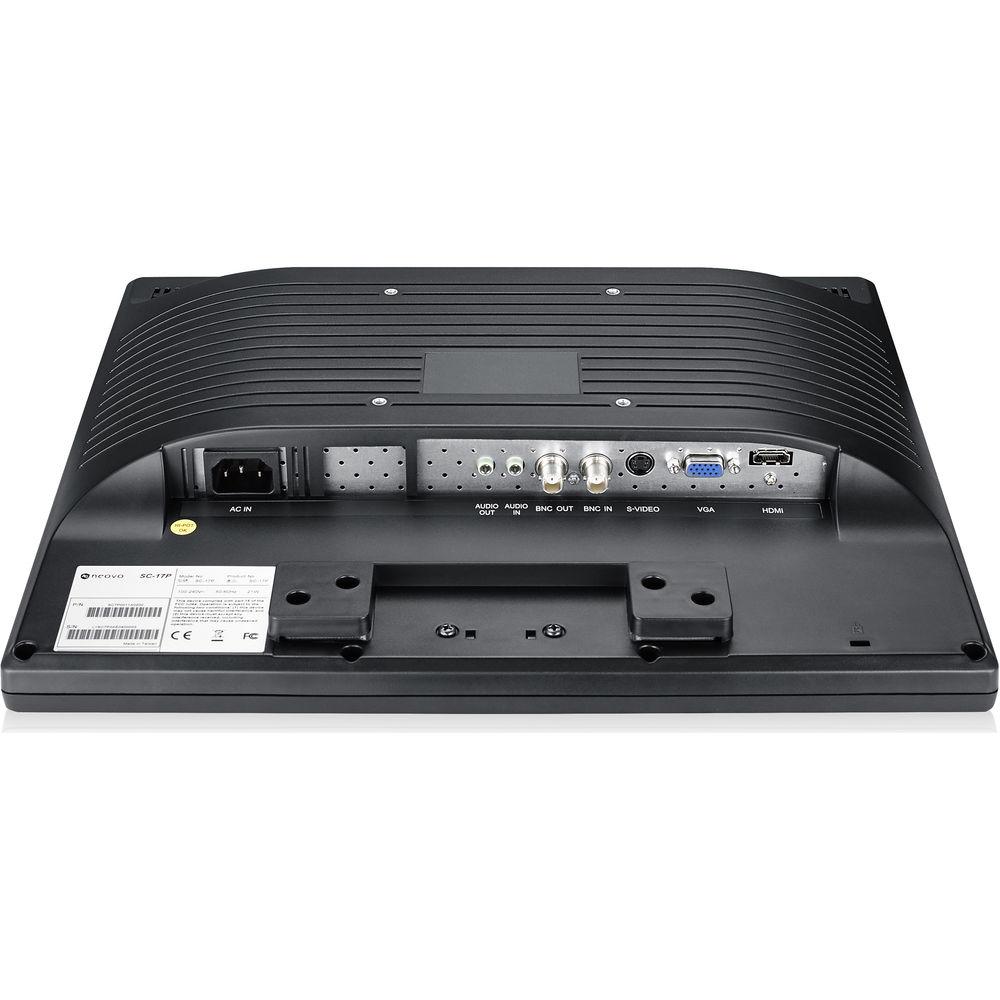

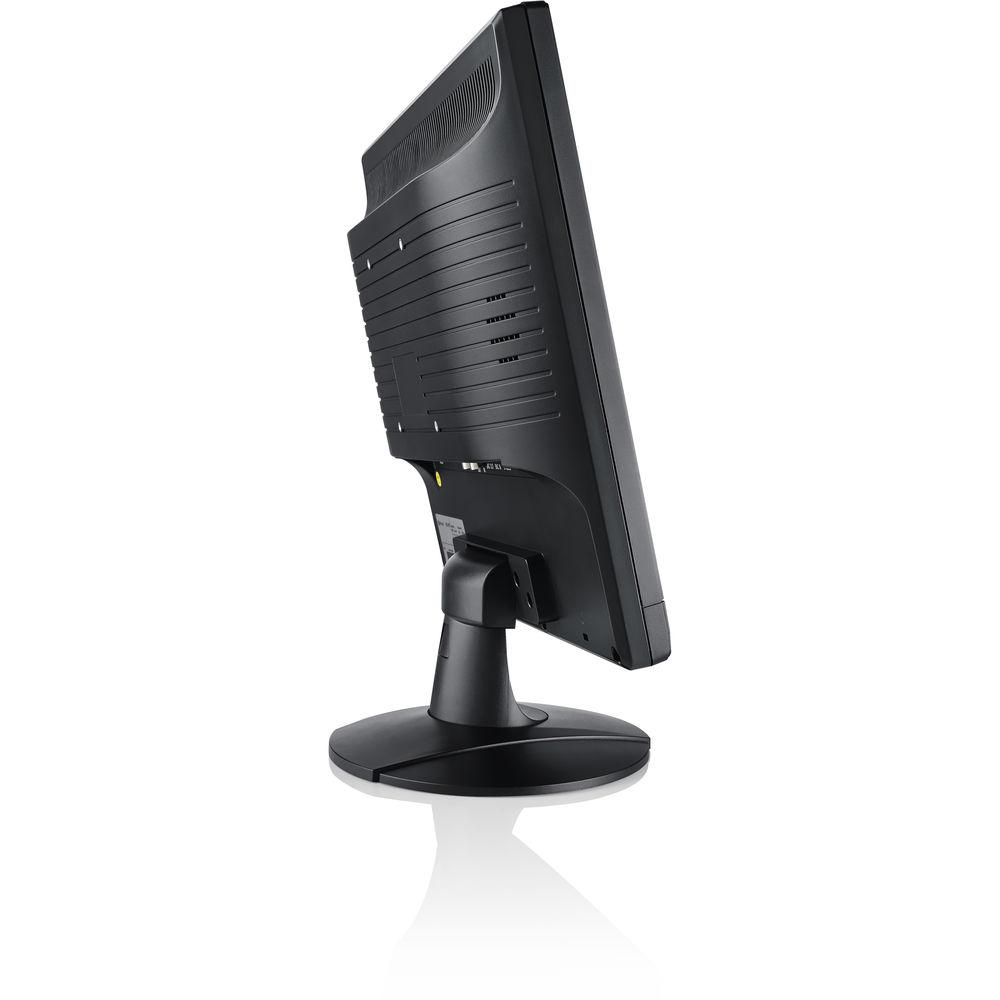

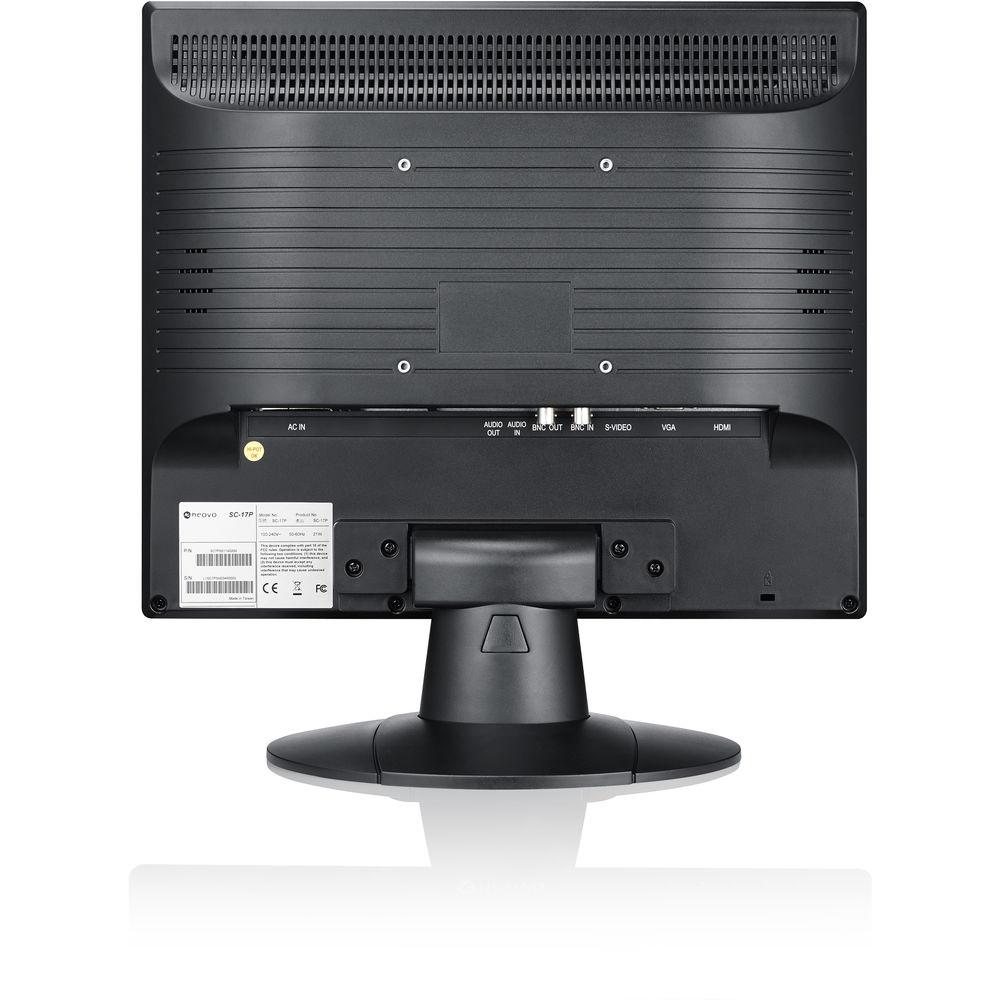

This display is equipped with BNC, S-Video, VGA, HDMI, audio connections, and built-in speakers. The display has a -2 to 20° tilt range for angle adjustments. A 100 x 100mm VESA mounting interface allows for easy installation with standard mounting brackets,
  • Anti-burn-in technology allows display to operate 24/7
  • Auto detect video signal for AHD, TVI, CVBS-NTSC, and CVBS-PAL
  • AHD 2.0, TVI 2.0 & CVBS (PAL/NTSC) loop through
  • VESA standard wall mount
  • Selectable signal source
  • Key lock function
  • Kensington security socket
  • Includes stand, power cord, VGA cable, audio cable, remote control, and 2 AAA batteries
UPC: 190695000437 In the Box AG Neovo SC-17AH 17" Analog HD TFT LCD Surveillance Display
  • Stand
  • Power Cord
  • VGA Cable
  • Audio Cable
  • Remote Control
  • 2 x AAA Batteries
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AG Neovo SC-17AH 17" Analog HD TFT LCD Surveillance Display in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AG Neovo SC-17AH Specs

    Type TFT LCD
    Backlight Type LED
    Size 17
    Maximum Resolution 1280 x 1024 (SXGA)
    Horizontal Resolution 600 TVL (NTSC and PAL)
    Pixel Pitch 0.264 mm
    Brightness 250 cd/m2
    Contrast Ratio 1000:1
    Viewing Angle (H/V) 170/160°
    Display Colors 16.7 million
    Response Time 3 ms
    Additional Features Anti-burn-in technology
    Built-in image enhancer (3D comb filter / deinterlace / noise reduction)
    Horizontal 31.5 to 82 kHz
    Vertical 50 to 75 Hz
    Video Inputs 1 x VGA (15-pin D-sub)
    1 x AHD 2.0 / TVI 2.0 / CVBS (BNC type)
    1 x S-Video (4-pin mini DIN)
    1 x HDMI
    Video Output 1 x AHD 2.0 / TVI 2.0 / CVBS (BNC type)
    Analog HD 720p/25, 720p/30, 720p/50, 720p/60, 1080p/25, 1080p/30
    Digital HD 720/60p, 720/59.94p, 720/50p, 1080/60i, 1080/59.394i, 1080/50i, 1080/60p, 1080/59.94p, 1080/50p
    Inputs 2 x 3.5 mm stereo audio jack
    Outputs 2 x 3.5 mm stereo audio jack
    Built-In Speakers 2 x 1 W
    Plug & Play VESA: EDID
    Mounting VESA FPMPMI (100 x 100 mm)
    Tilt Range -2 to 20°
    Power Supply: Internal
    Requirements: 100-240 V, 50-60 Hz
    Consumption: 15 W
    Operating Temperature 32 to 104°F (0 to 40°C)
    Operating Humidity 10 to 85% (non-condensing)
    Certifications and Compliance CB, CE, REACH, GOST-R, WEEE, RoHS
    Dimensions (W x H x D) 14.6 x 15.2 x 7.2" (372 x 385 x 184 mm)
    Weight 6.4 lb (2.9 kg)
    Package Weight 9.1 lb
    Box Dimensions (LxWxH) 18.25 x 17.25 x 5.25"
