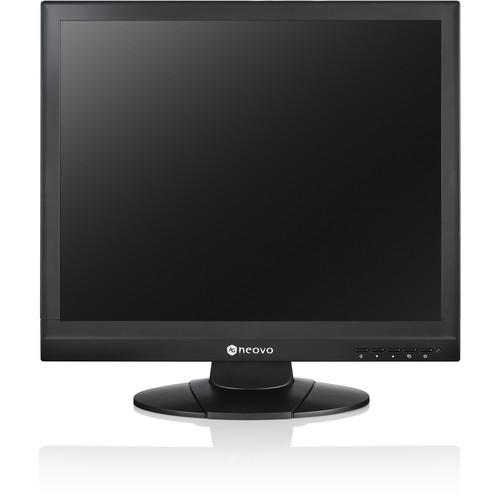

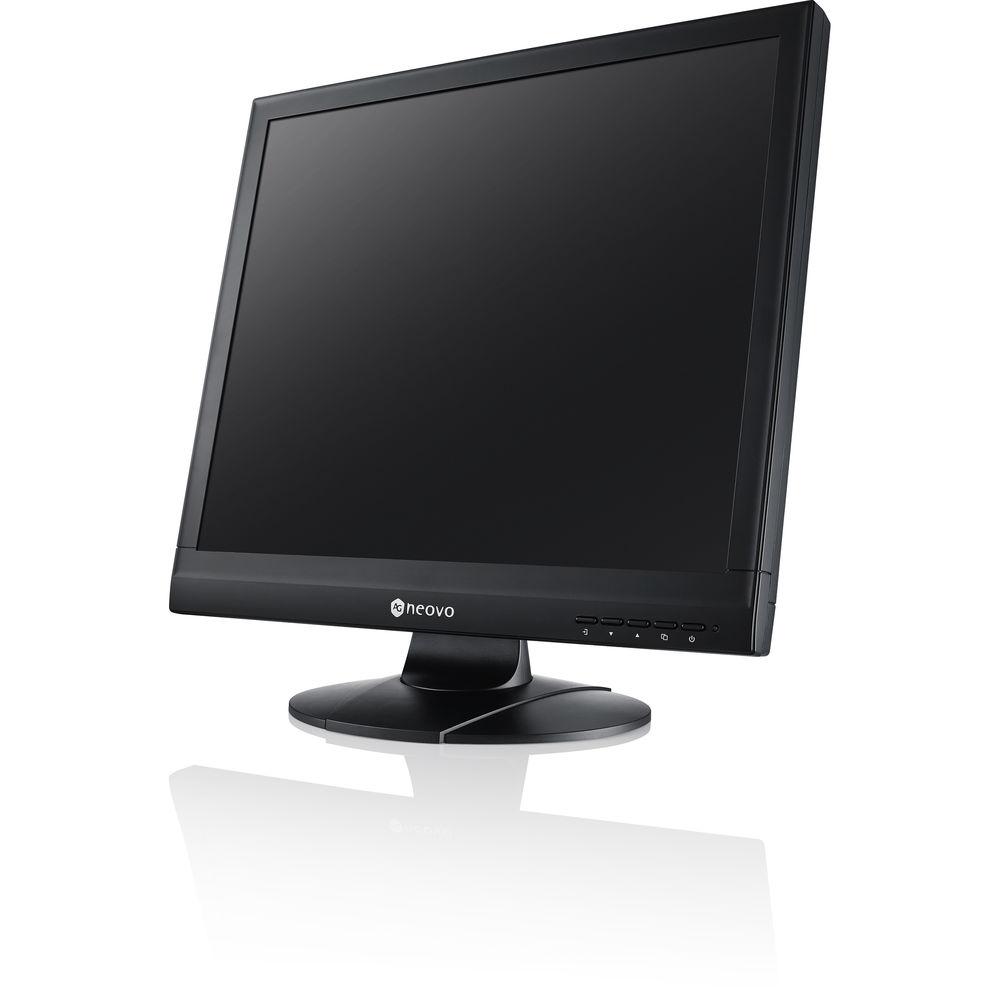

Product description The SC-19AH 19" Analog HD TFT LCD Surveillance Display from AG Neovo supports up to 1920 x 1080 resolution AHD, TVI, or CVBS video from your surveillance camera. The 19" LED-backlit TFT display features anti-burn-in technology to prevent screen discoloration, and built-in image enhancers such as a 3D comb filter, deinterlace, and noise reduction to deliver the best video quality possible.

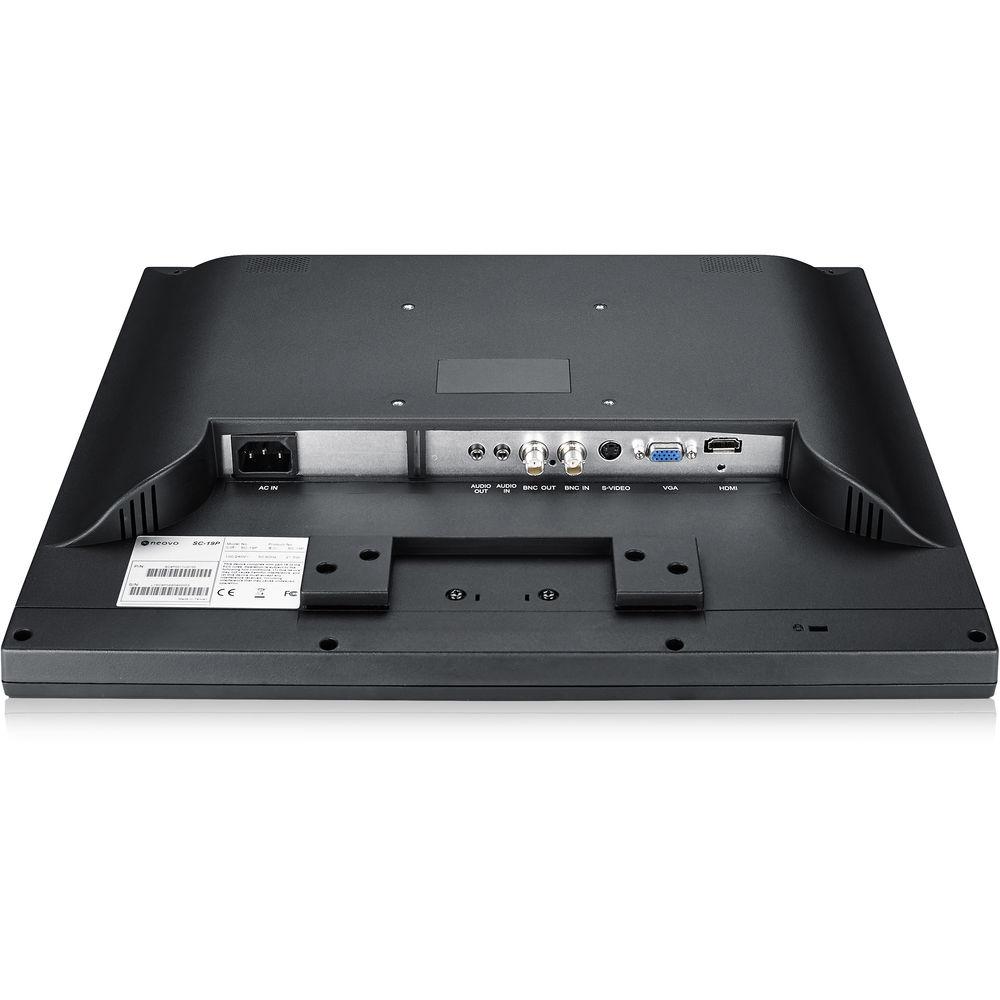

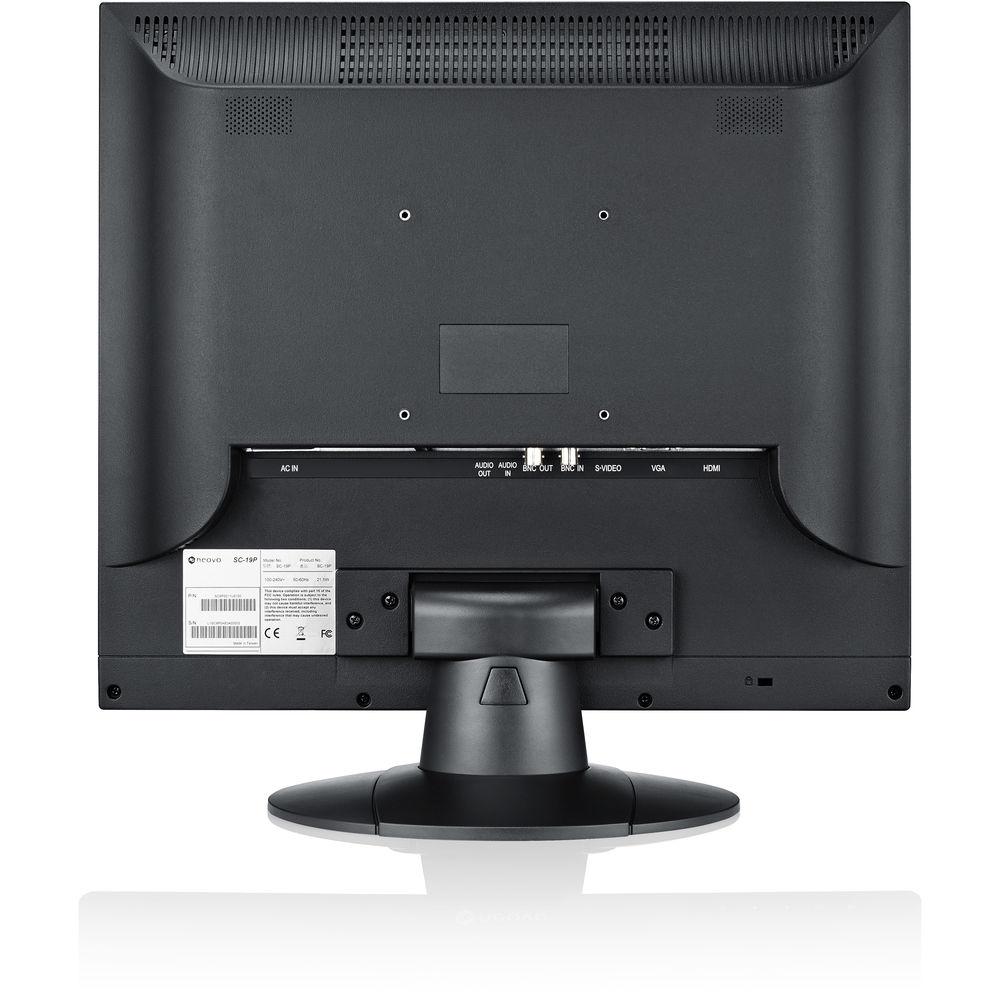

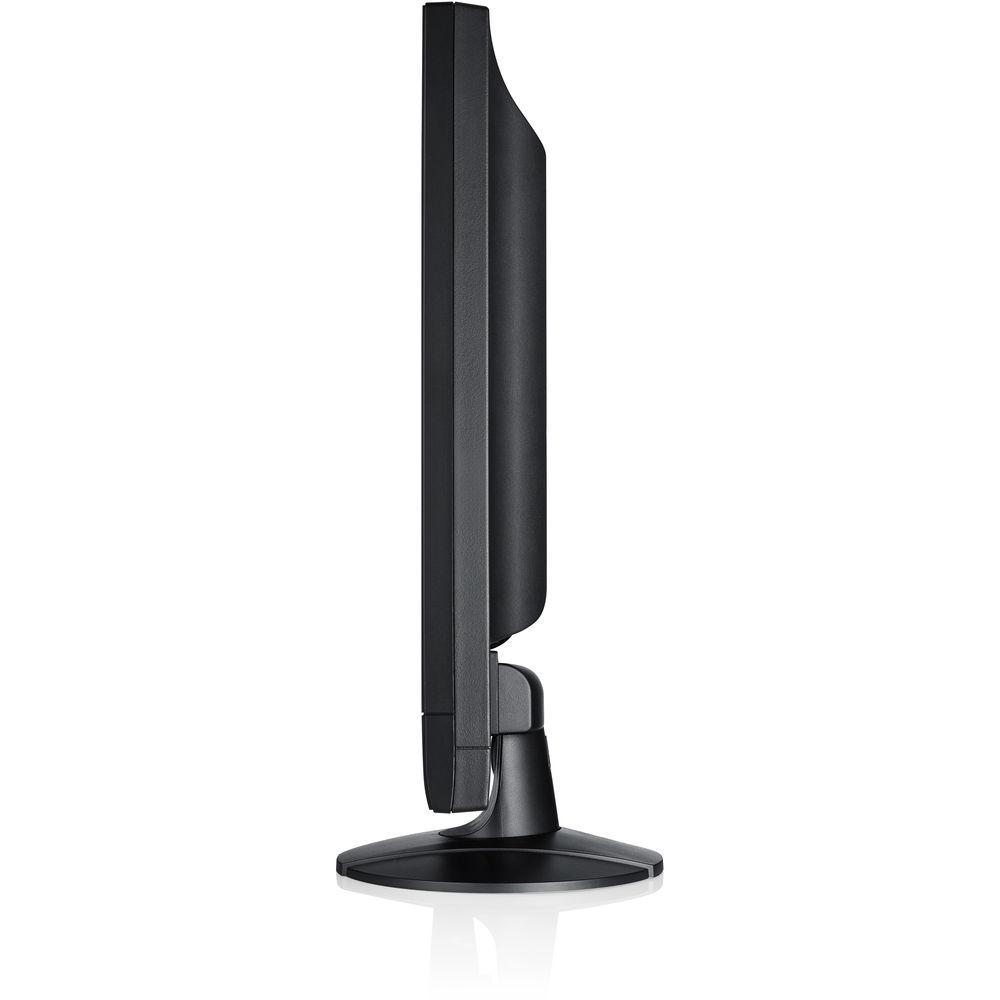

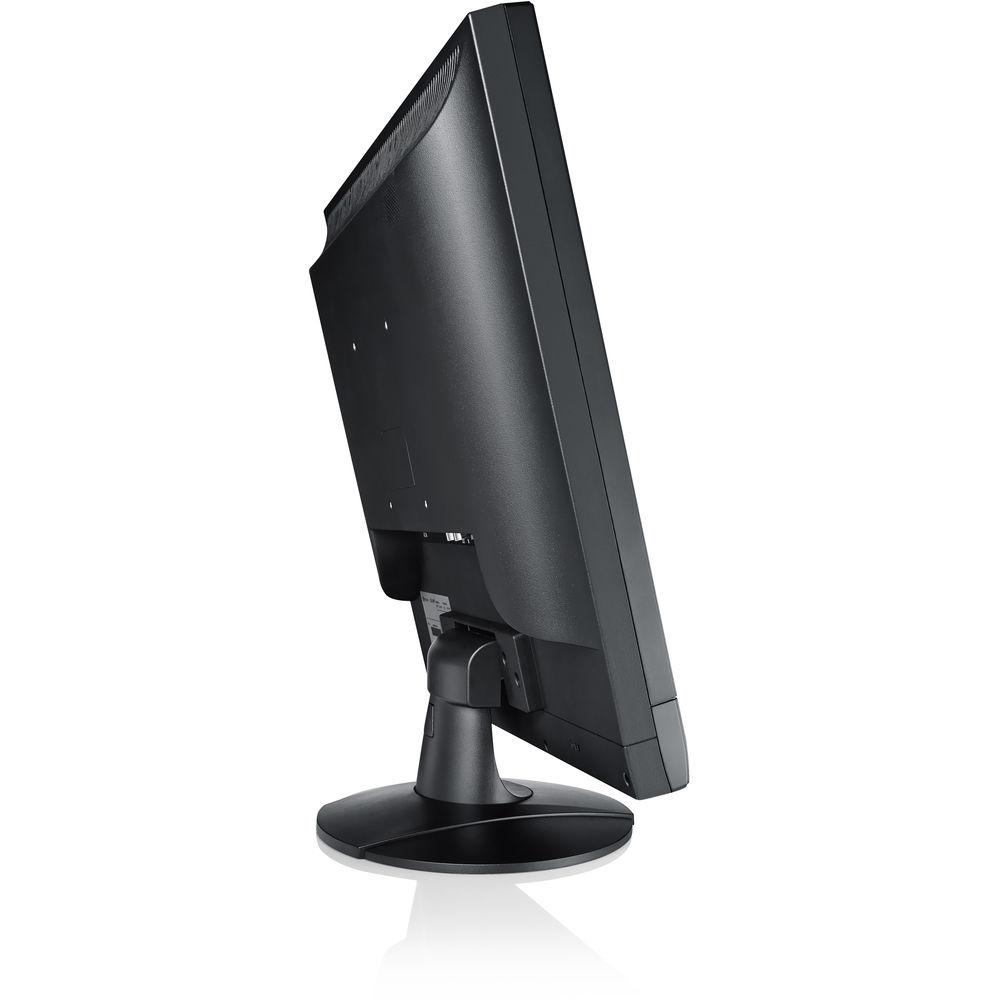

This display is equipped with BNC, S-Video, VGA, HDMI, audio connections, and built-in speakers. The display has a -2 to 20° tilt range for angle adjustments. A 100 x 100mm VESA mounting interface allows for easy installation with standard mounting brackets, - Anti-burn-in technology allows display to operate 24/7
- Auto detect video signal for AHD, TVI, CVBS-NTSC, and CVBS-PAL
- AHD 2.0, TVI 2.0 & CVBS (PAL/NTSC) loop through
- Kensington security socket
- Includes stand, power cord, VGA cable, audio cable, remote control, and 2 AAA batteries
UPC: 190695000444 In the Box AG Neovo SC-19AH 19" Analog HD TFT LCD Surveillance Display Stand Power Cord VGA Cable Audio Cable Remote Control 2 x AAA Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo SC-19AH 19" Analog HD TFT LCD Surveillance Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAG Neovo SC-19AH Specs | | | Type | TFT LCD | | Backlight Type | LED | | Size | 19 | | Maximum Resolution | 1280 x 1024 (SXGA) | | Horizontal Resolution | 600 TVL (NTSC and PAL) | | Pixel Pitch | 0.294 mm | | Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Viewing Angle (H/V) | 178/178° | | Display Colors | 16.7 million | | Response Time | 5 ms | | Additional Features | Anti-burn-in technology
Built-in image enhancer (3D comb filter / deinterlace / noise reduction) | | | | Horizontal | 31.5 to 82 kHz | | Vertical | 50 to 75 Hz | | | | Video Inputs | 1 x VGA (15-pin D-sub)
1 x AHD 2.0 / TVI 2.0 / CVBS (BNC type)
1 x S-Video (4-pin mini DIN)
1 x HDMI | | Video Output | 1 x AHD 2.0 / TVI 2.0 / CVBS (BNC type) | | | | Analog HD | 720p/25, 720p/30, 720p/50, 720p/60, 1080p/25, 1080p/30 | | Digital HD | 720/60p, 720/59.94p, 720/50p, 1080/60i, 1080/59.394i, 1080/50i, 1080/60p, 1080/59.94p, 1080/50p | | | | Inputs | 2 x 3.5 mm stereo audio jack | | Outputs | 2 x 3.5 mm stereo audio jack | | Built-In Speakers | 2 x 1 W | | | | Plug & Play | VESA: EDID | | Mounting | VESA FPMPMI (100 x 100 mm) | | Tilt Range | -2 to 20° | | Power | Supply: Internal
Requirements: 100-240 V, 50-60 Hz
Consumption: 18 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10 to 85% (non-condensing) | | Certifications and Compliance | CB, CE, REACH, GOST-R, WEEE, RoHS | | Dimensions (W x H x D) | 16.5 x 16.2 x 7.2" (418 x 412 x 184 mm) | | Weight | 7.9 lb (3.6 kg) | | | | Package Weight | 10.8 lb | | Box Dimensions (LxWxH) | 18.5 x 17.5 x 5.5" |
