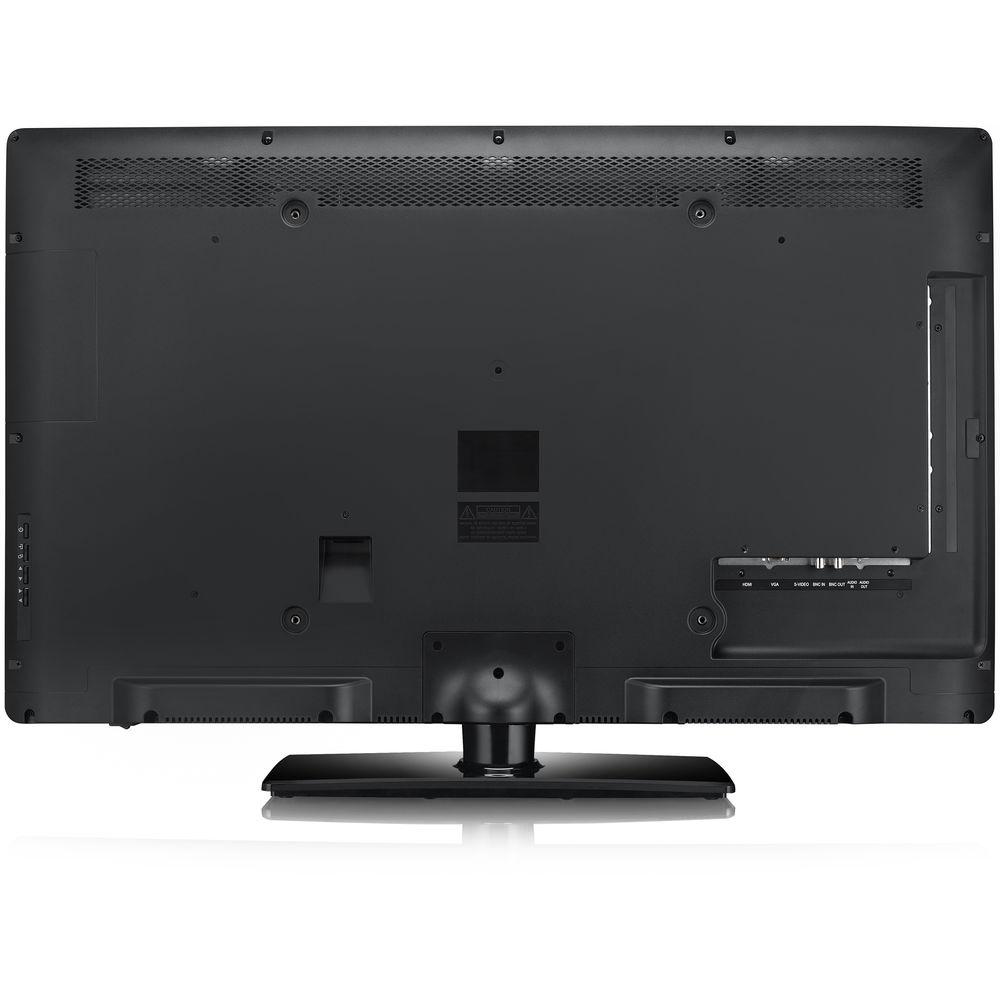

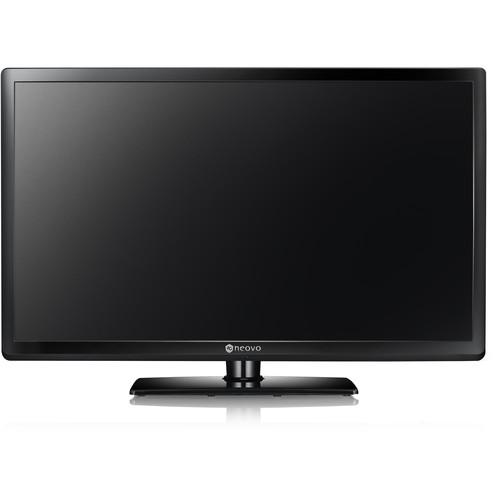

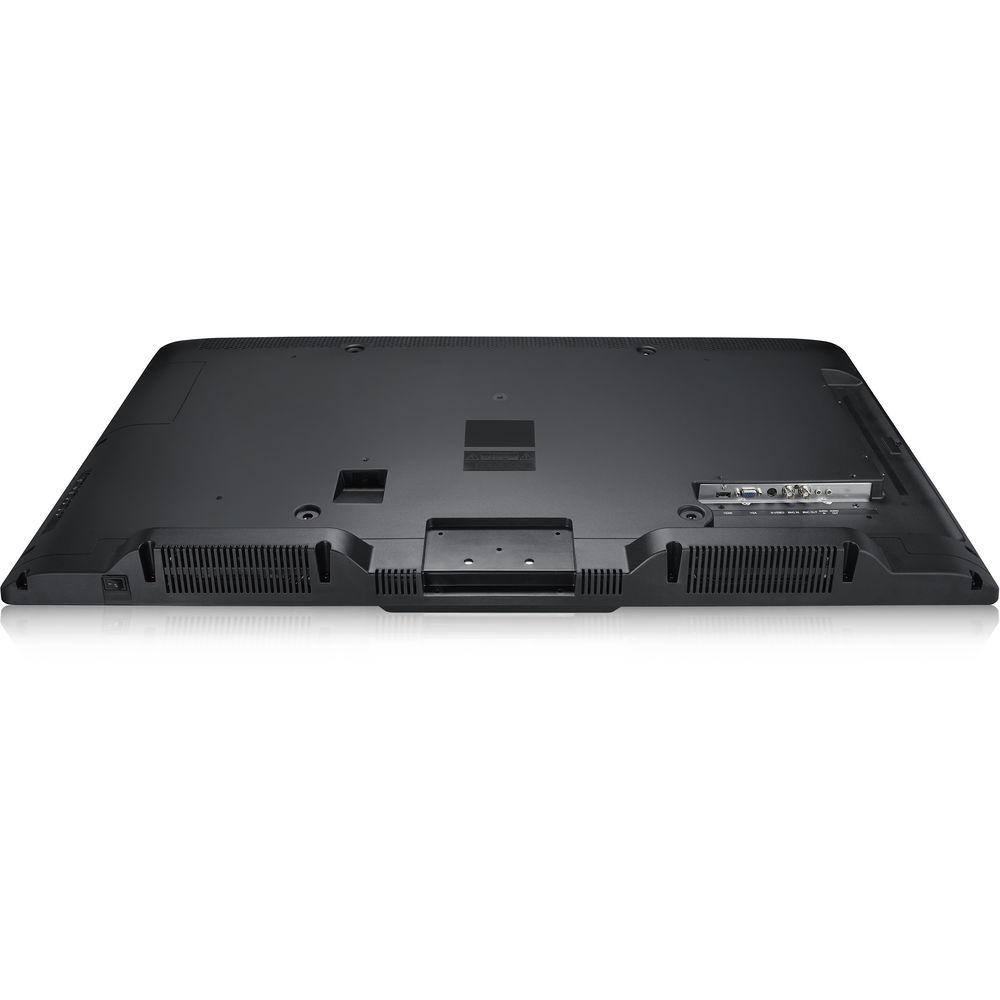

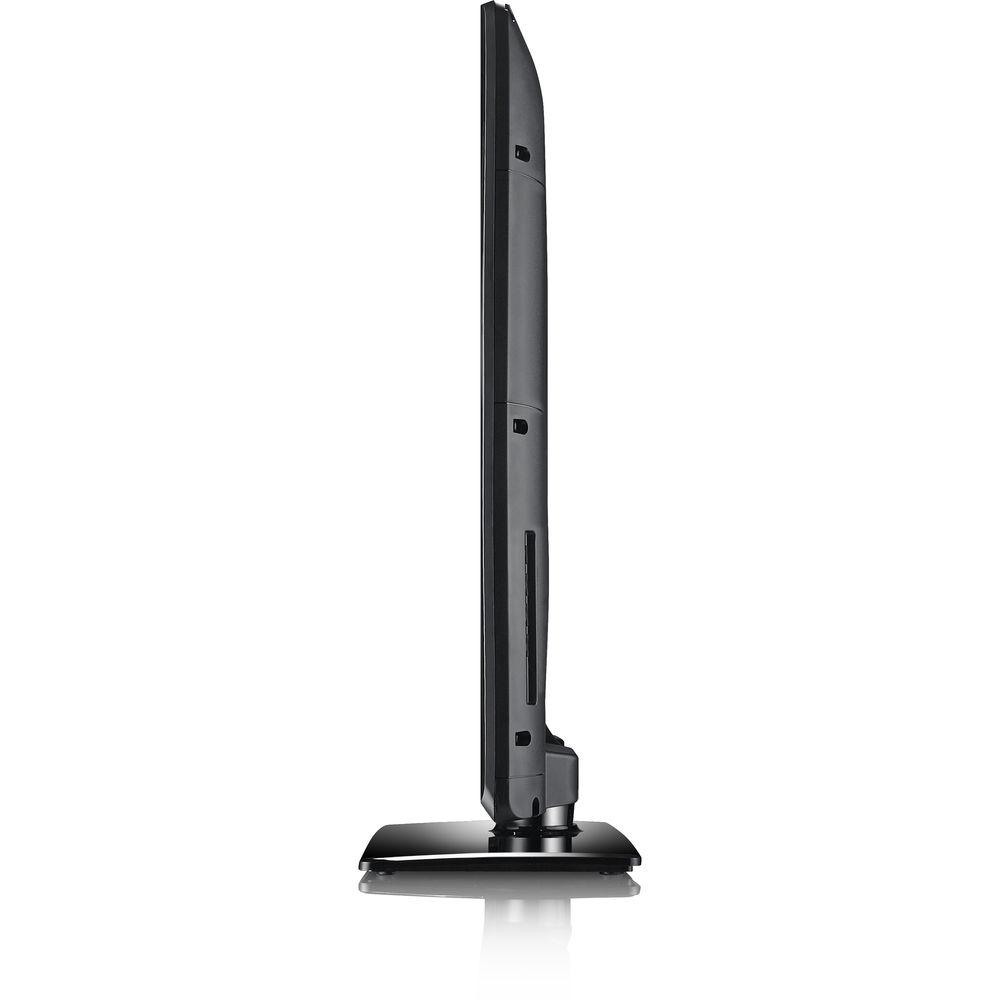

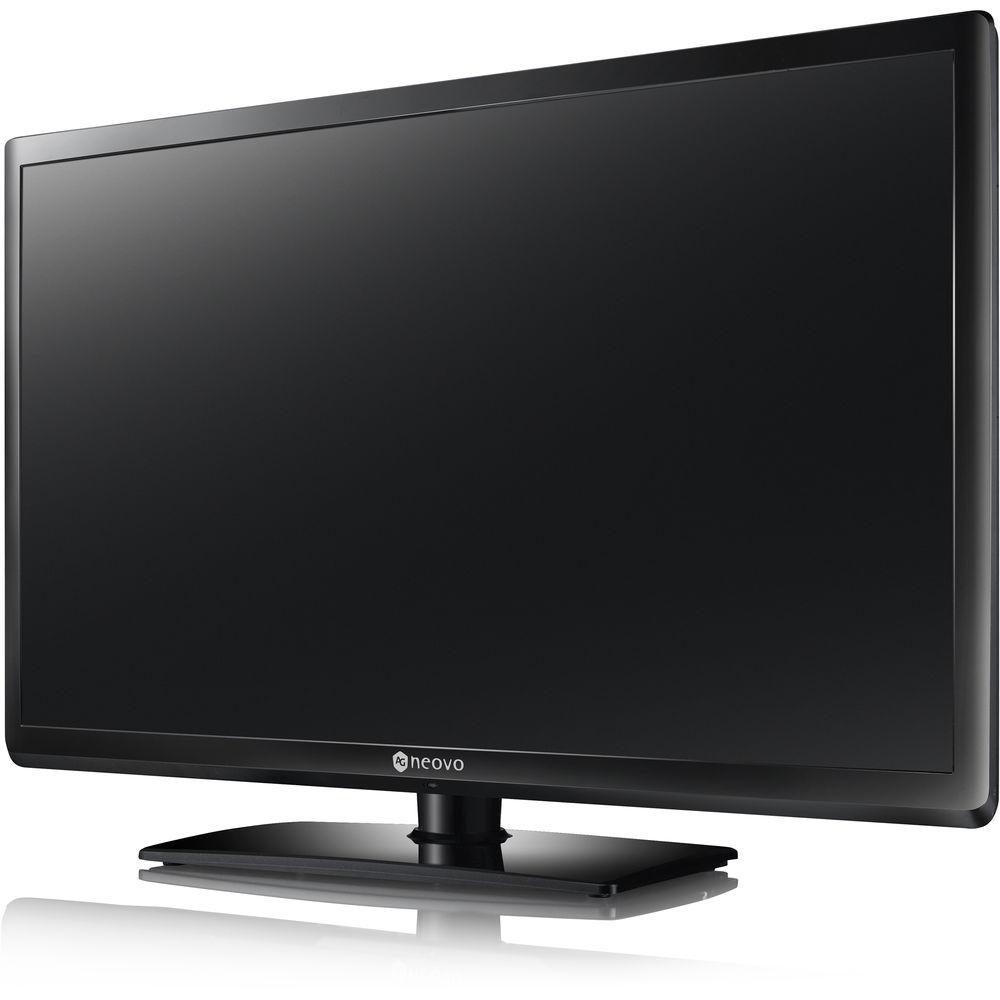

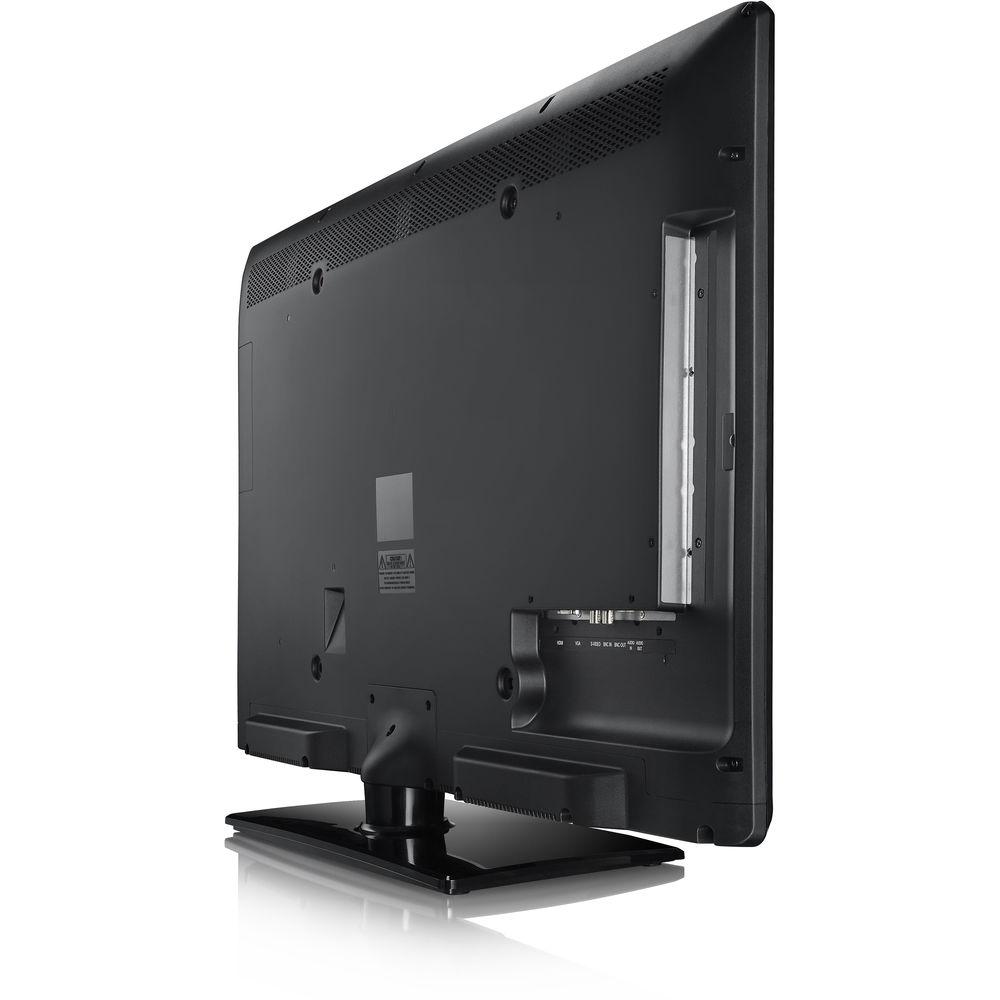

User Manual for AG Neovo SC-32AH 32" 1080p AHD LED-Backlit TFT LCD Monitor Click to enlarge the picture
Contents of the user manual for the AG Neovo SC-32AH 32" 1080p AHD
- Product category: Surveillance Monitors AG Neovo
- Brand: AG Neovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AG Neovo Surveillance Monitors
|
User manual for the AG Neovo SC-32AH 32" 1080p AHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AG Neovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AG Neovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AG Neovo product will considerably shorten its lifespan!
|
Product description The 32" 1080p AHD LED-Backlit TFT LCD Monitor from AG Neovo is a surveillance display equipped with analog HD-over-Coax video capabilities that supports zero-latency transmission of 1080p video over a coaxial cable. It features multiple connectivity options, including S-Video, VGA, and HDMI inputs, along with AHD 2.0, TVI 2.0, and CVBS (NTSC/PAL) loop through input/output via BNC. It also features stereo audio 3.5mm input/output jacks and two 2W built-in speakers. The monitor uses anti-burn-in technology, which is suitable for surveillance displays that operate 24/7. It also features built-in image enhancement functions like 3D comb filter, de-interlace, and noise reduction. - LED-backlit TFT LCD display with 1920 x 1080 resolution
- Built-in image enhancer offers 3D comb filter, de-interlace, and noise reduction
- MVA panel offers wide viewing angles up to 178°
- S-Video, VGA, and HDMI inputs along with stereo audio input/output
- Analog interface AHD 2.0, TVI 2.0, and CVBS (PAL/NTSC) loop through input/output
- Quick signal-switching time
- Auto detects a video signal (AHD, TVI, CVBS)
- Rigorous screening of the components for 24/7 applications
- Auto-adjustment for optimal setting
- Kensington security socket
UPC: 190695000482 In the Box AG Neovo SC-32AH 32" 1080p AHD LED-Backlit TFT LCD Monitor Remote Control with AAA Batteries Power Cord 15-Pin D-Sub Cable Audio Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo SC-32AH 32" 1080p AHD LED-Backlit TFT LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAG Neovo SC-32AH Specs Application | Surveillance | LCD Size | 31.5" / 80 cm | Video System | NTSC and PAL | Panel Type | LED-backlit TFT LCD | Resolution | 1920 x 1080 | Horizontal Resolution (TV Lines) | 600 TVL (NTSC/PAL) | Pixel Pitch | 0.3637 mm | Response Time | 5 ms | Viewing Angle (H/V) | 178/178° | Contrast Ratio | 3000:1 | Brightness | 300 cd/m2 | Display Colors | 16.7M | Supported Resolutions & Formats | Analog HD: 720p/25, 720p/30, 720p/50, 720p/60, 1080p/25, 1080p/30
Digital HD: 720/60p, 720/59.94p, 720/50p, 1080/60i, 1080/59.394i, 1080/50i, 1080/60p, 1080/59.94p, 1080/50p | Scanning Frequency | Horizontal: 31 to 83 kHz Vertical: 50 to 75 Hz | Picture Control | 3D comb filter, de-interlace, and noise reduction | Remote Control | Included | Inputs/Outputs | Input: 1 x VGA (15-pin D-Sub) 1 x AHD 2.0/TVI 2.0/CVBS (BNC) 1 x S-Video (4-pin mini DIN) 1 x HDMI 1 x stereo audio jack (3.5 mm)
Output: 1 x AHD 2.0/TVI/CVBS (BNC) 1 x stereo audio jack (3.5 mm) 2 x 2 W speakers | Plug and Play | EDID | Power Requirements | Internal Power Supply: 100 to 240 VAC, 50 to 60 Hz | Power Consumption | <59 w (on) <0.5 W (standby) <0.5 W (off) | VESA Mounting | 200 x 100 mm | Tilt Range | 4 to 19° | Operating Temperature | 32 to 104°F / 0 to 40°C | Operating Humidity | 10 to 85% (non-condensing) | Storage Temperature | 14 to 122°F / -10 to 50°C | Storage Humidity | 10 to 95% (non-condensing) | Certifications & Approvals | CE, FCC, GOST-R, WEEE, RoHS | Dimensions | 29.3 x 20.96 x 7.8" / 74.4 x 53.3 x 19.9 cm | Weight | 17.6 lb / 8 kg |
