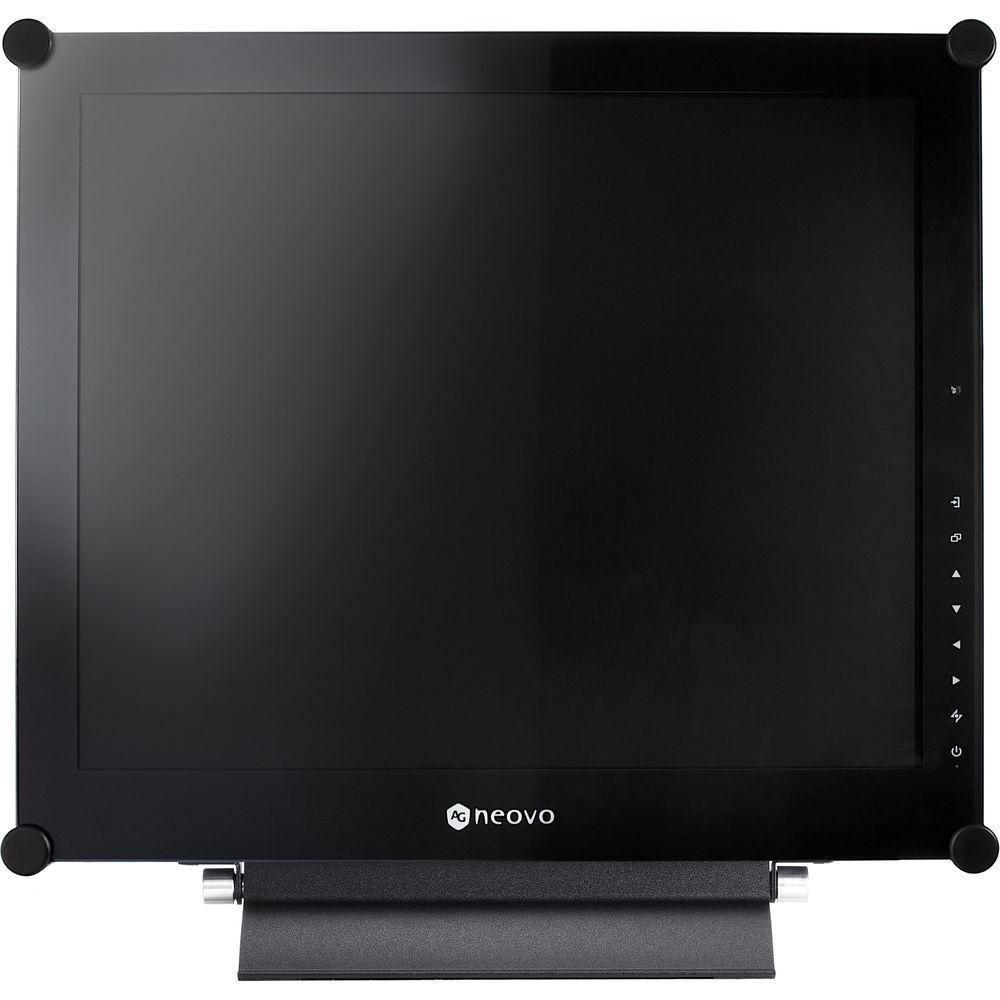

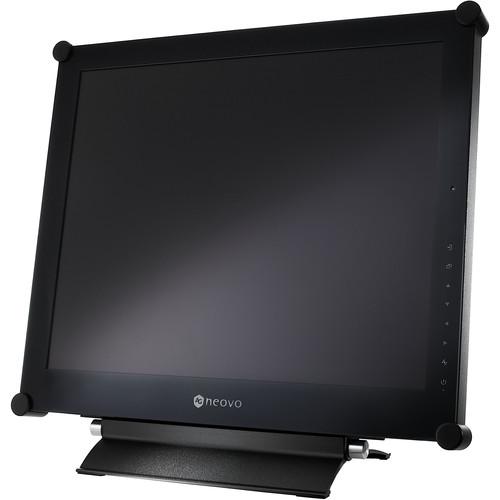

Product description The SX-19E 19" LED-Backlit TFT LCD Security Display from AG Neovo supports up to 1280 x 1024 resolution video from your surveillance camera. This display features anti-burn-in technology to prevent screen discoloration, and image enhancers such as a 3D comb filter, deinterlace, noise reduction, and black level alignment to deliver the best video quality possible.

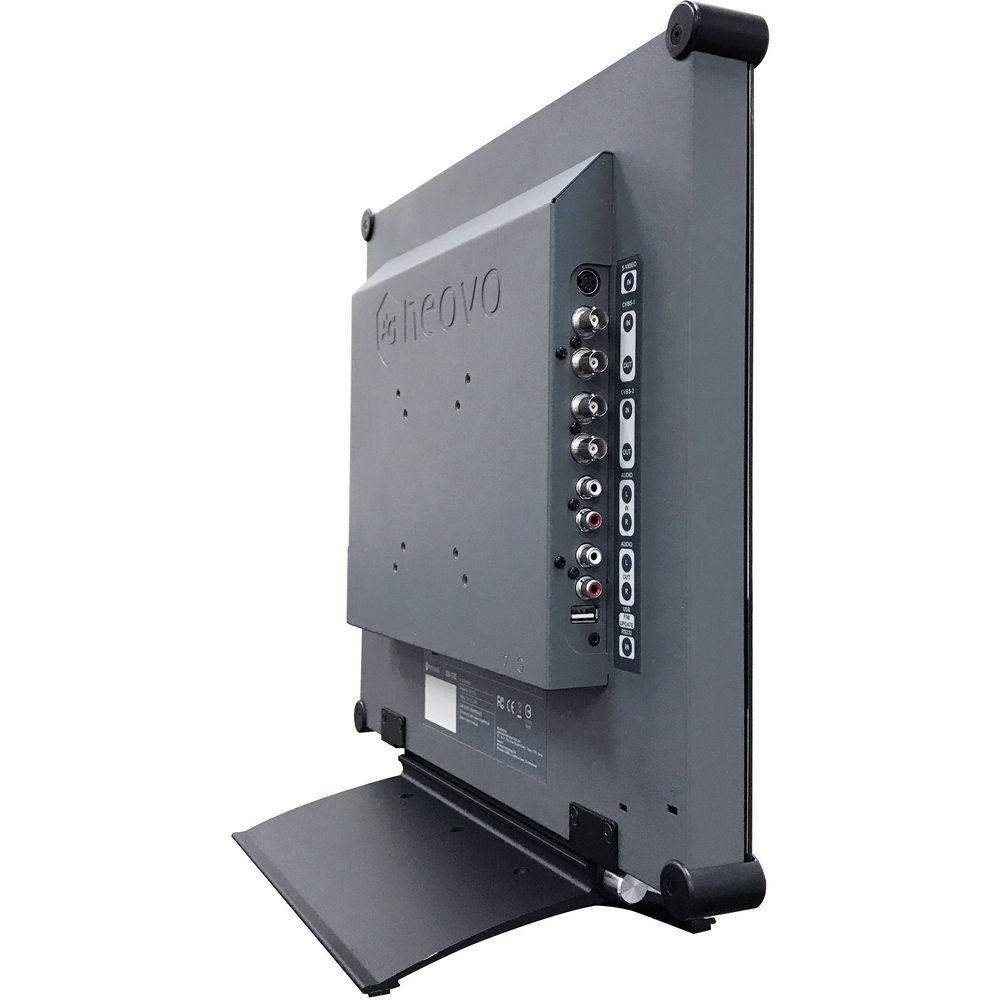

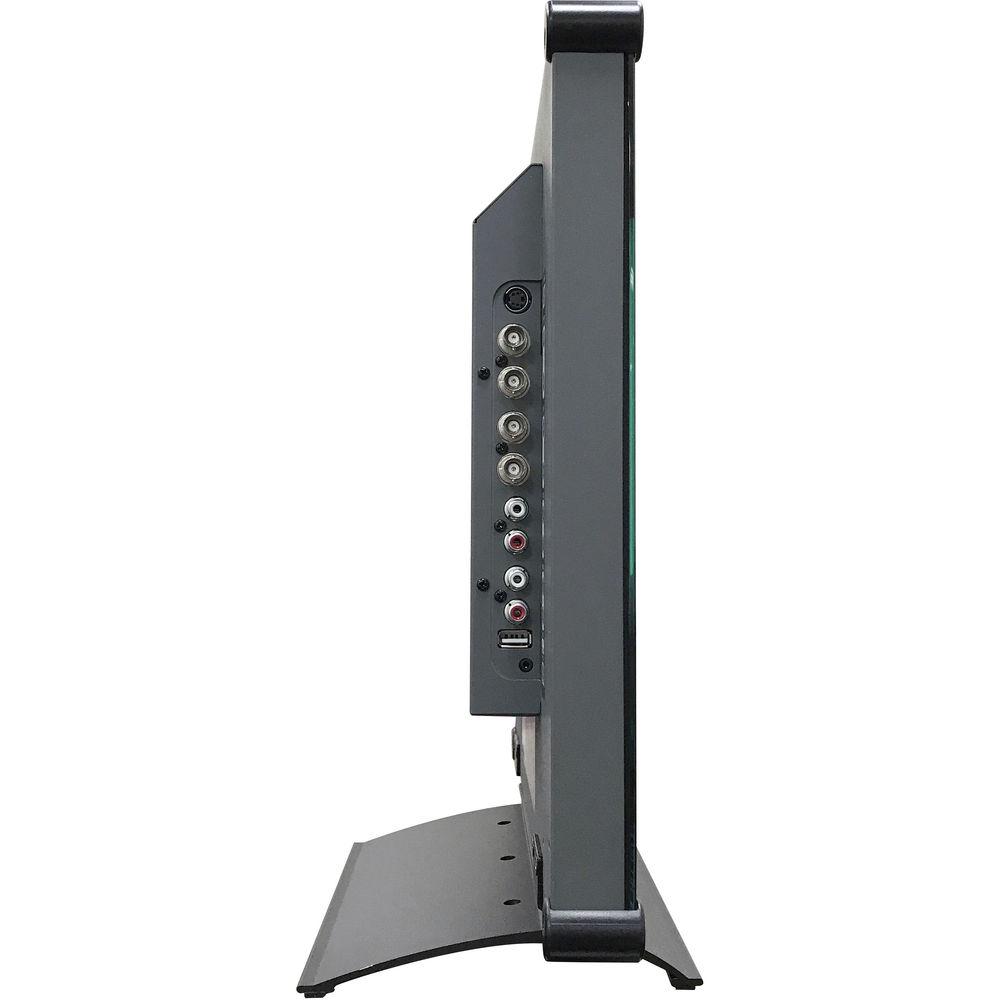

The SX-19E is equipped with DisplayPort, HDMI, DVI, VGA, BNC, S-Video, RS-232, audio connections, and built-in speakers. In addition, it has a 0 to 20° tilt range for angle adjustments. 100 x 100mm and 75 x 75mm VESA mounting interfaces enable an easy installation with standard mounting brackets. - Designed for 24/7 security and surveillance applications
- NeoV optical glass and metal casing for durability
- EcoSmart sensor detects ambient lighting conditions and automatically adjusts brightness levels

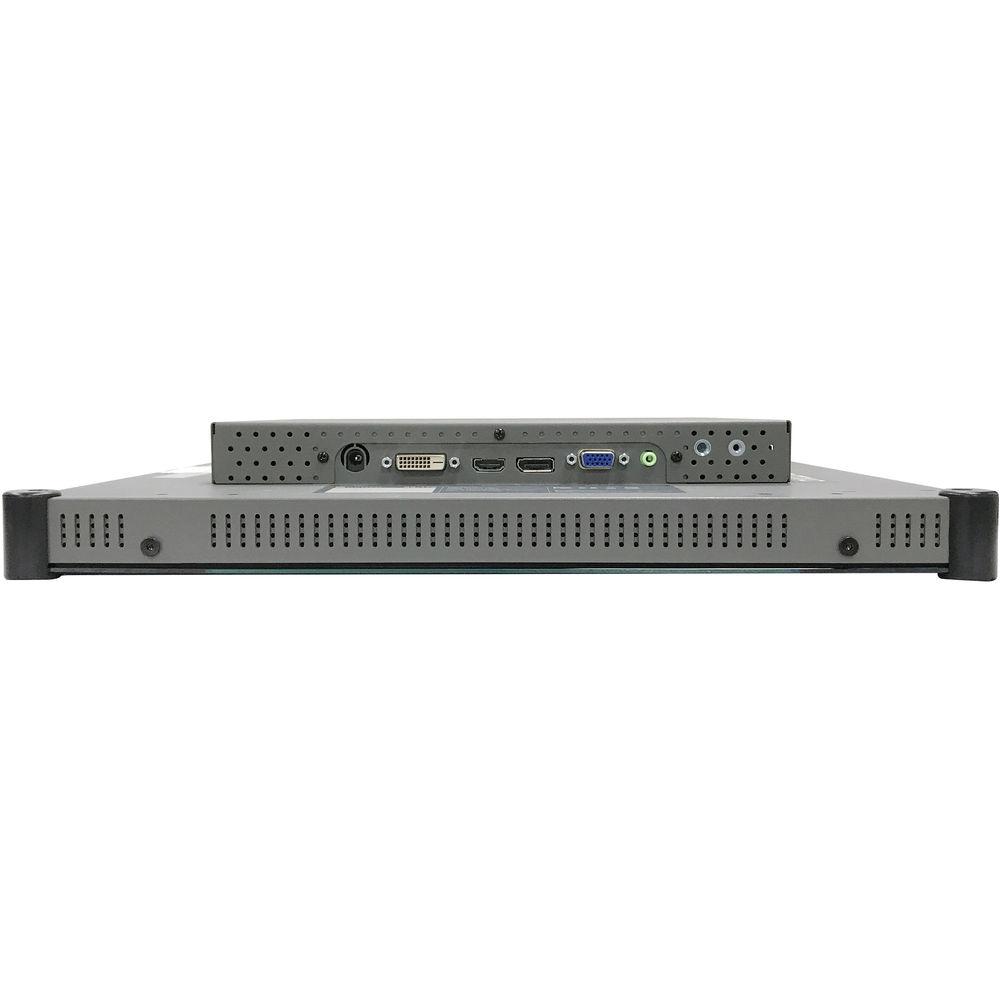

- Inputs include DisplayPort, HDMI, DVI, VGA, 2 x BNC, S-Video, and RS-232
- Digital and analog signal support enables flexible integration
- Adjustable VGA/DVI input settings for analog images
- HDMI-CEC function for centralized device control
- 3D comb filter, deinterlace, noise reduction, and freeze
- 250 cd/m2 brightness level
- ≤0.8 seconds quick signal-switching time
- Gamma correction for image clarity
- Selectable aspect ratio and zoom function
- Kensington Security socket
In the Box AG Neovo SX-19E 19" LED-Backlit LCD Security Display Power Cord Power Adapter 15-Pin D-Sub Cable Stand Base Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo SX-19E 19" LED-Backlit LCD Security Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAG Neovo SX-19E Specs Panel Type | LED-backlit TFT LCD | Panel Size | 19" / 48.3 cm | Maximum Resolution | 1280 x 1024 | Pixel Pitch | 0.294 mm | Brightness | 250 cd/m2 | Contrast Ratio | 1000:1 | Viewing Angle (H/V) | 170/160° | Display Colors | 16.7 million | Response Time | 3 ms | Horizontal Resolution (TV Lines) | NTSC: 620 TVL PAL: 625 TVL | Frequency | Horizontal: 15 to 83 kHz Vertical: 48 to 85 Hz | Video Inputs | 1 x 15-pin D-sub (VGA) 1 x 24-pin DVI-D 2 x BNC 1 x HDMI 1.4 1 x DisplayPort 1.2a 1 x 4-pin mini DIN (S-Video) 1 x USB 2.0 (service port) | Video Outputs | 2 x BNC | Audio Inputs | 1 x 3.5 mm (stereo audio in for PC) 1 x RCA (stereo audio for video) | Audio Outputs | 2 x 2 W built-in speakers 1 x RCA (stereo audio for video) | Optical Glass | NeoV Optical Glass: Thickness: 0.12" / 3 mm Reflection Rate: <1% Transmission Rate: ≥97% Coating Hardness: 9H | Plug & Play | VESA: DCC 2B, DCC/CI | Other Features | Anti-burn-in technology 3D comb filter, deinterlace, noise reduction, freeze | VESA Mounting | 3.9 x 3.9" / 100 x 100 mm and 2.9 x 2.9" / 75 x 75 mm | Ergonomics | Tilt: 0 to 20° | Kensington Security Socket | Yes | Operating Conditions | Temperature: 32 to 104°F / 0 to 40°C Humidity: 10 to 90%, non-condensing | Storage Conditions | Temperature: -4 to 140°F / -20 to 60°C Humidity: 5 to 90%, non-condensing | Power Supply | External 12 VDC | Power Consumption | On: <20 w Standby: <0.5 W Off: <0.5 W | Casing Material | Metal | Certifications | FCC, CB, CE, RoHS, WEEE, REACH, EuP/Erp | Dimensions | 17.5 x 16.5 x 6.9" / 44.5 x 42.0 x 17.5 cm without base | Weight | 15.4 lb / 7 kg |
