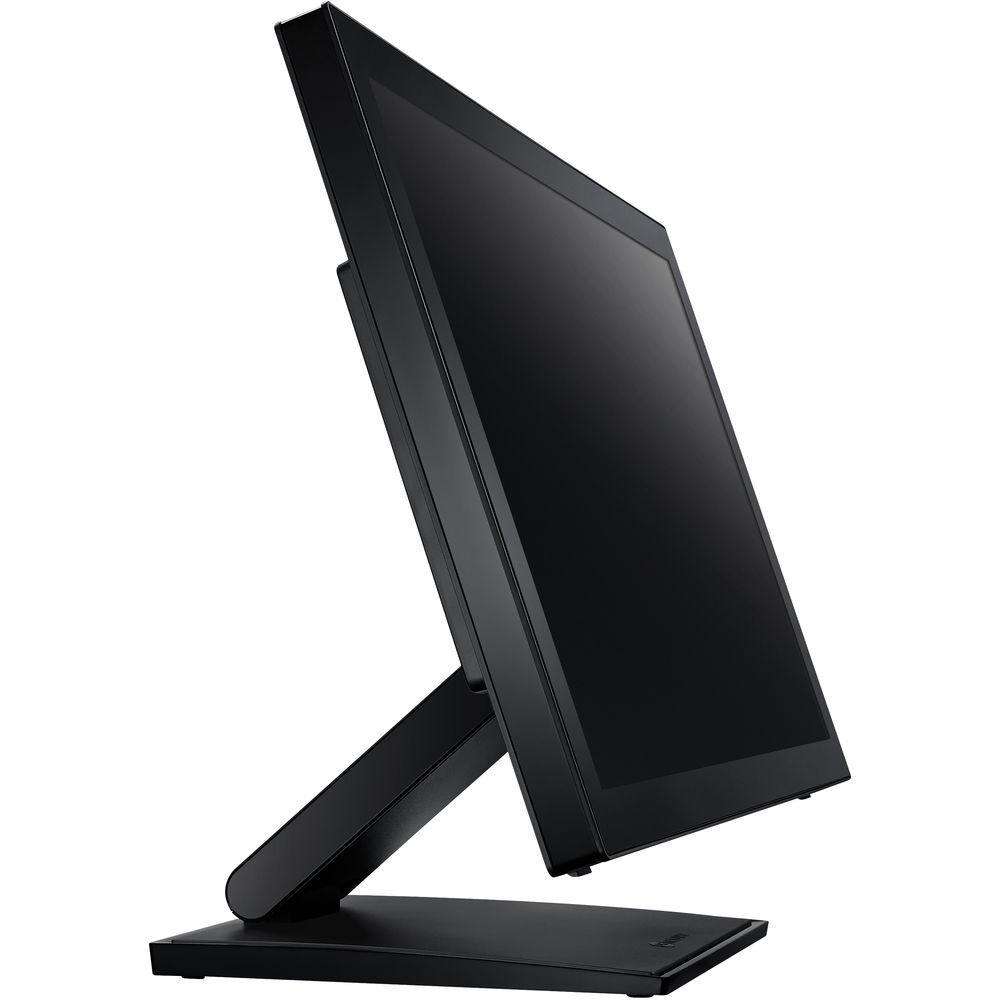

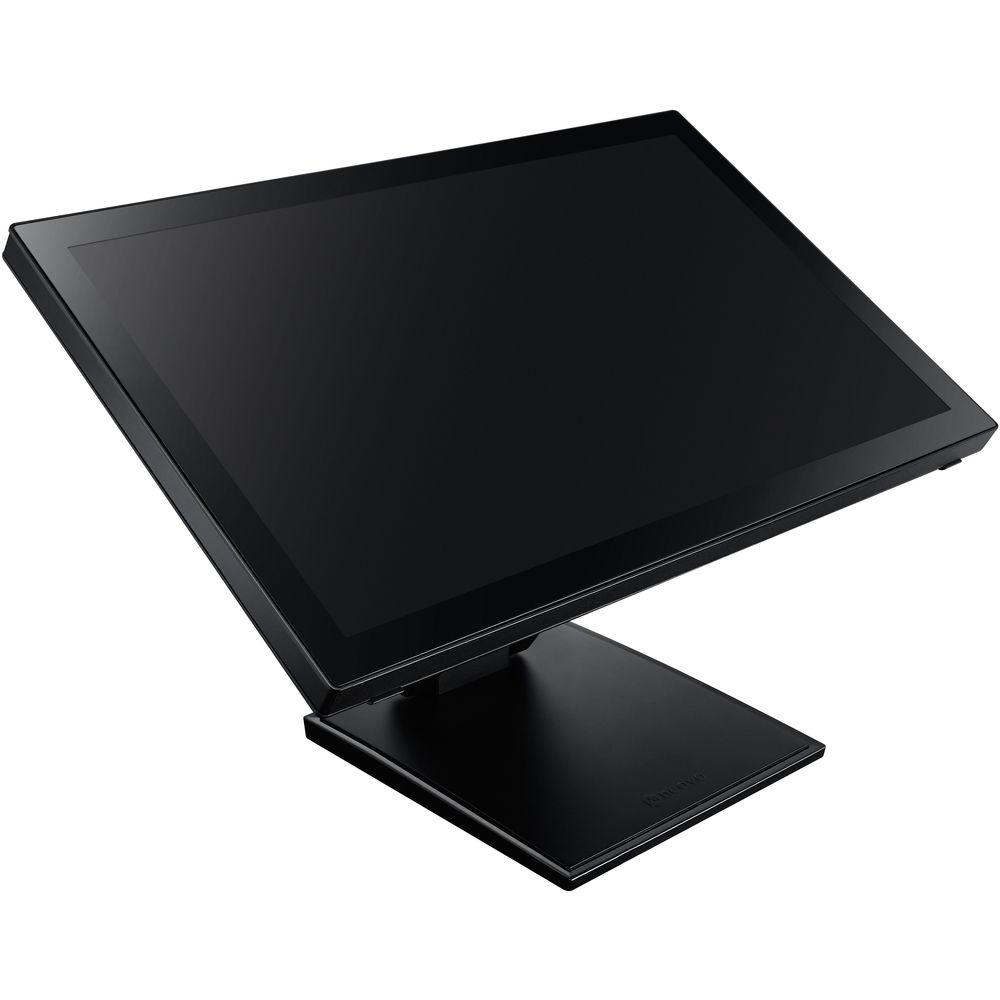

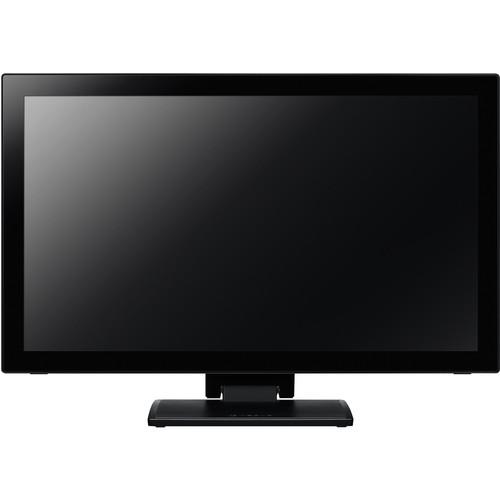

Product description The TM-23 23" 10-Point Touch Display from AG Neovo is crafted with advanced projected capacitive 10-point touch technology to delivera smooth and precise touch response for interactive applications. Featuring Full HD resolution and an IPS panel, it ensures accurate color performance from all viewing angles. Its height adjustability and tilt flexibility, ranging from –5 to 90°, ensure ergonomic-friendliness and multi-user comfort, making it suitable for public and interactive environments. - IPS panel provides consistent and accurate color from all viewing angles
- Incorporates Projected Capacitive Touch technology
- 10-point touch capabilities for systems with Microsoft Windows 7 and 8
- LED-backlit technology with 1920 x 1080 Full HD resolution
- Flush touch screen makes surface neat and clean
- Connectivity: VGA, HDMI and DisplayPort
- Built-in USB Port (USB 3.0) for easy connection with peripheral devices
- HID compliant for easy integration without additional drivers

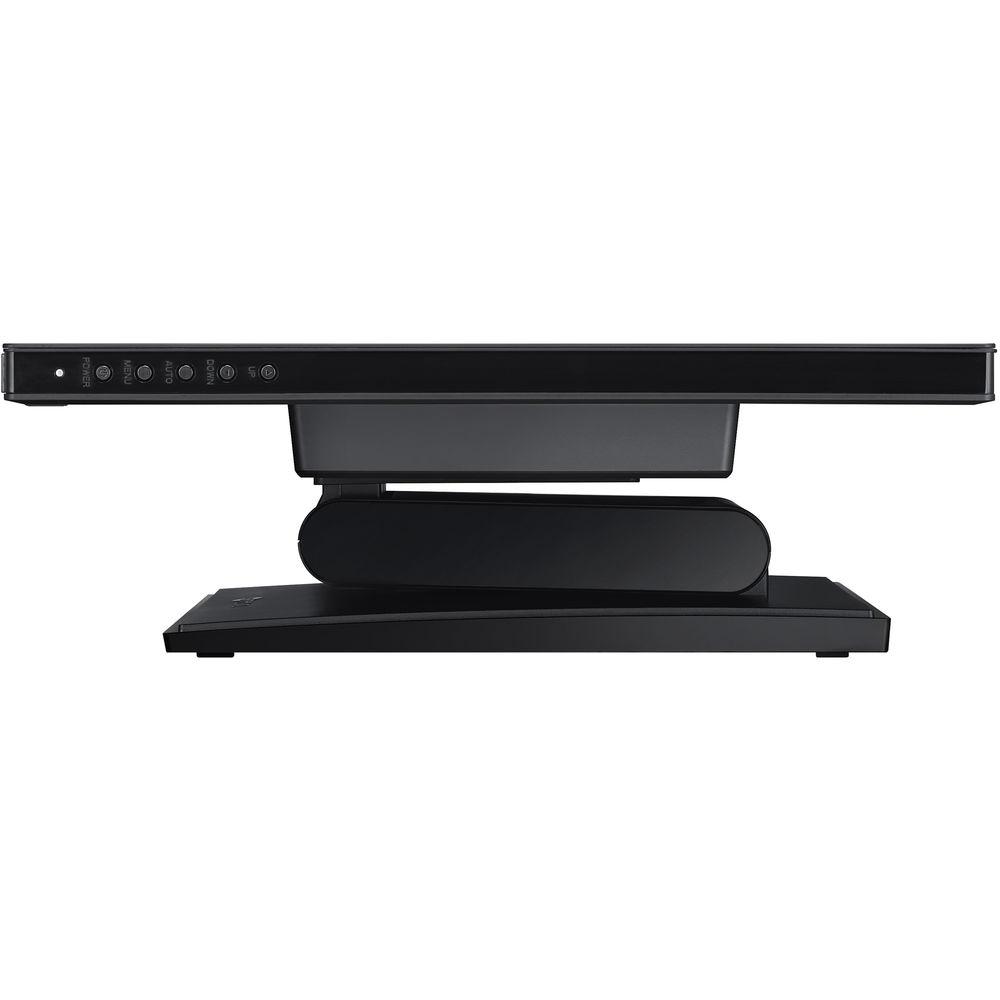

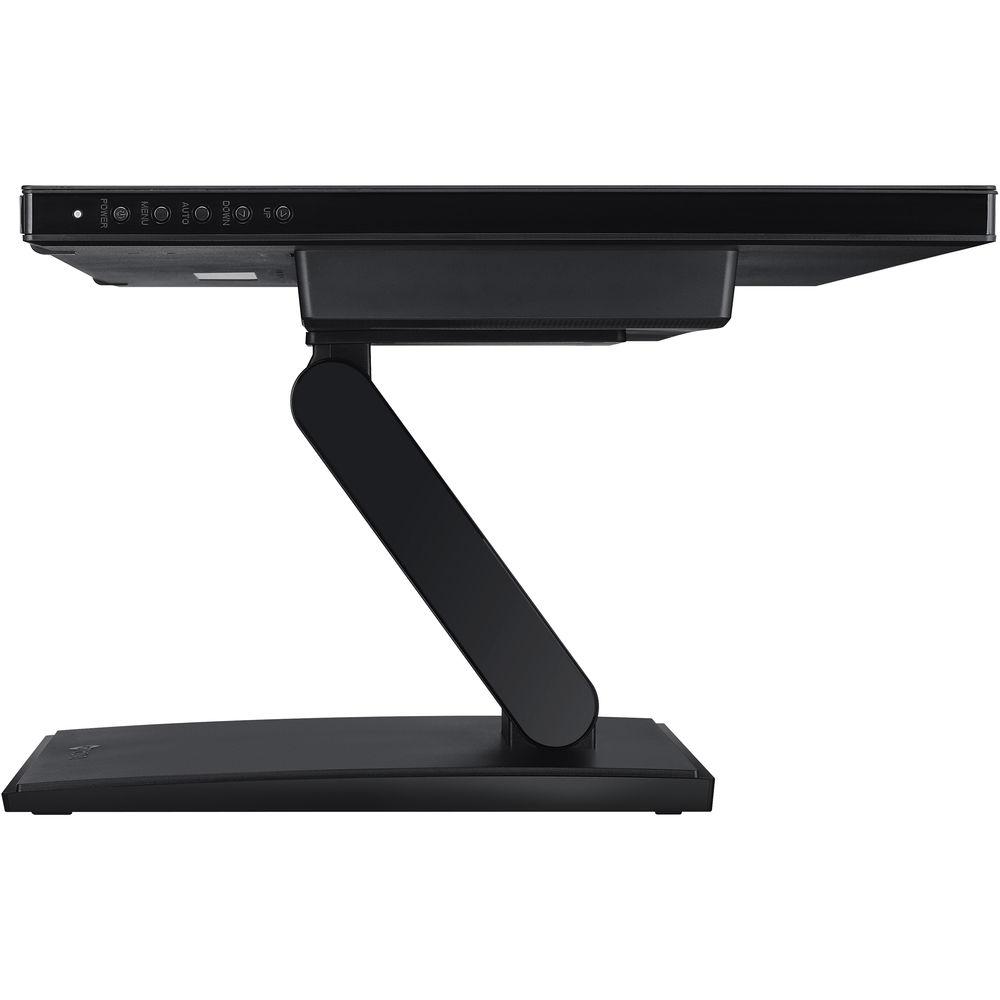

- Flexible dual-hinge stand design to maximize viewing comfort for multiple users

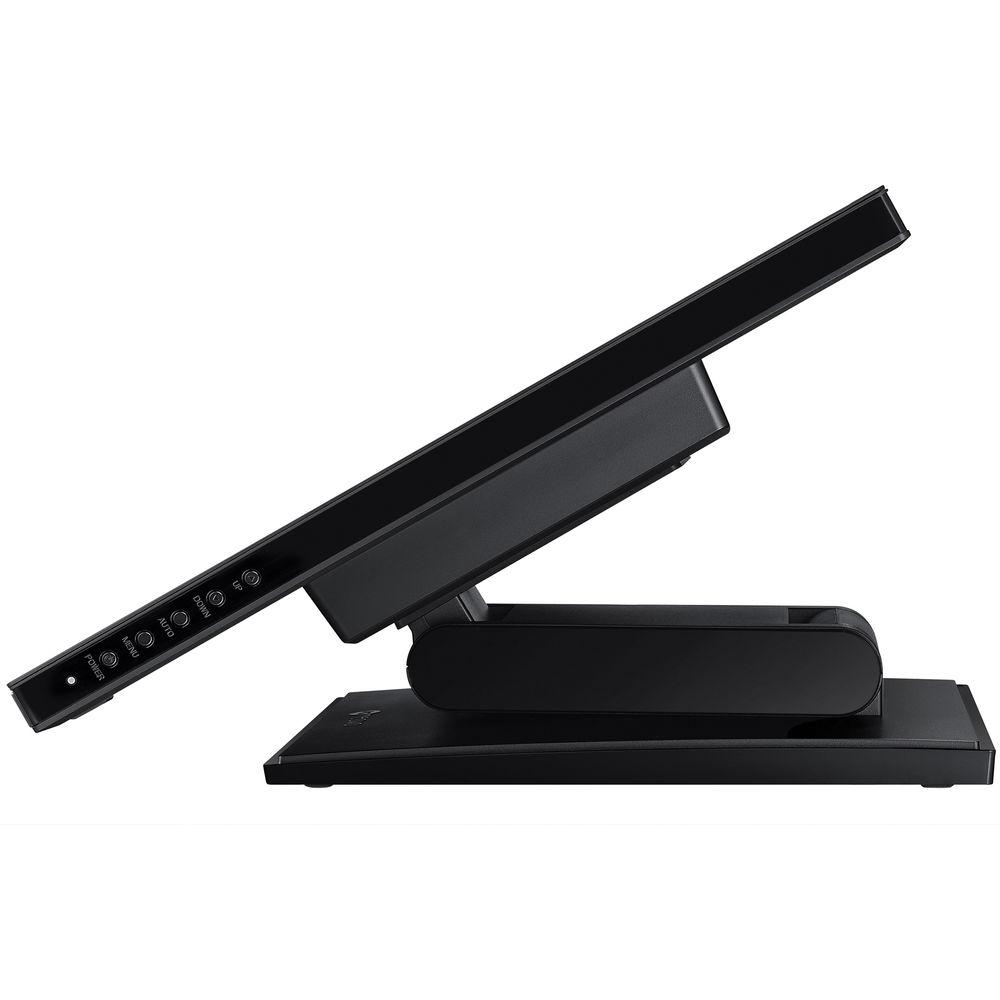

- Tilt capacity from: 5 to 90°
- Kensington security socket
UPC: 813086002994 In the Box AG Neovo TM-23 23" 10-Point Touch Display Power Cord 15-pin D-Sub Cable USB Cable Audio Cable Limited 3-Year Warranty Brochure PDF 291.9kbwwvtvwvuvsscfxycfqebxf Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo TM-23 23" 10-Point Touch Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

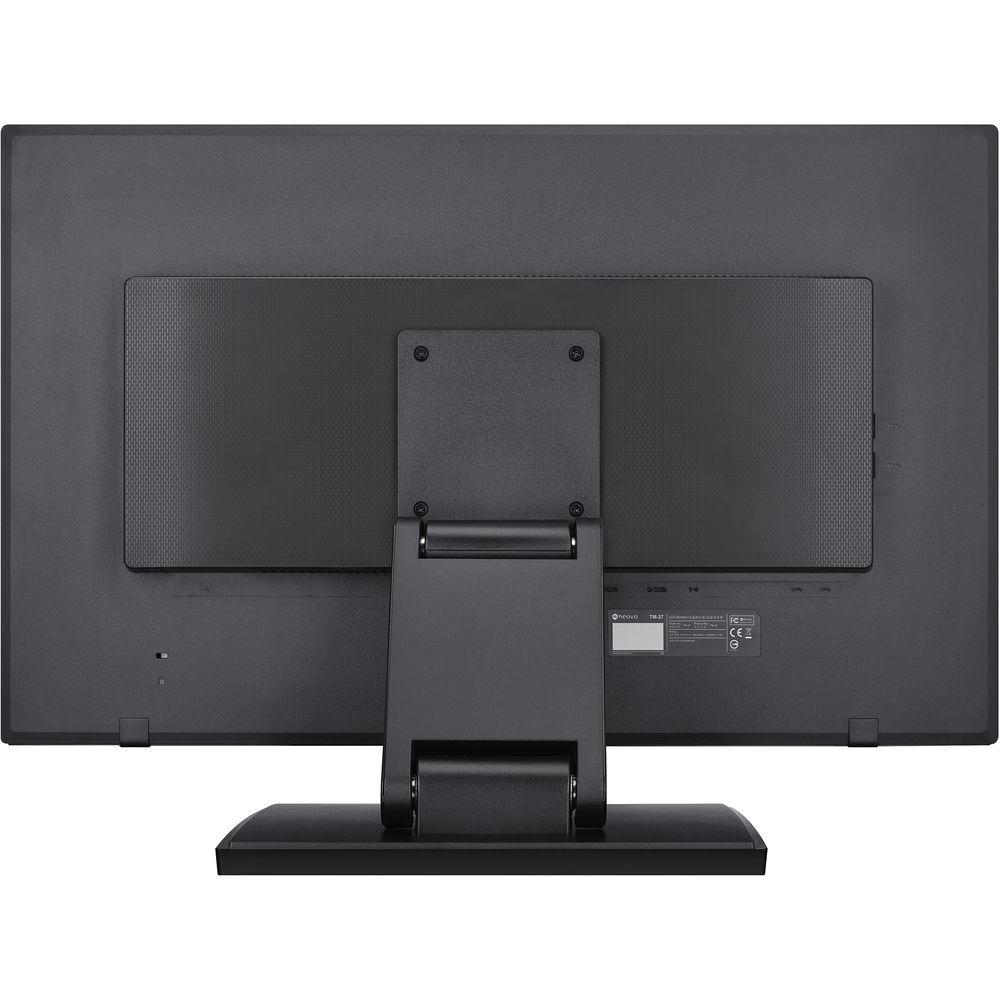

Technical parametersAG Neovo TM-23 Specs | | | Panel Type | LED-Backlit TFT LCD (IPS Panel) | | Panel Size | 23" (58.42 cm) | | Max Resolution | FHD 1920 x 1080 | | Pixel Pitch | 0. 265 x 0.265 mm | | Brightness | 250 cd/m2 (Typical) | | Contrast Ratio | 1000:1 (Typical) | | Viewing Angle (H/V) | 178/178° | | Display Color | 16.7 million | | Response Time | 3 ms (GTG) | | | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 55 to 75 Hz | | | | VGA | 15-pin D-Sub | | HDMI | HDMI | | DisplayPort | DisplayPort | | USB Port | USB 3.0 x 4 | | | | Audio In | 1 x stereo audio in for PC (audio jack, 3.5 Ø) | | Speaker | 2 W x 2 | | | | Technology | Projected Capacitive | | Panel | USB (Type-B, HID compliant) | | | | Power Supply | Internal | | Power Requirements | 100 to 240 V, 50 to 60 Hz, Internal | | Consumption | < 28 W (On), < 0.5 W (Stand-by), < 0.5 W (Off) | | | | Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 10 to 85% (no condensation) | | Mounting | VESA FPMPMI (100 x 100 mm) | | Regulations | Certifications & Compliance: FCC, CB, CE, RoHS, GOST-R, WEEE, REACH | | Dimensions (W x D x H) | 22.1 x 9.4 x 16.6" (561 x 238.5 x 422.6 mm) with base | | Weight | 16.3 lb (7.4 kg) with base |
