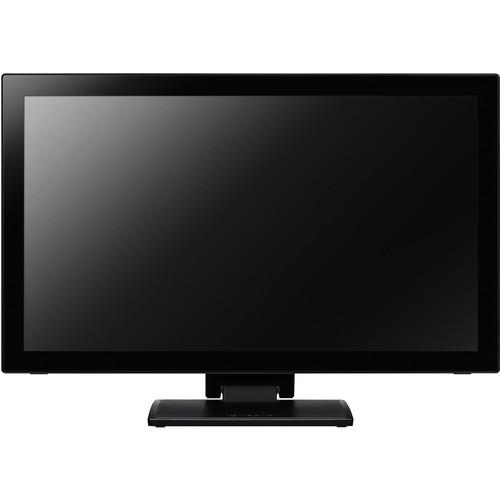

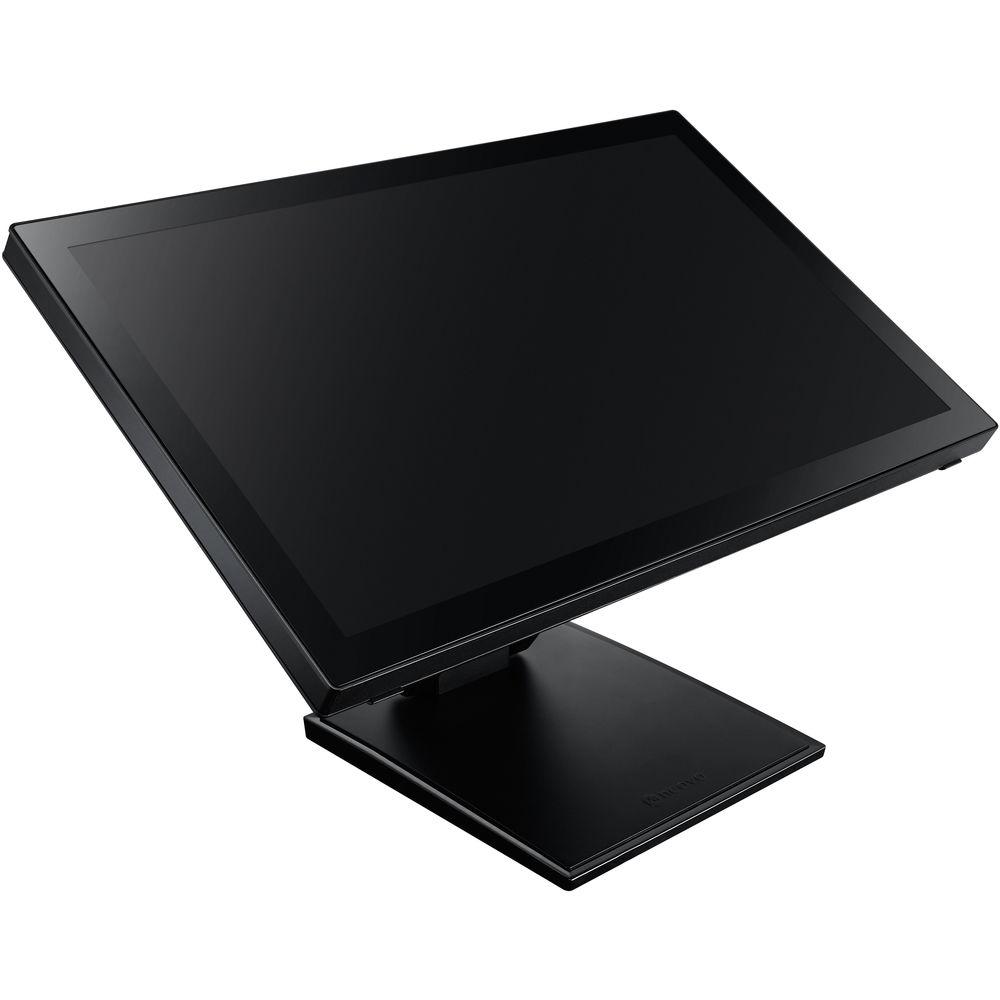

User Manual for AG Neovo TM-27 27" 10-Point Touch Display Click to enlarge the picture
Contents of the user manual for the AG Neovo TM-27 27" 10-Point Touch
- Product category: Surveillance Monitors AG Neovo
- Brand: AG Neovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AG Neovo Surveillance Monitors
 |
User manual for the AG Neovo TM-27 27" 10-Point Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AG Neovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AG Neovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AG Neovo product will considerably shorten its lifespan!
|
Product description The TM-27 27" 10-Point Touch Display from AG Neovo is built on Projected Capacitive Touch technology enabling users to navigate the display intuitively and precisely on a spacious screen. Highlighting its 10-point touch capability, multiple users can share an interactive experience on the same screen simultaneously. Its versatile inputs allow for effortless system integration. Leveraging a flexible dual-hinge stand, it provides height adjustability and a wide tilt range that optimize multi-user comfort and productivity. A combination of function and aesthetics, the TM-27 display is suitable for a spectrum of interactive environments where efficiency is essential. - MVA panel provides consistent and accurate color from all viewing angles
- Incorporates Projected Capacitive Touch technology
- 10-point touch capabilities for systems with Microsoft Windows 7 and 8
- LED-backlit technology with 1920 x 1080 Full HD resolution
- Flush touch screen makes surface neat and clean
- Connectivity: VGA, HDMI and DisplayPort
- Built-in USB Port (USB 3.0) for easy connection with peripheral devices
- HID compliant for easy integration without additional drivers

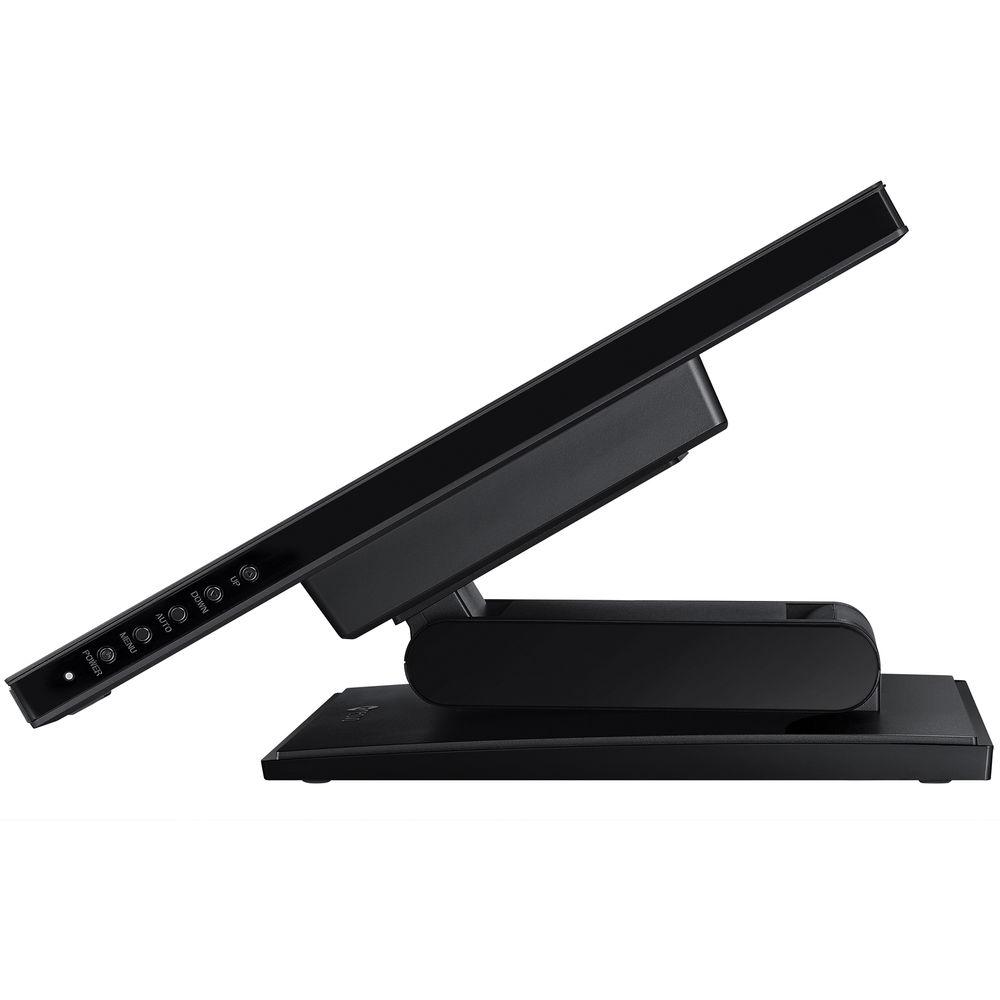

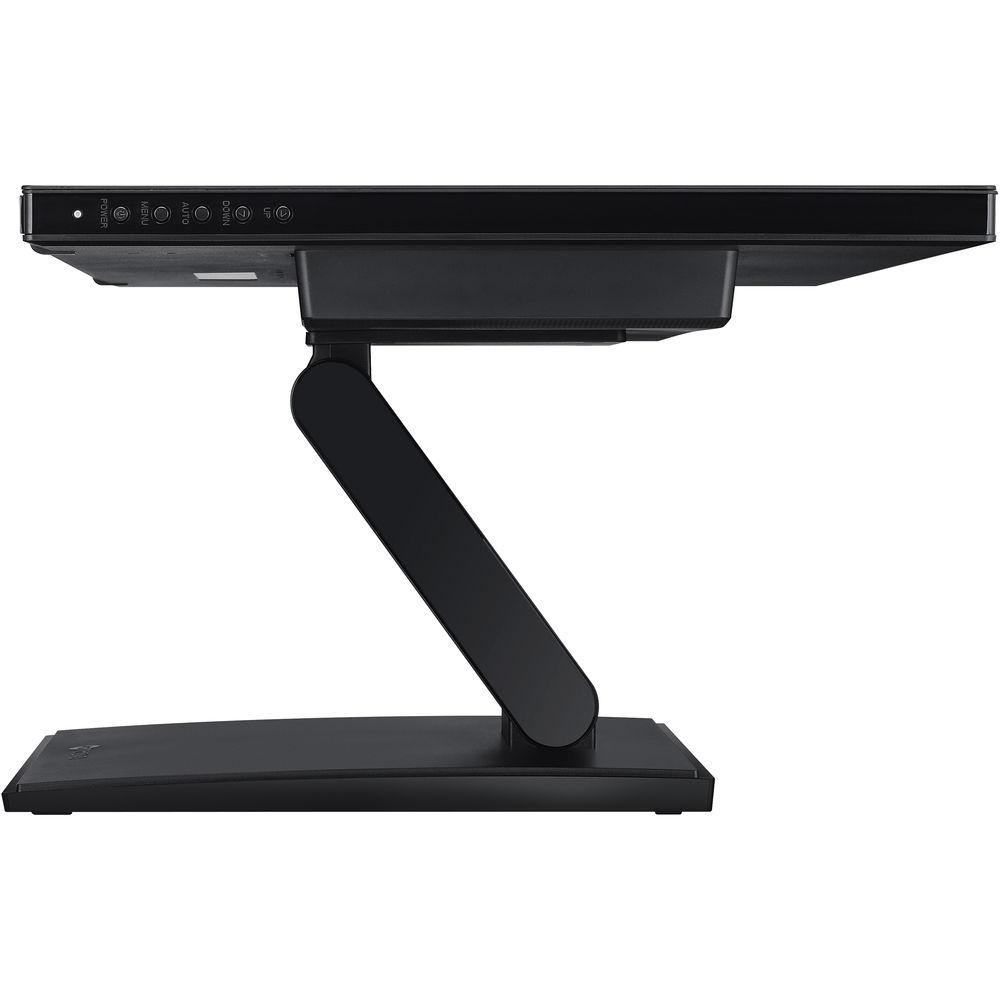

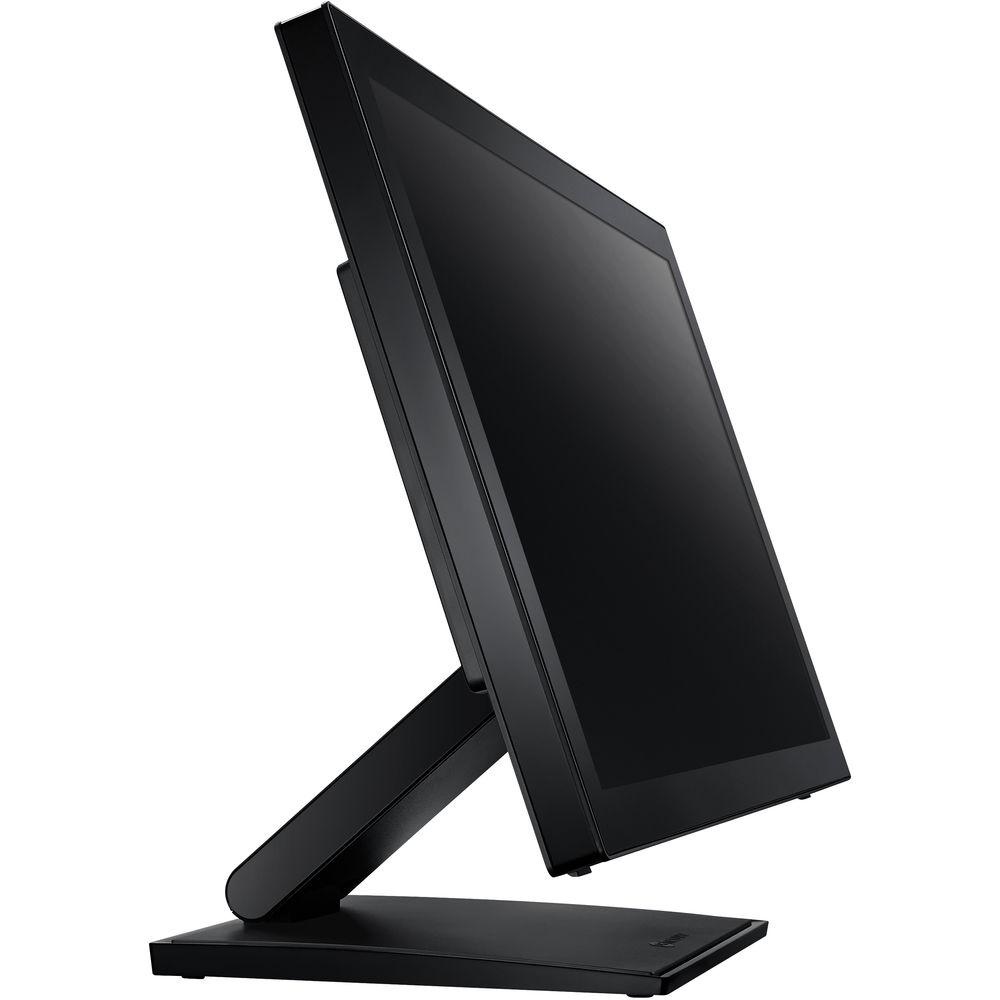

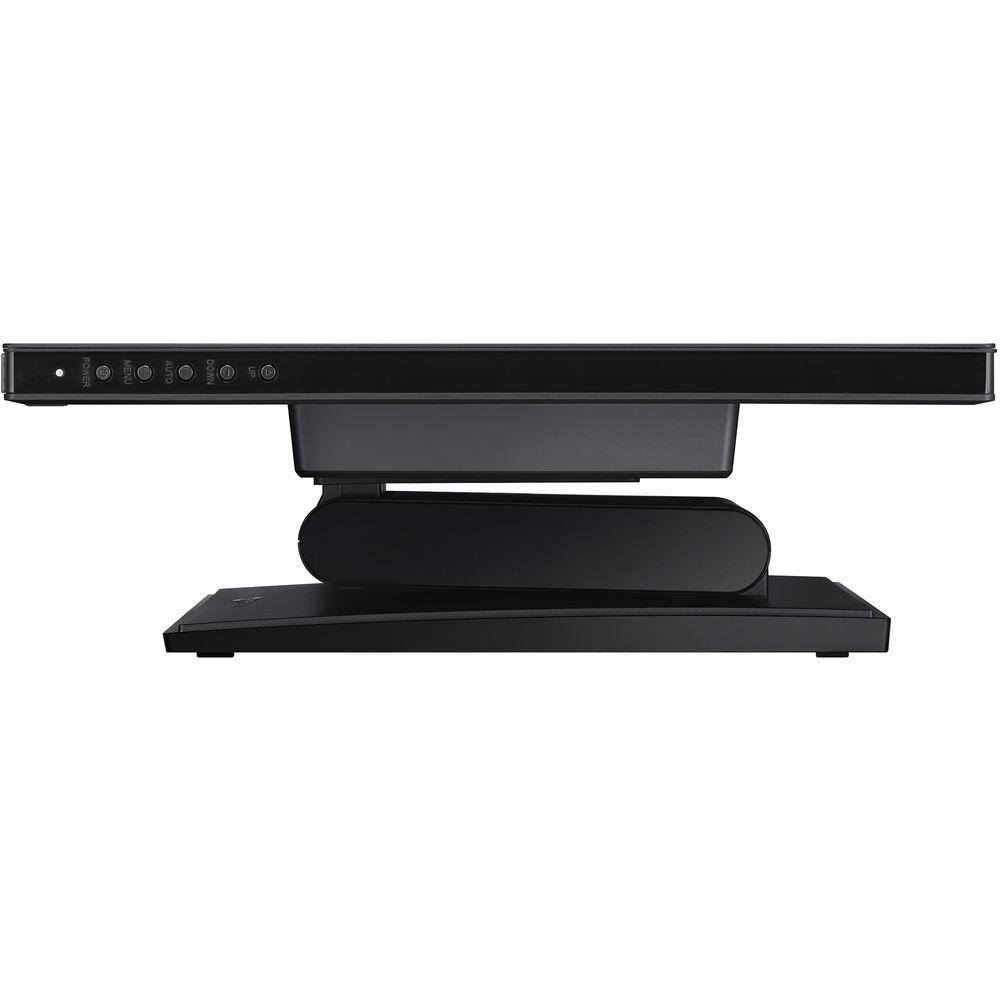

- Flexible dual-hinge stand design to maximize viewing comfort for multiple users
- Tilt capacity from - 5 to 90°
- Kensington security socket
In the Box AG Neovo TM-27 27" 10-Point Touch Display Power Cord 15-pin D-Sub Cable USB Cable Audio Cable Limited 3-Year Warranty Brochure PDF 291.9kbwwvtvwvuvsscfxycfqebxf Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo TM-27 27" 10-Point Touch Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

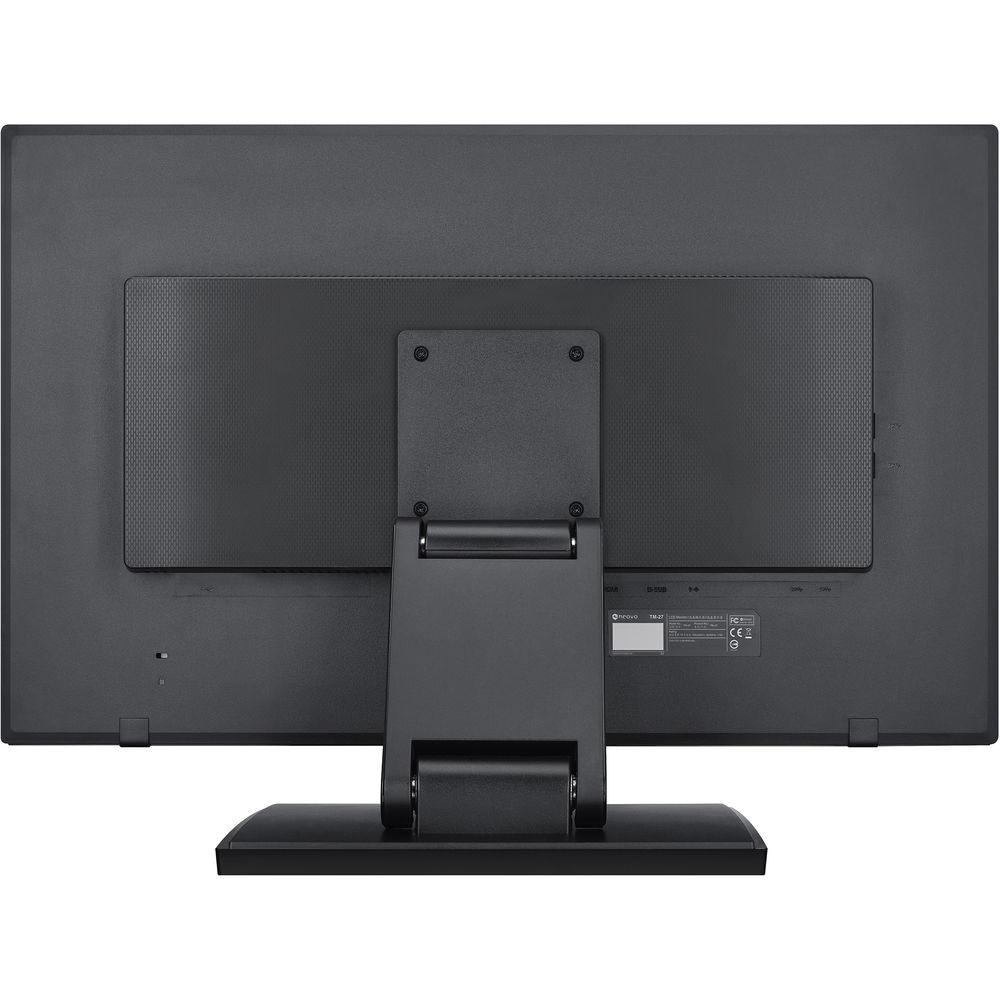

Technical parametersAG Neovo TM-27 Specs | | | Panel Type | LED-Backlit TFT LCD (MVA Panel) | | Panel Size | 27" (68.58 cm) | | Max Resolution | FHD 1920 x 1080 | | Pixel Pitch | 0.311 x 0.311 mm | | Brightness | 300 cd/m2 (Typical) | | Contrast Ratio | 1000:1 (Typical) | | Viewing Angle (H/V) | 178/178° | | Display Color | 16.7 million | | Response Time | 6 ms (GTG) | | | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 55 to 75 Hz | | | | VGA | 15-pin D-Sub | | HDMI | HDMI | | DisplayPort | DisplayPort | | USB Port | USB 3.0 x 4 | | | | Audio In | 1 x stereo audio in for PC (audio jack, 3.5 Ø) | | Speaker | 2 W x 2 | | | | Technology | Projected Capacitive | | Panel | USB (Type-B, HID compliant) | | Webcam | 2 MP resolution | | | | Power Supply | Internal | | Power Requirements | 100 to 240 V, 50 to 60 Hz, Internal | | Consumption | < 30 W (On), < 0.5 W (Stand-by), < 0.5 W (Off) | | | | Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 10 to 85% (no condensation) | | Mounting | VESA FPMPMI (100 x 100 mm) | | Regulations | Certifications & Compliance: FCC, CB, CE, RoHS, GOST-R, WEEE, REACH | | Dimensions (W x D x H) | 26.0 x 12.9 x 17.9" (660 x 328.5 x 454 mm) with base | | Weight | 24.2 lb (11.0 kg) with base |
