User Manual for AG Neovo TX-32 32" Full HD Widescreen LED-Backlit MVA Touch-Screen Surveillance Display Click to enlarge the picture
Contents of the user manual for the AG Neovo TX-32 32" Full HD
- Product category: Computer Monitors AG Neovo
- Brand: AG Neovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AG Neovo Computer Monitors
 |
User manual for the AG Neovo TX-32 32" Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AG Neovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AG Neovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AG Neovo product will considerably shorten its lifespan!
|

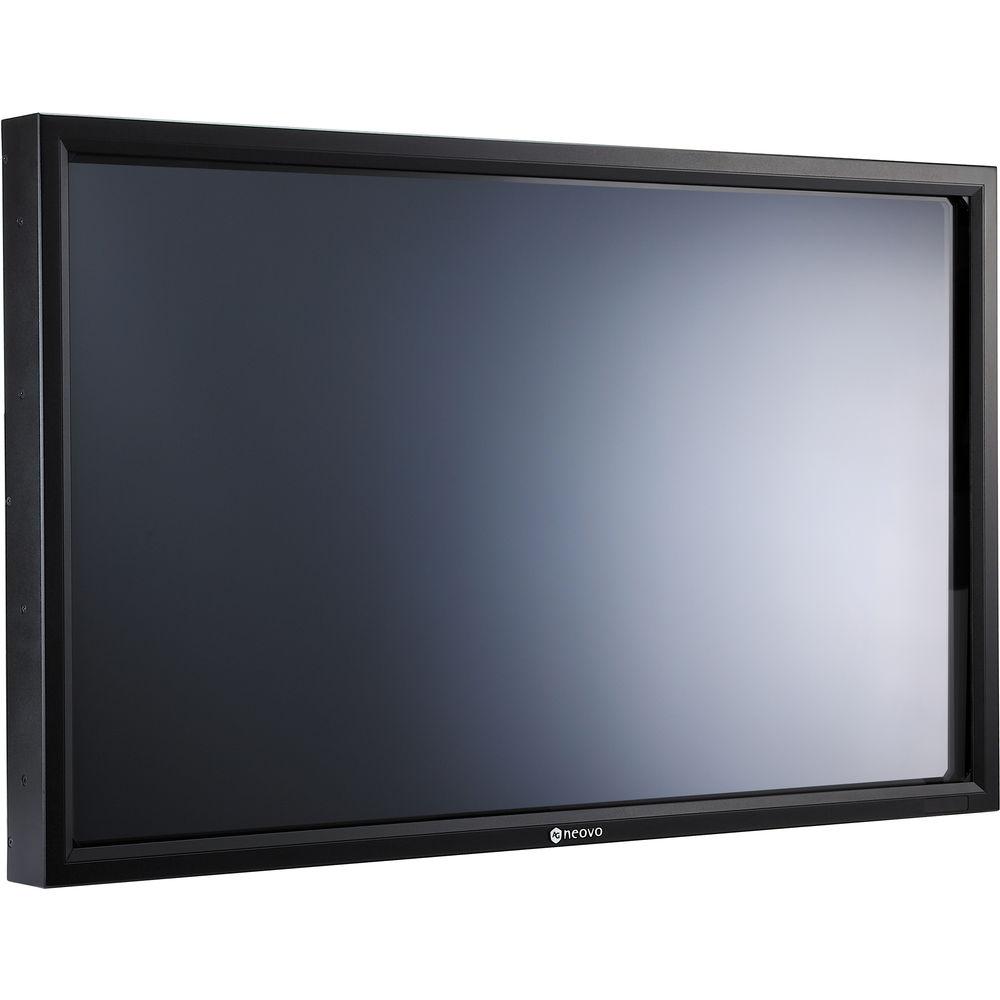

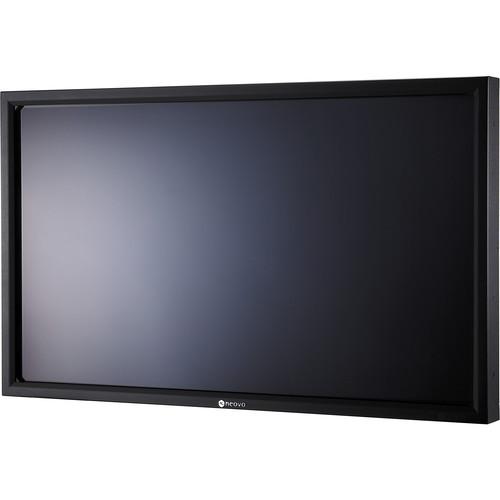

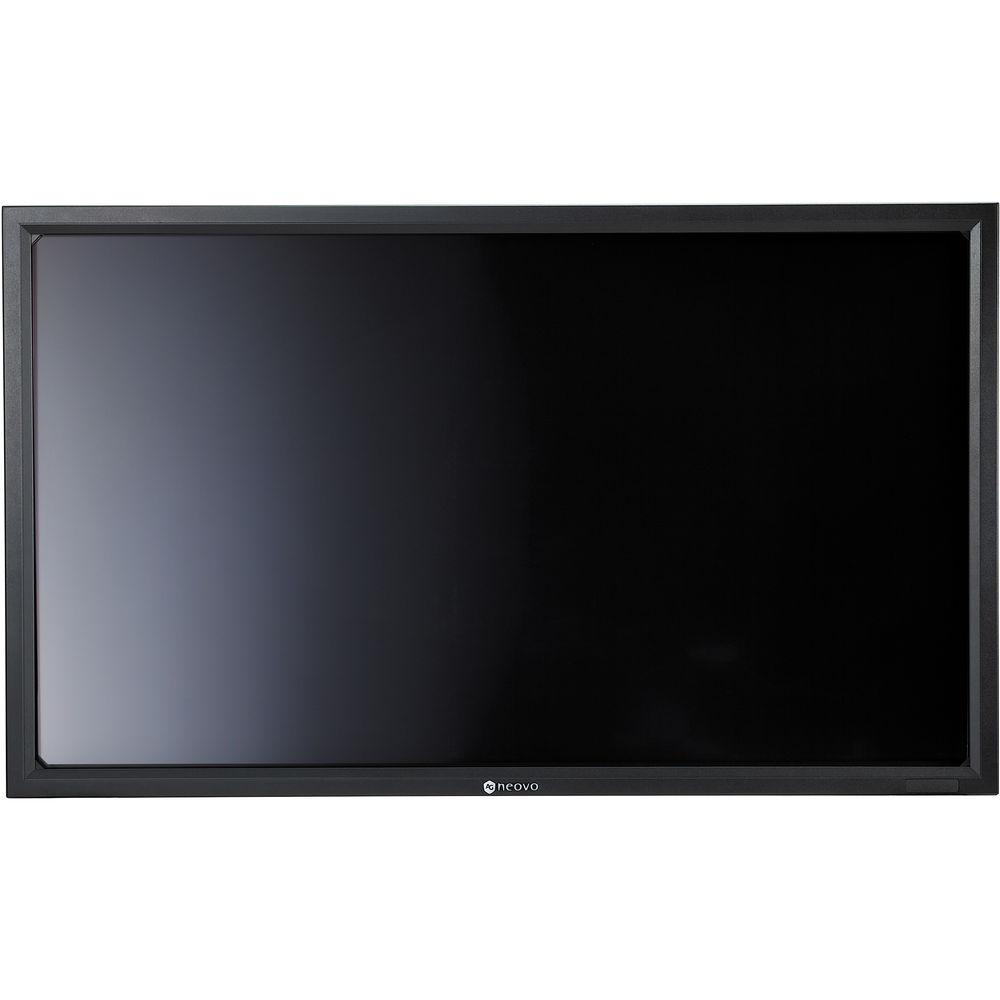

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The TX-32 32" Full HD Widescreen LED-Backlit MVA Touch-Screen Surveillance Display from AG Neovo features maximum brightness of 350 cd/m2, contrast ratio of 3000:1, and a wide viewing angle of 178°/178° (H/V). The display's touch-screen features advanced optical touch technology that provides 5-point touch capability with accurate and zero-pressure response from pointing objects. In addition, the NeoV Touch Glass protects the panel from scratches. The internal heat sensor, a wide range of connectivity options, and programmable scheduler make this display suitable for digital signage applications. With a robust metal housing and Anti-Burn-in technology, this surveillance display is designed to provide excellent performance in high-traffic public environments. - Advanced optical touch technology that provides accurate, zero-pressure response from any object, including a stylus or even gloved fingers
- Thanks to optical touch technology, the display needs low maintenance since no recalibration is required
- MVA panel technology ensures consistent and accurate colors from virtually any viewing angle
- NeoV Touch Glass protects the screen, provides smooth on-screen navigation, and prevents fingerprints
- 5-point touch capability in Microsoft Windows 7 and 8
- Support for Microsoft Windows XP, Vista, 7, 8, Mac OS X, Linux
- LED-backlit technology with Full HD resolution
- Advanced Image Platform (AIP) Technology: PIP/PBP function, 3D comb filter / deinterlace / noise reduction
- EcoSmart Sensor detects ambient lighting condition and automatically adjusts brightness level to reduce power consumption

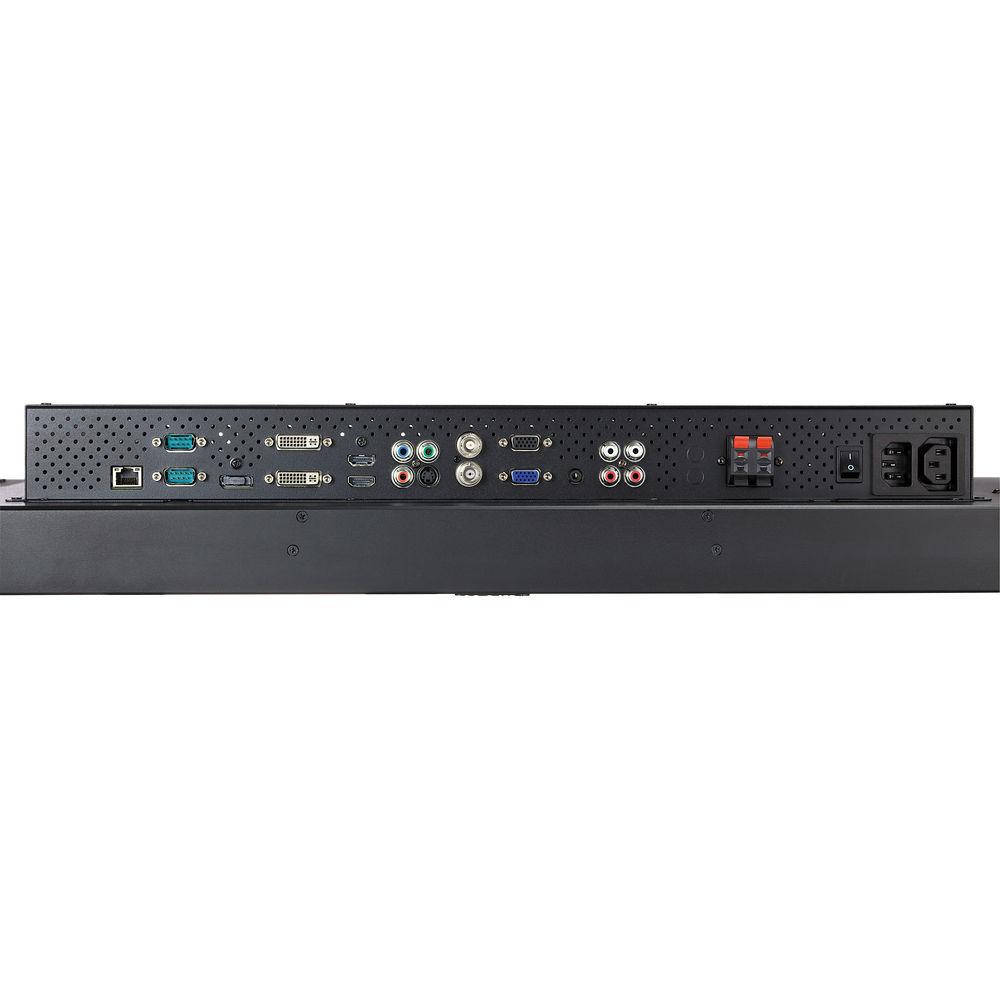

- Multiple Connectivity Options: VGA in/out, DVI in/out, HDMI, DisplayPort, BNC in/out, S-Video, component video, audio in/out
- Built-in scheduler allows different scheduled activations
- Tiling function for easy video wall setup (supports up to 5 x 5 configuration, available in non-touch mode)
- Support for portrait/landscape orientation
- HeatControl Sensor prevents the display from overheating
- RS-232 (in/out) and RJ45 for display control from a remote location
- Made from rigorously screened components for critical 24/7 applications
UPC: 813086002659 In the Box AG Neovo TX-32 32" Full HD Widescreen LED-Backlit MVA Touch-Screen Surveillance Display 15-Pin D-Sub Cable USB Cable Power Cord Remote Control and Batteries STD-02 Stand Base Limited 3-Year Warranty User Manual PDF 6.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AG Neovo TX-32 32" Full HD Widescreen LED-Backlit MVA Touch-Screen Surveillance Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAG Neovo TX-32 Specs | | | Type | MVA | | Backlight Type | LED-Backlit | | Size | 31.5" (80.0 cm) | | Maximum Resolution | 1920 x 1080 | | Refresh Rate | 60 Hz | | Pixel Pitch | 0.3637 mm | | Brightness | 350 cd/m2 (typical) | | Contrast Ratio | 3000:1 (typical) | | Viewing Angle (H/V) | 178°/178° | | Display Colors | 16.7 million | | Response Time (GtG) | 6.5 ms | | | | Horizontal | 30 to 75 kHz | | Vertical | 50 to 75 Hz | | | | Video Inputs | 1 x VGA (15-Pin D-Sub), 2 x HDMI, 1 x CVBS (BNC type), 1 x S-Video (4-pin mini DIN), 1 x DVI (24-pin), 1 x RCA set for component video (YPbPr), 1 x DisplayPort | | Video Output | 1 x CVBS (BNC type), 1 x DVI (24-pin), 1 x VGA (15-pin D-Sub) | | Audio | Input: 1 x 3.5 mm jack for PC stereo, 1 x RCA jack for stereo audio in
Output: 1 x RCA jack for stereo audio out
External Speaker Out: 2 x 10 W
Internal Speaker: 2 x 10 W | | | | Technology | Optical (active force not required) | | Accuracy | Positional Accuracy: ± 3.0 mm 100% of touchable active area | | Interface | USB (Type B, HID compliant) | | | | Thickness | 0.18" (3.00 mm) | | Gloss Level | 100GU | | Transmission Rate | >92% | | Coating Strength | >8H | | | | RS-232 | In/Out: 9-Pin D-Sub | | RJ45 Connector | 1 x RJ45 for external control | | | | Built-In Speakers | 2 x 10 W | | VESA Pattern | 400 x 200 mm | | OS Support | Microsoft Windows XP, Vista, 7, 8, Mac OS X, Linux | | | | Power Supply | Internal | | Power Requirements | 100 to 240 V, 50/60 Hz | | Power Consumption | <85 W (on), <0.5 W (standby), <0.5 W (off) | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10 to 80% (non-condensing) | | | | Certifications & Approvals | FCC, CB, CE, CEL, CCC, BSMI, RoHS, GOST-R, WEEE, REACH | | | | Dimensions (WxHxD) | 29.5 x 17.6 x 4.0" (75.0 x 44.7 x 10.2 cm) without base | | Weight | 38.7 lb (17.6 kg) | | | | Package Weight | 45.35 lb | | Box Dimensions (LxWxH) | 34.0 x 24.5 x 10.0" |
