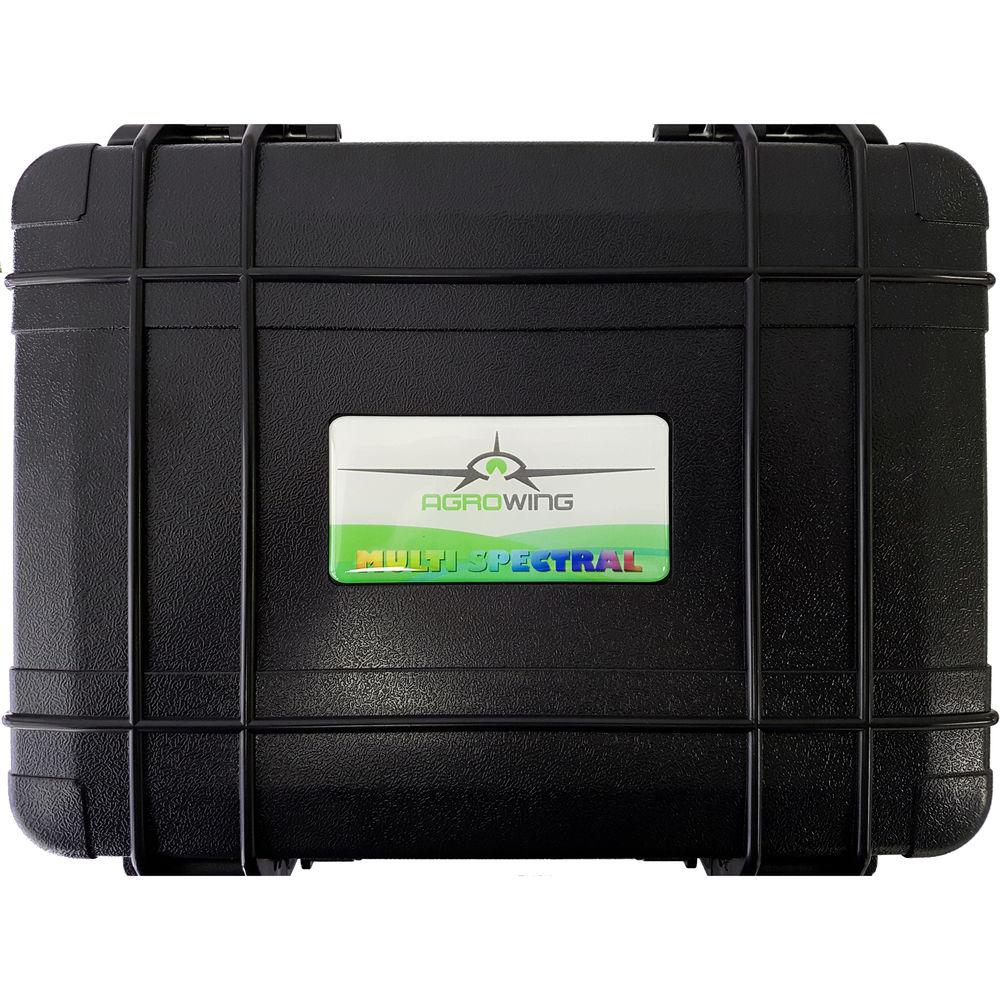

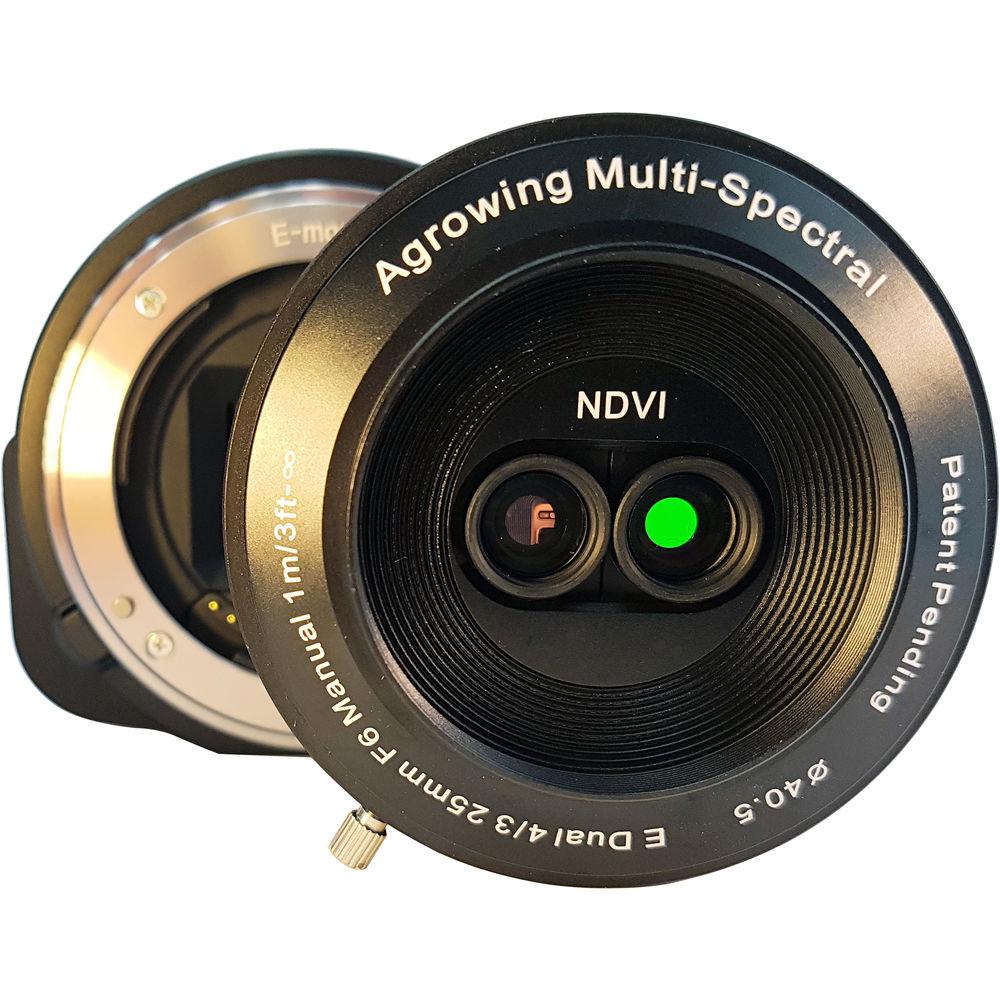

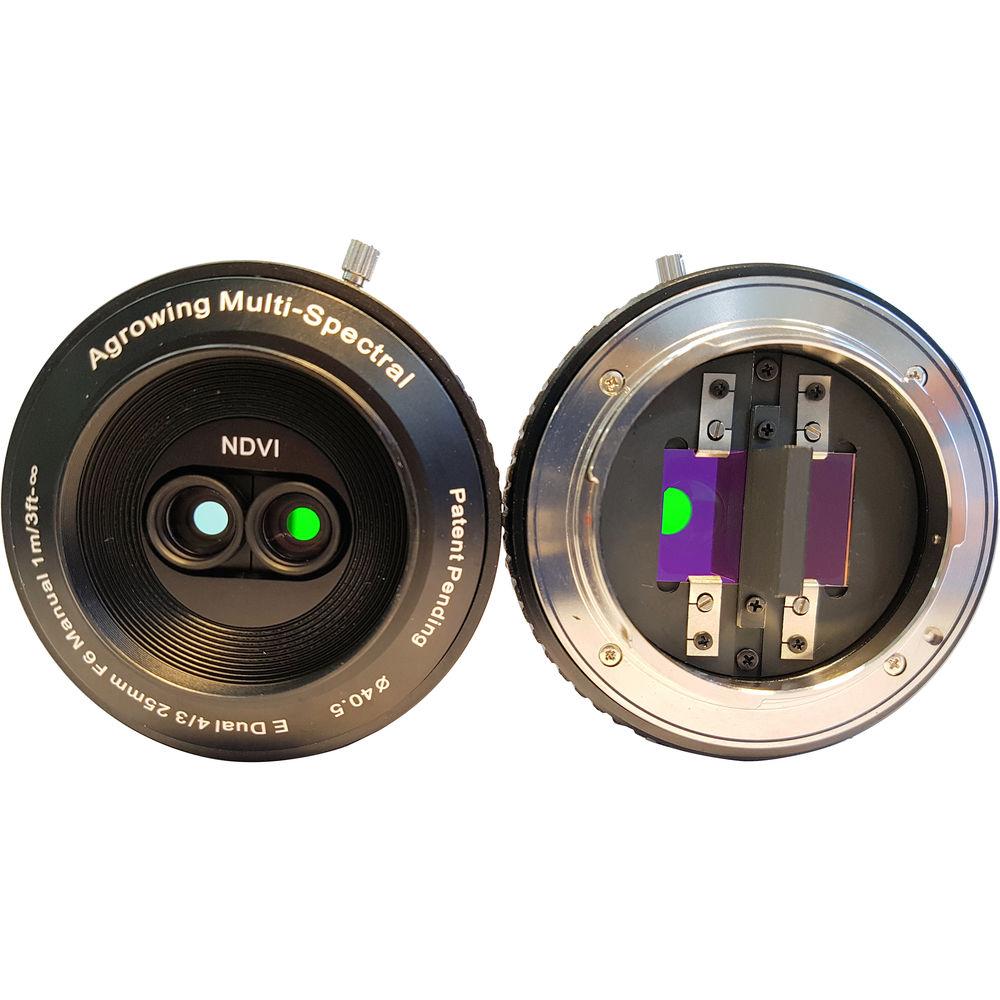

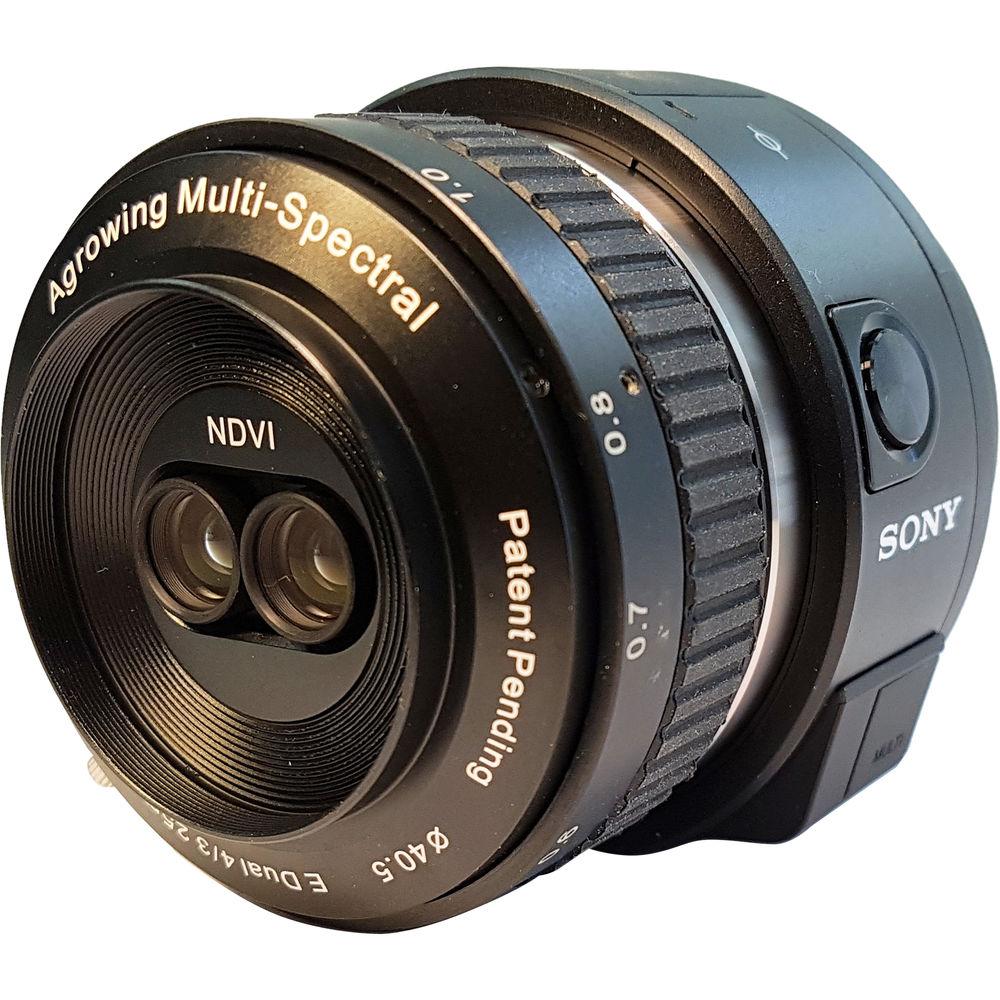

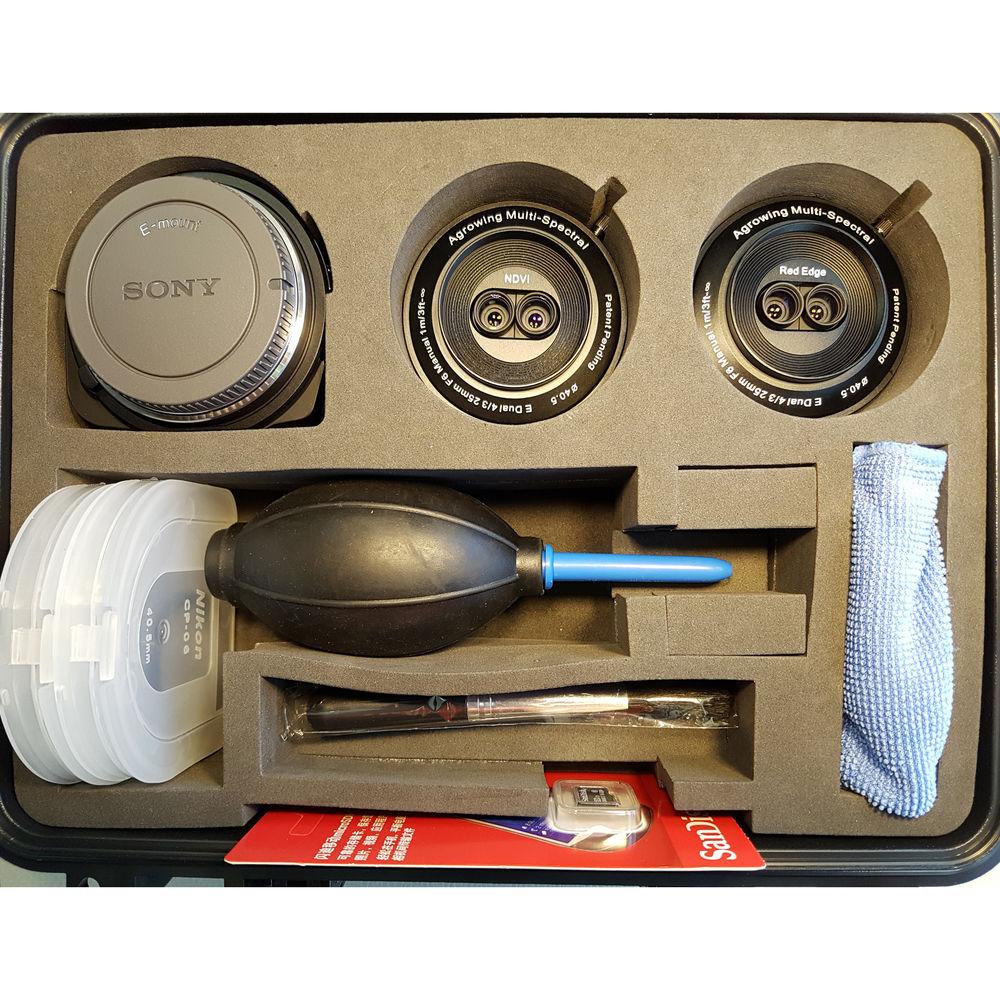

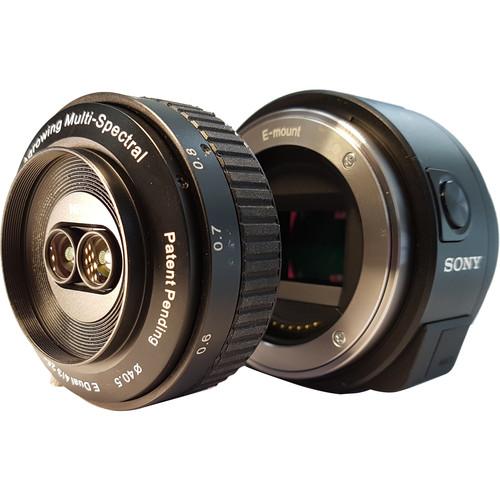

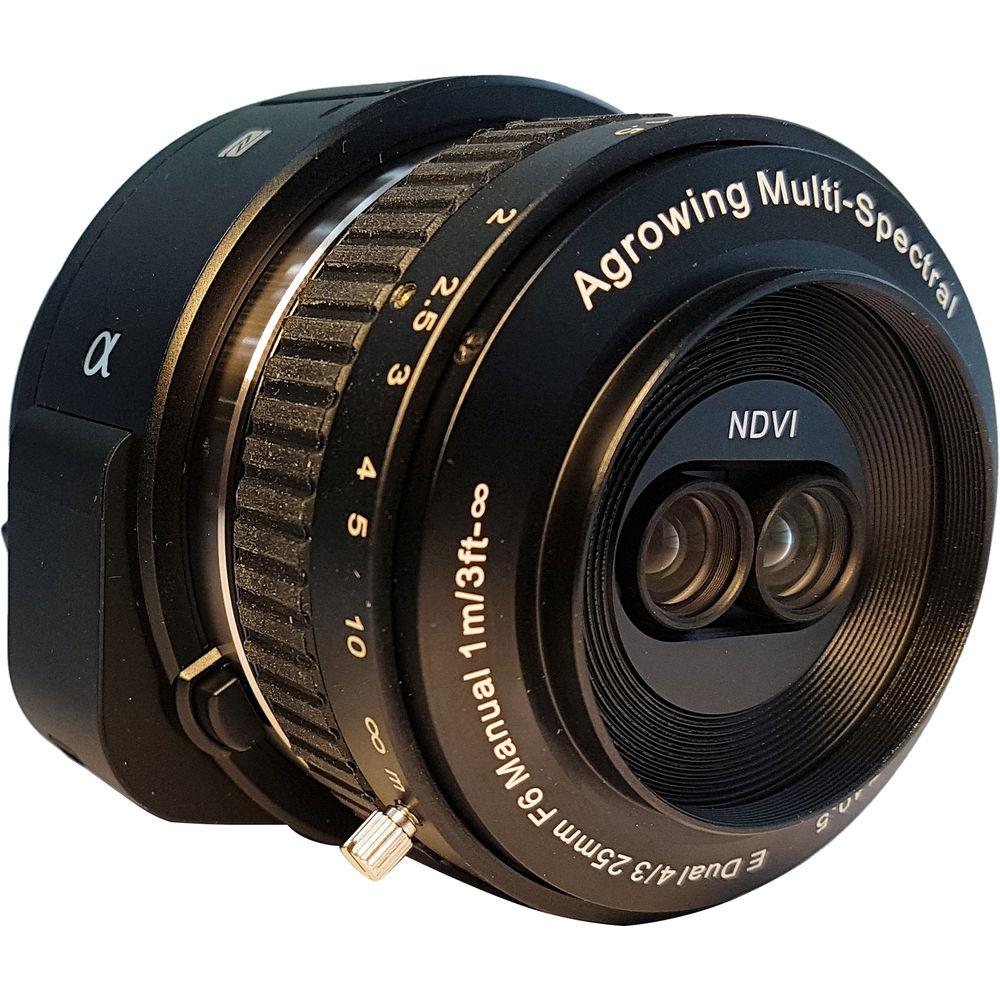

Product description Designed for surveying farm land, the AgroWing Multi-Spectral Evaluation Package contains everything you need to start taking multi-spectral images. Two multi-spectral Sony E-mount lenses, the NDVI and Red-Edge, feature dual optical paths that split the visible spectrum for analyzing specific agricultural phenomena using AgroSense software. Each lens allows for capturing different parts of the spectrum. The NDVI separates 450, 550, 650, and 850nm frequencies while the Red-Edge lens separates 450, 550, 710, and 850nm frequencies. Mount the included modified Sony QX1 camera to your drone and survey your crops from the sky, taking multi-spectral photos for quick analysis. Both lenses and the camera body fit into the included hard case with custom-cut foam for protection during transport and storage. UPC: 679856036411 In the Box AgroWing Multi-Spectral Evaluation Package Modified Sony QX1 Camera Body NDVI Lens Red-Edge Lens Battery 16GB microSD Card Hard Case Table of Contents
|
Upload User Manual
Have you got an user manual for the AgroWing Multi-Spectral Evaluation Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAgroWing QX1EVL25 Specs Camera | Mount: Sony E Sensor: APS-C Exmor APS HD CMOS Sensor Photo Resolution: 20.1MP Video Resolution: Full HD 1080p Video Recording at 30 fps Maximum ISO: 16000 Photo Burst Speed: Up to 3.5 fps Media: microSD and Memory Stick Micro Card Slot | Lenses | NDVI: Mount: Sony E Sensor Coverage: APS-C Spectral Bands: 450; 550; 650; 850 nm (Blue; Green; Red; Near-IR) Multi-Spectral Resolution: 8 MP (3550 x 2250 pixels) per color channel for 20.1 MP cameras (QX1) Multi-Spectral Video Resolution: 960 x 720 Focal Length: 25mm Focus Range: 1.5' / 0.5 m to infinity Aperture: f/6 Diagonal FOV: 42.5° Horizontal FOV: 26° Vertical FOV: 22.5° Back Focal Length: 28.03mm Construction: 7 elements in 5 groups TV Distortion: <1% Relative Illumination: 68% TTL: 44mm Effective Diameter: 9.68mm Dimensions (
