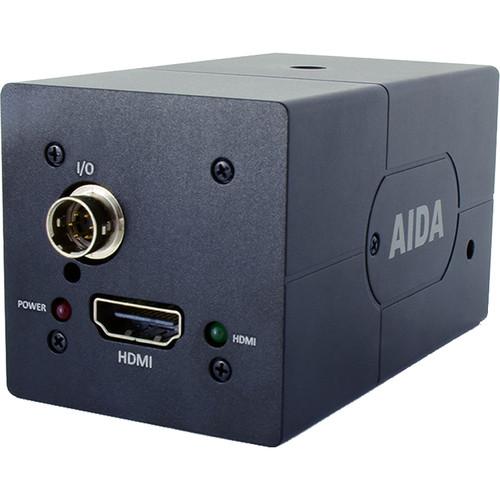

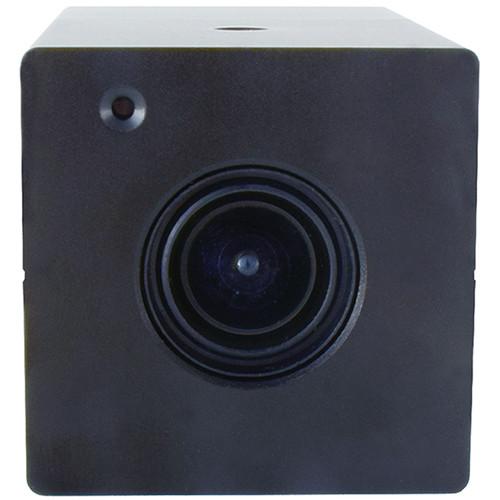

Product description The UHD-X3L Micro 4K 3X Zoom HDMI EFP Camera from AIDA Imaging is an ultra-compact field production camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 2 x 3", it can be mounted, for example, as a dashcam in a race car, or discretely in the corner of a surgical room.
The camera captures up to UHD 4K resolution video at 30 fps and offers 3X optical zoom with the built-in lens, allowing you to zoom in from a 78° wide angle to 25° telephoto field of view. It also provides focus and iris control. Applying a motion-compensated temporal noise reduction filter, Wide Dynamic Range, auto white balance, and digital image stabilization, the UHD-X3L captures vivid images without blurring even in low light conditions.
The UHD-X3L has an HDMI output that allows you to connect to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An optional wireless transmitter can be incorporated to enhance your workflow in some cases. An included breakout cable provides inputs for power and RS-485 control (VISCA protocol). The cable also has an integrated OSD controller on it. A power cord is supplied and a remote controller is also included. For mounting the camera, there's a 1/4"-20 threaded mounting hole on the bottom of the rugged body. - Key Features
-
- Ultra-compact, low-light friendly
- Up to UHD 4K resolution video at 30 fps
- 3X Optical Zoom: 78 - 25° field of view
- Focus and iris control
- HDMI output
- RS-485 input via breakout cable
- OSD controller integrated on breakout cable
- White balance control
- Wide Dynamic Range
- 2D/3D noise reduction
- Digital image stabilization
- Digital slow shutter
- Black level compensation
- Flicker detection
- 1/4"-20 threaded mounting hole
UPC: 720260897584 In the Box AIDA Imaging UHD-X3L Micro 4K 3X Zoom HDMI EFP Camera OSD Control Breakout Cable Power Cord with 3 Universal Plug Adapters Remote Control Hex Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AIDA Imaging UHD-X3L Micro 4K 3X Zoom HDMI EFP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAIDA Imaging UHD-X3L Specs | Image Sensor | 1/2.5" CMOS, 7.2 mm Diagonal | | Effective Pixels | H x V: 3840 x 2202 | | Pixel Size | 1.62 μm | | Resolution | 3840 x 2160 at 30/29.97/25/24
1080p60/59.94/50/30/29.97/25/24
1080i60/59.94/50
720p60/59.94/50 | | Connections | HDMI 1.4 Type A Output
I/O Port for Breakout Cable
Breakout Cable:
Power Input
RS-485 Input | | Color Space | 4:2:2 (YCbCr) 10-Bit | | Lens | 3X Optical Zoom, 3.85mm/78° (Wide) to 13.4mm/25° (Telephoto) | | SMPTE | SMPTE 292M, SMPTE 424M, SMPTE 2081-10 | | Mount Type | 1/4"-20 Threaded Hole | | Power | 12 VDC (9 to 15 VDC) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 1.9 x 1.9 x 3.3" / 4.8 x 4.8 x 8.3 cm | | Weight | 0.3 lb / 140 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.54 x 5.4 x 4.3" |
